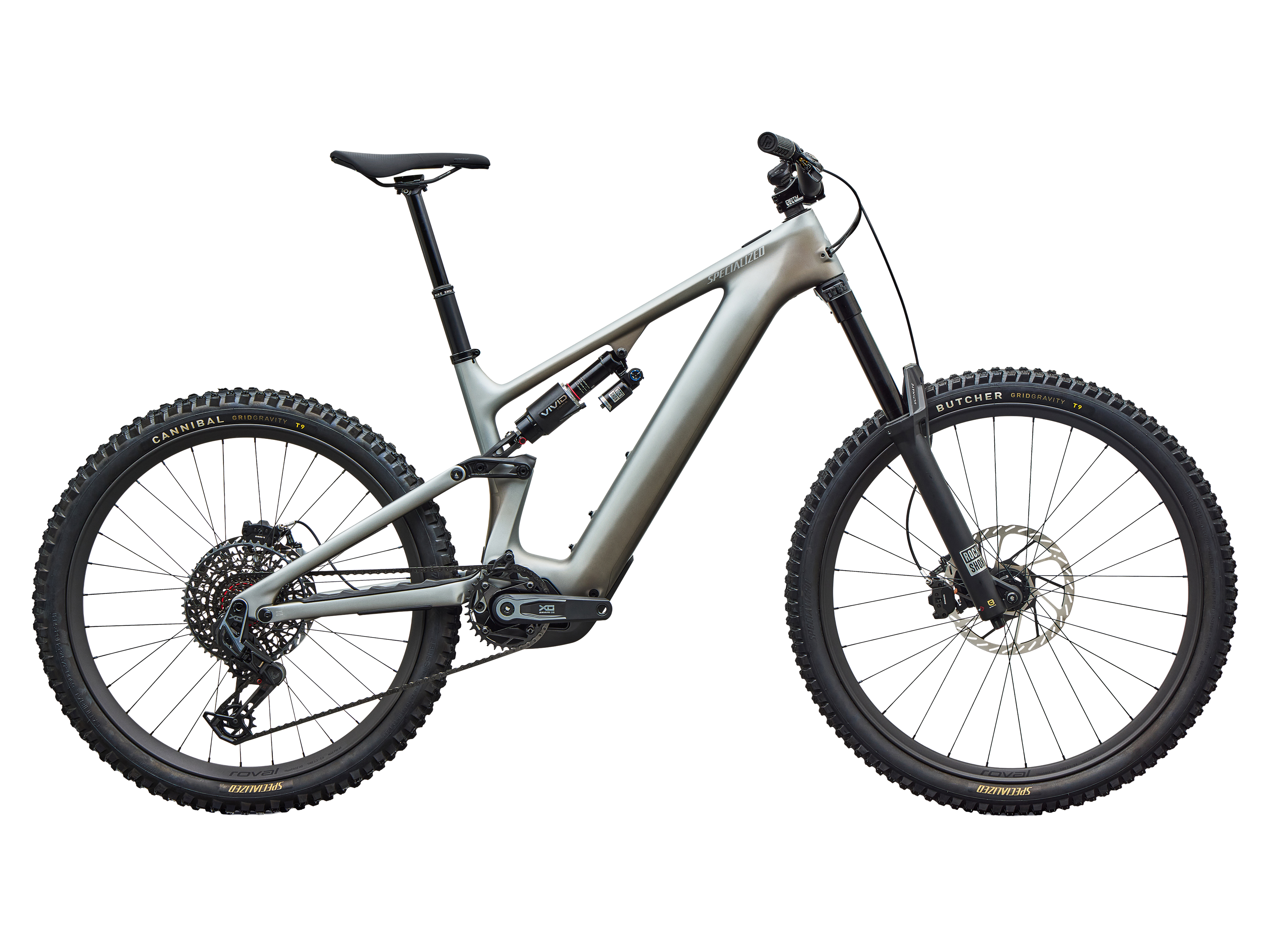

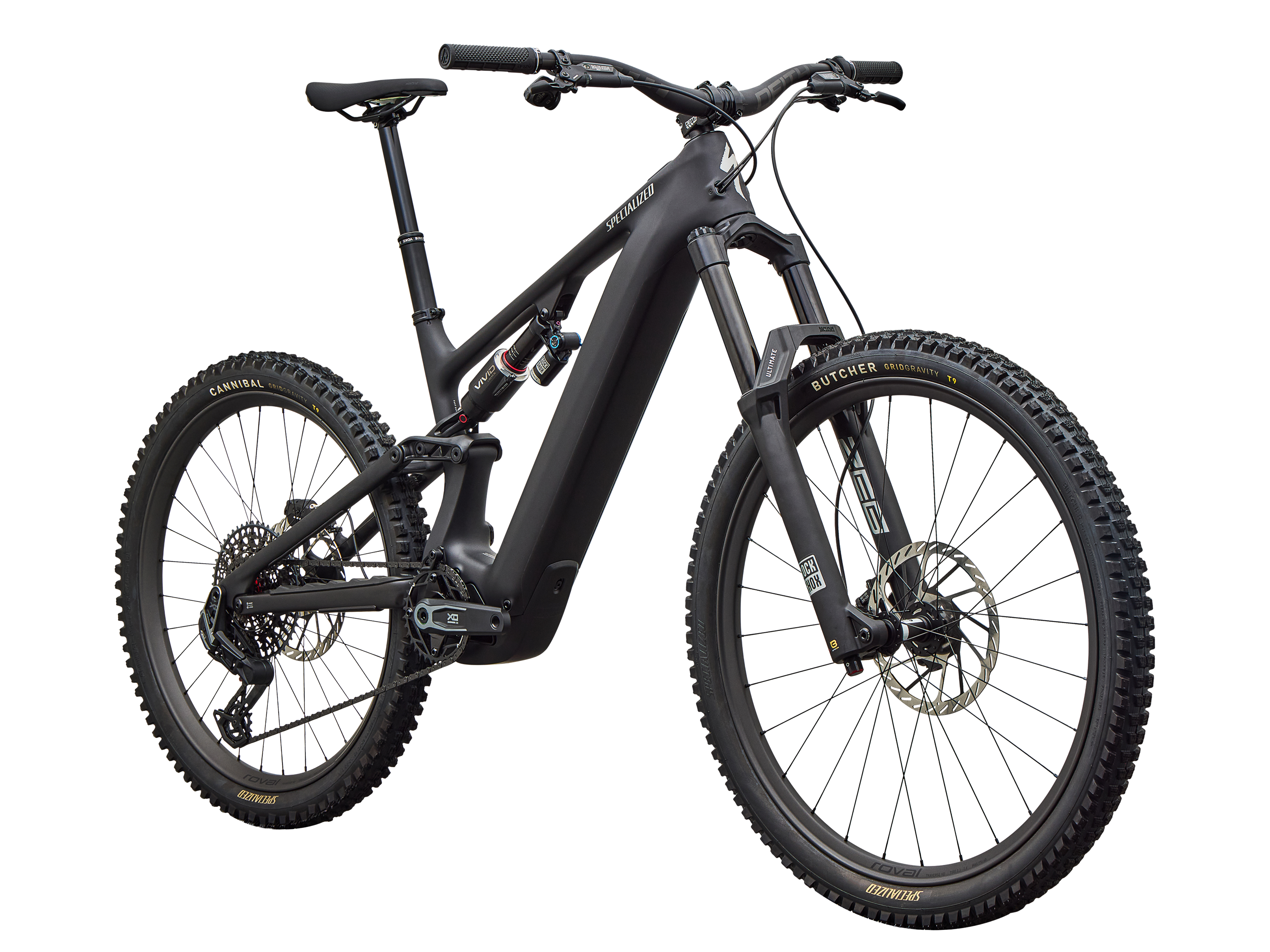

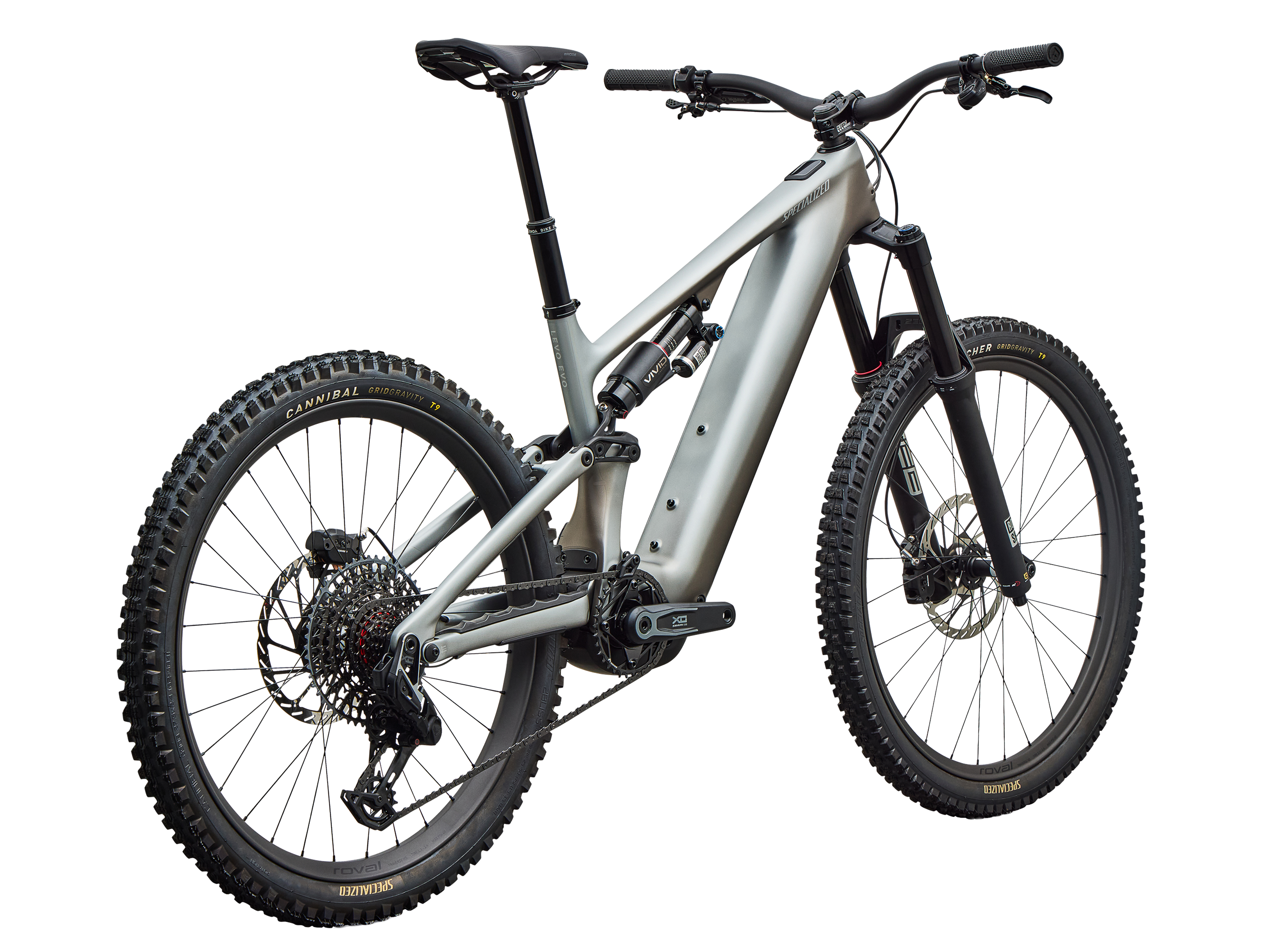

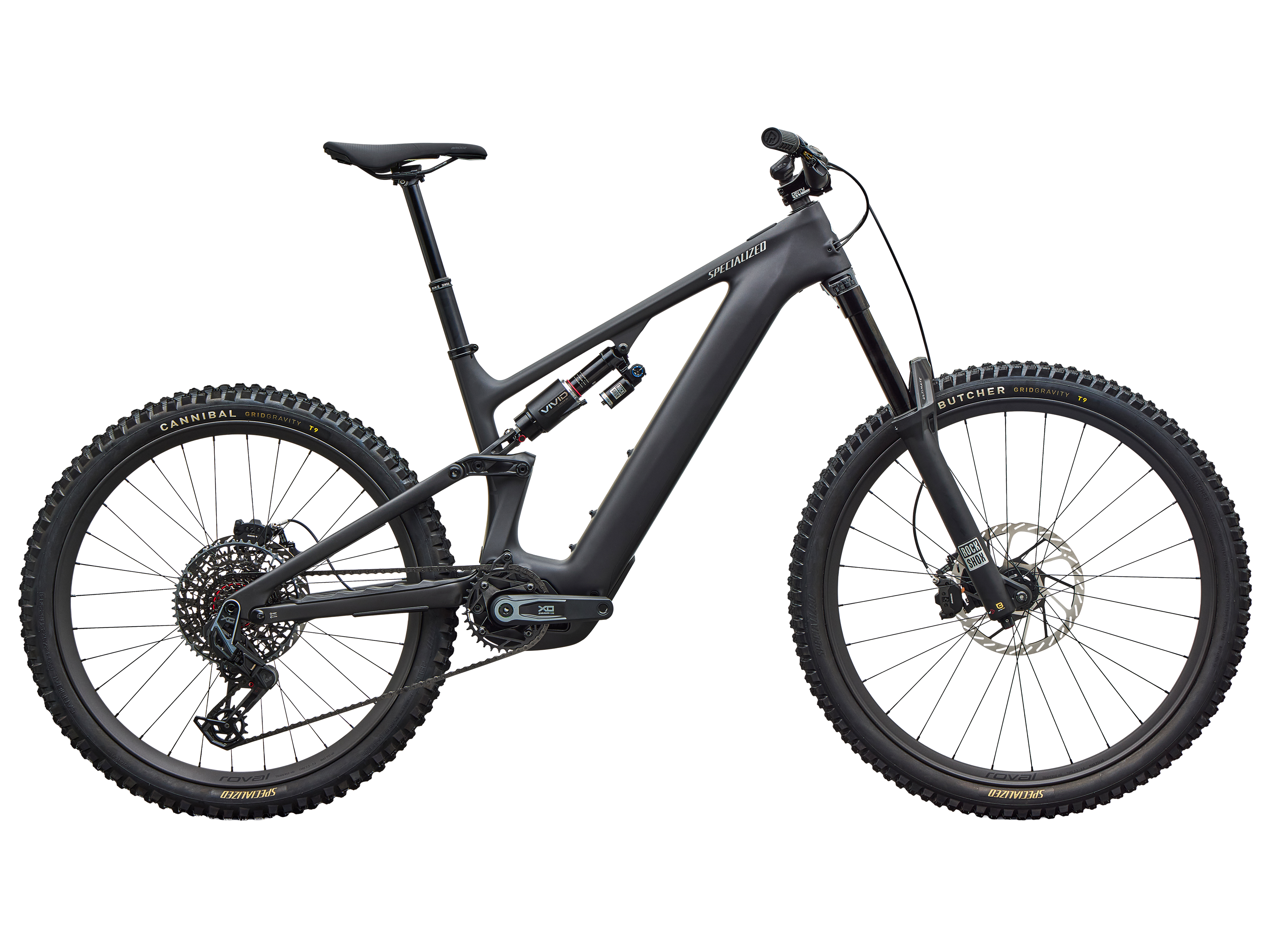

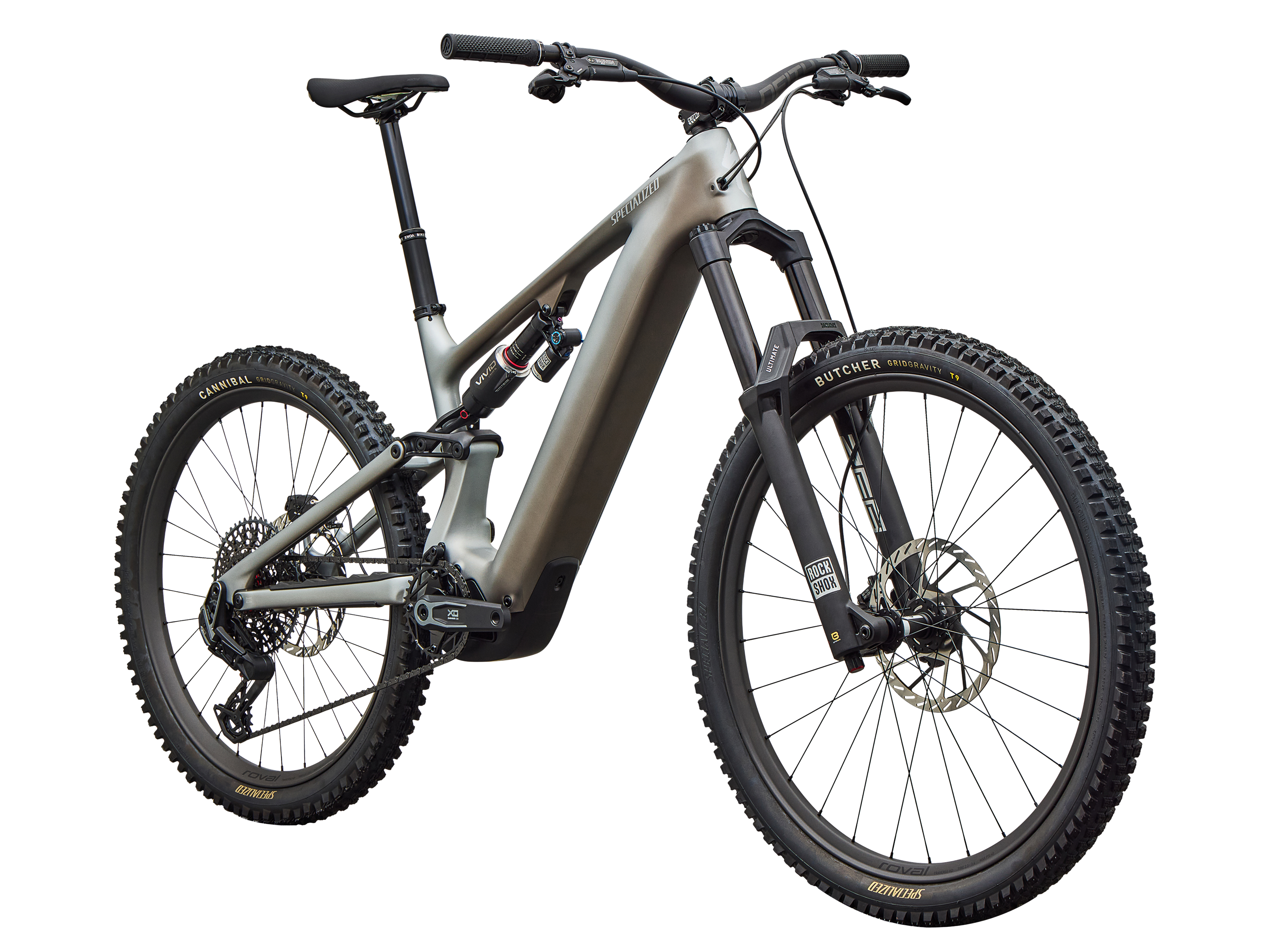

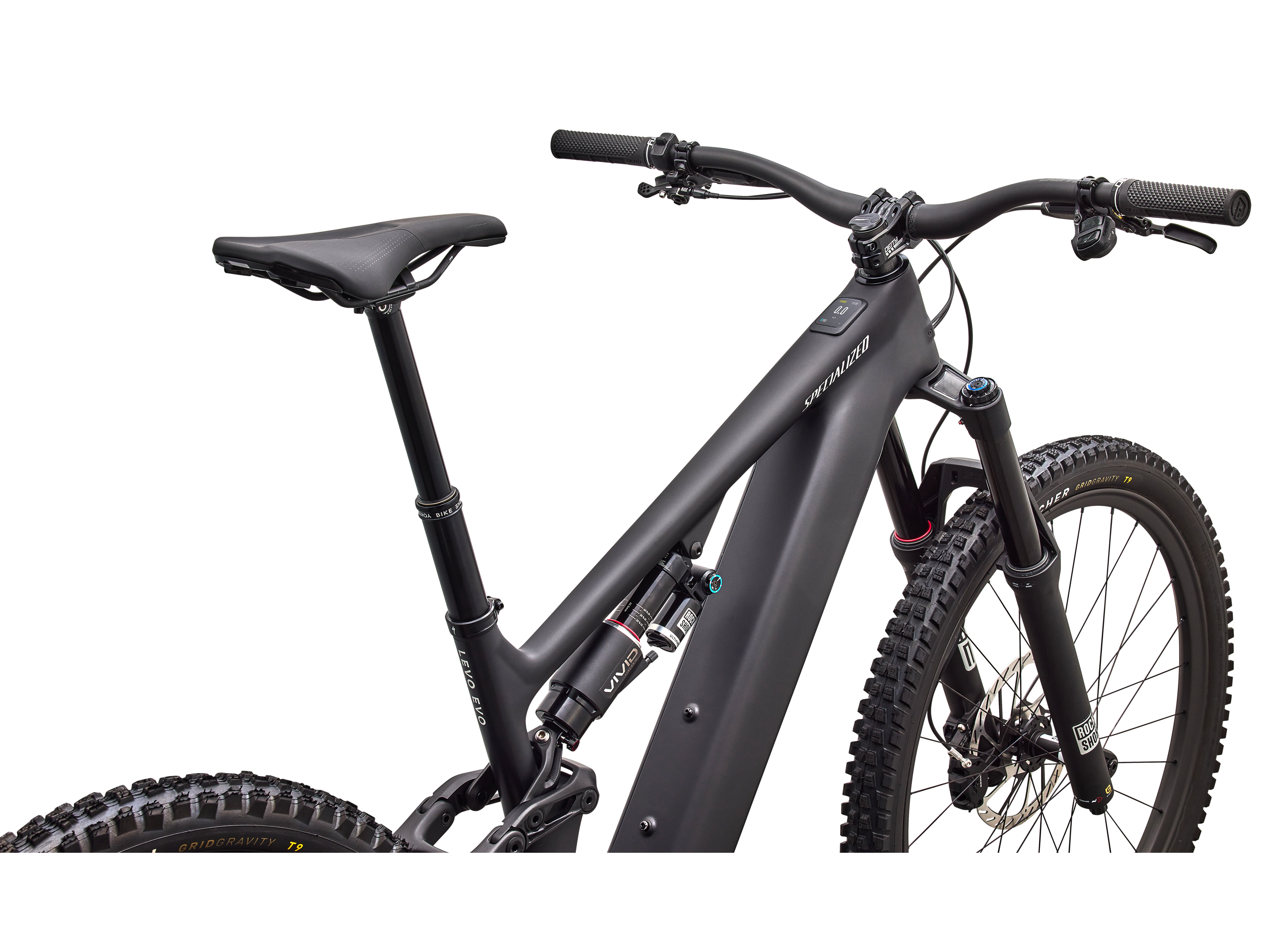

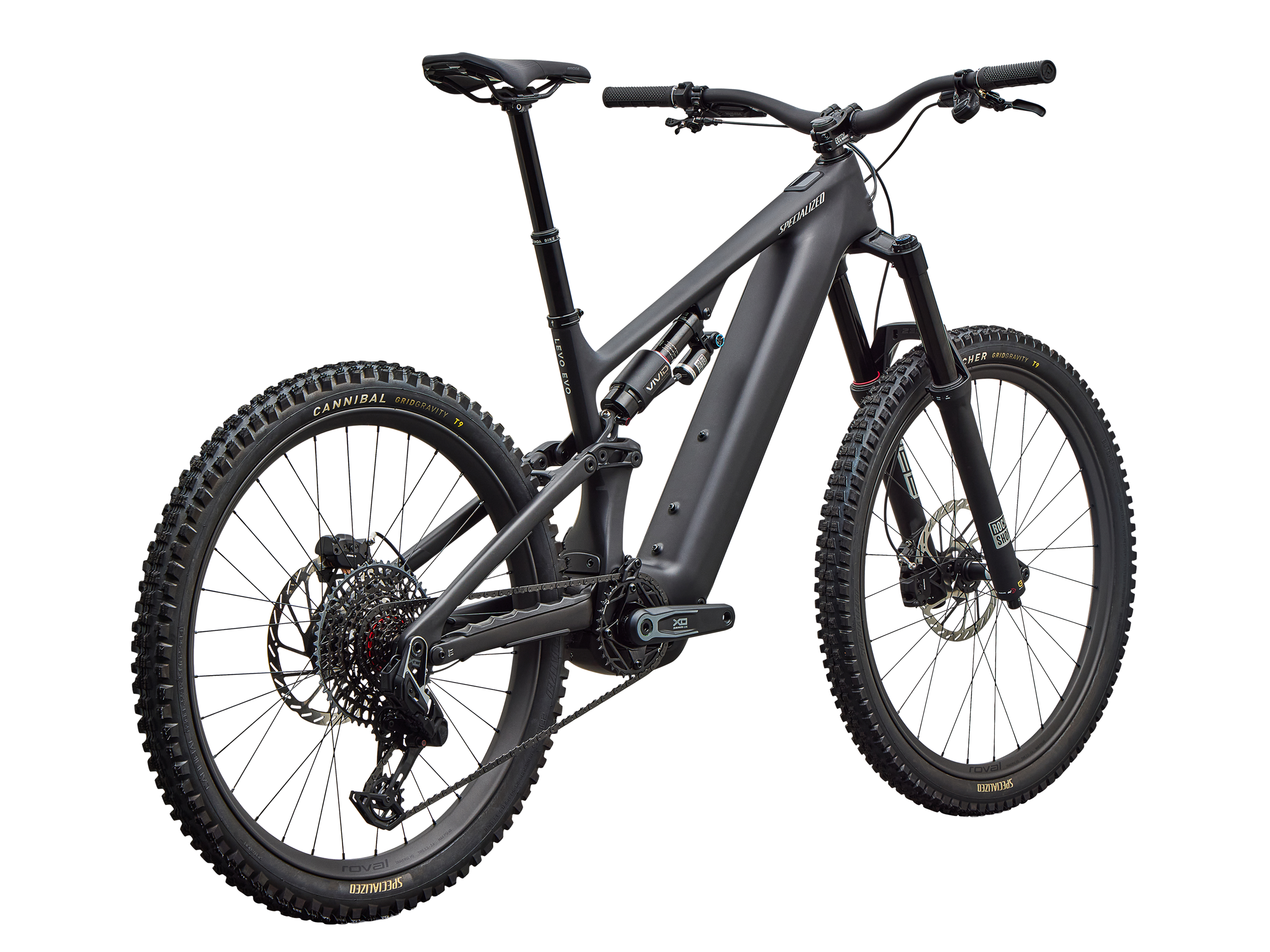

Turbo Levo 4 EVO Pro Complete E-Bike
Turbo Levo 4 EVO Pro Complete E-Bike
Satin Carbon/Dolomite / S2
Fanatik Bike
1812 N. State St.
Bellingham WA 98225
United States
Choose options
Levo 4 EVO
Highlights
- Levo 4 EVO runs 180mm up front and 170mm out back, with Specialized Ride Dynamics-tuned kinematics built specifically for aggressive, high-impact riding
- Specialized 3.1 Motor w/ 810 Watts & 105 Nm, 840 Wh Battery, up to 5 hour range w/ optional Range Extender
- Levo EVO FACT 11m carbon frame, Geo Adj & SWAT Storage
- The standard 5A charger delivers a 0–80 percent charge in approximately 90 minutes
- The 1.78-inch MasterMind T3 display delivers high-resolution clarity with 368 × 448 pixels of customizable, real-time data.
Description
Levo 4 EVO isn’t here to smooth things over—it’s built to charge straight through them. Designed for riders who lean into steep lines, hammer rough terrain, and treat every descent like it matters, this is a full-power eMTB that stays composed when the trail turns chaotic.
With 180mm of front travel and 170mm out back, plus a mixed wheel setup, Levo 4 EVO delivers unmatched stability when speeds climb and conditions get rough. This isn’t a stretched trail bike—it’s a gravity-focused machine that climbs with authority, letting you earn every descent without sacrificing downhill performance.
At its core is the Specialized Turbo 3.1 system, producing up to 810 watts and 105 Nm of torque. But raw power is only part of the equation—delivery is smooth, quiet, and intuitive, working in sync with your input to maintain traction and control on steep, technical climbs. No surges, no surprises—just consistent, usable power that keeps you in command.
The Ride Dynamics-tuned suspension is built for high-impact riding, holding its composure through square-edge hits, big compressions, and sustained high-speed descents. It stays supportive deep in the travel without feeling harsh or unpredictable, giving you the confidence to push harder when the stakes are high.
Every detail is purpose-driven. Reinforced wheels, high-volume tires with real sidewall support, and powerful, fade-resistant brakes are all chosen to handle repeated abuse. The cockpit keeps your weight centered for better control, and nothing on this bike is fragile or ornamental—it’s built to ride hard, lap after lap.
The modular battery system adds versatility to match its capability. The standard 840Wh battery delivers serious range, while the optional 280Wh Range Extender boosts capacity to a massive 1,120Wh for all-day missions. Want a more agile feel? Swap in the 600Wh battery. The side-access “Wattage Cottage” makes changes quick and easy, and all battery options meet IP67 standards for dependable, weather-resistant performance.

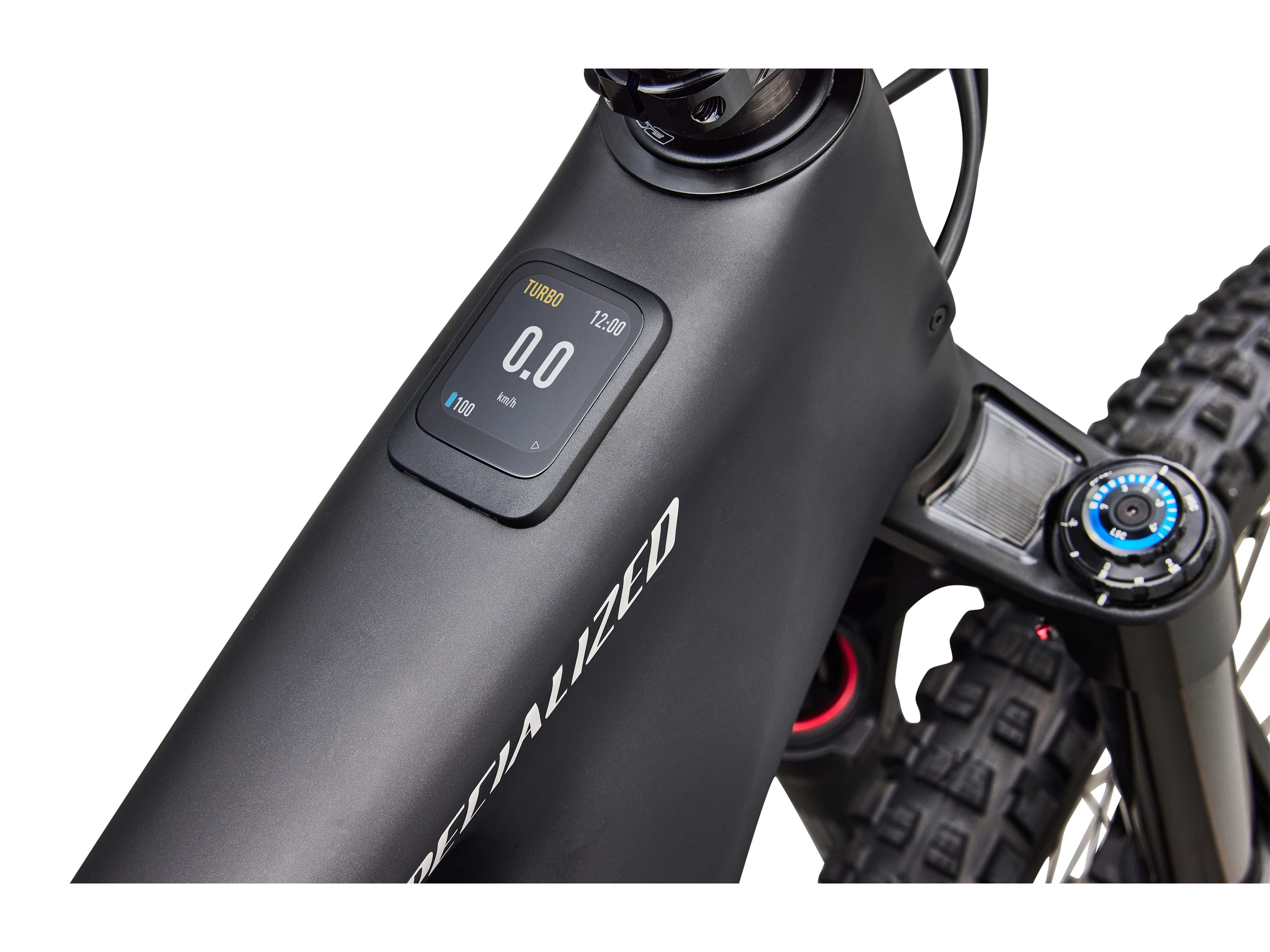

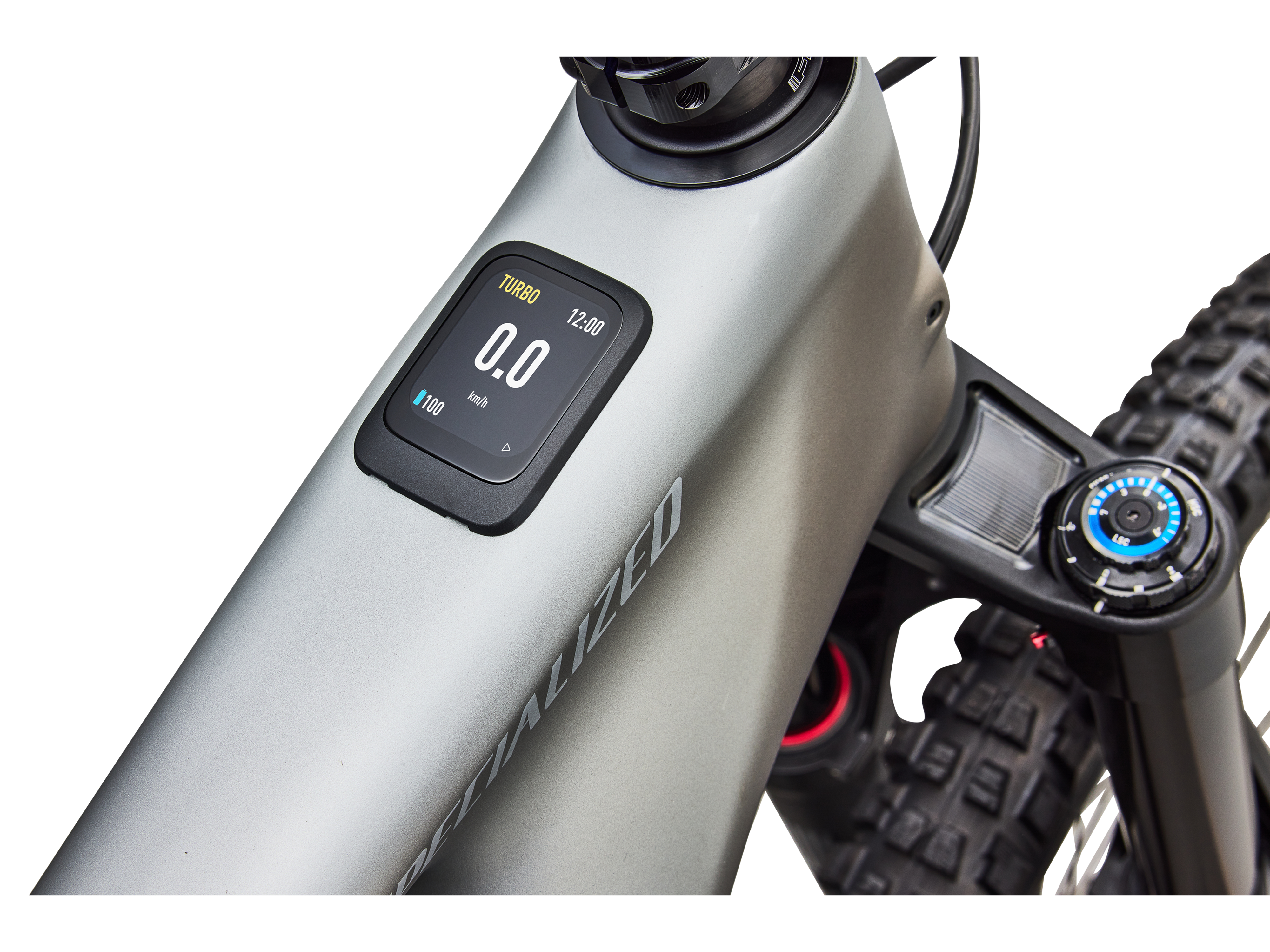

A high-resolution 1.78” MasterMind T3 display keeps everything in check, offering fully customizable, real-time ride data and acting as your digital co-pilot for managing power, output, and range.
Levo 4 EVO is built for the biggest hits, the steepest chutes, and the roughest trails you can find. When the terrain gets unpredictable, it stays calm—so you can keep pushing.
| Frame Material: | Carbon |
| Wheel Size: | Mixed: 29" front/27.5" rear |
| Rear Axle Standard: | 12x148mm Boost |

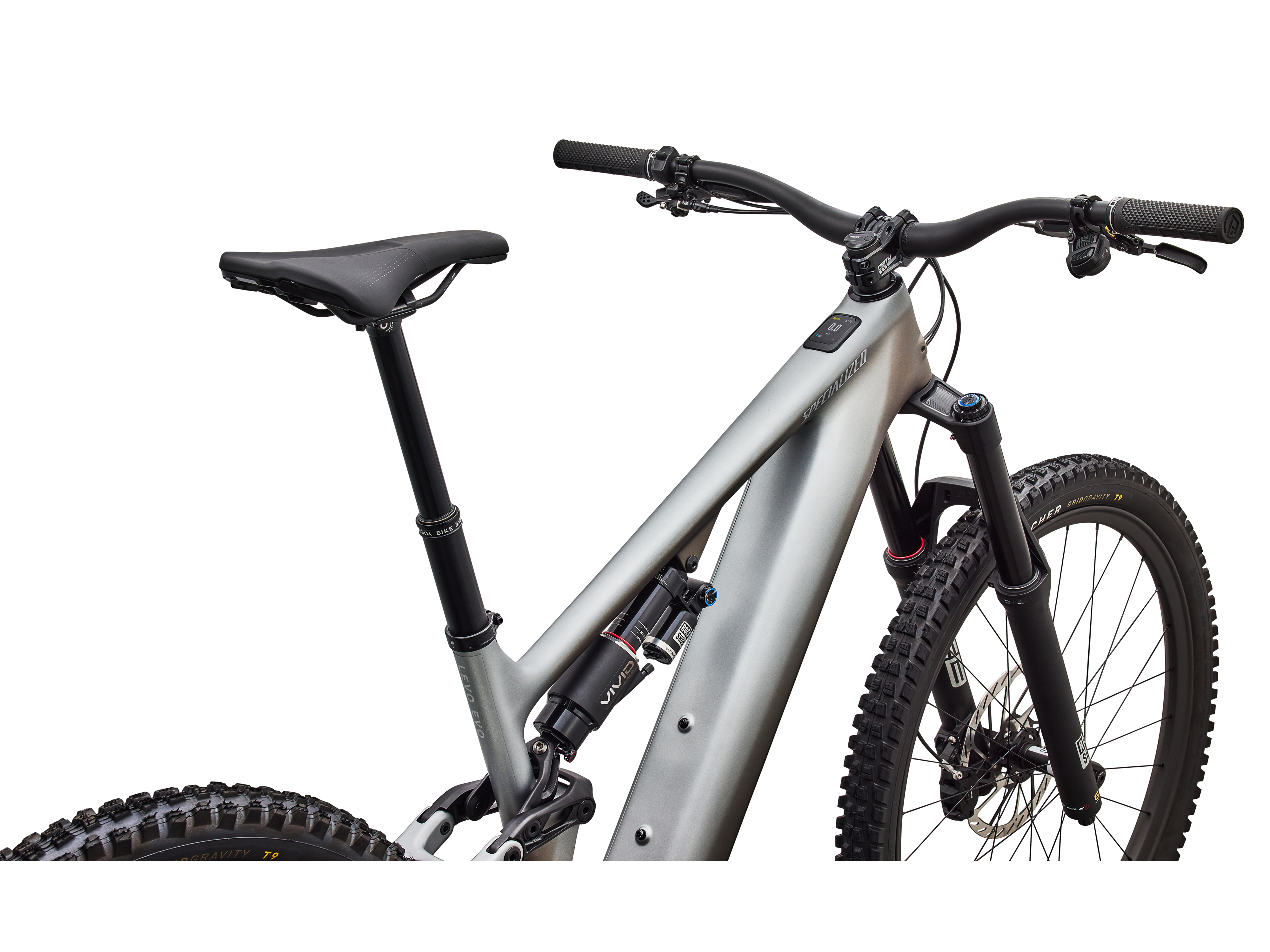

| Rear Shock: | RockShox Vivid Ultimate Air, Linear XL spring, RCT2 Damper, HBO |
| Rear Shock Size: | 230mm x 62.5mm |
| Rear Suspension Travel: | 170mm |
| Fork: | RockShox Zeb Ultimate, Linea XL Spring, Charger 3.2 Damper |
| Fork Axle: | 15x110mm Boost |
| Wheelset: | Roval Traverse HD Carbon rims, DT Swiss 350 hubs |
| Front Tire: | Butcher GRID Gravity, 29"x2.4", T9 compound |
| Rear Tire: | Cannibal GRID Gravity, 27.5"x2.4", T9 Compound |
| Crankset: | SRAM X0 Alloy crank, 155mm, 34t Transmission chainring |
| Chain: | SRAM X0 Eagle T-Type |
| Rear Derailleur: | SRAM X0 Eagle T-Type |
| Cassette: | SRAM XS 1295, T-Type, 10-52t |
| Seatpost: | Bike Yoke Revive Max 3.0, S2:125mm, S3:160mm, S4:185mm, S5/S6:213mm |
| Seat Post Diameter: | 34.9mm |
| Seat: | Specialized Bridge Expert with MIMIC, Hollow Ti rails |
| Shifters: | SRAM AXS POD Controller w/ discrete clamp |

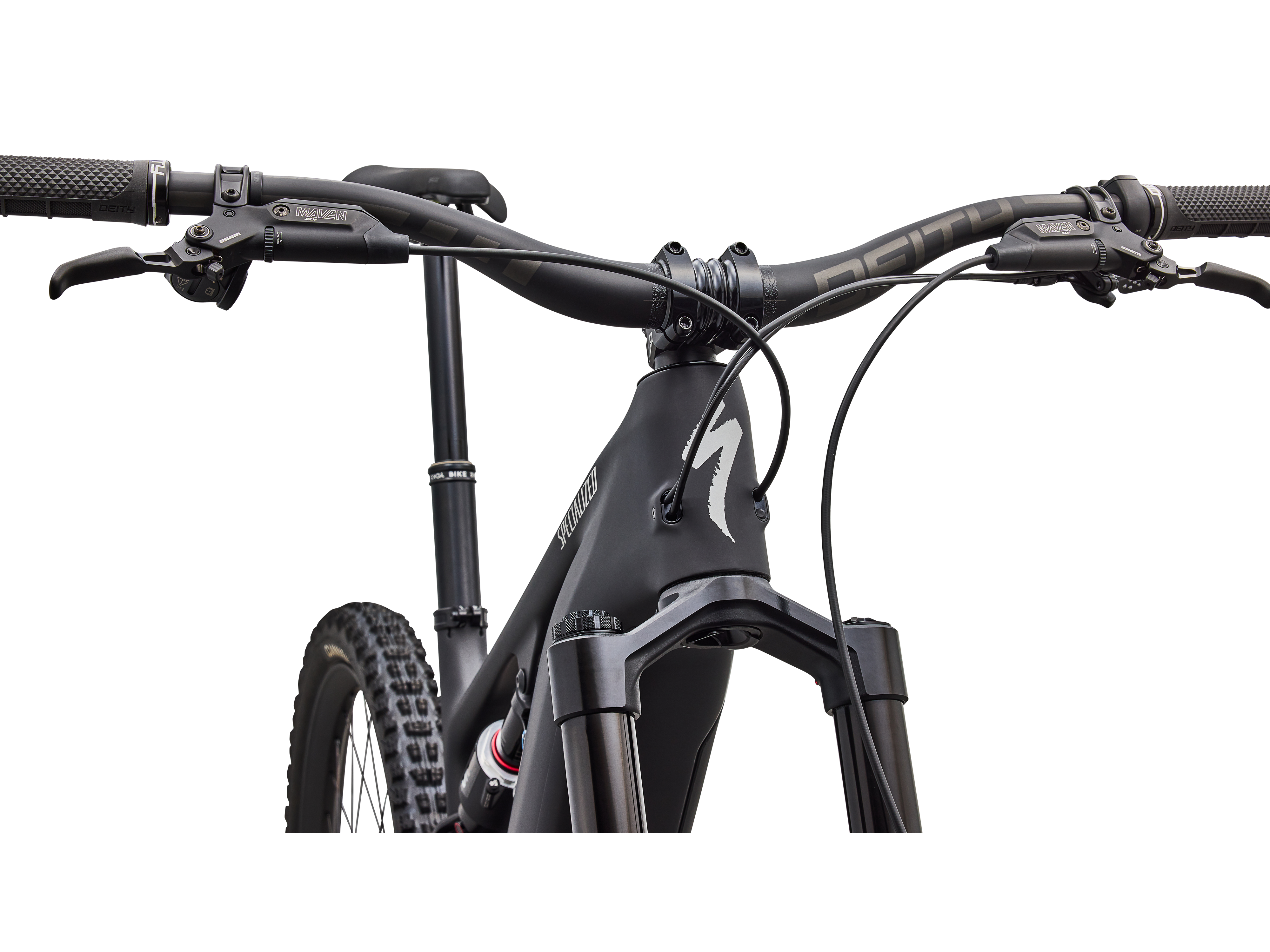

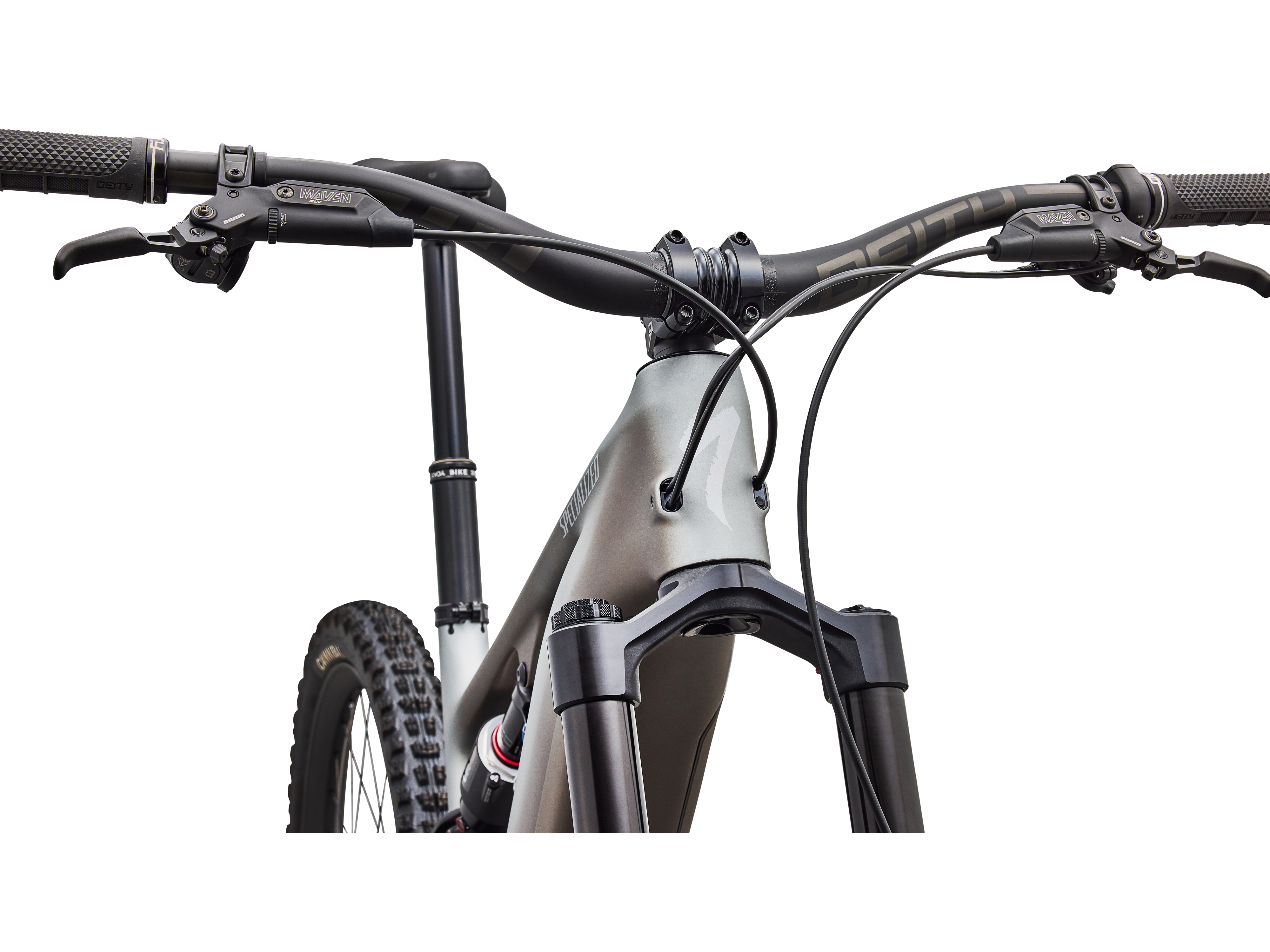

| Handlebar: | Deity Speedway Carbon: S1/S2-810mm, 30mm rise; S3-S6-810mm wide, 50mm rise |
| Stem: | Deity Copperhead, 42mm length, 35mm clamp |
| Grips: | Deity Lockjaw |
| Brakes: | SRAM Maven Silver, 220mm front, 200mm rear HS2 rotors |
| Water Bottle Cage Mounts: | 1 on downtube |
| Motor: | Specialized 3.1 |
| Maximum Power Output: | 810 watts |
| Maximum Motor Torque: | 105 Nm |
| Battery: | Speicalized |
| Battery Wattage: | 840 Wh |
| Intended Use: | DH/FR, AM/Enduro |
| Warranty: | Lifetime for frame / 2 years for motor and drive system - must register with Specialized |
| Size | S2 | S3 | S4 | S5 | S6 |
|---|---|---|---|---|---|
| Reach | 425 | 445 | 470 | 495 | 525 |
| Stack | 625 | 633 | 646 | 659 | 675 |
| Top Tube | 580 | 602 | 630 | 658 | 691 |
| Wheelbase | 1208 | 1232 | 1263 | 1294 | 1331 |
| Head Tube° | 63.6° | 63.6° | 63.6° | 63.6° | 63.6° |
| Head Tube | 95 | 103 | 117 | 132 | 149 |
| Seat Tube° | 76° | 76° | 76° | 76° | 76° |
| Seat Tube | 390 | 405 | 435 | 445 | 465 |
| BB Height | 356 | 356 | 356 | 356 | 356 |
| BB Drop | 24 | 24 | 24 | 24 | 24 |
| Standover | 764 | 765 | 763 | 768 | 771 |
| Chainstay | 435 | 435 | 435 | 435 | 435 |
| Max Seatpost Insertion | 274 | 289 | 313 | 337 | 357 |
