PR Carbon
Highlights
- DJI Avinox M2S drive unit with up to 150Nm of torque
- Full carbon frame for lightweight strength and precise handling
- Swappable battery system for flexible range and ride planning
- 40-position adjustable geometry for true trail customization
Description

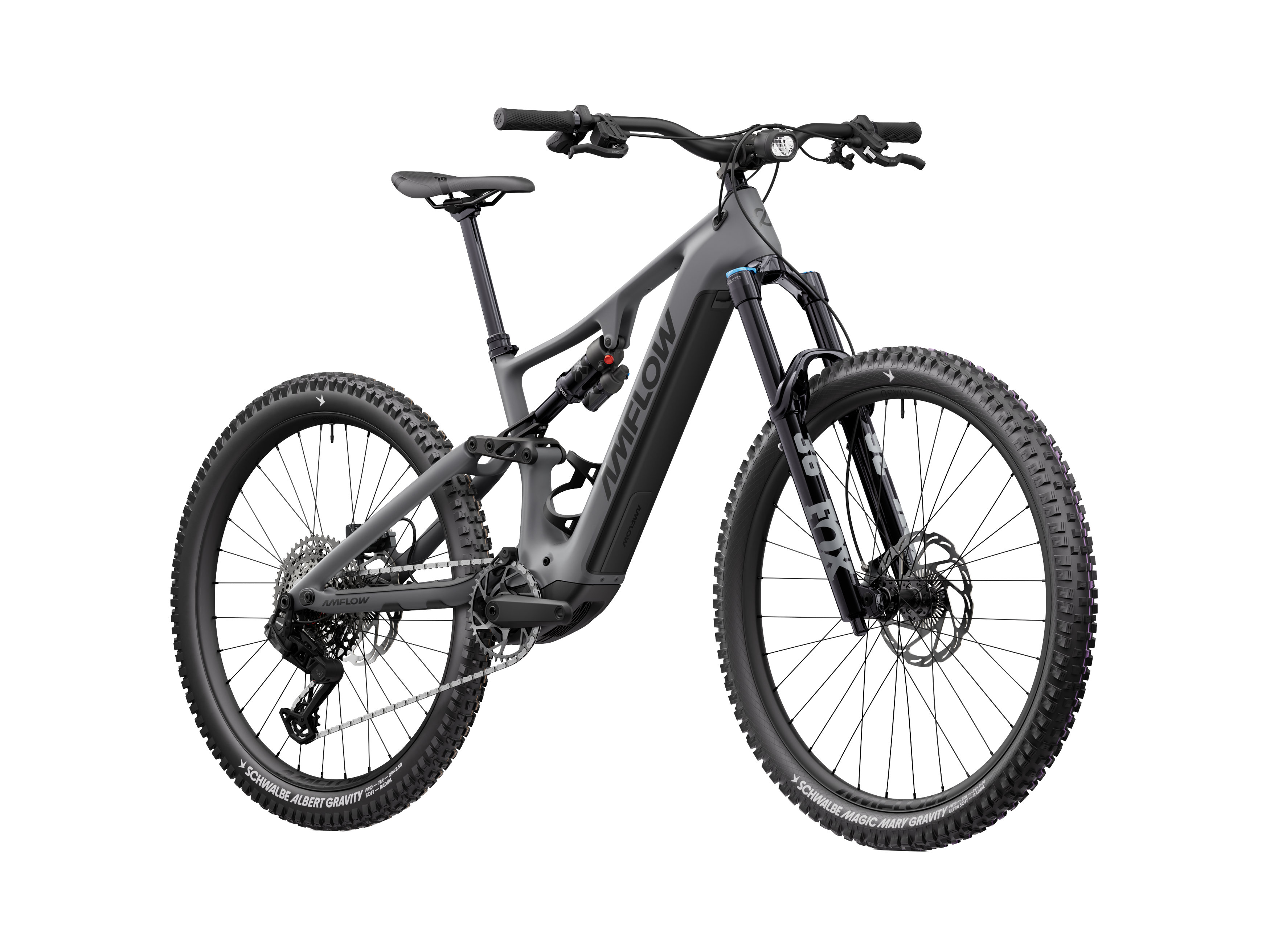

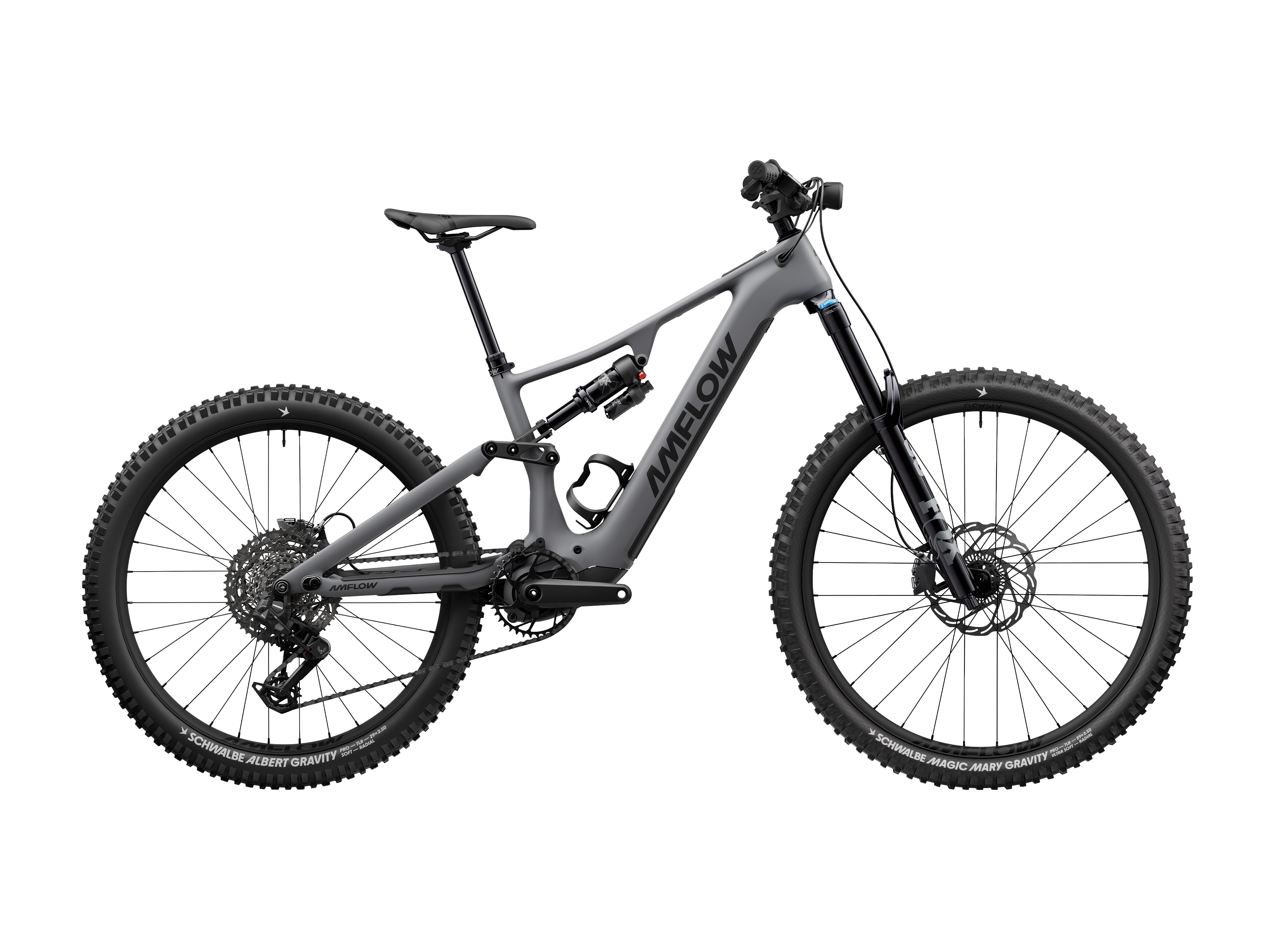

The Amflow PR Carbon Pro blends full-power performance with lightweight precision, delivering a carbon eMTB that looks fast, rides sharp, and adapts to whatever the trail throws your way. Built around a sleek full-carbon frame and powered by Avinox's latest drive technology, it’s designed for riders who want to push harder, go farther, and stay fully in control doing it.
At its core is the Avinox M2S drive unit, capable of producing up to 150Nm of torque in a compact, lightweight package. Power delivery is smooth, quiet, and highly responsive, thanks to advanced sensors and real-time tuning algorithms that keep assistance perfectly matched to your effort. Whether you’re spinning up technical climbs or accelerating out of corners, the system feels natural and composed—not overpowering.
The swappable battery system adds real-world versatility, letting you extend your ride time without committing to a single setup. Whether you’re heading out for quick laps or all-day missions, the PR Carbon Pro adapts to your plans with minimal hassle.
Where the PR Carbon Pro really stands apart is its highly adjustable geometry. With up to 40 possible configurations, you can fine-tune head tube angle, bottom bracket height, and chainstay length to suit your terrain and riding style. Steepen it up for tight, technical trails or slacken it out for high-speed stability—the choice is yours, and the difference is noticeable.
On the trail, the PR Carbon Pro delivers a balanced, confident ride. The carbon chassis keeps weight low and handling precise, while modern geometry ensures stability when speeds pick up and agility when the trail tightens. It’s a bike that feels just as comfortable picking through technical sections as it does charging descents.
| Frame Material: | Carbon |
| Wheel Size: | Mixed: 29" front/27.5" rear |
| Rear Axle Standard: | 12x148mm Boost |
| Rear Shock: | Fox Float X Performance |
| Rear Shock Size: | 210mm x 55mm |
| Rear Suspension Travel: | 150mm |
| Fork: | Fox 36 Performance |
| Fork Axle: | 15x110mm Boost |
| Wheelset: | Amflow XMA-30 Mullet |
| Front Tire: | Schwalbe Magic Mary Radial, 29×2.5, Gravity Pro, Ultra Soft, tubeless ready |
| Rear Tire: | Schwalbe Albert, Radial, 27.5×2.5, Gravity Pro, Addix Soft, tubeless ready |
| Crankset: | Avinox SL Crank (M/L: 155mm; XL/XXL: 160mm), 38t Transmission chainring |
| Chain: | SRAM Eagle 70 Transmission Flattop Chain |
| Rear Derailleur: | SRAM S1000 Eagle Transmission Derailleur |
| Cassette: | SRAM XS-1270 Eagle Transmission Cassette 10-52T |
| Seatpost: | Amflow Dropper Post |
| Seat: | Amflow Mountain Saddle |
| Shifters: | SRAM AXS Pod Controller |
| Handlebar: | Amflow Enduro Alloy Handlebar, 40mm rise, 800mm wide |
| Stem: | Amflow Mountain Bike Split, 35mm length |
| Grips: | Amflow lock-on |
| Brakes: | Magura Gustav Pro , 203mm rotors |
| Water Bottle Cage Mounts: | 1 on downtube |
| Motor: | Avinox M2S |
| Maximum Power Output: | 1500 watts |
| Maximum Motor Torque: | 150 Nm |
| Battery: | Avinox Removable |
| Battery Wattage: | 800 Wh |
| Intended Use: | Trail/AM |
| Warranty: | 5 years on frame, 2 years on drive unit and battery |
| Size | MD | LG | XL | XXL |
|---|---|---|---|---|
| Reach | 452 | 475 | 500 | 527 |
| Stack | 626 | 637 | 649 | 662 |
| Top Tube | 596.5 | 623.4 | 652.9 | 684.6 |
| Wheelbase | 1228 | 1256.2 | 1287 | 1320 |
| Head Tube° | 64.5° | 64.5° | 64.5° | 64.5° |
| Head Tube | 111.4 | 123.6 | 137 | 151 |
| Seat Tube° | 77° | 76.9° | 76.7° | 76.6° |
| Seat Tube | 405 | 425.3 | 445 | 464 |
| BB Height | 440 | 349.5 | 349.5 | 349.5 |
| BB Drop | 10.4 | 10.4 | 10.4 | 10.4 |
| Chainstay | 440 | 440 | 440 | 440 |
