Chromag

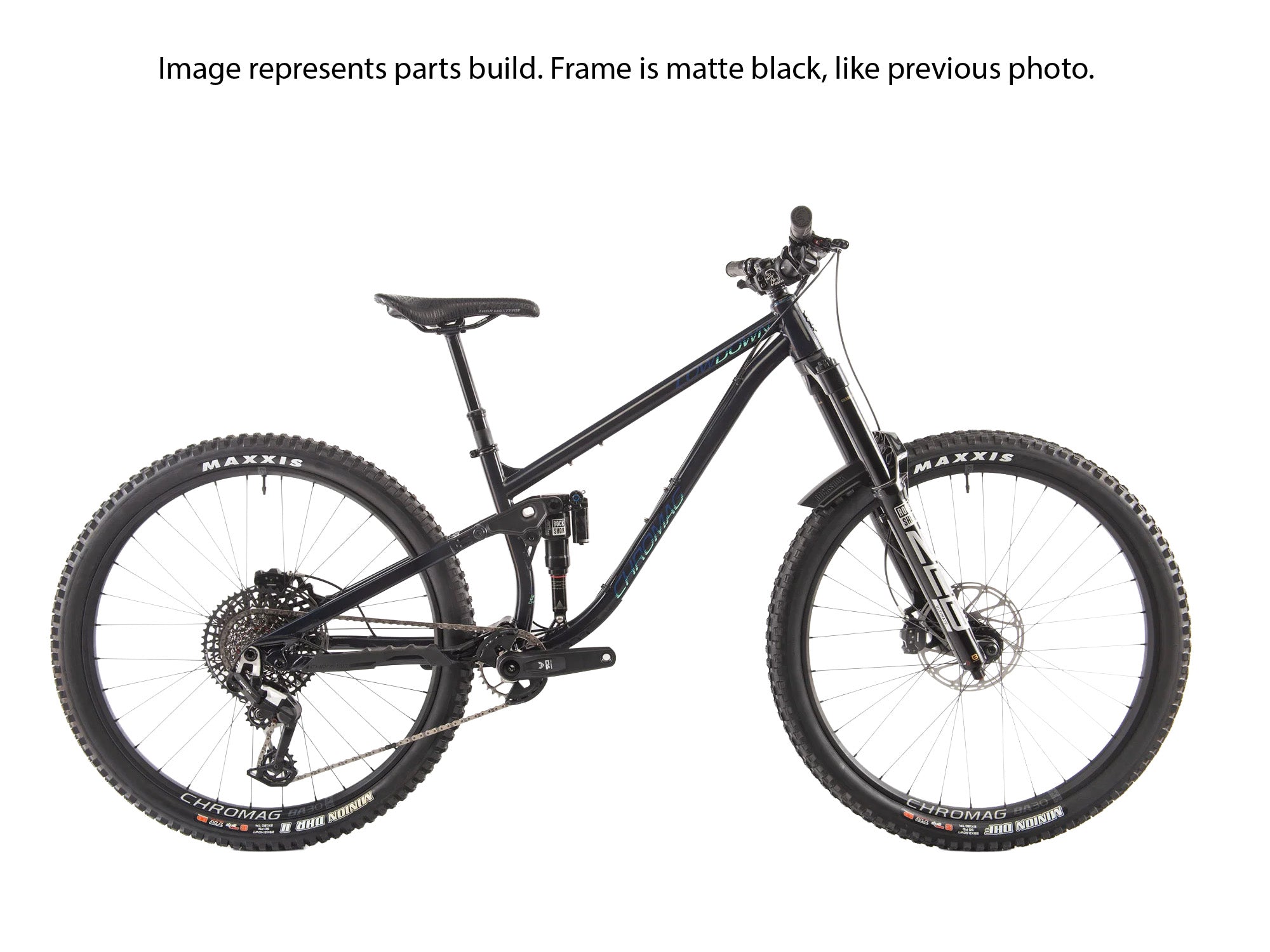

Lowdown - Eagle 90 - Matte Black M/L - Complete Bike
Choose options
Description
The Lowdown is ready to shred steep lines and gaps, smash berms, or head out on long distance missions. Its a trail bike that eats up chunder and drops while being ready for all day pedal adventures. It takes everything they learned developing their full suspension line and directs it into a long travel bruiser!

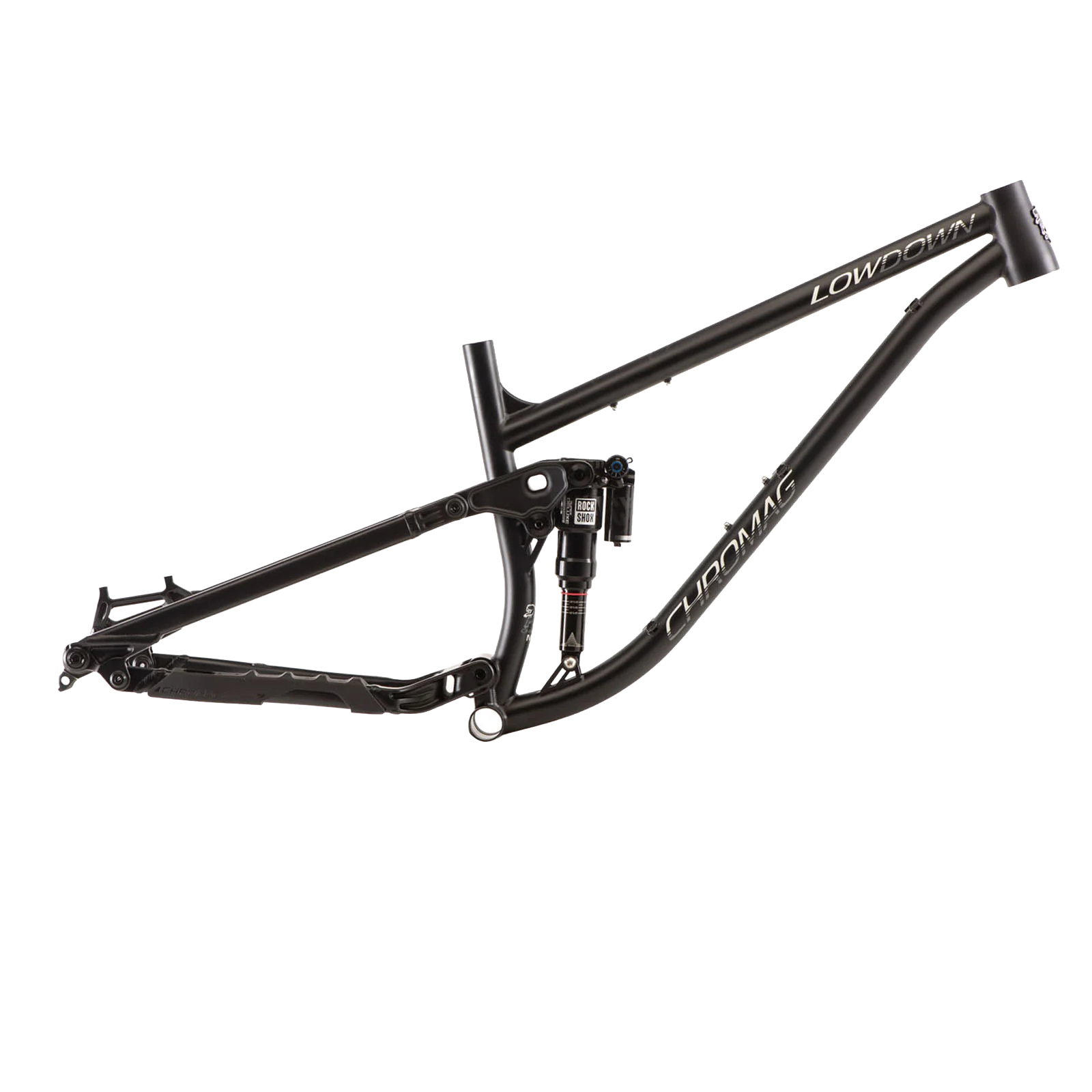

As you might expect from any Chromag, The Lowdown relies firmly on a 4130 chromoly steel foundation. They believe that the ride characteristics and aesthetics for which their hardtails are known, absolutely translates to a full suspension platform.
However, a dual suspension rig provides different challenges, which is why they opted for 6066 aluminum chainstays and seatstays. Primarily for weight saving and stiffness, but the chainstay also houses bearings which is more difficult to do in steel. Using a mix of aluminum and steel helps strike the right balance of compliance and rigidity.
The rocker is made from forged aluminum due to its strength/weight ratio and ability to be machined more easily than steel.
| Frame Material: | Aluminum|Steel |
| Wheel Size: | 29" |
| Rear Axle Standard: | 12x148mm Boost |
| Rear Shock: | RockShox Super Deluxe Ultimate, 2 Tokens, LN M Tune |
| Rear Shock Size: | 205mm x 65mm |
| Rear Suspension Travel: | 158mm |
| Headset: | Cane Creek 40 |
| Headset Standard: | ZS44mm/ZS56mm |
| Fork: | RockShox Zeb Ultimate |
| Fork Axle: | 15x110mm Boost |
| Wheelset: | Chromag BA30/R4 |
| Front Tire: | Maxxis DHF, Double Down Casing |
| Rear Tire: | Maxxis DHR II, Double Down Casing |
| Crankset: | SRAM Eagle 90 |
| Chainguide Tabs: | ISCG '05 3-Bolt |
| Bottom Bracket: | SRAM Dub Wide |
| BB Standard: | 73mm BSA |
| Chain: | SRAM Eagle 90 Transmission |
| Rear Derailleur: | SRAM Eagle 90 Transmission |
| Cassette: | SRAM Eagle 90 Transmission |
| Seatpost: | OneUp V3 Dropper post, 210mm |
| Seat Post Diameter: | 31.6mm |
| Seat Post Clamp Diameter: | 35mm |
| Seat: | Chromag Trailmaster DT Black |
| Shifters: | SRAM Eagle 90 Transmission |
| Handlebar: | Chromag OSX 35 25mm rise Black |
| Stem: | Chromag HiFi35 BSX, 35mm Black |
| Grips: | Chromag Format Black |
| Brakes: | SRAM™ Maven Silver |
| Intended Use: | AM/Enduro, Trail/AM |
| Warranty: | 3 years |
| Size | M/L |
|---|---|
| Reach | 490 |
| Top Tube | 612.5 |
| Wheelbase | 1280 |
| Head Tube° | 63.5° |
| Head Tube | 105 |
| Seat Tube° | 79° |
| Seat Tube | 410 |
| BB Height | 345 |
| BB Drop | 30 |
| Standover | 747 |
| Chainstay | 440 |
