Chromag

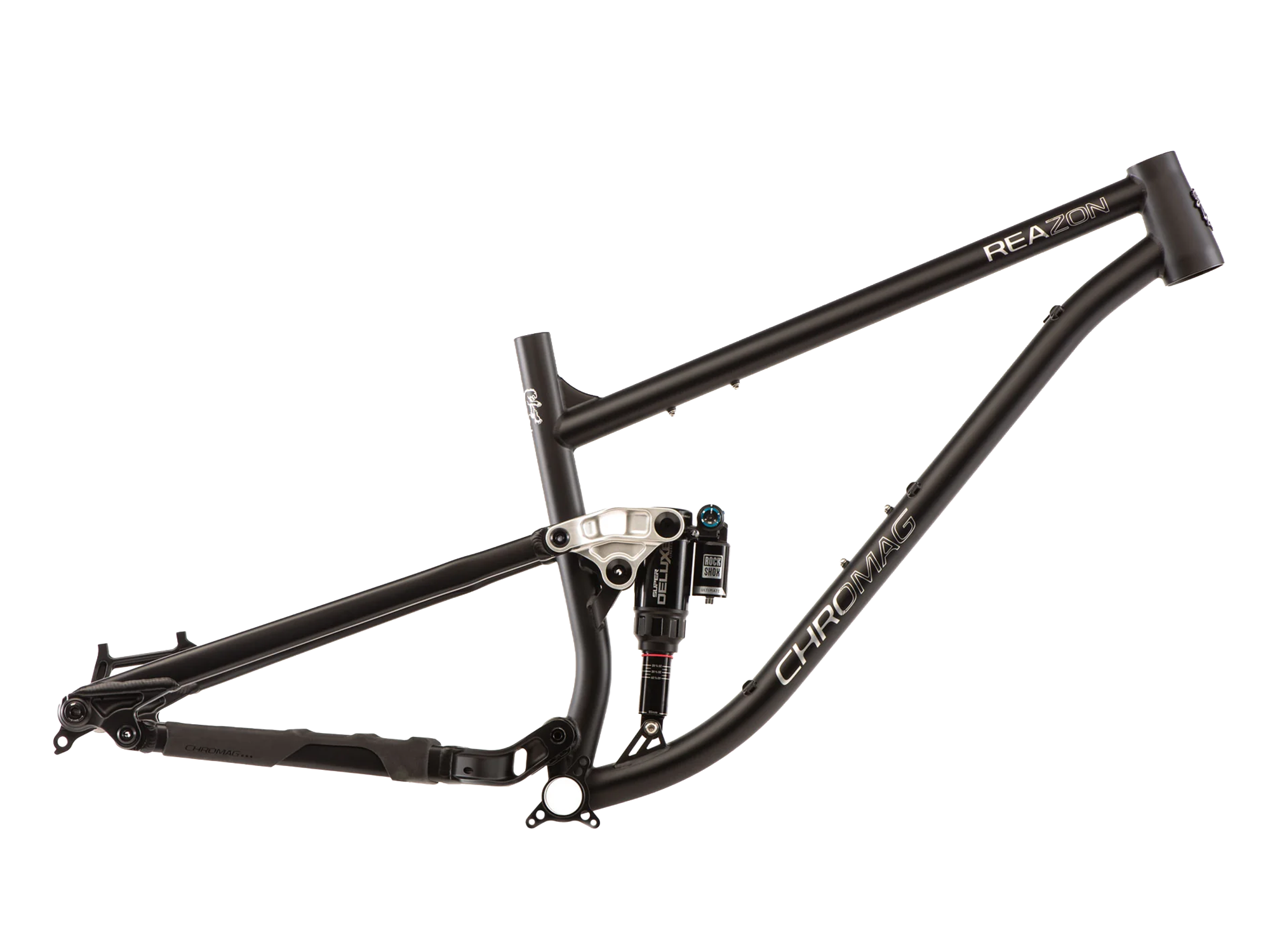

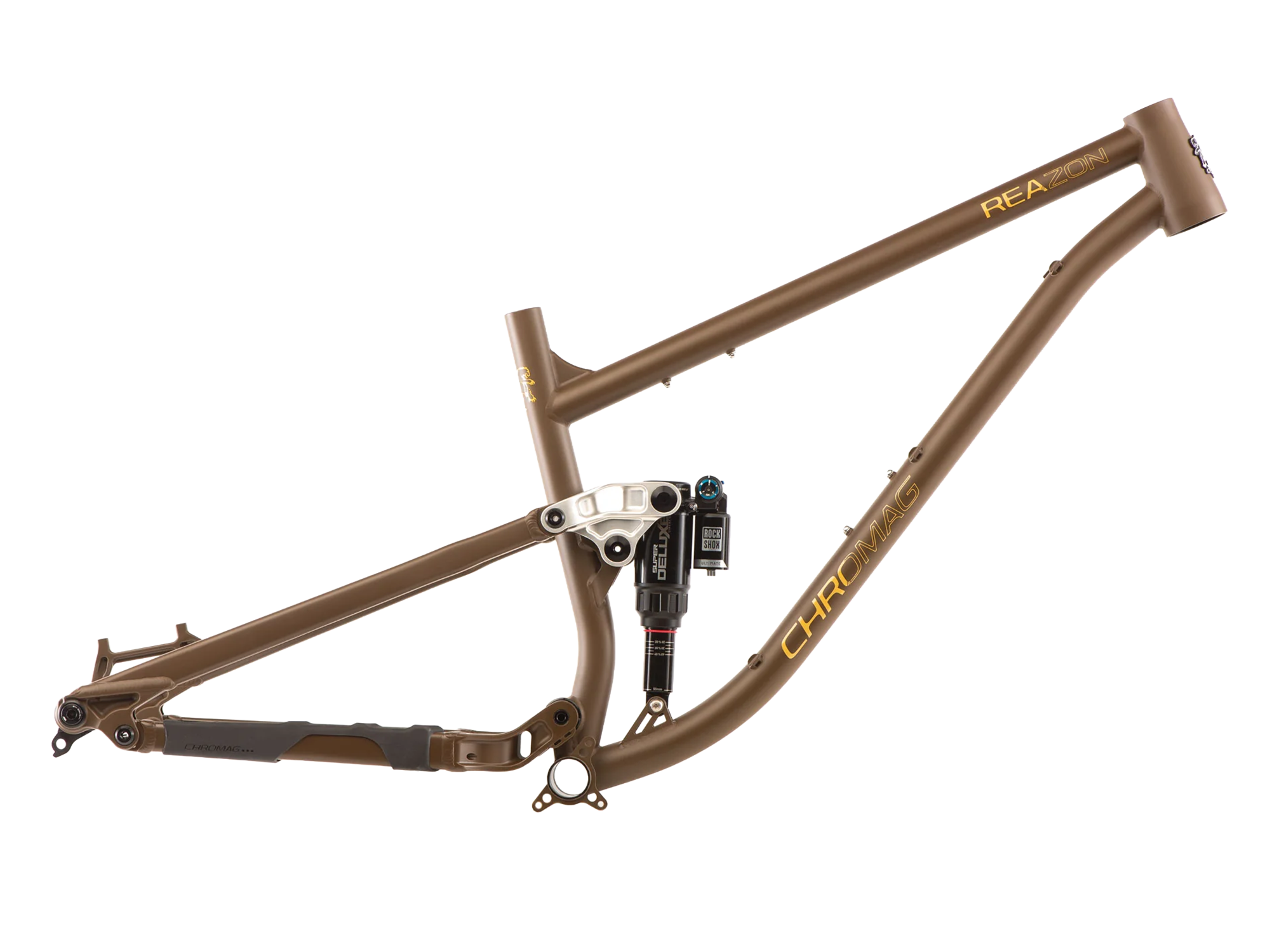

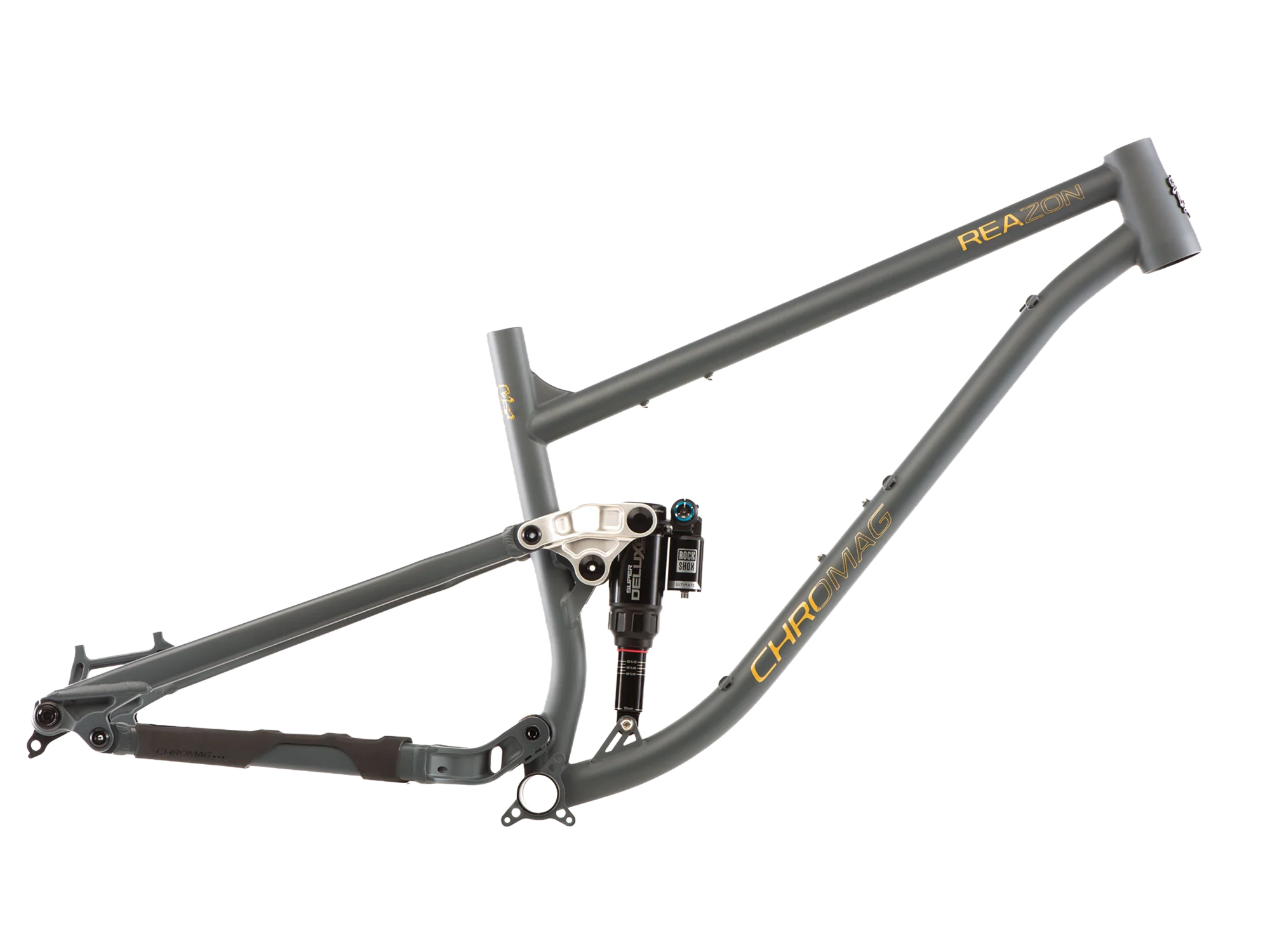

Reazon Frame - 2026
Choose options
Highlights
- A true All-Mountain bike with 135mm of efficient travel and 160mm fork
- 4130 chromoly steel front triangle paired with 6066 aluminum backend gives stiffness, balance and aligned bearing surfaces
- Higher stack and moderated reach keeps riders centered and confident
- Electrophoretic Deposition (ED) coating that fully protects the frame inside and out
Description
Some rides linger long after the dust settles, like the kind that start with big plans and end with tired legs, scraped shins, and a grin that won’t fade. The Reazon was built for exactly those days. Designed as a true all-mountain platform, it blends efficiency, composure, and playfulness into one frame that feels like a trusted partner from the first pedal stroke to the final descent.
Updated suspension kinematics provide excellent climbing support while staying smooth and stable through rough, high-speed terrain. A refined fit with a higher stack and moderated reach keeps riders centered and confident, while increased tire clearance makes room for modern, high-volume rubber. External cable routing and straightforward pivot access make maintenance simple, so the focus stays on riding—not wrenching.
True to Chromag’s roots, the Reazon is built around a 4130 chromoly steel front triangle, delivering the ride feel and durability the brand is known for. To meet the demands of a full-suspension platform, the chainstays and seatstays are crafted from 6066 aluminum for weight savings, stiffness, and precise bearing interfaces. A forged aluminum rocker balances strength and weight, while Enduro MAX bearings and 7075 aluminum hardware ensure long-lasting performance in real-world conditions.
Every detail reflects Chromag’s commitment to craftsmanship—from the distinctive head tube badge that marks each era, to the Electrophoretic Deposition (ED) coating that fully protects the frame inside and out against corrosion. Simple, intuitive, and built to last, the Reazon is the one-bike answer for riders who want to pedal far, charge hard, and never hesitate when the trail throws something unexpected in the way.
| Frame Material: | Aluminum|Steel |
| Wheel Size: | 29" |
| Front Suspension Travel: | 160mm |
| Rear Suspension Travel: | 135mm |
| Rear Shock: | RockShox SuperDeluxe Ultimate |
| Rear Shock Size: | 185mm x 55mm |
| Rear Axle Width: | 12x148mm Boost |
| Headset Standard: | ZS44mm/ZS56mm |
| BB Standard: | 73mm BSA |
| ISCG Tabs: | ISCG '05 3-Bolt |
| Brake Mount Type: | Post-Mount 180mm |
| Min Rear Rotor Size: | 180mm |
| Max Rear Rotor Size: | 220mm |
| Seat Post Diameter: | 31.6mm |
| Seat Clamp Diameter: | 35mm |
| Intended Use: | Trail/AM |
| Warranty: | 3 years |
| Size | SM | MD | M/L | LG | XL |
|---|---|---|---|---|---|
| Reach | 445 | 465 | 485 | 505 | 525 |
| Stack | 626 | 250 | 635 | 644 | 644 |
| Top Tube | 578 | 598 | 635 | 642 | 662 |
| Wheelbase | 1220 | 1265 | 1289 | 1309 | |
| Head Tube° | 64° | 64° | 64° | 64° | 64° |
| Head Tube | 105 | 1240 | 115 | 125 | 125 |
| Seat Tube° | 78° | 78° | 78° | 78° | 78° |
| Seat Tube | 365 | 395 | 425 | 455 | 485 |
| BB Height | 339 | 339 | 339 | 339 | 339 |
| BB Drop | -35 | -35 | -35 | -35 | -35 |
| Standover | 667 | 438 | 721 | 748 | 775 |
| Chainstay | 438 | 105 | 438 | 438 | 438 |
| Trail | 626 | ||||
| Max Seatpost Insertion | 220 | 280 | 310 | 340 |
