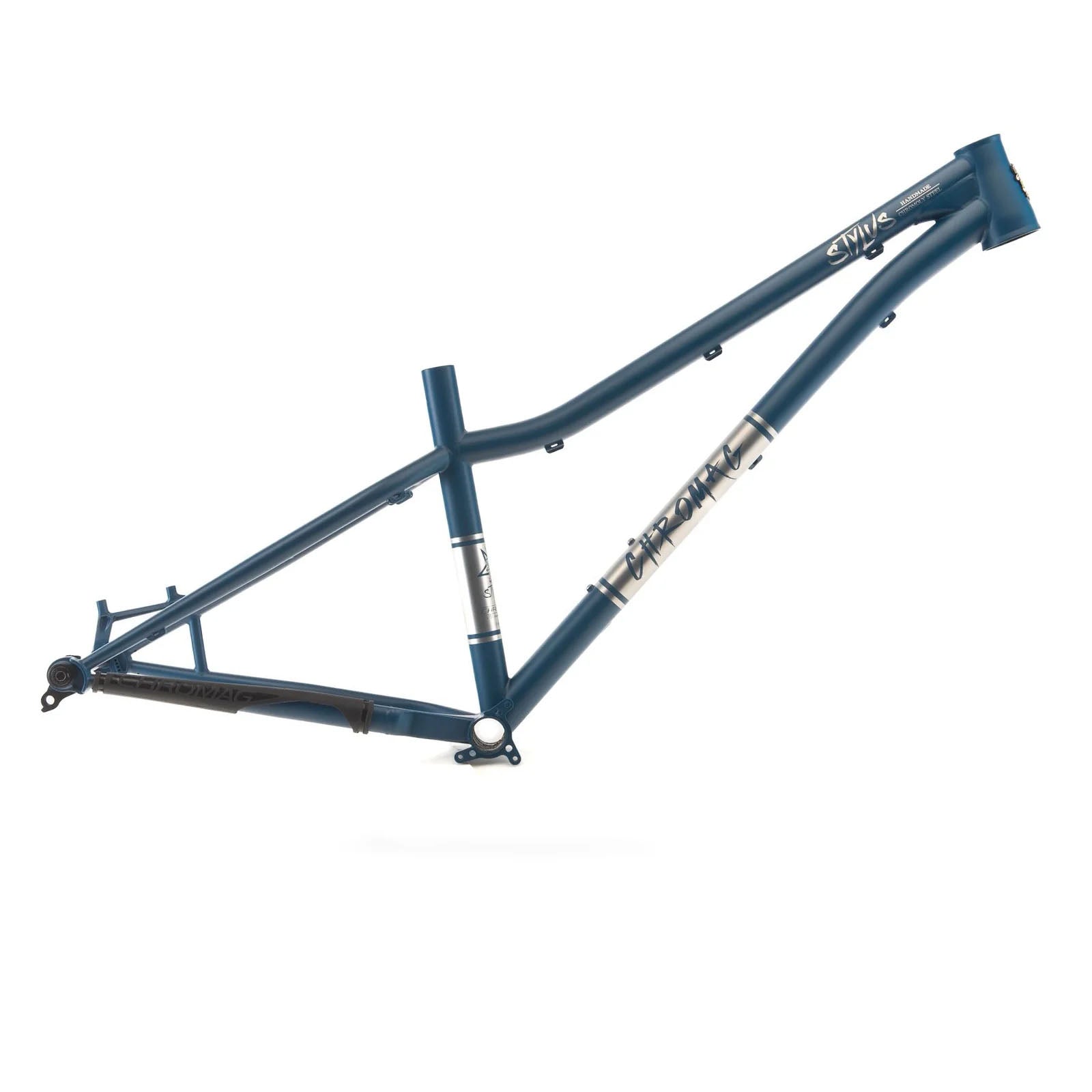

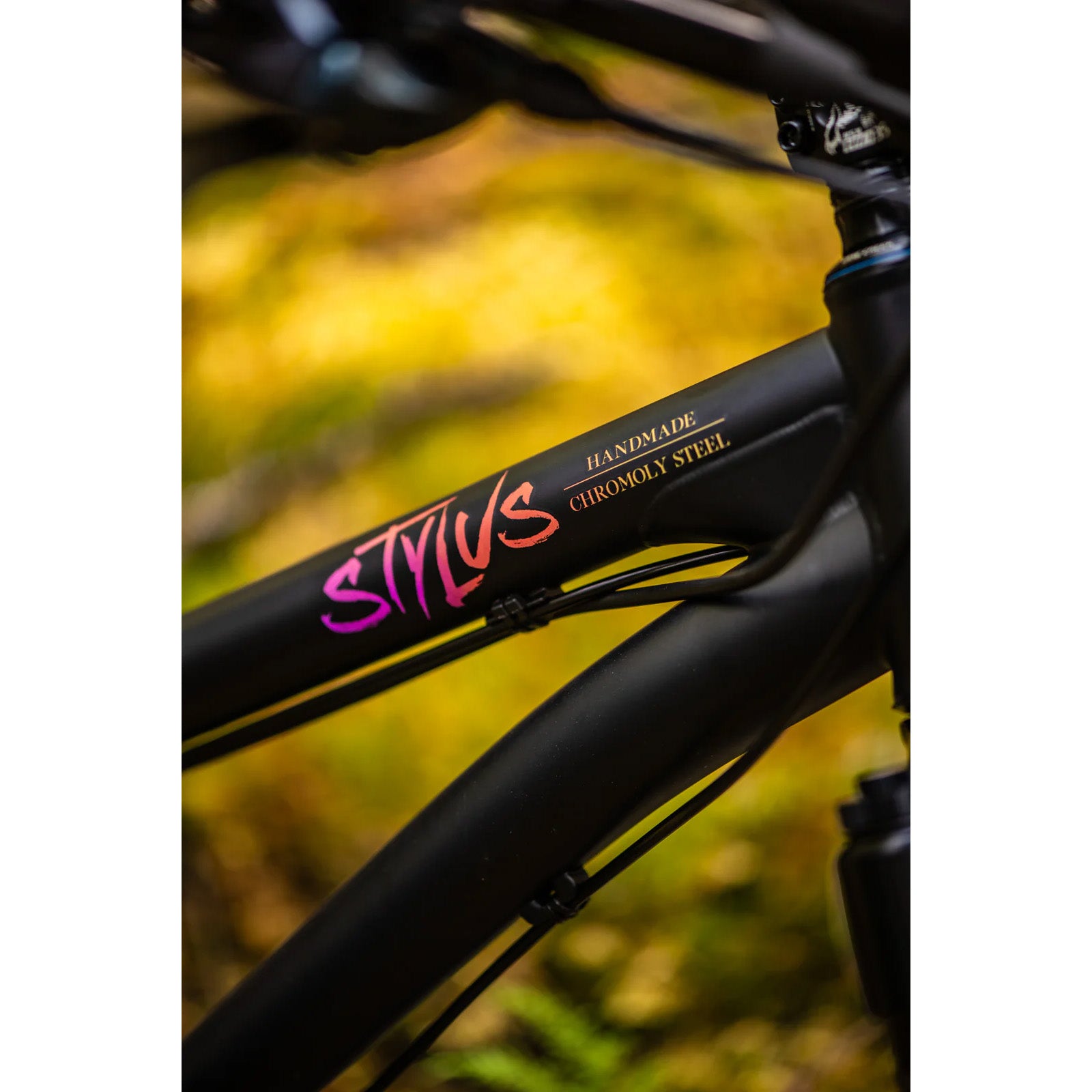

Stylus MX Frame
Stylus MX Frame

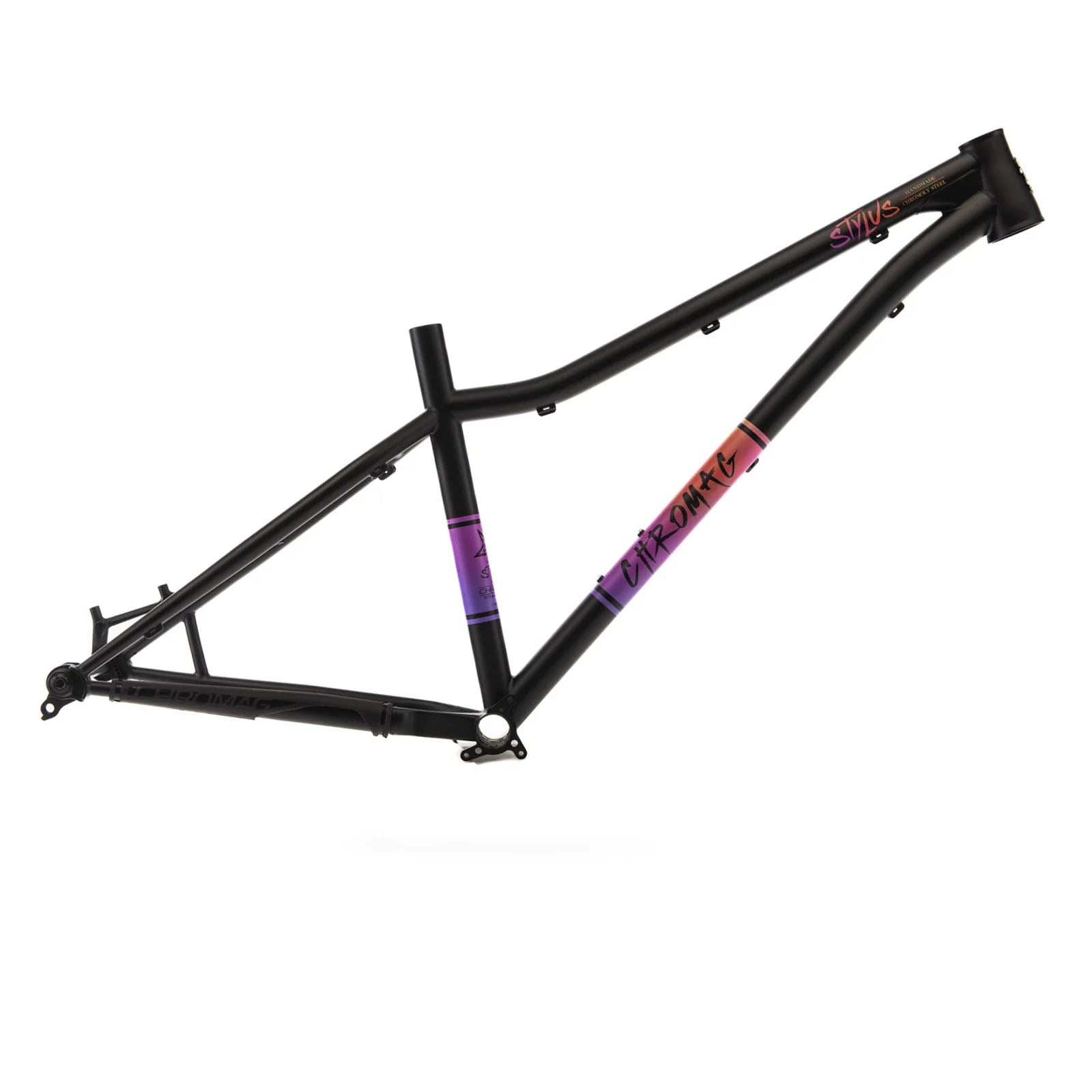

Black Daze / S
Fanatik Bike
1812 N. State St.
Bellingham WA 98225
United States
Every ride deserves a little extra. With our Fanatik Rewards program, you'll earn points on every purchase that can be redeemed for discounts on future orders. It's our way of saying thanks for choosing Fanatik and keeping you stoked for the next adventure. Learn more.
Choose options
Every ride deserves a little extra. With our Fanatik Rewards program, you'll earn points on every purchase that can be redeemed for discounts on future orders. It's our way of saying thanks for choosing Fanatik and keeping you stoked for the next adventure. Learn more.
Every ride deserves a little extra. With our Fanatik Rewards program, you'll earn points on every purchase that can be redeemed for discounts on future orders. It's our way of saying thanks for choosing Fanatik and keeping you stoked for the next adventure. Learn more.
Description
The Stylus is a true hardtail bruiser.
Versatile, confident, and ready to take on everything from long trail missions to technical, high-impact lines.

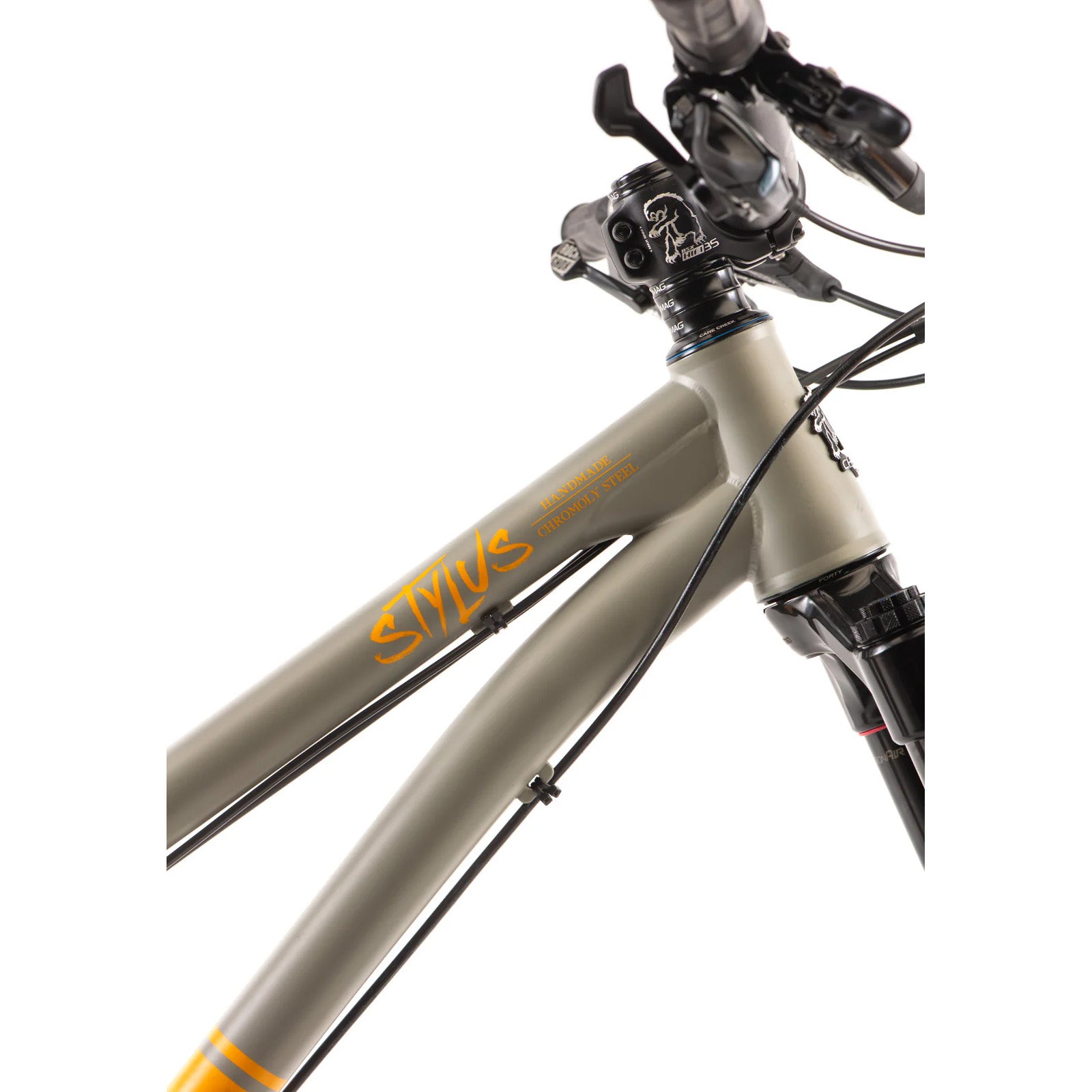

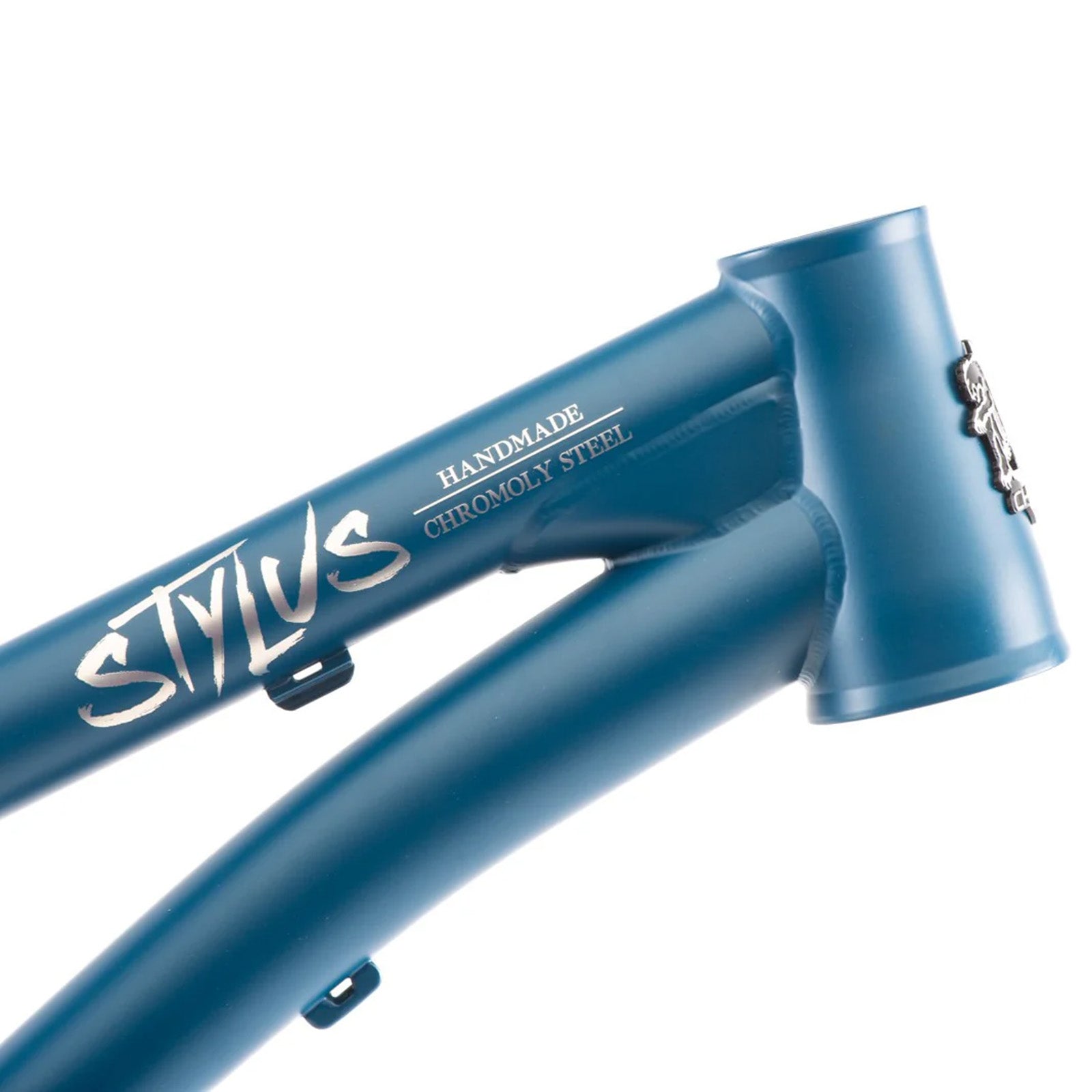

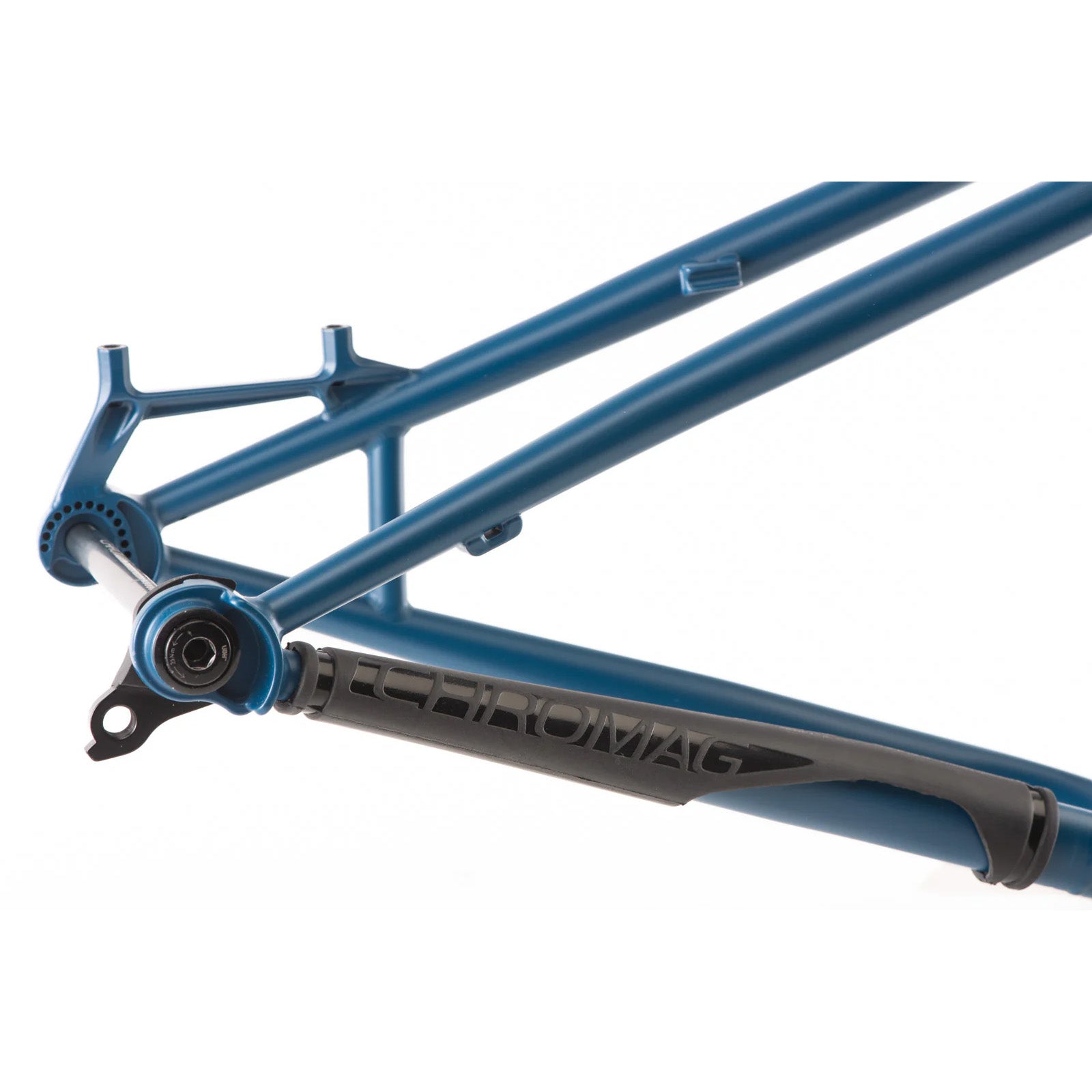

Built around a 160mm fork with a slack front end and now running a mullet wheel setup (29" front, 27.5" rear), it offers the perfect balance of rollover speed and agility. A new headtube gusset adds extra strength where it counts, while the 12mm Boost 148 through-axle rear end and Chromag’s signature yokel chainstay provide generous tire clearance.
With a compact seattube for low standover and room to slam your post, the Stylus stays out of the way when you need to move around on rough terrain or through DJ lines. It climbs with purpose, descends with authority, and takes a beating without flinching. The Stylus is built for riders who treat the mountain like a playground.
| Frame Material: | Steel |
| Wheel Size: | MX (29"/27.5") |
| Front Suspension Travel: | 160mm |
| Rear Axle Width: | 12x148mm Boost |
| Headset Standard: | ZS44mm/ZS56mm |
| BB Standard: | 73mm BSA |
| ISCG Tabs: | ISCG '05 3-Bolt |
| Brake Mount Type: | Post-Mount 180mm |
| Min Rear Rotor Size: | 180mm |
| Seat Post Diameter: | 31.6mm |
| Seat Clamp Diameter: | 35mm |
| Intended Use: | Trail/AM |
| Warranty: | 3 Year |
| Size | SM | MD | M/L | LG | XL |
|---|---|---|---|---|---|
| Reach | 418 | 443 | 465 | 488 | 512 |
| Stack | 645 | 645 | 645 | 654 | 663 |
| Top Tube | 579 | 604 | 626 | 651 | 678 |
| Wheelbase | 1176 | 1201 | 1223 | 1250 | 1279 |
| Head Tube° | 64° | 64° | 64° | 64° | 64° |
| Head Tube | 105 | 105 | 105 | 115 | 125 |
| Seat Tube° | 76° | 76° | 76° | 76° | 76° |
| Seat Tube | 330 | 380 | 422 | 457 | 495 |
| BB Height | 335 | 335 | 335 | 335 | 335 |
| BB Drop | 30 | 30 | 30 | 30 | 30 |
| Standover | 655 | 704 | 744 | 778 | 815 |
| Chainstay | 419 | 419 | 419 | 419 | 419 |
| Max Seatpost Insertion | 150 | 200 | 242 | 277 | 315 |
