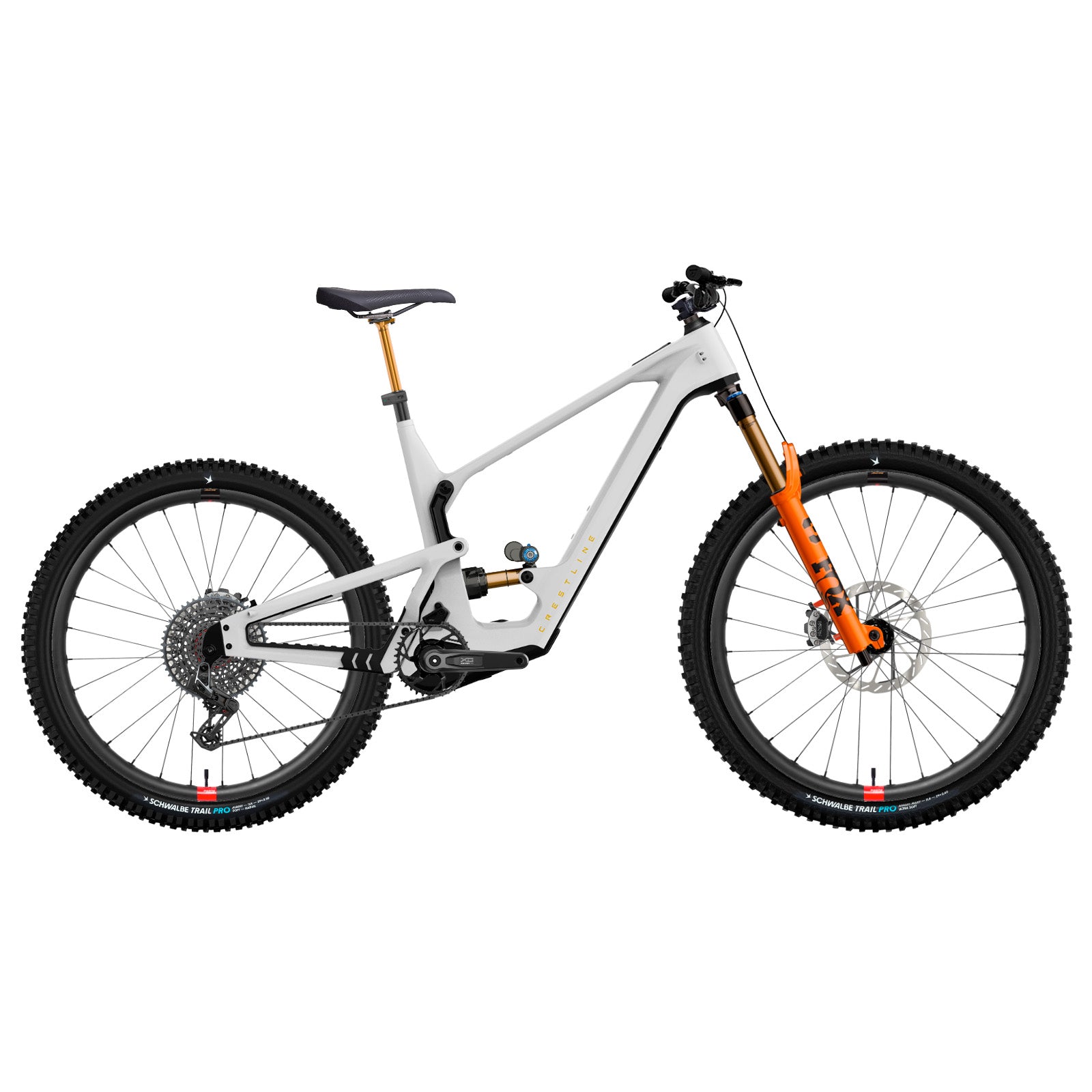

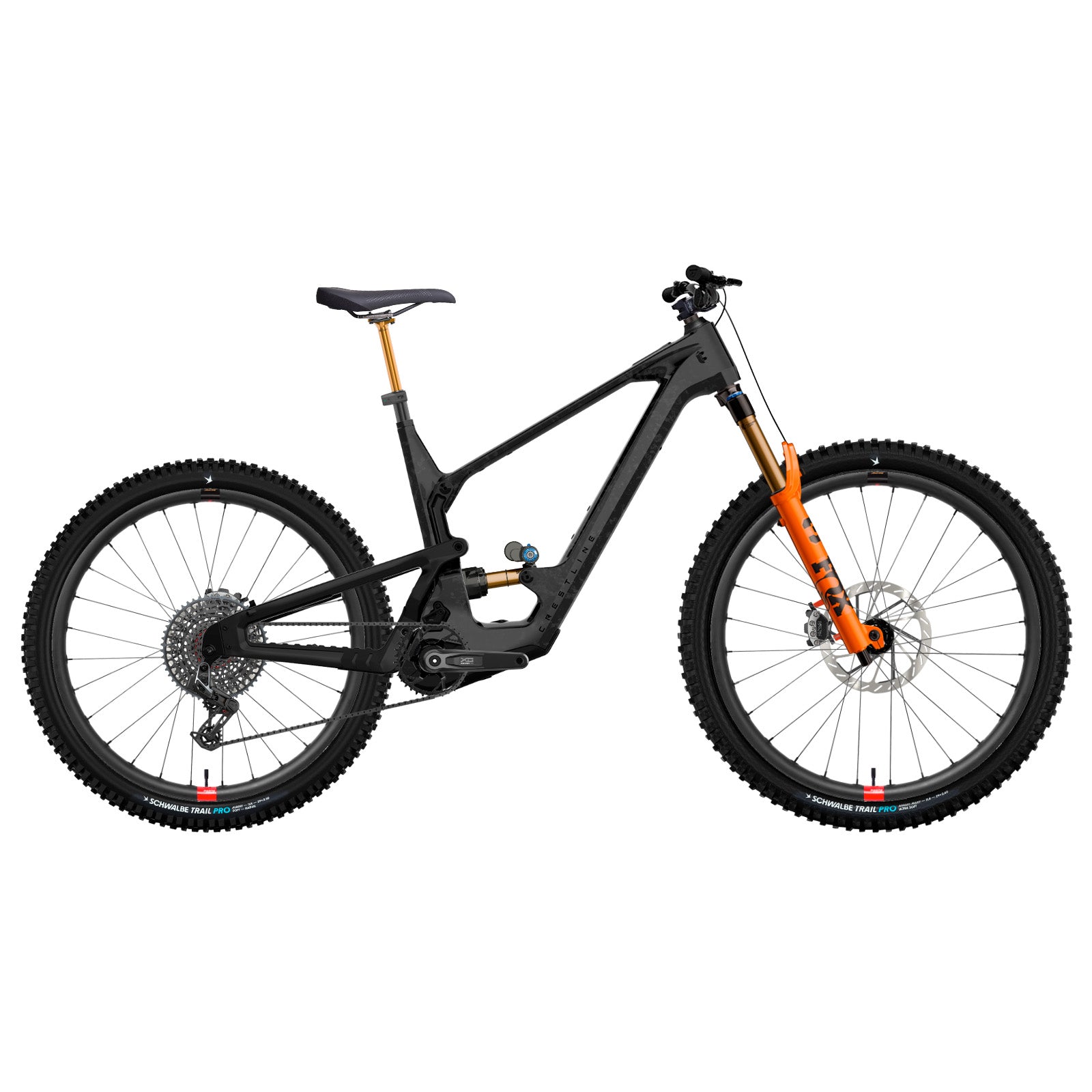

RS 181.2 - Fox Factory Spec - 700wh - Complete E-Bike
Choose options
RS 181.2
Highlights
- NEW Avinox M2S Drive System - Developed by DJI, lightweight 2.6 kg motor delivering 130Nm of continuous torque, 150Nm on boost, and up to 1300W of peak power.
- Removable Battery - 700Wh
- Adjustable travel - 161mm or 181mm
- DH-rated - CAT 5 DH-rated frame, dual crown compatible
- Refined frame - New design with reduced bulk and improved cable routing
- 56mm head tube - Straight 56mm head tube allows for reach adjustment options
Description
We got our hands on a limited batch of Crestline RS 181.2 frames and built the Fanatik complete we'd want to ride ourselves.
The RS 181.2 Factory Spec is built around premium FOX Factory suspension, with a FOX 38 Factory up front and Float X2 handling the rear. SRAM X0 Eagle Transmission delivers crisp, reliable shifting when the trail gets rough, while Reserve 30 HD Carbon MX wheels keep the build light, stiff, and ready for hard riding. SRAM Maven Ultimate brakes provide the stopping power to match, and a Transfer Neo wireless dropper rounds out the build.
Premium components where they matter, chosen for a bike that's meant to be ridden hard.
The Crestline RS 181.2 is the latest evolution of Crestline's AVINOX-powered eMTB platform, combining serious power with a refined, gravity-focused chassis. Crestline reworked the frame to reduce weight and bulk around the bottom bracket while maintaining a CAT 5 DH strength rating, resulting in a quieter, more streamlined platform built to take full advantage of the DJI Avinox drive system.
The RS 181.2 pairs Avinox power with adjustable geometry, 29" or mixed-wheel compatibility, multiple chainstay configurations, and adjustable rear travel between 161mm and 181mm. A 56mm head tube allows for reach adjustment, while generous tire clearance and dual-crown compatibility make it easy to tailor the bike for everything from technical trail riding to full-on gravity use. The removable Avinox battery also makes charging, travel, and battery swaps straightforward.
| Frame Material: | Carbon |
| Wheel Size: | Mixed: 29" front/27.5" rear |
| Rear Axle Standard: | 12x148mm Boost |
| Rear Shock: | Fox Float X2 Factory 2-Pos-Adj |
| Rear Shock Size: | 205mm x 65mm |
| Rear Shock Hardware: | 30mm x 8mm |
| Rear Suspension Travel: | 181 |
| Headset: | Cane Creek 40 |
| Headset Standard: | ZS56mm/ZS56mm |
| Fork: | Fox 38 Factory 29 GRIP-X2 F-S Kabolt 180mm Orange |
| Fork Axle: | 15x110mm Boost |
| Wheelset: | Reserve 30 HD Carbon MX Boost 6B/ISO DT 350 DEG DF 90T XD |
| Front Tire: | Schwalbe Magic Mary 29x2.5 Gravity Pro Ultra Soft |
| Rear Tire: | Schwalbe Albert 27.5x2.5 Gravity Pro Soft |
| Crankset: | SRAM XO ISIS 160 Crank Arms |
| Chainguide: | OneUp Components |
| Chain: | SRAM XO Transmission |
| Rear Derailleur: | SRAM XO Transmission |
| Cassette: | SRAM XS 1295 T-TYPE 10-52 BLK |
| Seatpost: | Fox Transfer Neo Factory Dropper RH-2 175, RH-3 200, RH4 225 |
| Seat Post Diameter: | 31.6mm |
| Seat Post Clamp Diameter: | 35mm |
| Seat: | Fizik Terra Ridon |
| Shifters: | SRAM AXS POD Button Controller |
| Handlebar: | Race Face ERA 40mm Kash Money 780 width |
| Stem: | Race Face Turbine 40mm Black |
| Brakes: | SRAM Maven Ultimate, HS2 rotors, 220mm |
| Water Bottle Cage Mounts: | 1 set on downtube |
| Motor: | Avinox M2S |
| Maximum Power Output: | 1300 watts |
| Maximum Motor Torque: | 150 Nm |
| Battery: | Avinox Integrated Li-ion Battery | Removable |
| Battery Wattage: | 700 Wh |
| Intended Use: | AM/Enduro |
180mm fork - 596mm A2C
| Size | RH-2 | RH-3 | RH-4 |
|---|---|---|---|
| Reach | 450 | 480 | 505 |
| Stack | 639 | 650 | 662 |
| Wheelbase | 1233-1258 | 1268-1293 | 1293-1313 |
| Head Tube° | 63.5° | 63.5° | 63.5° |
| Head Tube | 110 | 120 | 130 |
| Seat Tube° | 78.2° | 78.5° | 78.8° |
| Seat Tube | 420 | 450 | 480 |
| BB Height | 351 | 351 | 351 |
| Chainstay | 440 | 450 | 455 |
