Fox Racing Shox

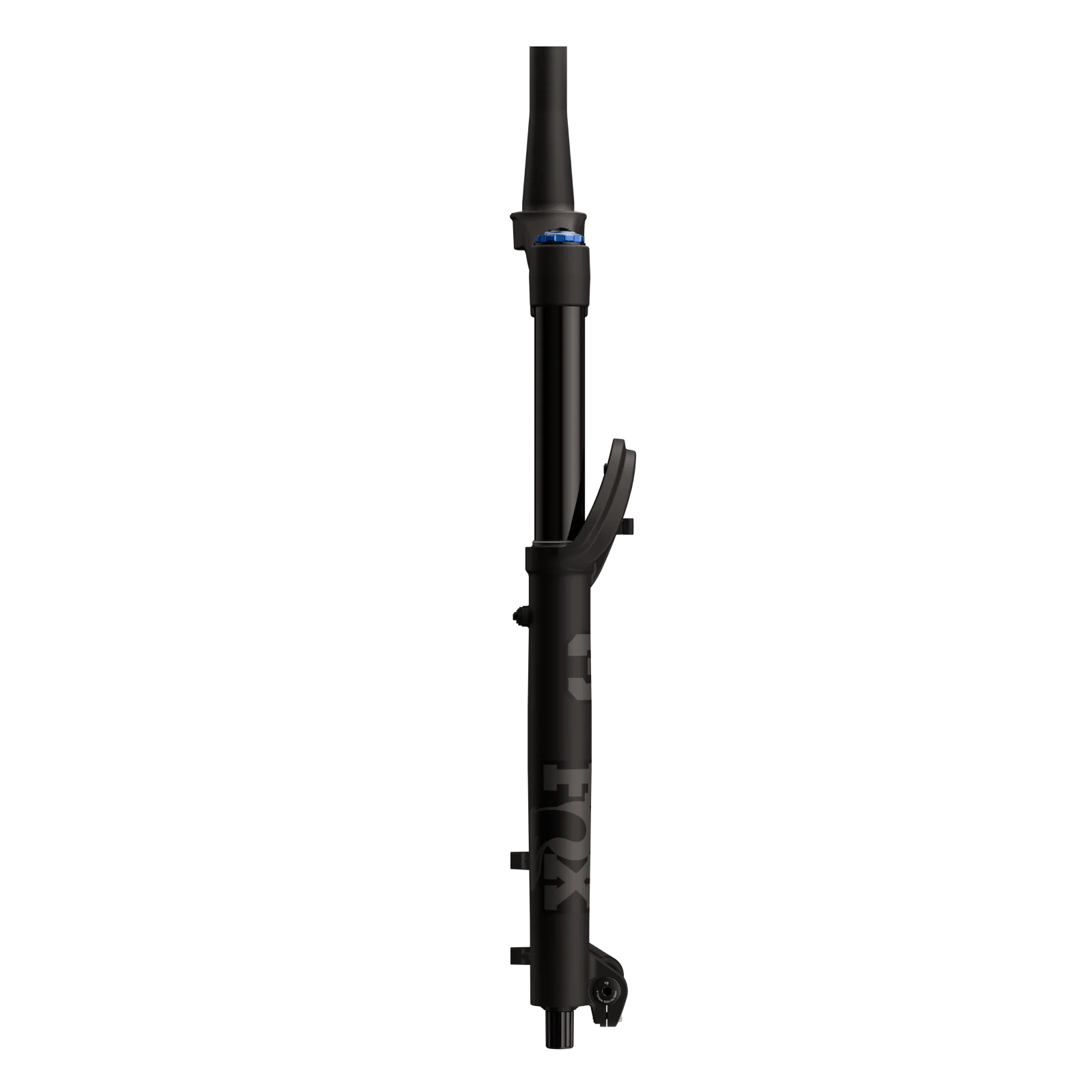

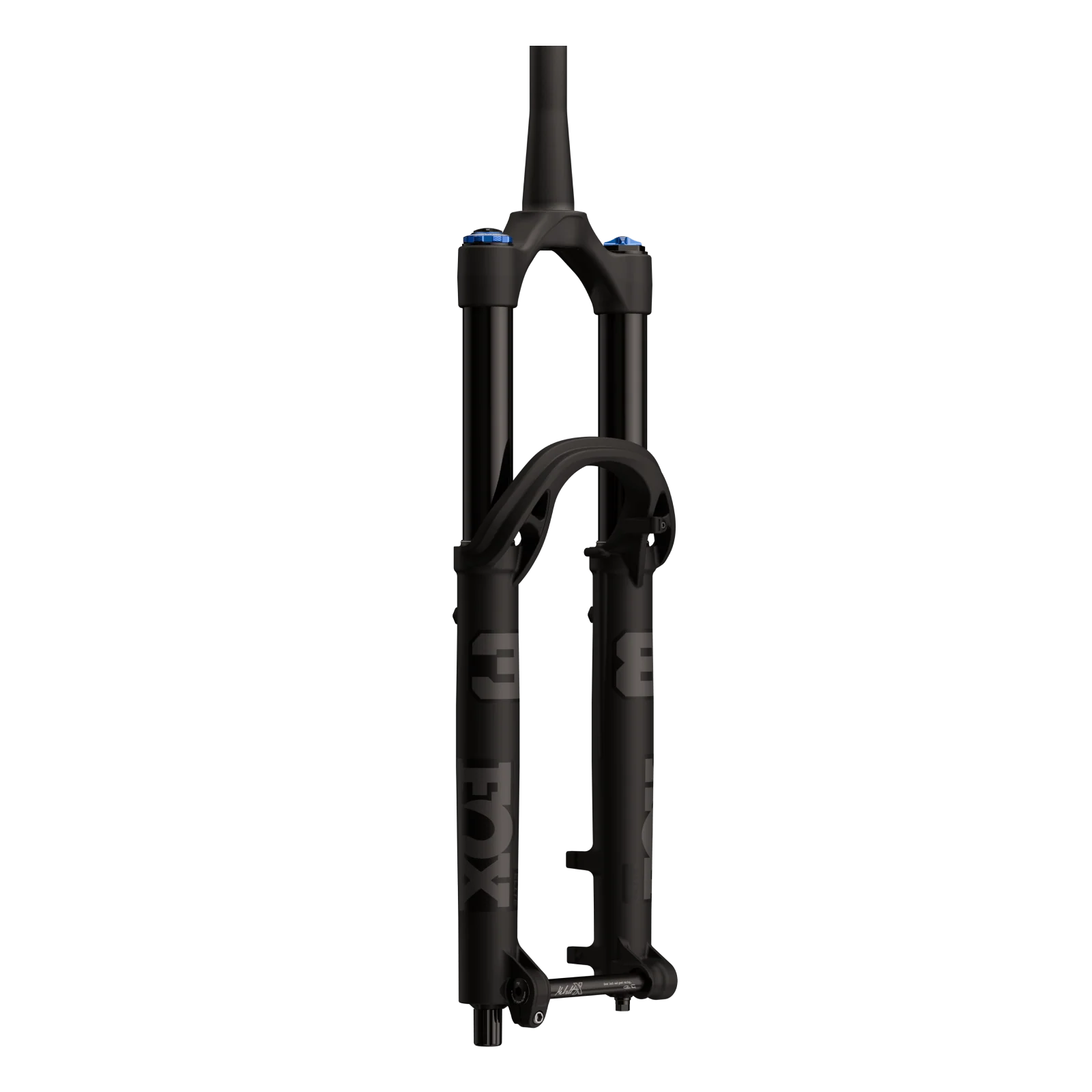

Fox 38 Performance Elite - 29" - GRIP-X2 - 44mm Offset - 170mm - 2027
Choose options
Highlights
- New generative designed lower legs with 20mm increased bushing overlap for decreased friction and increased sensitivity
- New Glidecore vertically and horizontally compliant air spring with MCU bottom-out bumper
- Updated bleeders and relocated bypass channels
- Uses same mud guard as 36 / 36 SL
Description
Five years in, the new 38 is once again upping the ante for Enduro and aggressive All-Mountain fork performance. Learning from the design of the FOX Podium fork and its exemplary ride feel, the new 38 is 8.8% stiffer fore/aft and 6.8% less stiff in torsion. The new 38 also increases its bushing overlap from 120mm to 140mm for the smoothest possible ride at high speed and under high impacts.
The new 38 also has the updated Grip X2 damper. This update includes a new mid-valve piston and valve stack design, revised bleed port and valve stack shapes for improved oil flow, all which add more support without added harshness.
It also features the Glidecore air spring that allows the air shaft to flex both vertically and laterally under load, reducing binding when the fork is under stress—especially in aggressive riding situations.
And one of the last performance enhancements comes from an MCU bottom-out bumper to the air spring for smoother end-stroke feel, and new volume spacers in 5cc increments (old 10cc volume spacers still work, but the new 5mm increments gives you more control!).
| Travel: | 170mm |
| Wheel Size: | 29" |
| Crown Offset: | 44mm |
| Max Tire Size: | 2.5" (varies by manufacturer) |
| Spring: | Air |
| Travel Adjust: | Internally Adjustable (requires additional parts) |
| Axle Configuration: | 15x110mm Boost - Bolt-on |
| Disc Mount: | Post Mount 200mm |
| Min. Rotor Size: | 200mm |
| Max. Rotor Size: | 220mm |
| Steertube Diameter: | 1.125" - 1.5" Tapered |
| Intended Use: | Enduro |
| Warranty: | 1 year |
| External Adjustments: |
|
