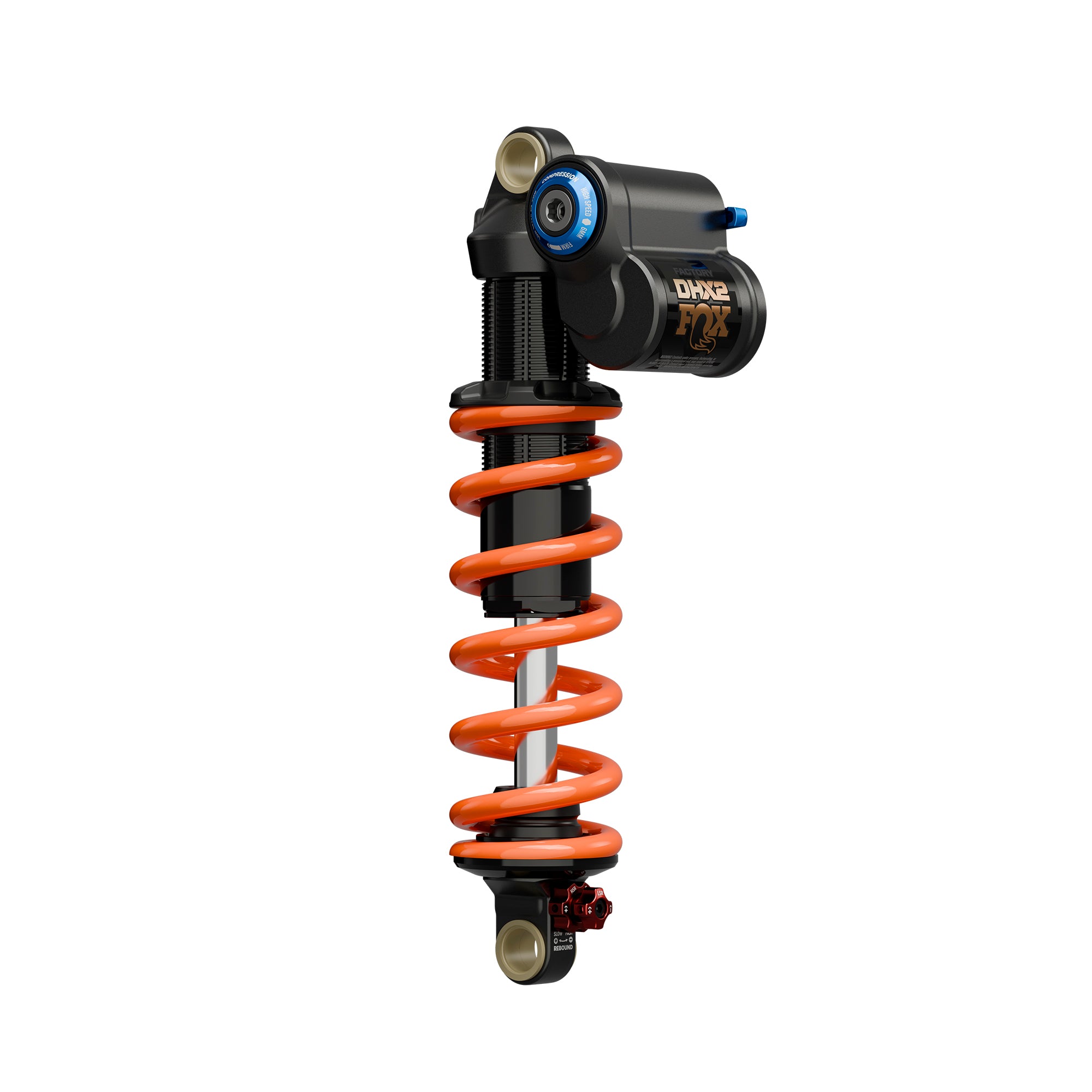

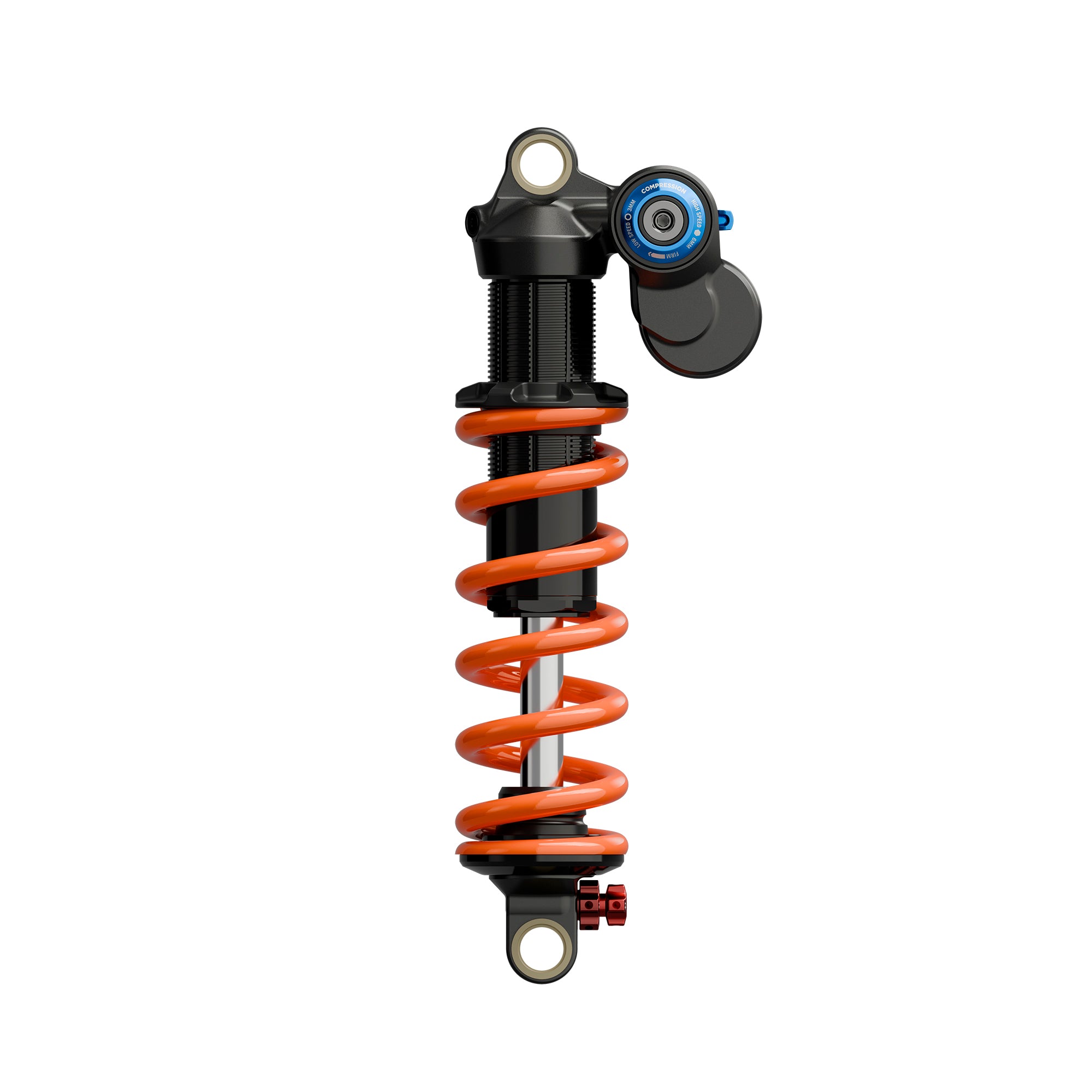

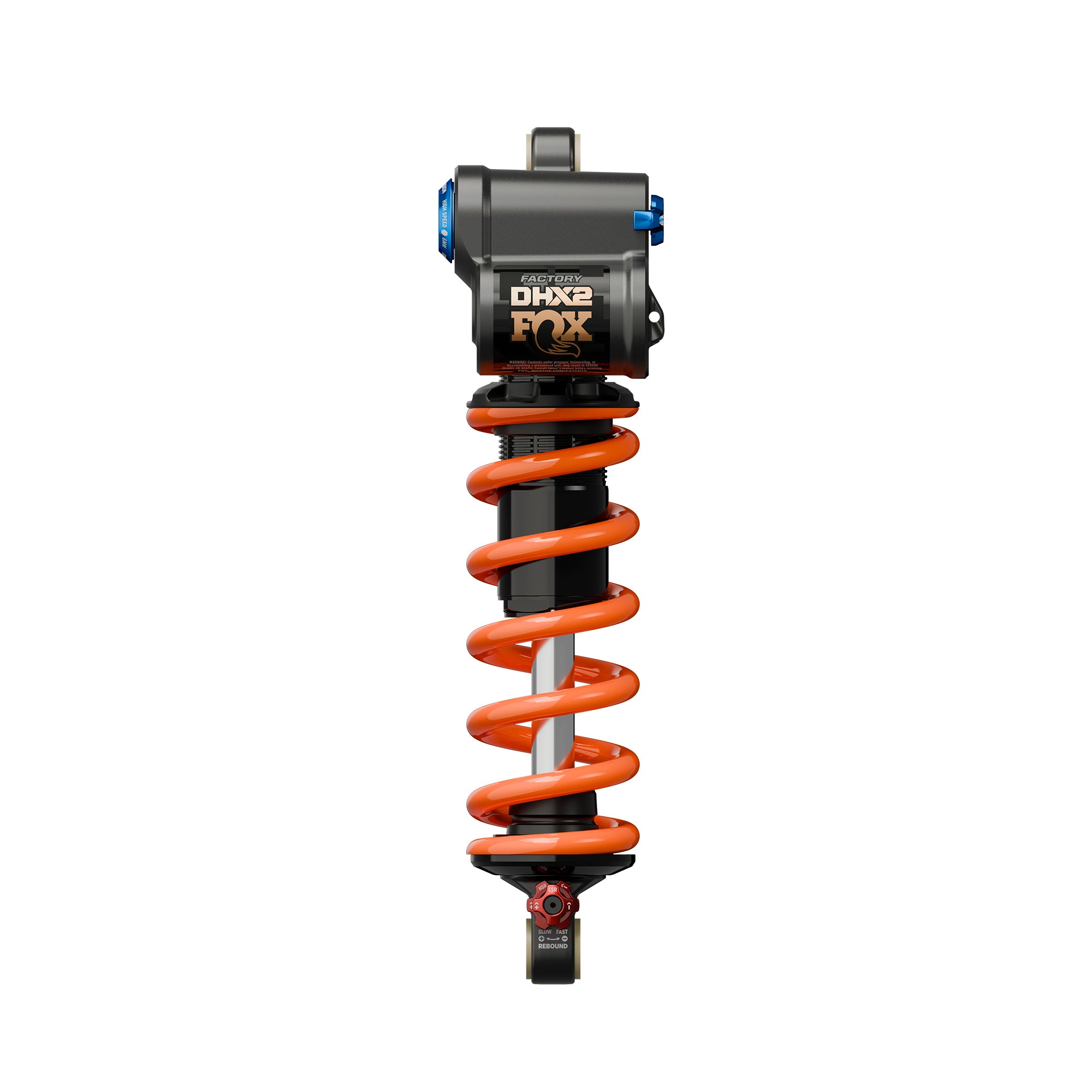

Fox Racing Shox DHX2 Factory - Climb Switch - Metric - 2026
The new DHX2 is FOX’s most advanced coil shock to date—built on the same internal architecture as the FLOAT X2, but with the plushness, sensitivity, and small-bump compliance that only a coil spring can deliver.
The monotube chassis, pressure-balanced design, and full 4-way adjustability bring elite-level traction and predictability to Enduro and Downhill riders who prefer coil performance. With a newly upgraded cam-and-gear system for VVC High-Speed Rebound, plus standard high-/low-speed compression and rebound adjusters, the DHX2 offers more tuning range than any previous coil shock from FOX.
Backed by the same engineering that made the FLOAT X2 a benchmark, DHX2 adds the low-friction ride feel and consistent support that coil riders demand—whether racing World Cups or chasing KOMs.
Features
- First-Ever 4-Way Adjustable Monotube Shock – Full high-/low-speed compression and rebound adjustability
- New Monotube Design – Enables pressure balancing and improves durability
- VVC Technology for High-Speed Rebound – Unique cam + gear system adjusts rebound plate position
- Pressure Balanced for Control – Fast recovery and consistent damping across terrain
- ½” Main Shaft – Increased strength and stiffness over previous twin-tube models
- Larger Base Valve & Valve Count – Matches fork damper performance for better front/rear balance
- Tuned for Downhill and Enduro – Small bump sensitivity + big hit capability
- Coil-Specific Feel – Ultra-low friction and traction-rich ride quality
Tech Specs
Spring Type: | Coil (spring sold separately) |
External Adjustments: | Low Speed Compression, High Speed Compression, Low Speed Rebound, High Speed Rebound, Two Position Switch |
Mount: | Eyelet top and bottom |
Mounting Hardware: | Sold separately |
Warranty: | 1 Year |
Specs subject to change without notice. Please check with manufacturer for the most up-to-date information.
