Fox Racing Shox Live Valve Neo Front/Rear Bump Sensor Kit

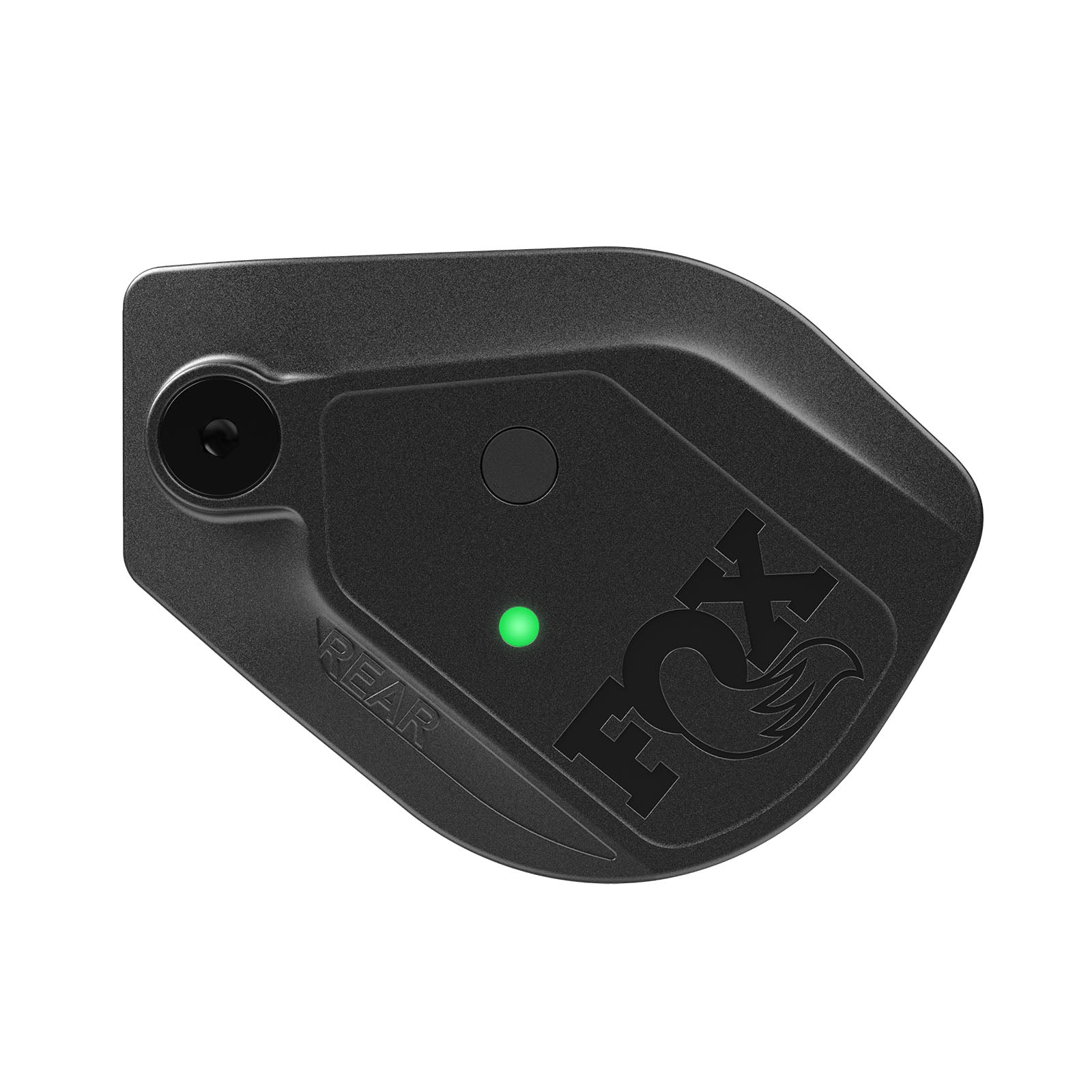

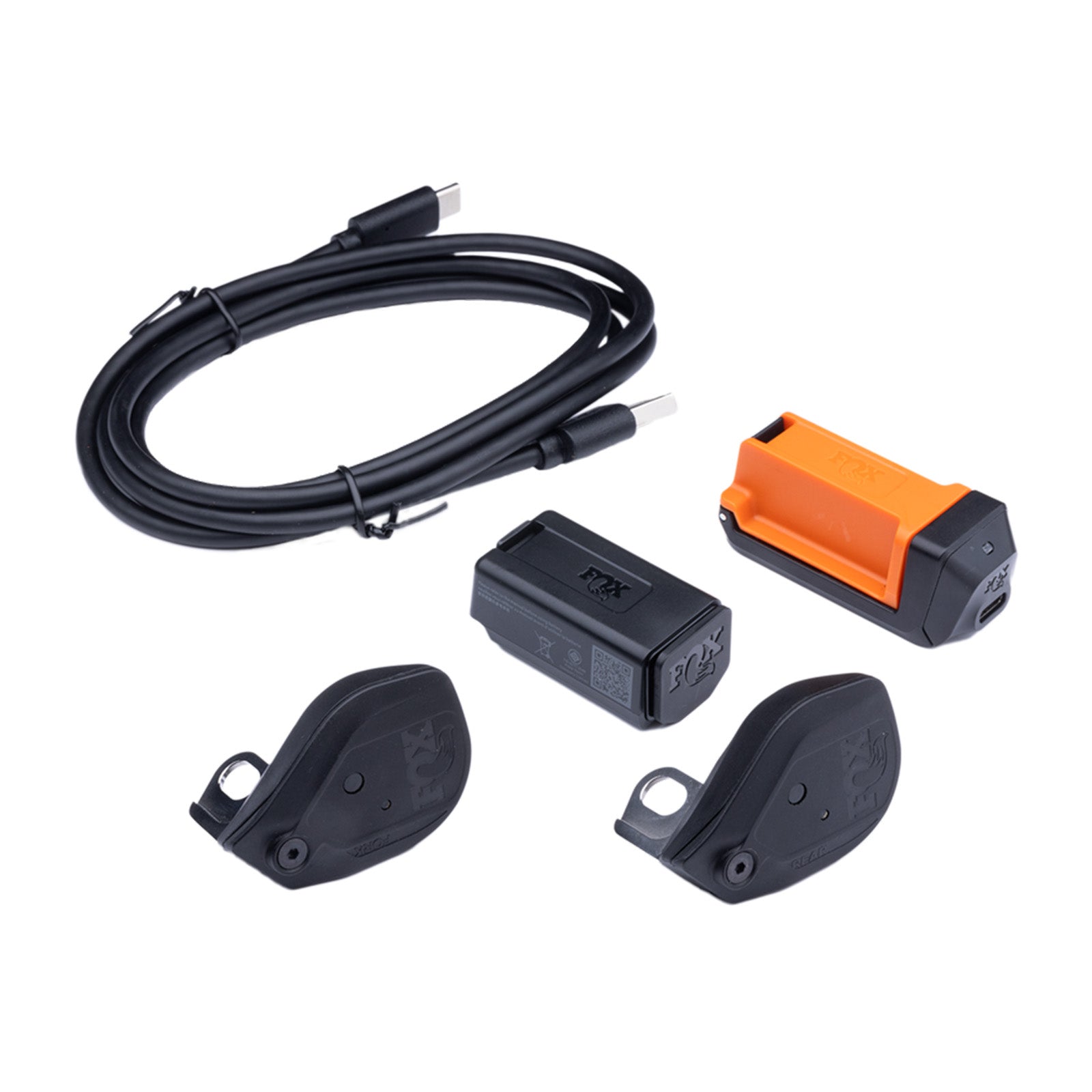

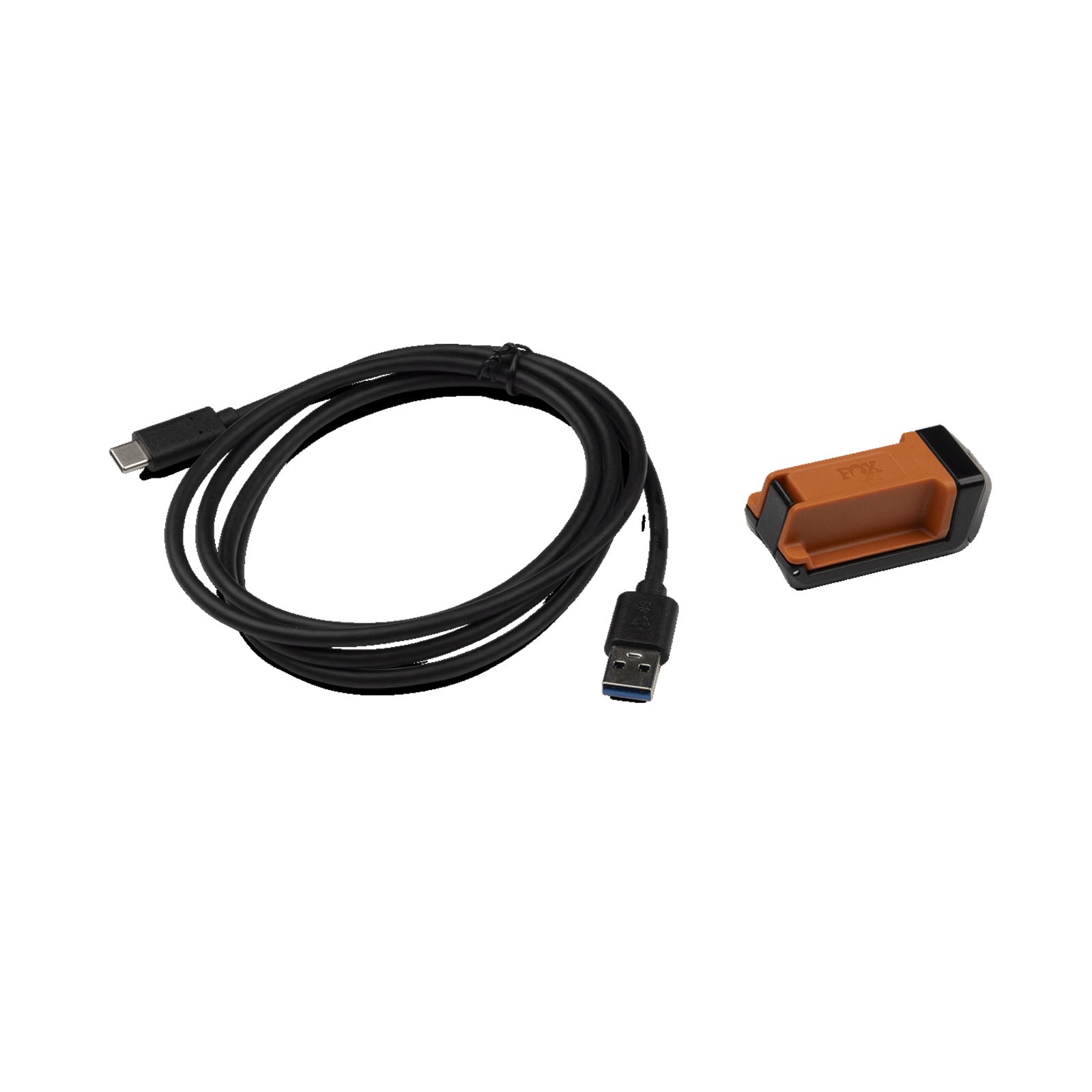

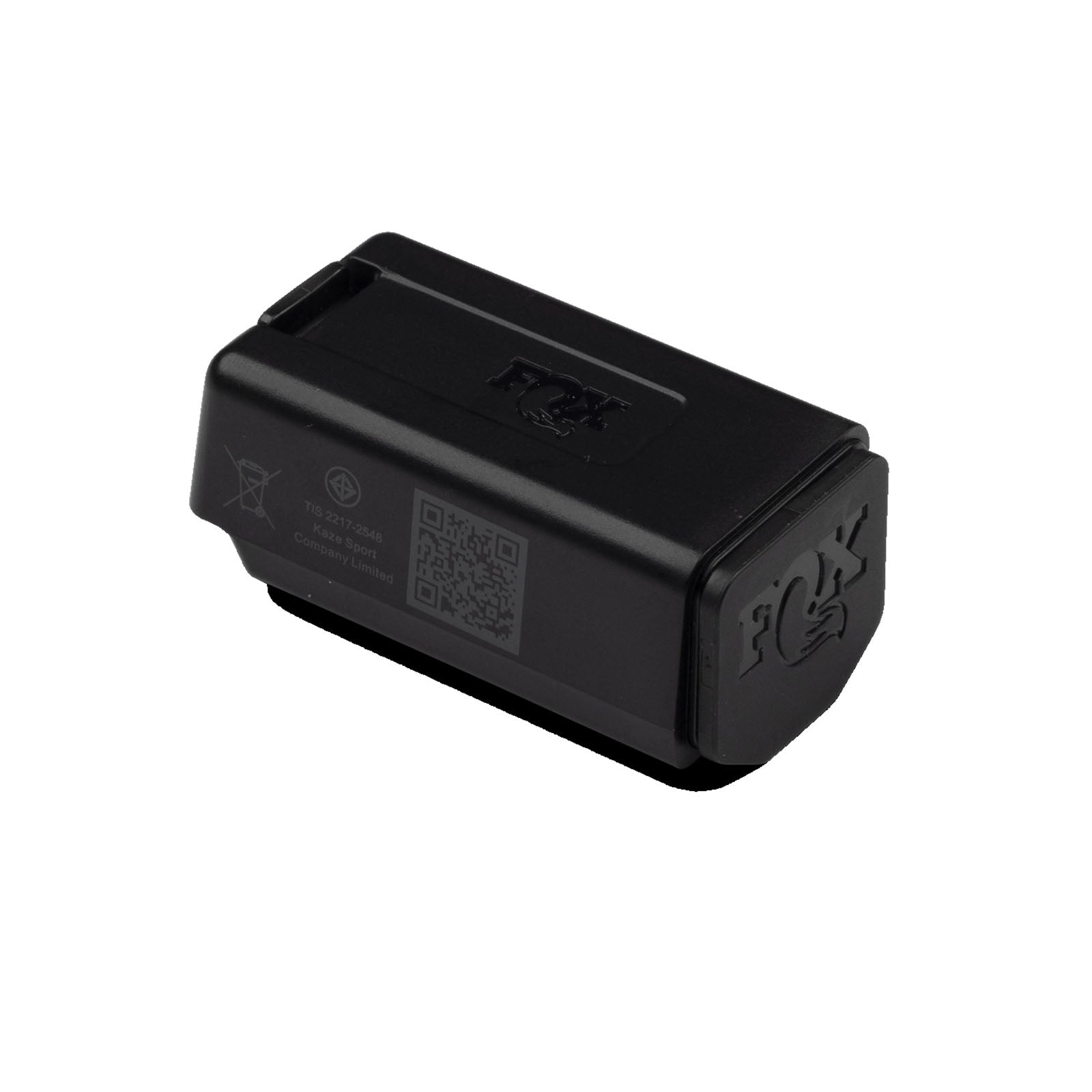

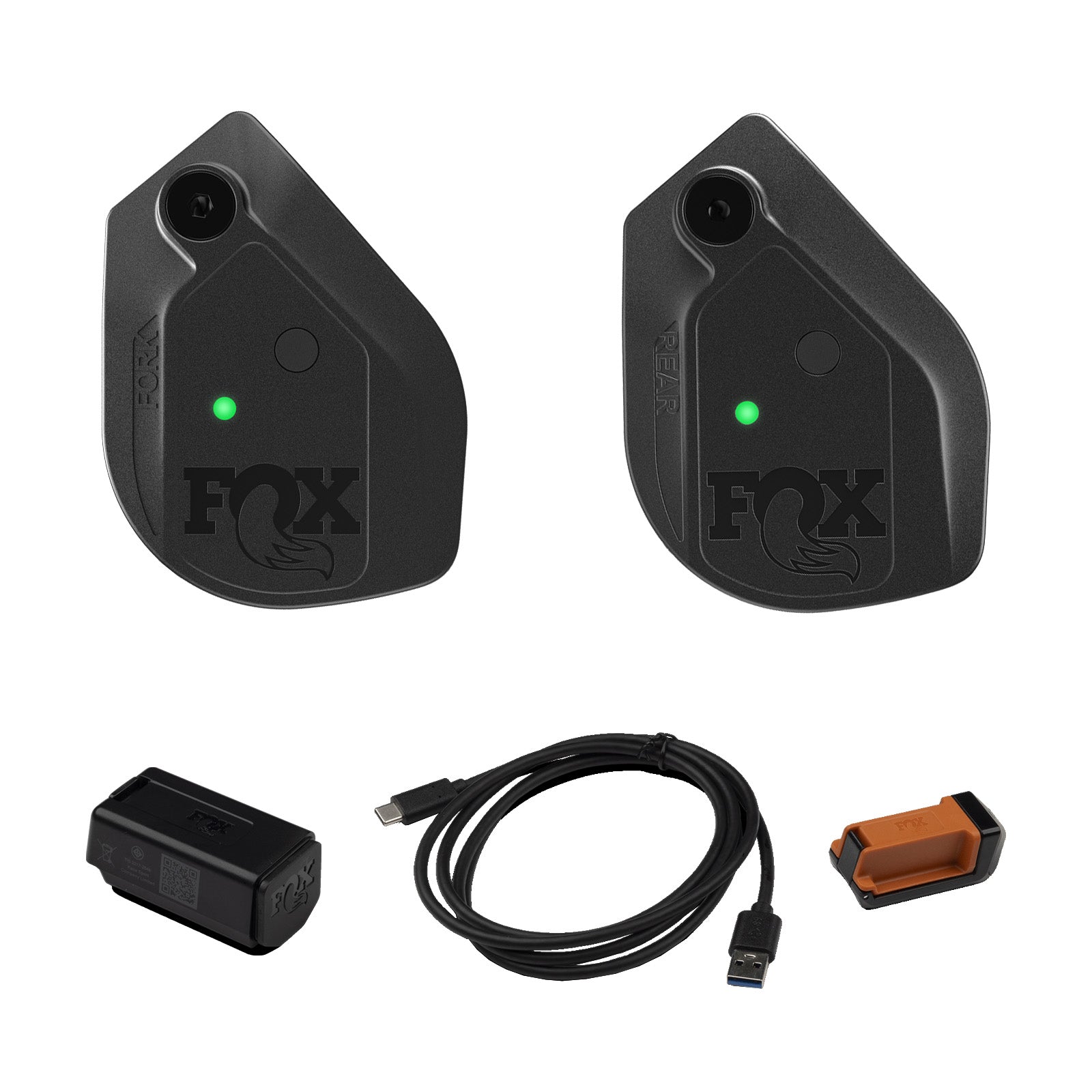

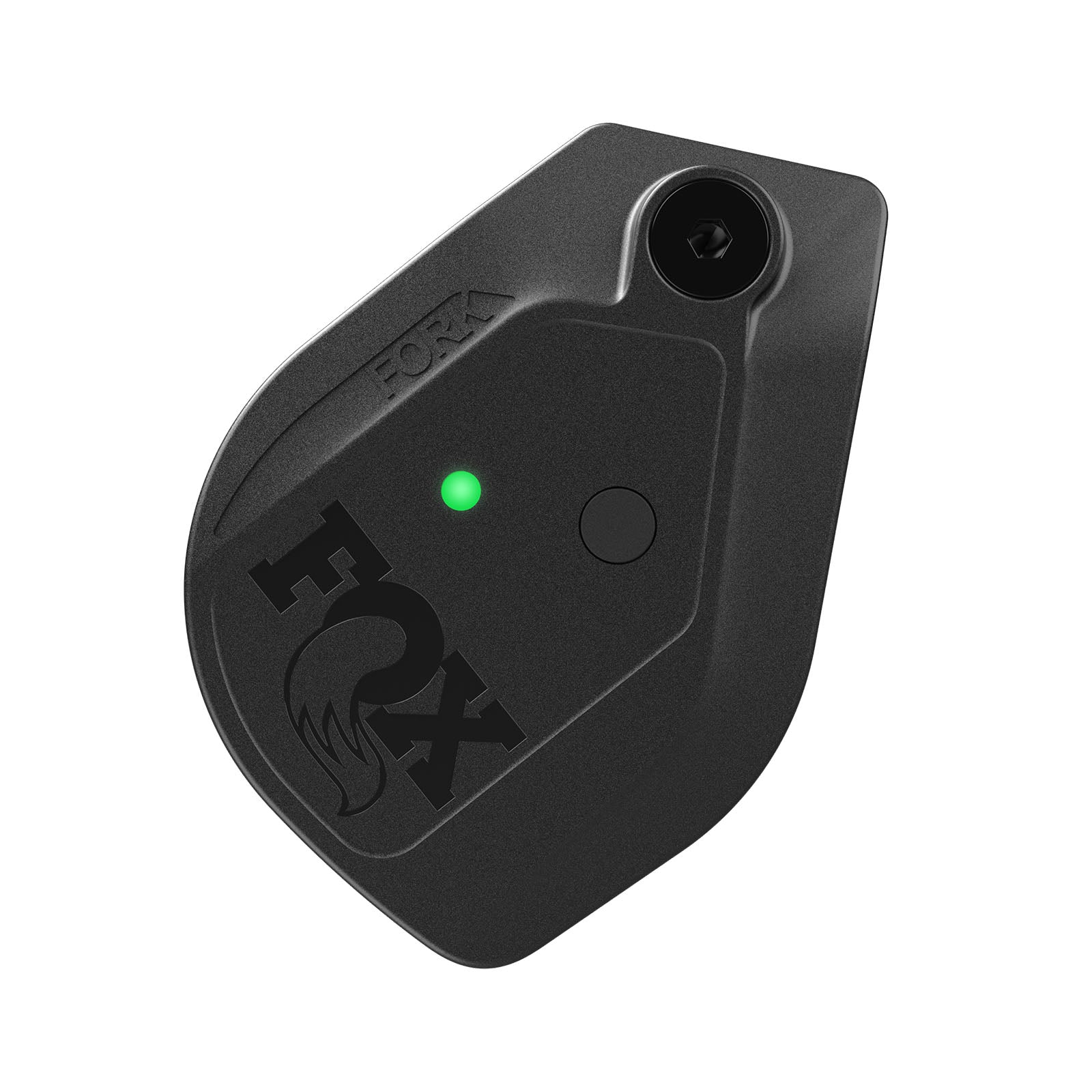

The Live Valve Neo kit includes one rechargeable Controller battery with cover, one Fork Sensor, one Rear Sensor, a FOX battery block, a charging dock with USB-A to USB-C cable, two M6x20mm bolts and two M6x42mm bolts for sensor mounting with either standard or oversized rotors.

CR2032 batteries for Fork and Rear Sensors are included. The rechargeable Controller battery is also compatible with the Transfer Neo dropper post (sold separately).

Important Compatibility Information

This kit is required for the operation of Live Valve Neo systems, and is compatible with FLOAT X Live Valve Neo and DHX Live Valve Neo shocks.

Bump sensors are understood to be compatible with current Shimano and SRAM production hydraulic MTB brakes.

Examples of current Shimano and SRAM production brakes:

• XTR M9100
• Deore XT M8100
• SLX M7100
• Deore M6100
• Saint M82
• Maven
• Code
• Level

Bump sensors are also compatible with the following:

• Magura MT7 – other Magura models likely compatible but have not been fit checked.
• TRP DHR Evo – other TRP models likely compatible but have not been fit checked.

Neo Bump Sensors are NOT compatible with:

• Older Shimano calipers with outboard hose fittings and/or protruding bleed fittings – these brakes are known to interfere with sensors.
  • Examples of this brake style include Shimano Deore XT M8000 calipers.
• Hope V4 calipers
