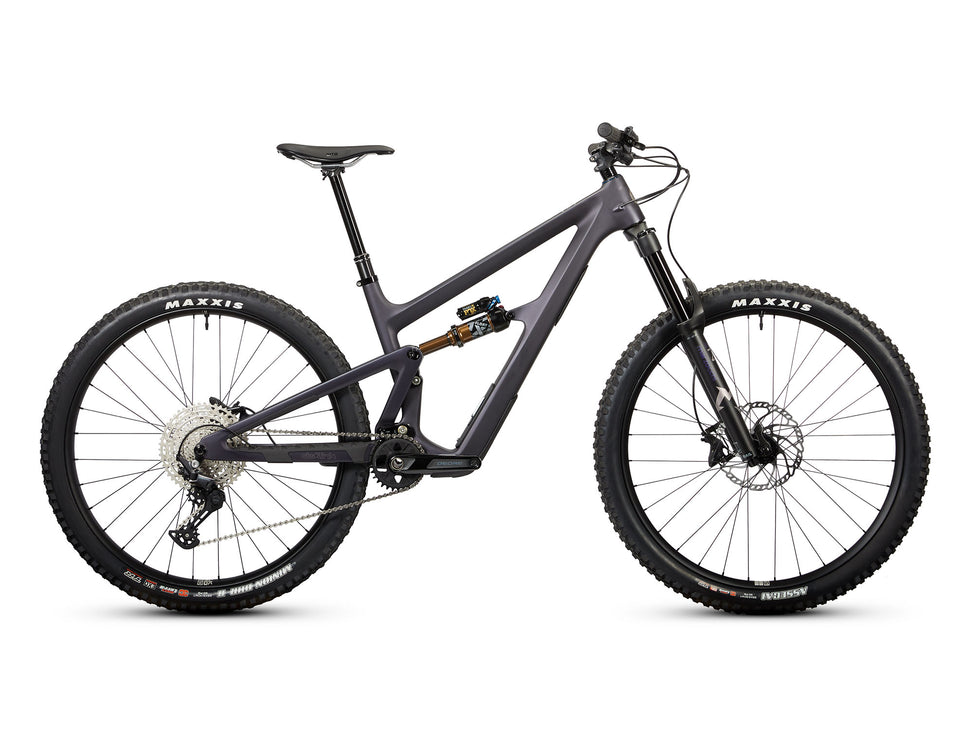

Ibis Ripmo V3 Deore Complete Bike - 2025
BUILT TO RIP
The Ripmo isn’t just a bike; it’s a legend. With multiple “Best in Test” awards
and years of high level competition at the notoriously brutal Enduro World Series, it’s the ultimate trail slaying machine. How do you improve on that? The Ripmo is loaded with new features internal downtube storage, a flip chip for mixed wheels, a slacker head angle, and increased coil compatibility. We’ve also expanded our sizing options and added size specific details—right down to the bottom bracket height.
Features
- Size Specific Everything
- Flip Chip for 27.5”/29” mixed (MX) wheels
- Internal Frame Storage
- DW-Link
Tech Specs
| Frame Material: | Carbon |
| Wheel Size: | 29", Mixed: 29" front/27.5" rear |
| Rear Axle Standard: | 12x148mm Boost |
| Rear Shock: | Fox Float X, Factory Series, 2-Pos Adj. w/EVOL |
| Rear Shock Size: | 230mm x 60mm |
| Rear Suspension Travel: | 150mm |
| Headset: | Cane Creek 40 |
| Headset Standard: | ZS44mm/ZS56mm |
| Fork: | Fox Float 36, Factory Series, GripX, 160mm, 29” |
| Fork Axle: | 15x110mm Boost |
| Wheelset: | Blackbird Send Alloy, 32 Hole, S-M F: Send I 29” R: Send II 27.5”, XM-XL F: Send I 29” R: Send II 29” |
| Front Tire: | Maxxis DHF, 29”x 2.5”, Exo+ |
| Rear Tire: | S-M: Maxxis DHR2, 27.5” x 2.5”, Exo+ XM-XL: Maxxis DHR2, 29” x 2.5”, Exo+ |
| Crankset: | Shimano Deore, M6120, 24mm Spindle, S-M: 165mm, XM-XL: 170mm |
| Bottom Bracket: | Shimano, SM-BB52 |
| Chain: | Shimano Deore, M6100 |
| Rear Derailleur: | Shimano Deore, M6100, Shadow Plus |
| Cassette: | Shimano Deore, M6100, 10-51T |
| Seatpost: | KS i-Rage Dropper, S: 125mm, M: 150mm, XM: 170mm, L-XL: 190 |
| Seat Post Diameter: | 34.9mm |
| Seat: | WTB Silverado, Fusion, 142mm |
| Shifters: | Shimano Deore, M6100 |
| Handlebar: | Ibis HiFi, 31.8mm, 800mm |
| Stem: | Ibis, 31.8mm, S-M: 40mm, XM-XL: 50mm |
| Grips: | Lizard Skin Charger Evo |
| Brakes: | Shimano Deore, M6120, 4-Piston |
| Intended Use: | AM/Enduro |
Specs subject to change without notice. Please check with manufacturer for the most up-to-date information.
Geometry
mm / inches
160mm FORK (575mm AXLE TO CROWN)
Size
Seat Tube
Top Tube
Reach
BB Height
BB Drop
Head Angle
Seat Angle
Standover
Chainstay
Head Tube
Wheelbase
Stack
S
395
578
436
338
36
64.5°
77°
693
432
85
1195
616
M
400
605
456
341
33
64.5°
76.5°
734
432
95
1219
622
XM
415
630
478
344
30
64.5°
76.5°
757
436
110
1249
633
L
457
630
506
349
27
64.5°
77°
772
438
125
1286
643
XL
477
685
540
350
24
64.5°
77.5°
784
440
140
1329
654
