OneUp Components Wave Pedals
Revolutionary Shape for Control and Confidence

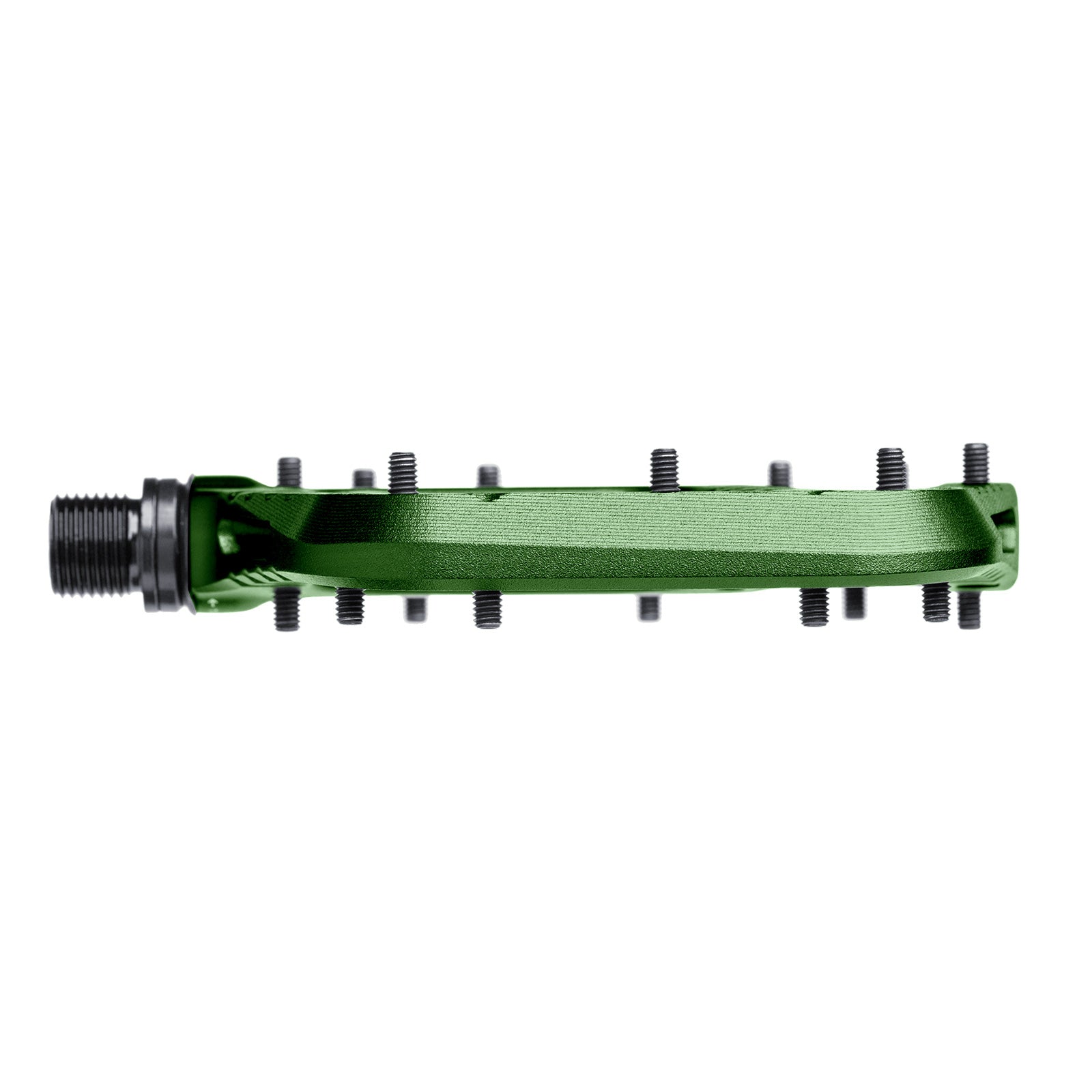

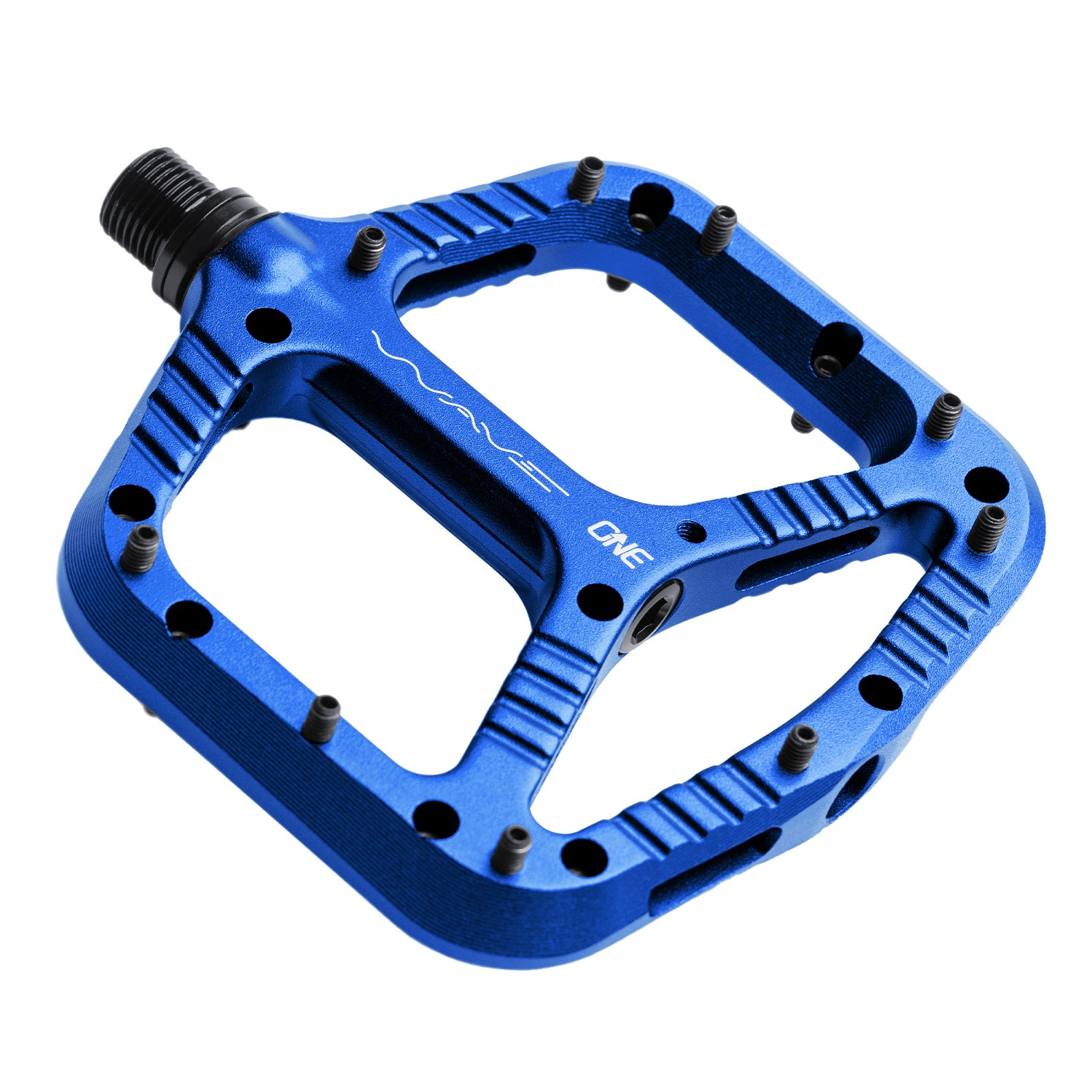

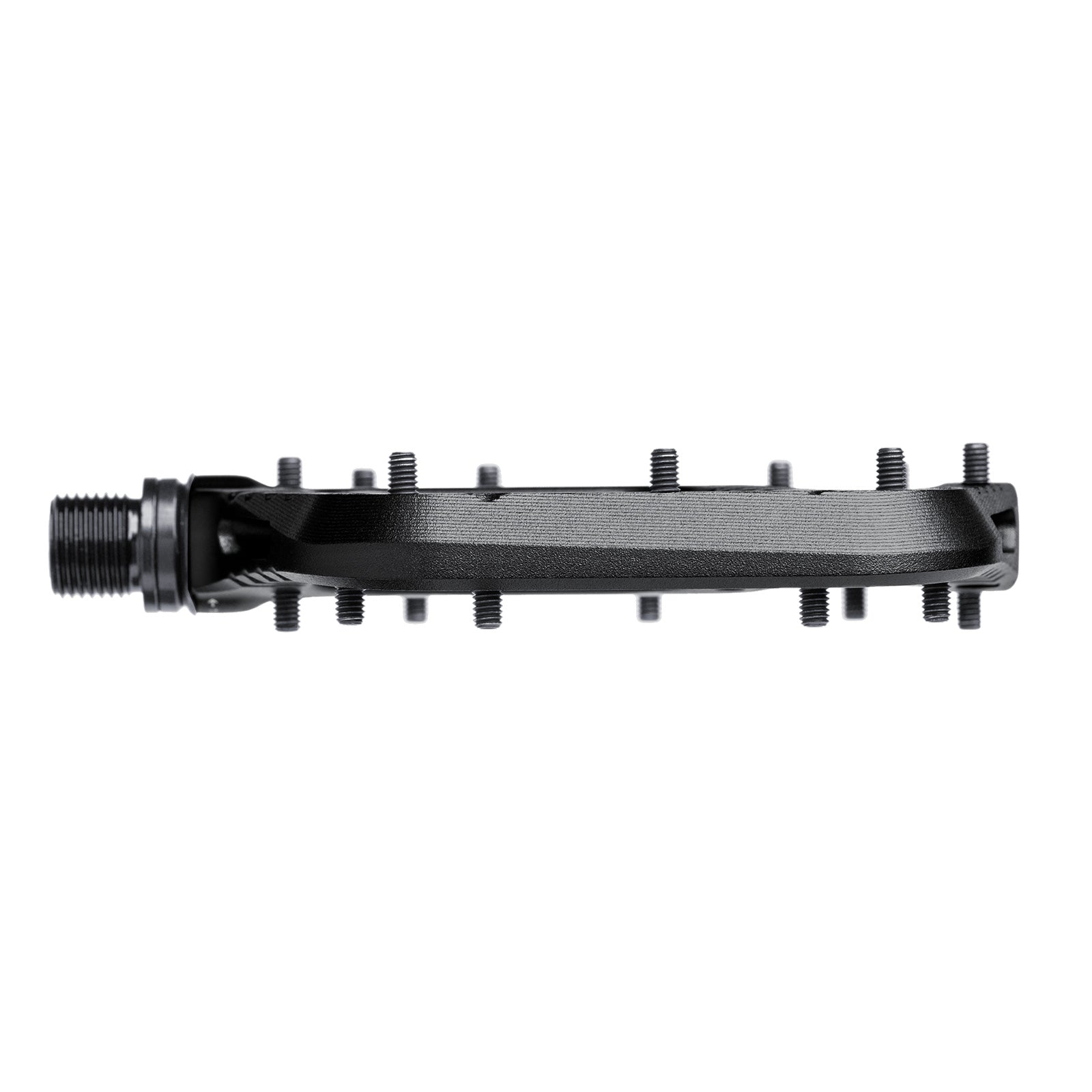

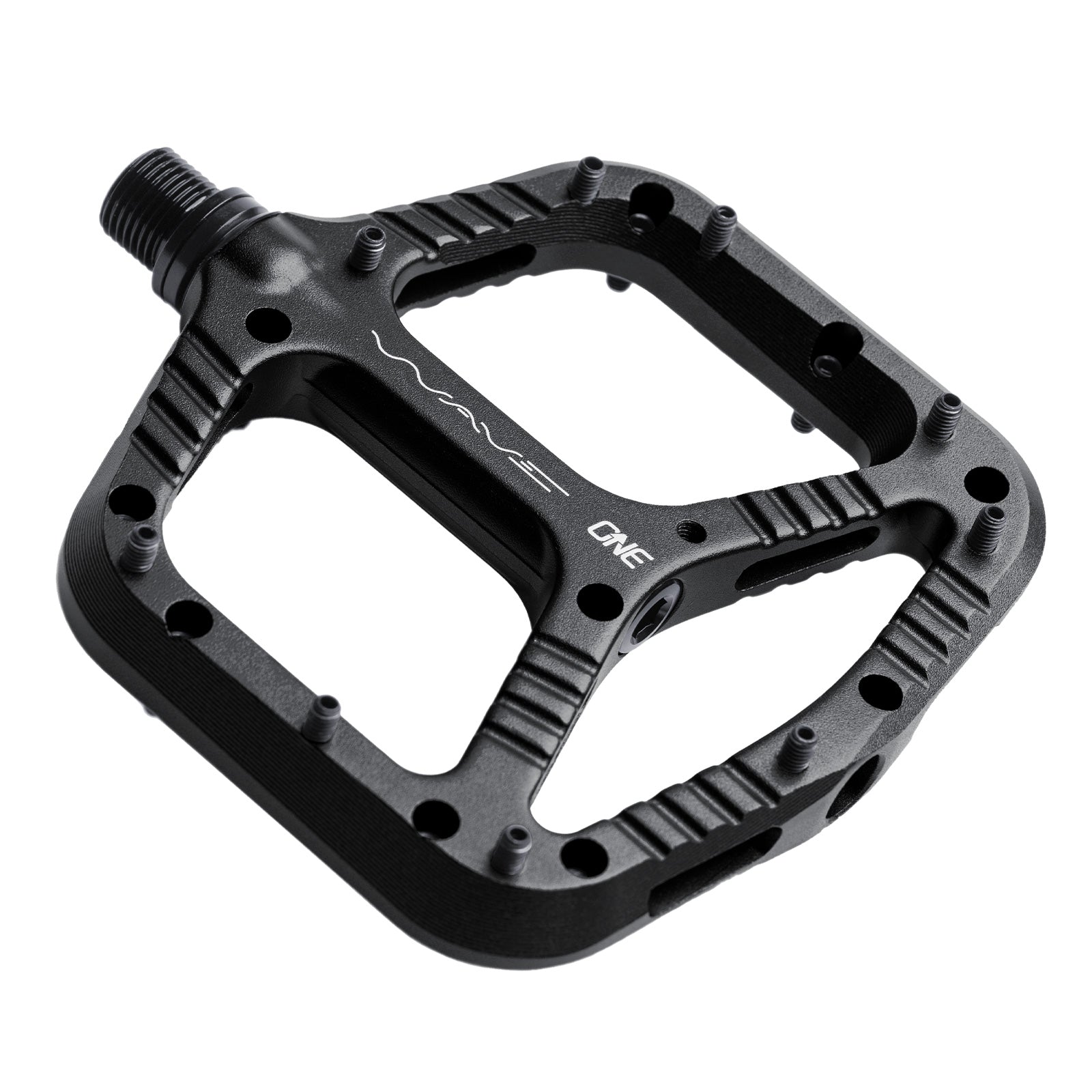

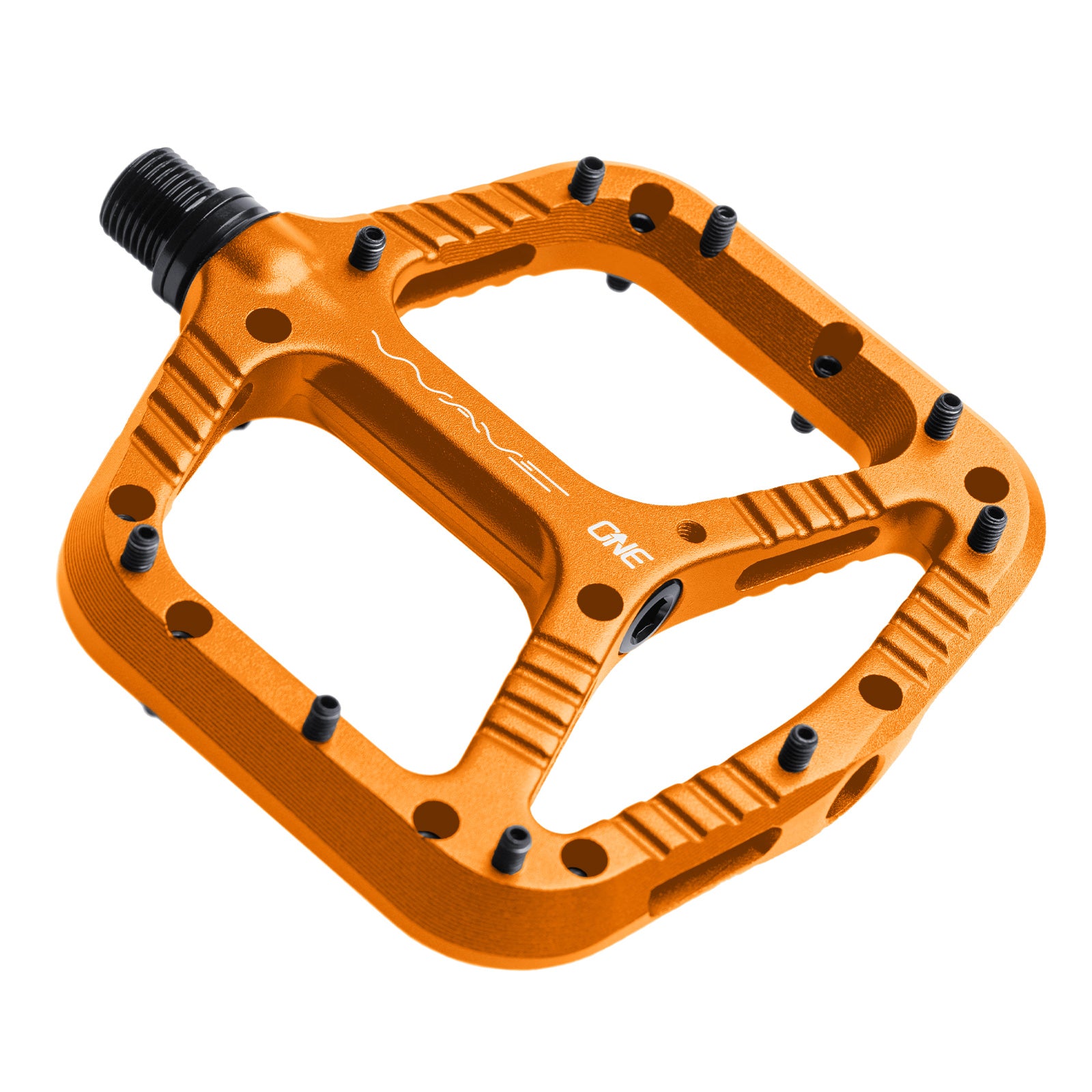

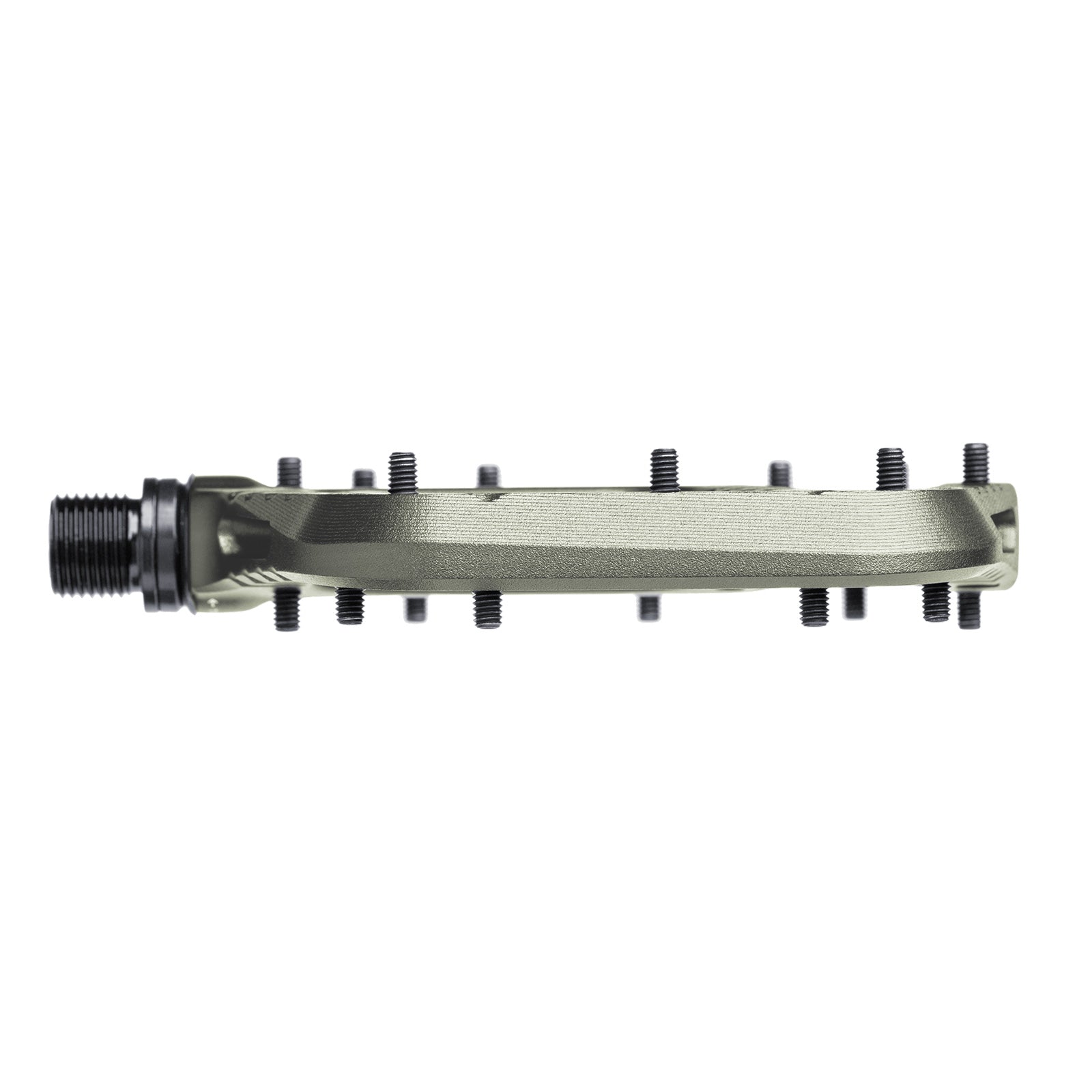

The OneUp Wave Pedals introduce a completely new platform shape, neither concave nor convex, but Wave-shaped. Designed to match the natural curvature of your foot, the taller front and sloped rear encourage a powerful heels-down stance and a more natural pedal stroke. The concave front secures the ball of your foot during rough descents, while the sloped back enhances control and traction by supporting an aggressive riding position. Fully threaded, self-clearing hollow-hex pins angled forward up to 10 degrees further increase grip and stability when it matters most.
Built to Last, Easy to Maintain

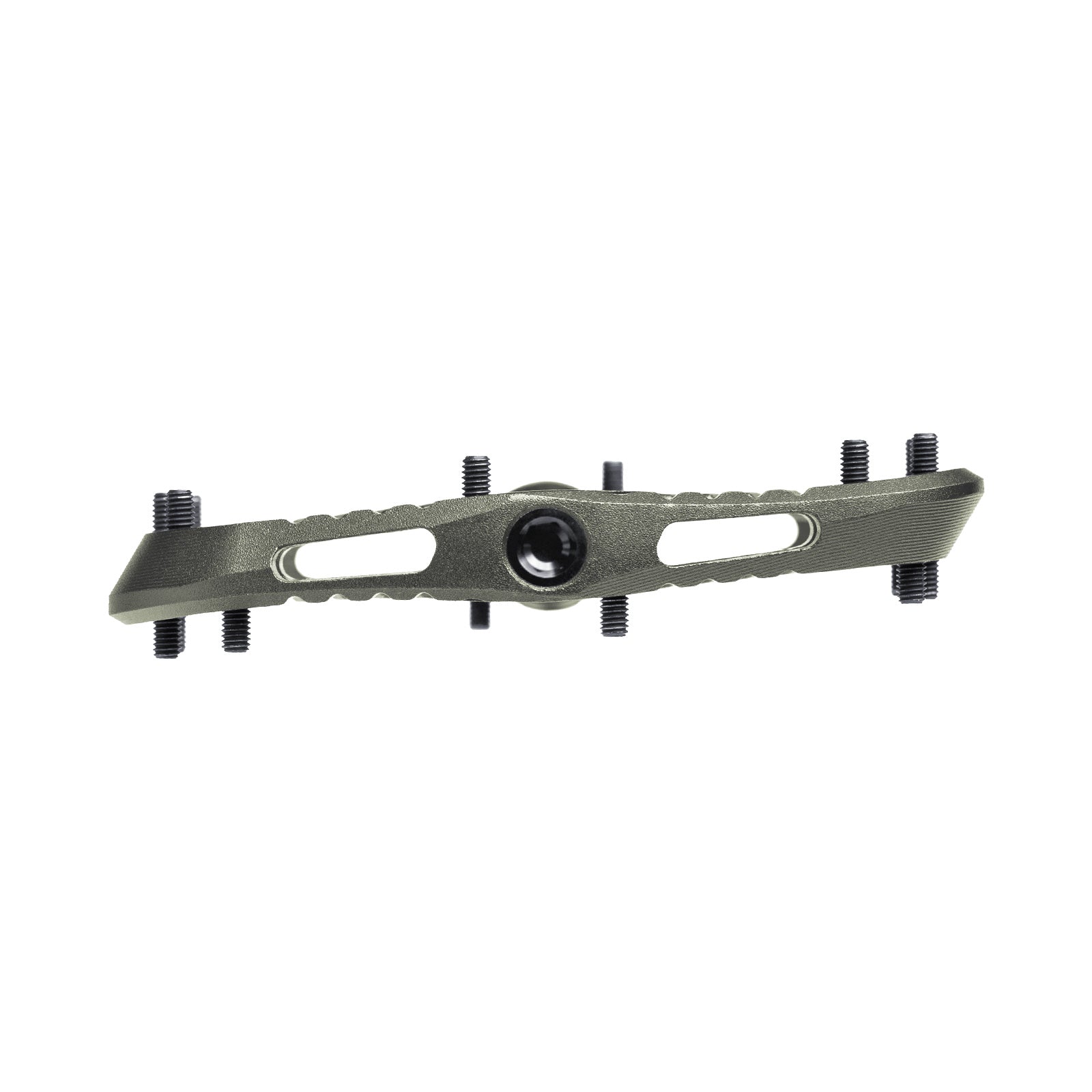

Underneath the surface, the Wave Pedals boast a completely re-engineered axle system, integrating a robust bearing and bushing layout that’s both durable and easy to service. Each pair includes a Bearing Nut Tool and uses the same rebuild kit as OneUp’s clipless pedals, simplifying long-term maintenance and reducing spare parts inventory. Forged and CNC’d from 6061 aluminum with a chromoly steel axle, these pedals are designed to withstand the demands of aggressive mountain biking.
More Options, More Style

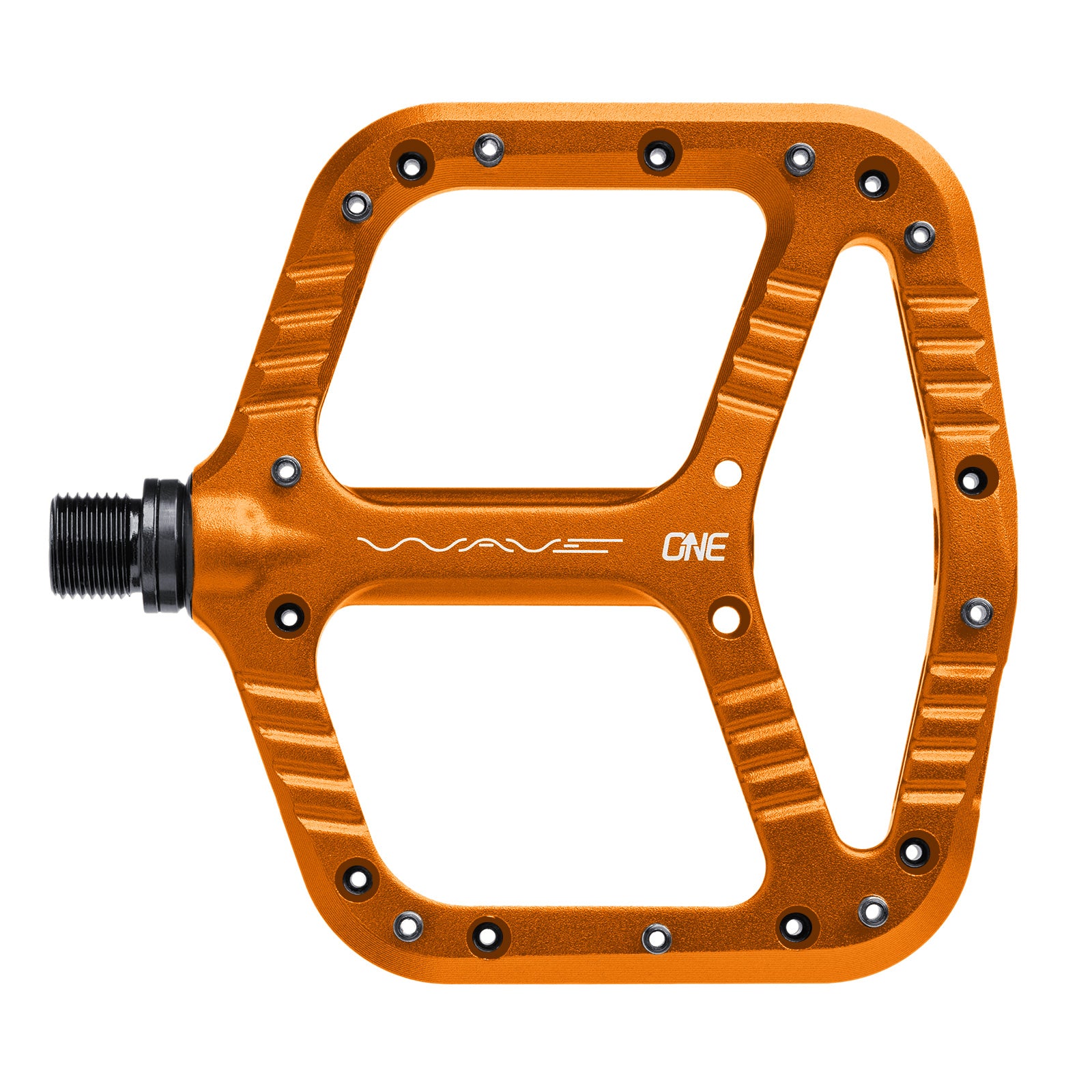

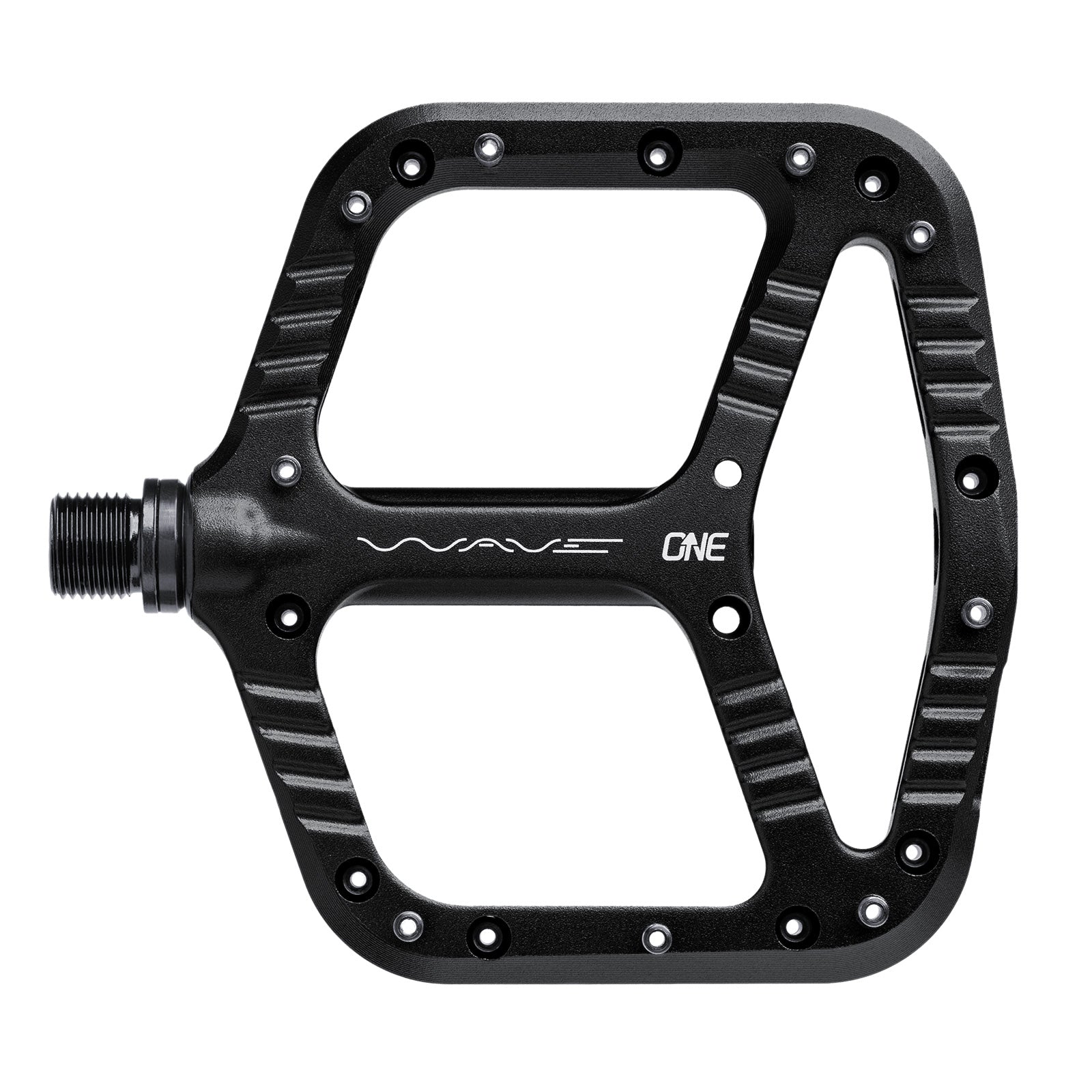

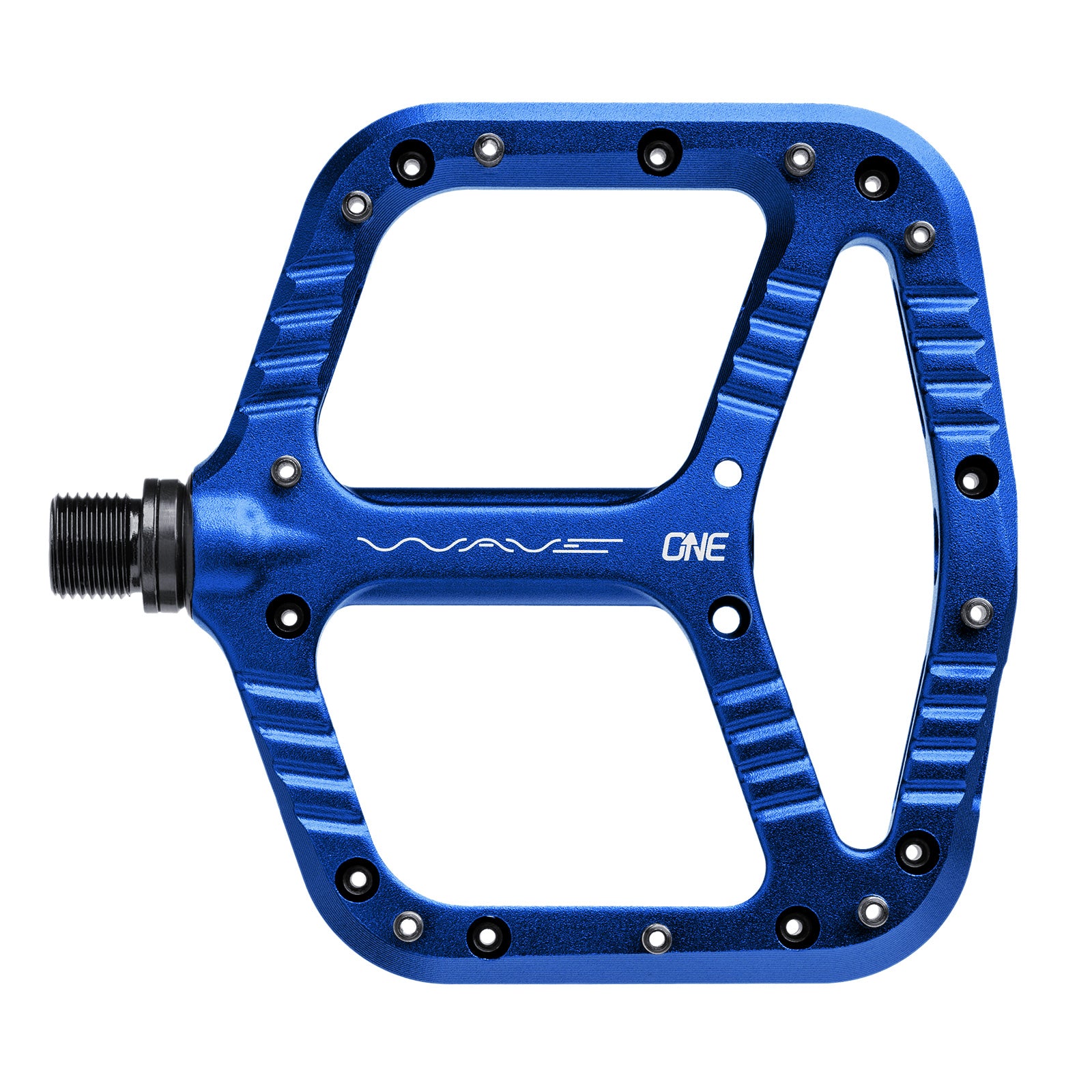

Expanding OneUp’s alloy pedal range, the Wave Pedals sit alongside the original Aluminum Pedals, offering a fresh option for riders looking for added grip and a new take on foot positioning. Weighing just 355g per pair and measuring 107mm x 110mm, they strike the perfect balance between lightweight efficiency and platform stability. Available in a wide range of colors: Black, Red, Dark Green, Dark Blue, Orange, Purple, Grey, and Bronze—you can match your setup or stand out on the trail.
In the box
- QTY(1 Pair) OneUp Wave Pedals
- QTY(9) Installed M4 hollow threaded pins per side (36 pins total)
- QTY(10) Spare/Uninstalled M4 hollow threaded pins
- QTY(1) Pedal Bearing Nut Tool
Features

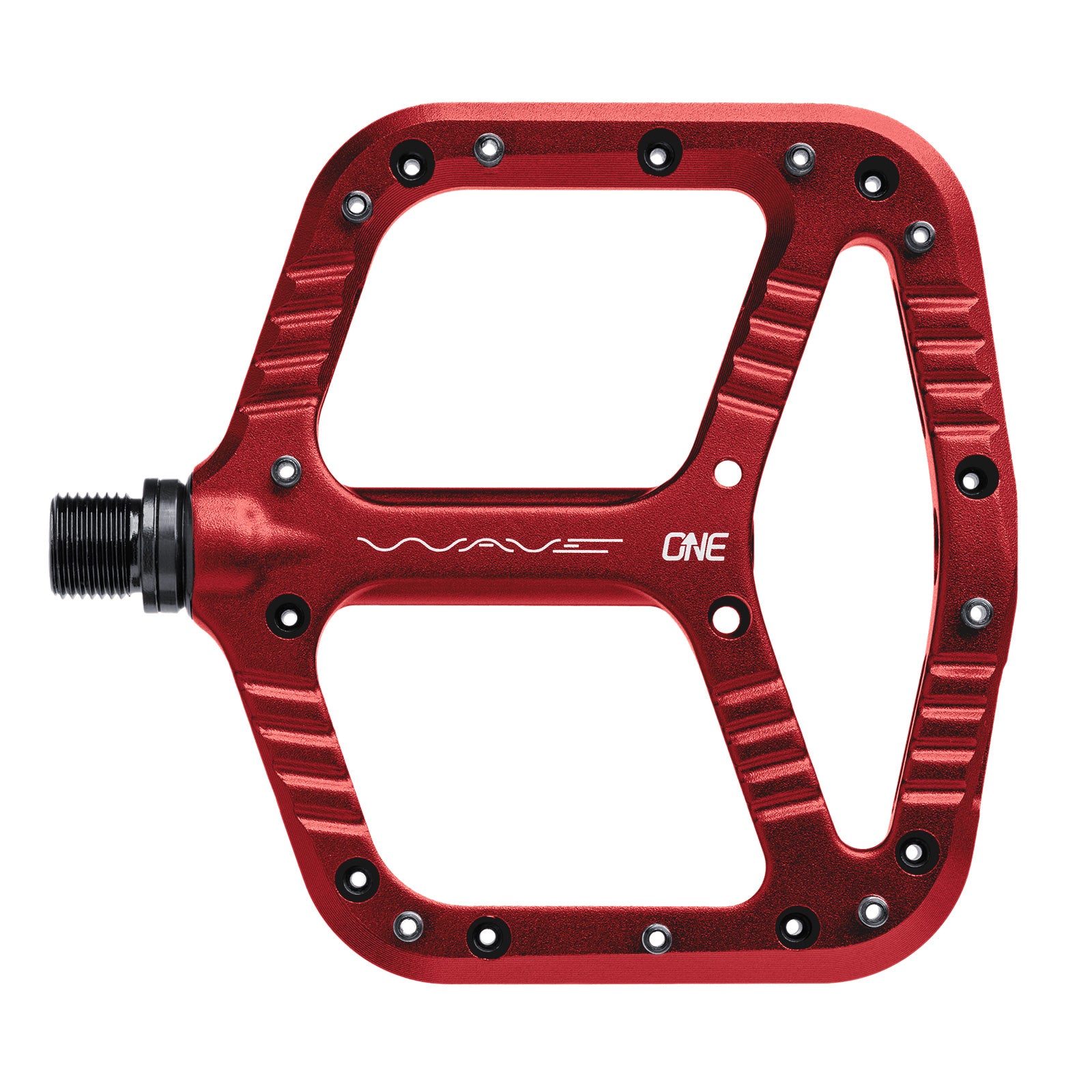

- Wave-Shaped Platform -- Unique front-high, rear-sloped shape that enhances control and promotes a powerful, heels-down riding position.
- Hybrid Concave/Convex Design -- Concave at the front to cradle the ball of your foot, convex at the back to improve grip and stability during descents.
- Redesigned Axle & Bearings -- Durable, serviceable axle layout with an inboard igus™ bushing and three outboard sealed cartridge bearings.
- Forged 6061 Aluminum Body -- Precision CNC’d construction provides lightweight strength for aggressive trail use.
- Chromoly Steel Axle -- Built tough to handle heavy impacts and demanding terrain.
- Compatible with Clip Pedal Rebuild Kit -- Uses the same rebuild parts as OneUp’s clipless pedals for streamlined maintenance.
- Large Platform Size -- At 107mm x 110mm, the pedals offer excellent stability and foot support.
Tech Specs
| Platform Size: | 107mm x 110mm (W x L) |
| Bearing Type: | Stainless Steel Sealed Cartridge w/ Bushings |
| Body Material: | Aluminum |
| Axle Material: | Chromoly |
| Replaceable Pins: | Yes |
| Intended Use: | MTB |
| Warranty: | 1 Year |
Specs subject to change without notice. Please check with manufacturer for the most up-to-date information.
