ACS3 Coil Spring Fox 36 2015 - 2018

Description

Compatible with 2015 - 2018 Fox 36 forks ranging in travel from 140mm to 160mm.

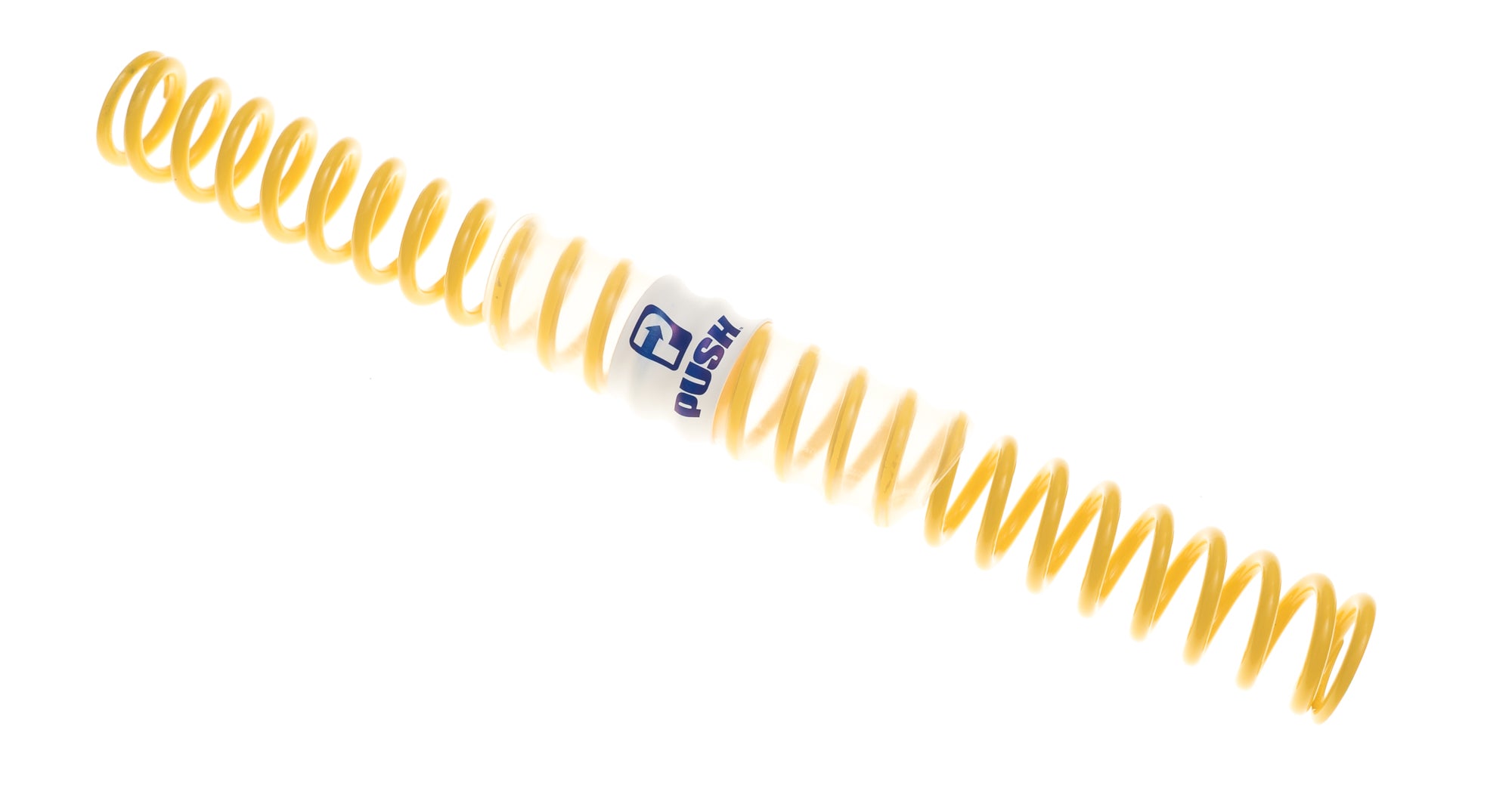

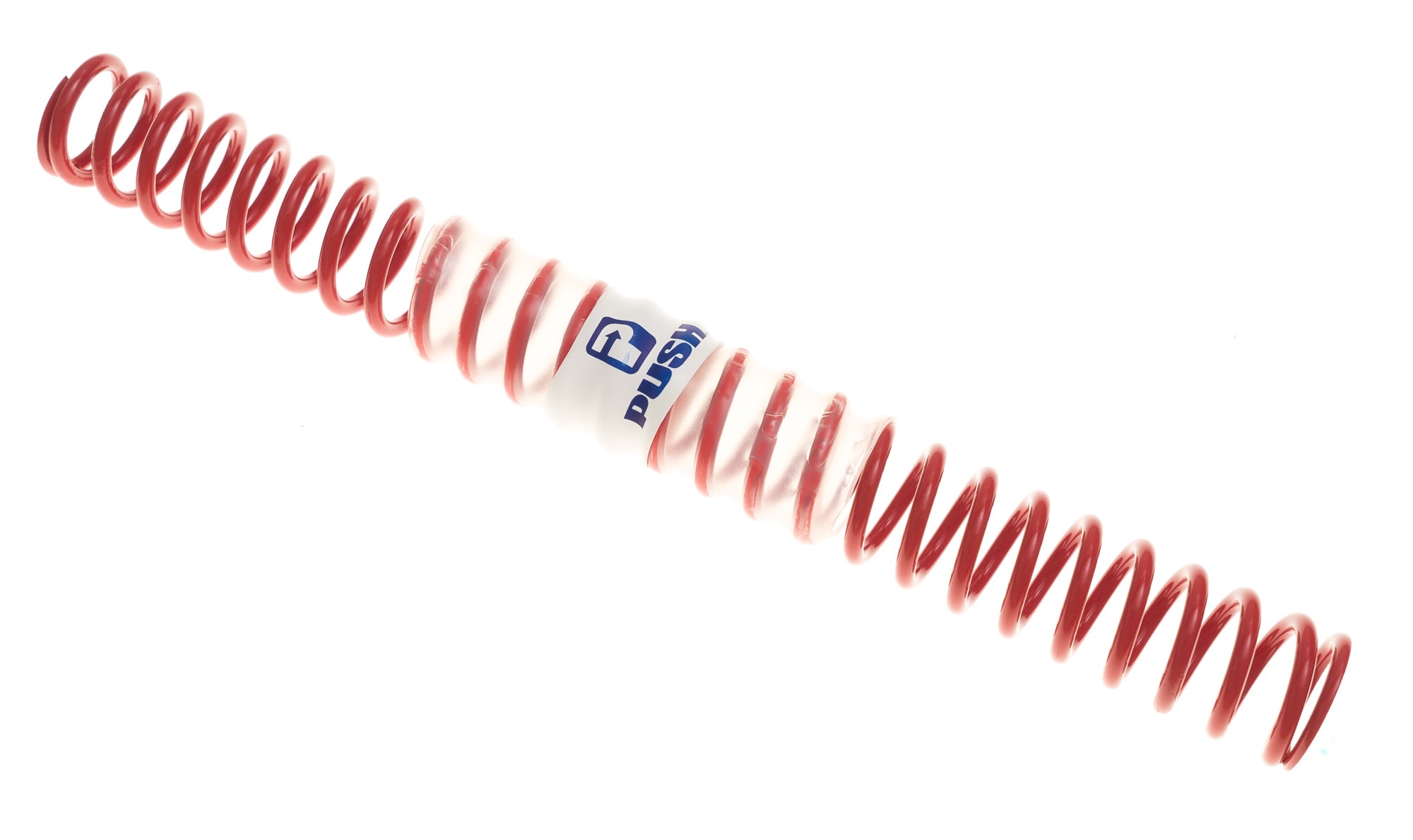

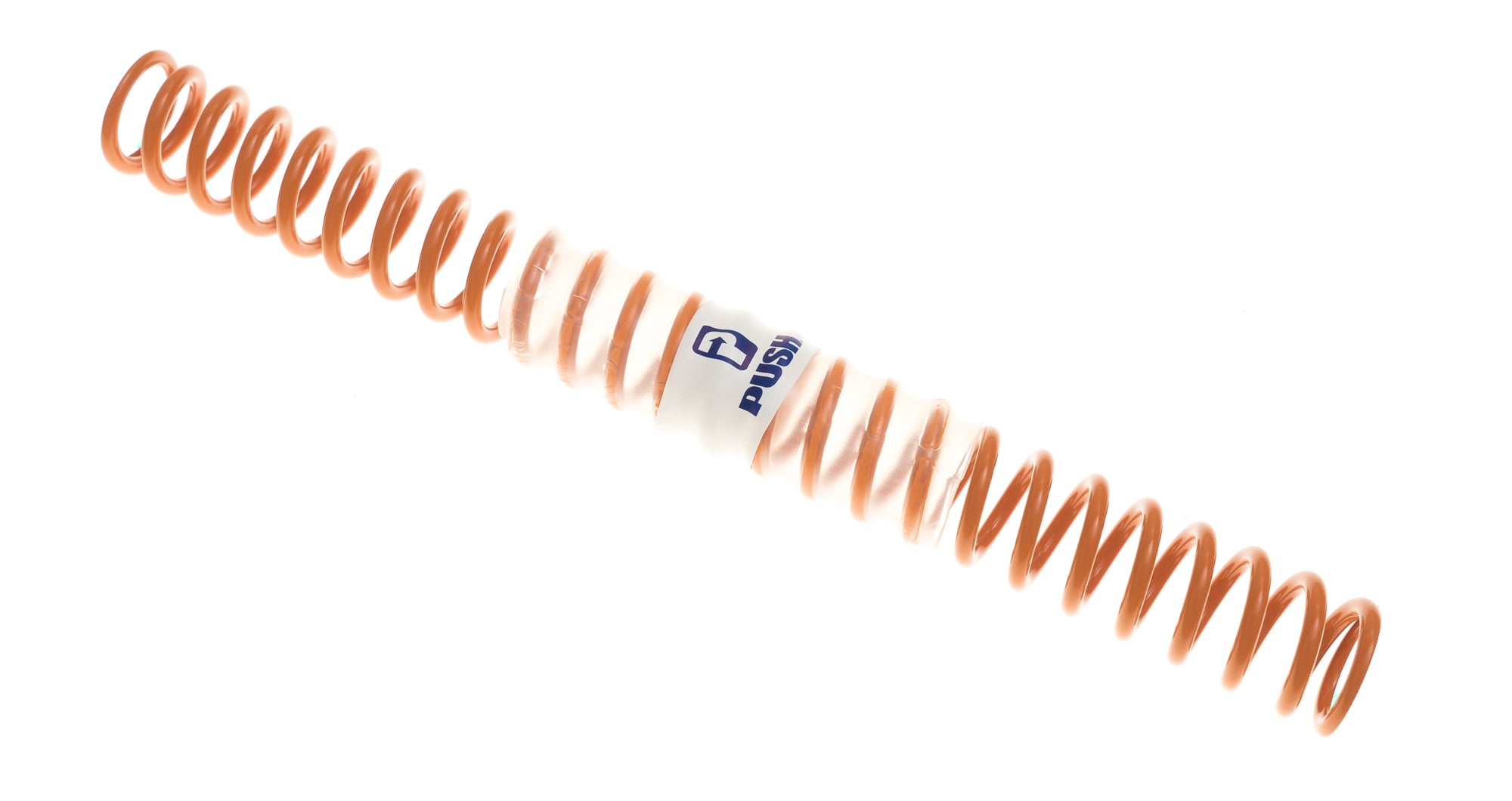

This is the replacement spring for the ACS3 Fox 36 kit and is. Push uses a super high quality high tensile CrV-SI spring wire, which they claim provides the best possible initial bump sensitivity, as well as predictable control throughout the entire stroke. Available in seven spring rates. Please note, the required spring rate will vary depending on your weight, as well as the current travel of your fork. You can view the Spring Rate Chart by clicking the link above.

[Spring Rate]

140mm Travel	Red	Yellow	Orange	Blue	Green	Black	Grey
Rider Weight	105 - 120 lbs	120 - 135 lbs	130- 145 lbs	145 - 165 lbs	165 - 185 lbs	180 - 200 lbs	200 - 220 lbs

150mm Travel	Red	Yellow	Orange	Blue	Green	Black	Grey
Rider Weight	115 - 130 lbs	130 - 145 lbs	140- 155 lbs	155 - 175 lbs	175 - 200 lbs	195 - 215 lbs	215 - 240 lbs

160mm Travel	Red	Yellow	Orange	Blue	Green	Black	Grey
Rider Weight	120 - 135 lbs	135 - 150 lbs	145- 160 lbs	160 - 185 lbs	180 - 210 lbs	210 - 235 lbs	230 - 255 lbs

If your rider weight overlaps with two springs, please consider your riding ability. More aggressive riders hitting jumps and drops should consider using the higher of the two rates.
