Santa Cruz
Hightower Carbon C - SRAM 70 Kit - Complete Bike - 2026
Hightower Carbon C - SRAM 70 Kit - Complete Bike - 2026

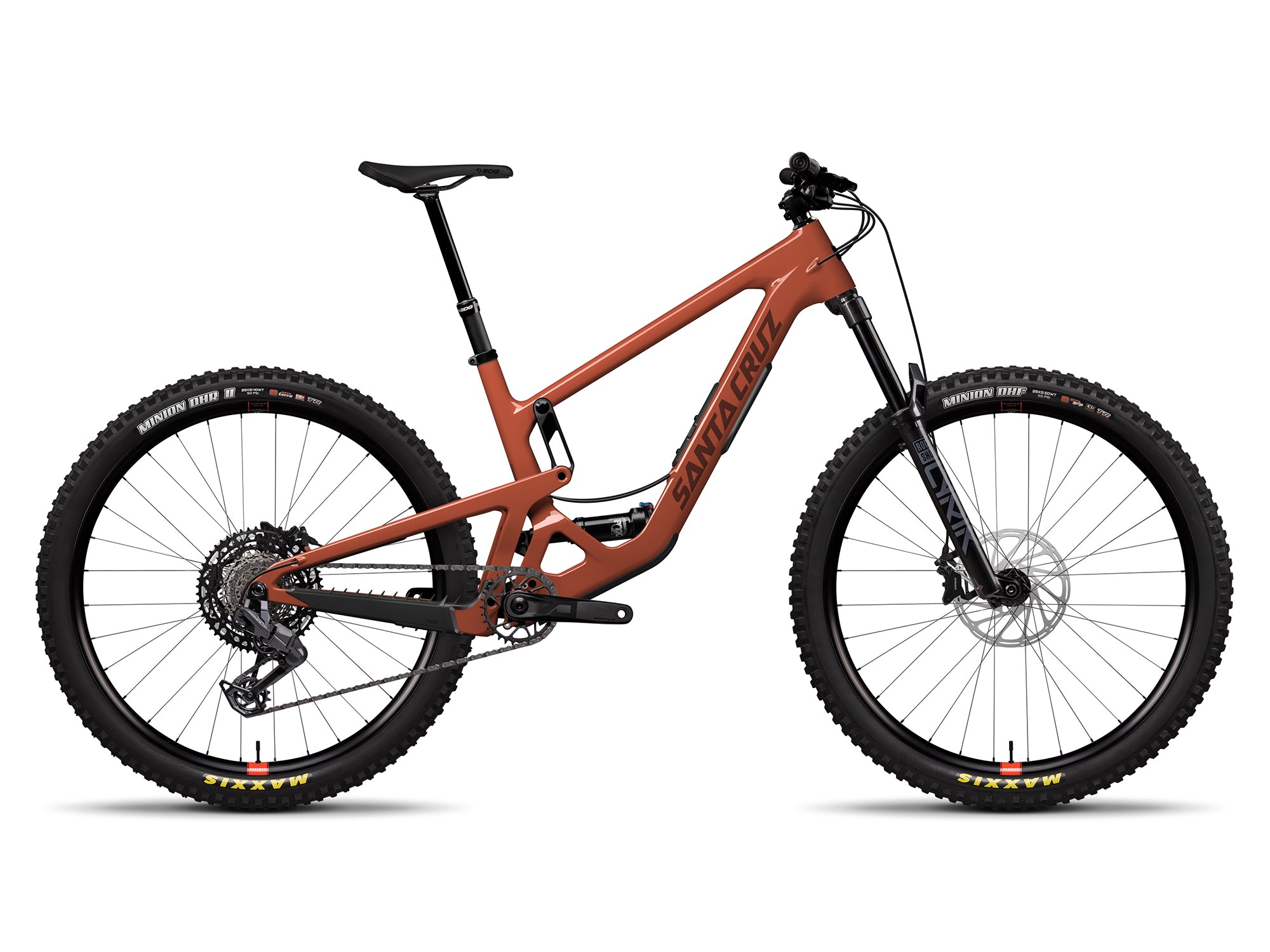

Gloss Brick Red / SM
Fanatik Bike
1812 N. State St.
Bellingham WA 98225
United States
Choose options
Hightower
Highlights

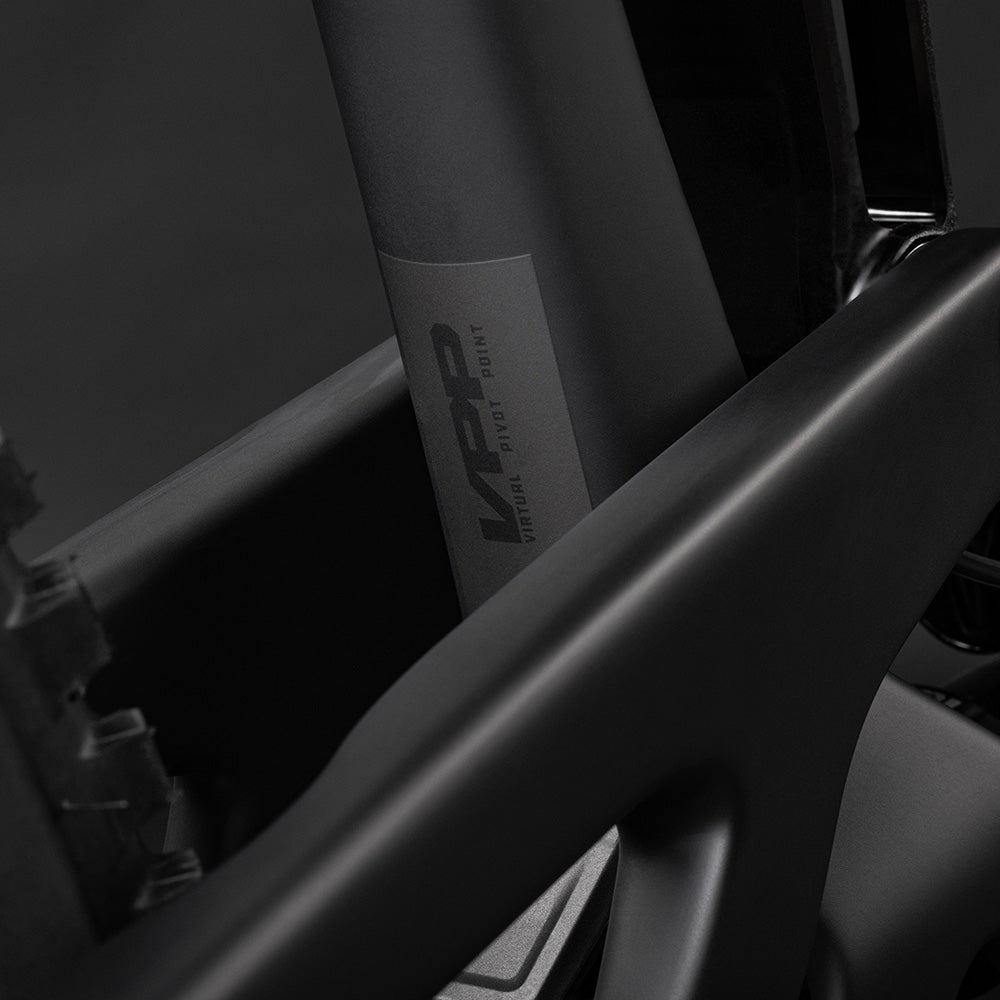

- VPP® Suspension Design – The dual-link VPP suspension design provides the right amount of anti-squat to match speed-sensitive pedaling input, while also offering a consistent linear leverage curve for predictable support across the travel range.

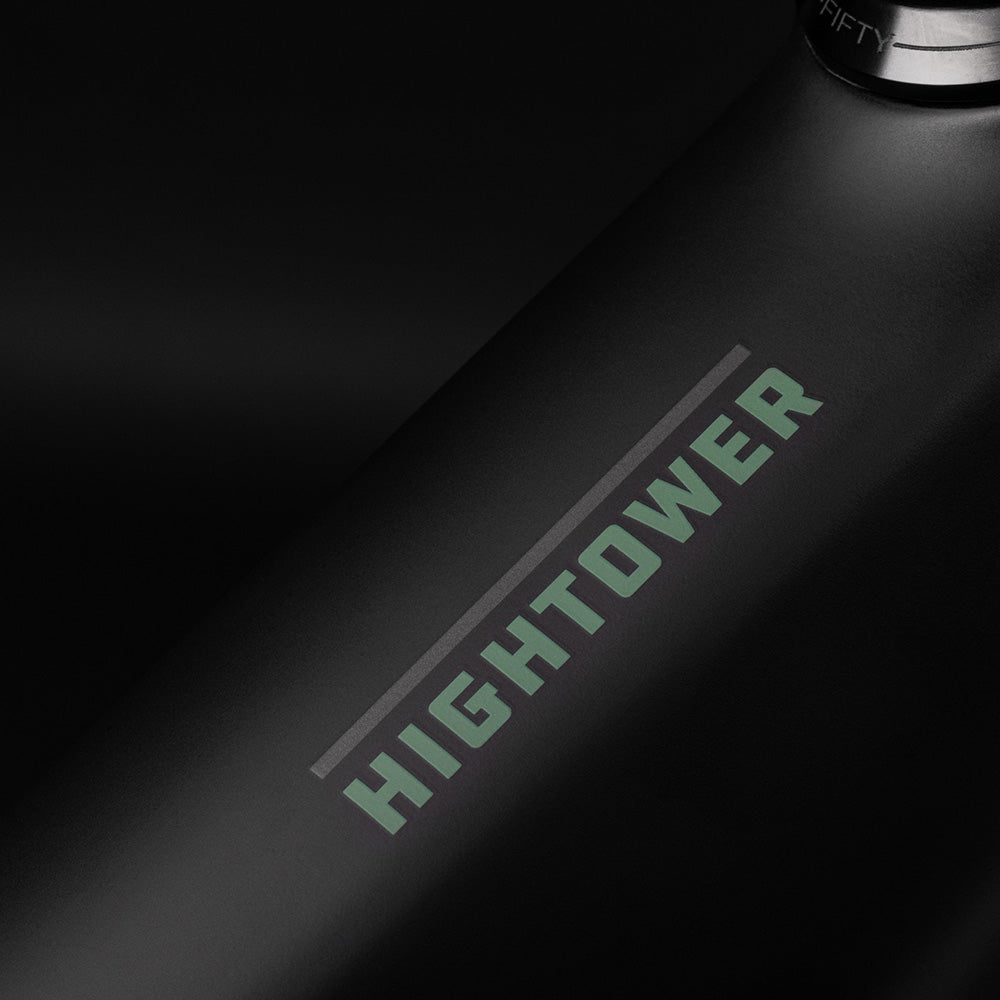

- Carbon Mastery – The C Carbon frames use the same proprietary processes of the highest spec frames in order to retain the same legendary strength and stiffness the CC frames are known for, but there is a slight weight penalty. This was achieved by using a different grade of carbon material that results in a minimal weight gain.

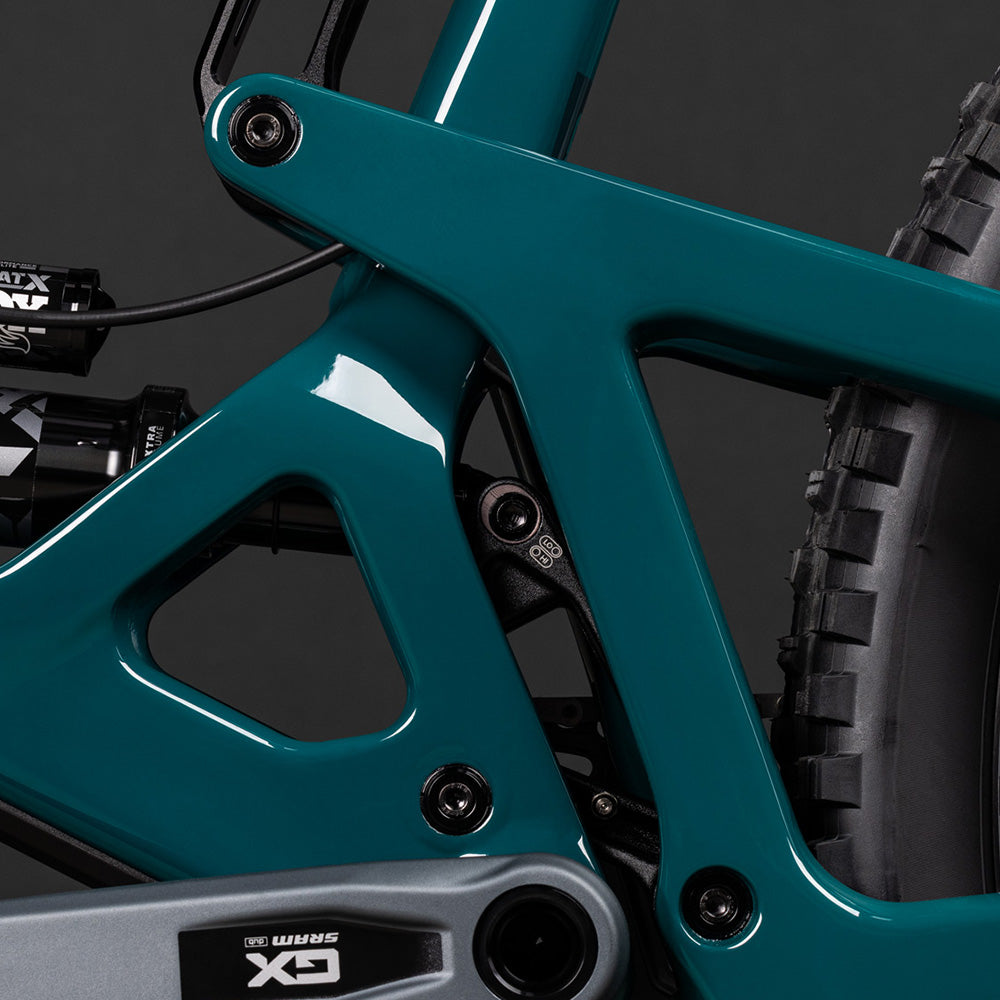

- Flip Chip Adjustability – A flip chip at the lower link pivots allows riders to fine-tune their geometry and bottom bracket height to suit their terrain and preferences.
- Glovebox Storage – A clever frame-integrated storage solution with a Tool Wallet and Tube Purse keeps your essentials securely inside the downtube, right where you need them.
Description
Big on wheels, short on fuss, this is the pinnacle of go-anywhere-anytime bikes. A balance of travel, wheel size and attitude makes this a true MTB for modern mountain biking. Whether that includes the rarefied air of the alpine or just local trailheads, built and burly trails or sublime natural singletrack, the Hightower is an all-terrain thriller.
Frame Material: | Carbon |
Wheel Size: | 29" |
Rear Axle Standard: | 12x148mm Boost |
Rear Shock: | FOX Float Rhythm |
Rear Shock Size: | 230mm x 57.5mm |
Rear Suspension Travel: | 150mm |
Headset: | Integrated |
Headset Standard: | IS41mm/IS52mm |
Fork: | RockShox Lyrik Base |
Fork Axle: | 15x110mm Boost |
Wheelset: | Reserve 30|TR AL - SRAM MTH 746 32H |
Front Tire: | Maxxis Minion DHF 29"x2.5", 3C MaxxGrip, EXO |
Rear Tire: | Maxxis Minion DHR II 29"x2.4", 3C MaxxTerra, EXO+ |
Crankset: | SRAM 70 Eagle DUB T-Type Crankset, 32t All Sizes: 170mm |
Bottom Bracket: | SRAM DUB MTB Wide BB |
BB Standard: | 73mm BSA |
Chain: | SRAM 70 Eagle T-Type, Flattop, 12spd |
Rear Derailleur: | SRAM 70 Eagle T-Type, 12spd |
Cassette: | SRAM XS 1270 Eagle T-Type, 10-52t |
Seatpost: | SDG Tellis Dropper, S: 125mm, M: 150, L: 170mm, XL/XXL: 200mm |
Seat Post Diameter: | 31.6mm |
Seat Post Clamp Diameter: | 36.4mm |
Seat: | SDG Bel-Air V3, Steel |
Shifters: | SRAM 90 Eagle T-Type, 12spd |
Handlebar: | Burgtec Alloy Bar S: 35x760mm, 20mm Rise, M/L/XL/XXL: 35x800mm, 30mm Rise |
Stem: | OneUp Enduro Stem All Sizes: 42mm |
Grips: | Santa Cruz Bicycles House Grips |
Brakes: | SRAM DB8 |
Intended Use: | AM/Enduro, Trail/AM |
Warranty: | Lifetime Frame Warranty, Lifetime Bearing Replacement |
Flip Chip: Hi
Size | SM | MD | LG | XL | XXL |
---|---|---|---|---|---|
Reach | 435 | 460 | 480 | 500 | 525 |
Stack | 623 | 632 | 641 | 659 | 668 |
Top Tube | 572 | 595 | 614 | 636 | 662 |
Wheelbase | 1206 | 1237 | 1264 | 1296 | 1328 |
Head Tube° | 64.2° | 64.2° | 64.2° | 64.2° | 64.2° |
Head Tube | 110 | 120 | 130 | 150 | 160 |
Seat Tube° | 77.6° | 77.9° | 78.2° | 78.3° | 78.4° |
Seat Tube | 380 | 405 | 430 | 460 | 500 |
BB Height | 344 | 344 | 344 | 344 | 344 |
BB Drop | 29 | 29 | 29 | 29 | 29 |
Standover | 721 | 723 | 725 | 727 | 731 |
Chainstay | 434 | 436 | 439 | 442 | 445 |
Flip Chip: Low
Size | SM | MD | LG | XL | XXL |
---|---|---|---|---|---|
Reach | 435 | 460 | 480 | 500 | 525 |
Stack | 623 | 632 | 641 | 659 | 668 |
Top Tube | 572 | 595 | 614 | 636 | 662 |
Wheelbase | 1206 | 1237 | 1264 | 1296 | 1328 |
Head Tube° | 64.2° | 64.2° | 64.2° | 64.2° | 64.2° |
Head Tube | 110 | 120 | 130 | 150 | 160 |
Seat Tube° | 77.6° | 77.9° | 78.2° | 78.3° | 78.4° |
Seat Tube | 380 | 405 | 430 | 460 | 500 |
BB Height | 344 | 344 | 344 | 344 | 344 |
BB Drop | 29 | 29 | 29 | 29 | 29 |
Standover | 721 | 723 | 725 | 727 | 731 |
Chainstay | 434 | 436 | 439 | 442 | 445 |
Size Guide
Size | SM | MD | LG | XL | XXL |
---|---|---|---|---|---|
Height | 154 - 165 | 165 - 175 | 175 - 185 | 185 - 193 | 193 - 200 |
