Santa Cruz Bicycles

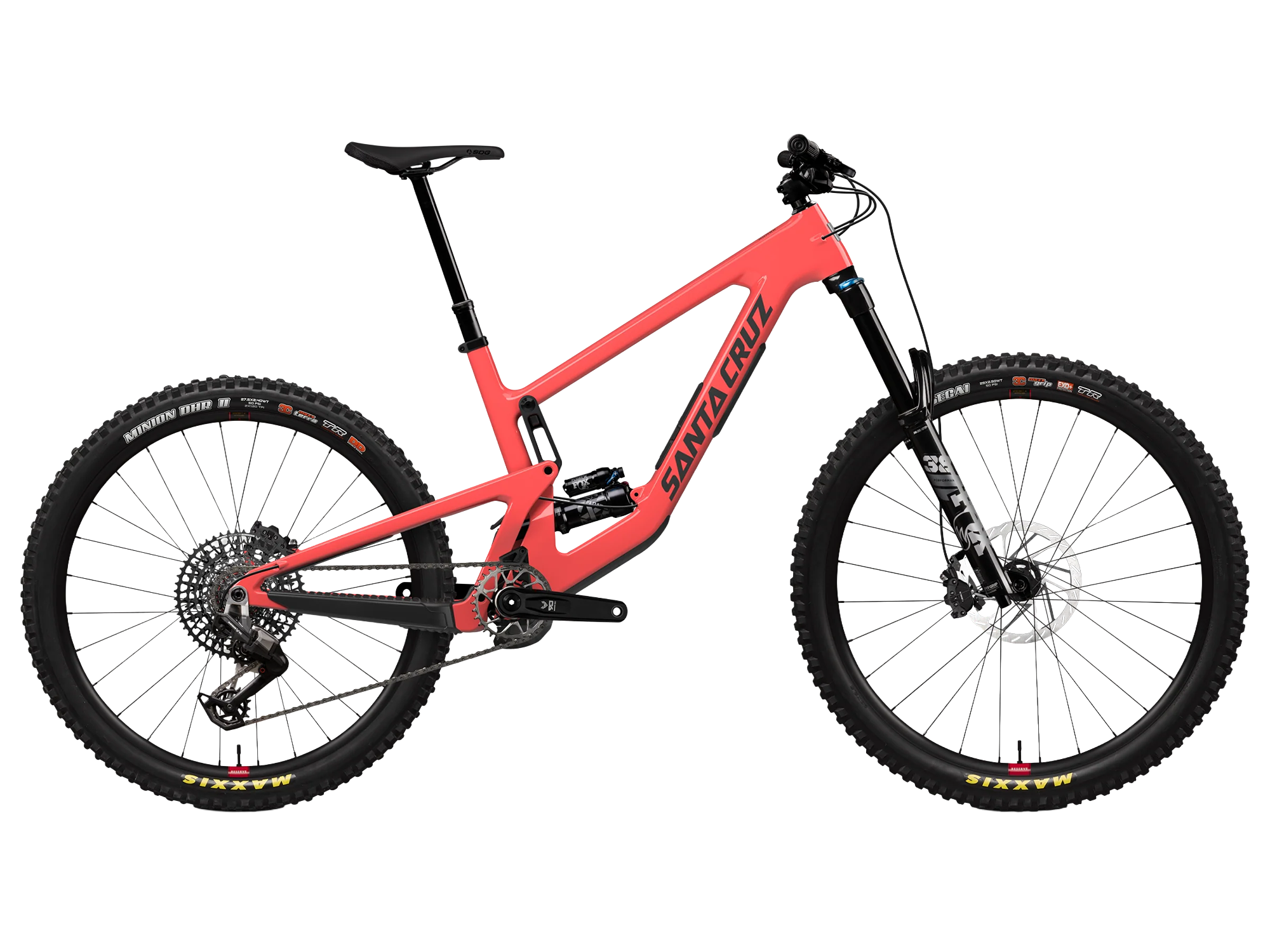

Nomad 6 - SRAM 90 Build Kit - Medium - C Carbon - Complete Bike - Fanatik Outlet
Choose options
Description
This Nomad 6 with a SRAM 90 Build kit was a demo bike at Fanatik Bike Co. It was maintained throughout its life with consistent service, brake bleeds, pad replacement, etc.
Load up the van, hit the road, climb a mountain, hammer it back down, huck the gap, throw the bike back in the van, drive to the bike park and do laps on laps. Hell, you could even rock up to the startline of the world's wildest races. The Nomad’s forte is being ready and willing to go wherever, whenever. The only thing it needs is a rider willing to press send.
| Frame Material: | Carbon |
| Wheel Size: | Mixed: 29" front/27.5" rear |
| Rear Axle Standard: | 12x148mm Boost |
| Rear Shock: | FOX Float X Performance |
| Rear Shock Size: | 230mm x 65mm |
| Rear Suspension Travel: | 170mm |
| Headset: | Cane Creek 50 IS Integrated Headset |
| Headset Standard: | IS41mm/IS52mm |
| Fork: | FOX 38 Float Performance, Grip |
| Fork Axle: | 15x110mm Boost |
| Wheelset: | DT Swiss 370 hubs x Reserve 30iTR AL (front)/Reserve 30iHD AL (rear) |
| Front Tire: | Maxxis Assegai 29"x2.5", 3C MaxxGrip, EXO+ |
| Rear Tire: | Maxxis Minion DHR II 27.5"x2.4", 3C MaxxTerra, Double Down |
| Crankset: | SRAM 90 |
| Chainguide Tabs: | ISCG '05 3-Bolt |
| Chainguide: | OneUp Bash Guide |
| Bottom Bracket: | SRAM DUB Wide |
| BB Standard: | 73mm BSA |
| Chain: | SRAM GX Eagle T-Type, Flattop, 12spd |
| Rear Derailleur: | SRAM 90 Eagle T-Type, 12spd |
| Cassette: | SRAM XS 1275 Eagle T-Type, 10-52t |
| Seatpost: | OneUp Dropper, 150mm |
| Seat Post Diameter: | 31.6mm |
| Seat: | SDG Bel-Air V3 Lux-Alloy |
| Shifters: | SRAM 90 Eagle T-Type, 12spd |
| Handlebar: | OneUp Aluminum Bar |
| Stem: | OneUp stem, 42mm |
| Grips: | Santa Cruz Bicycles House Grips |
| Brakes: | SRAM Maven Base, SRAM HS2 rotors 200mm |
| Intended Use: | AM/Enduro, Trail/AM |
| Size | Medium - Flip Chip Low |
|---|---|
| Reach | 453 |
| Stack | 625 |
| Top Tube | 587 |
| Wheelbase | 1247 |
| Head Tube° | 63.3° |
| Head Tube | 110 |
| Seat Tube° | 78.1° |
| Seat Tube | 400 |
| BB Height | 342.5 |
| BB Drop | 30 |
| Standover | 715 |
| Chainstay | 442 |
