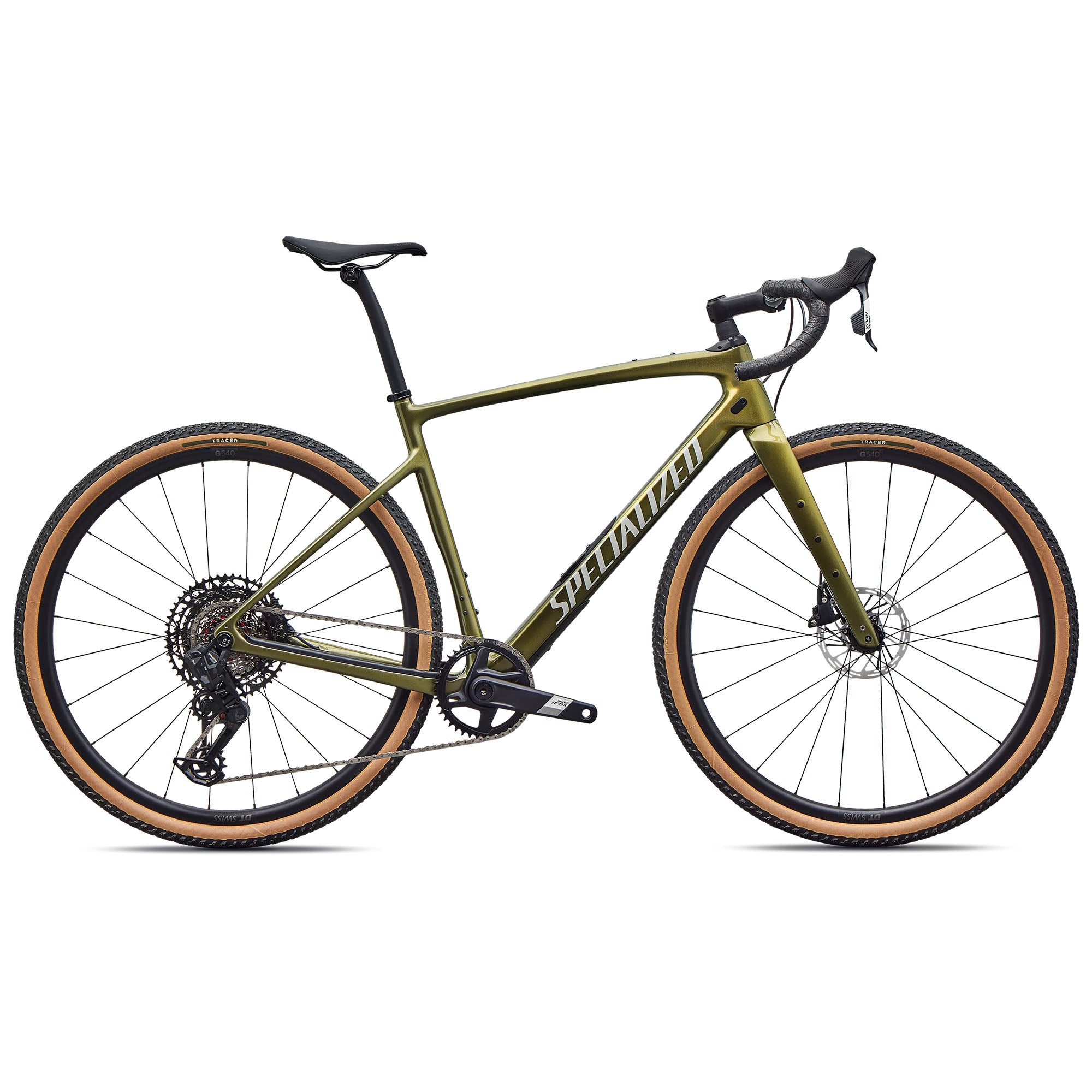

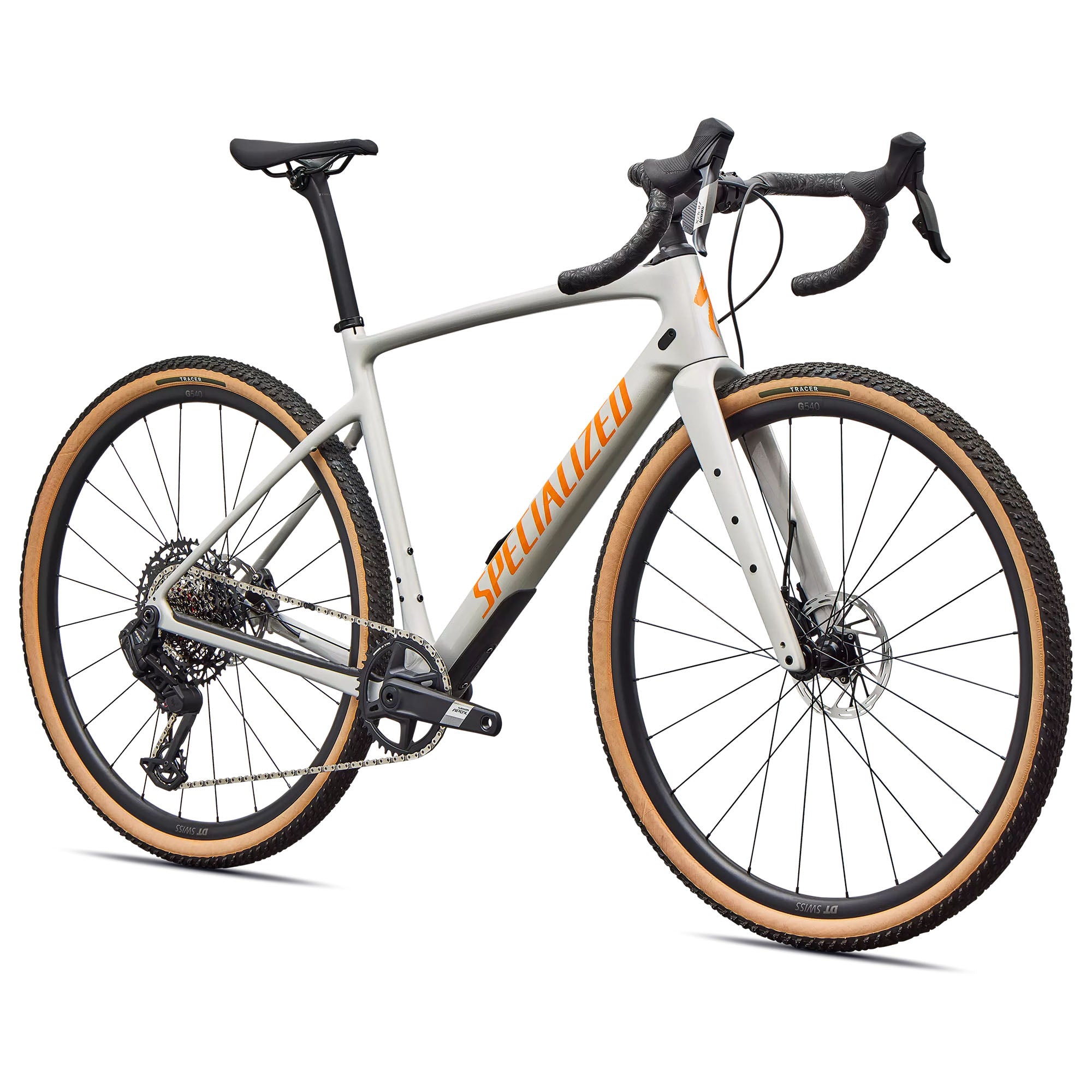

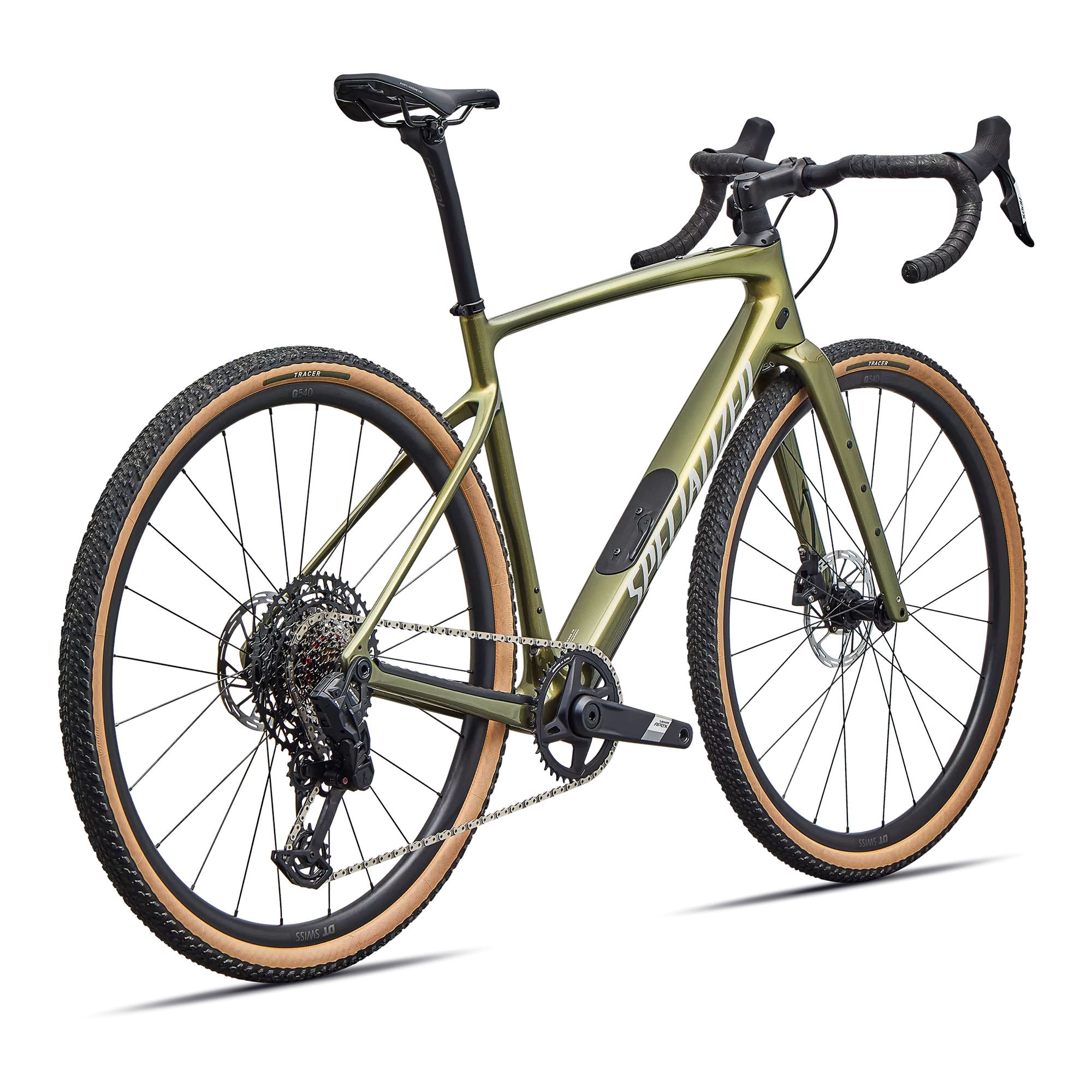

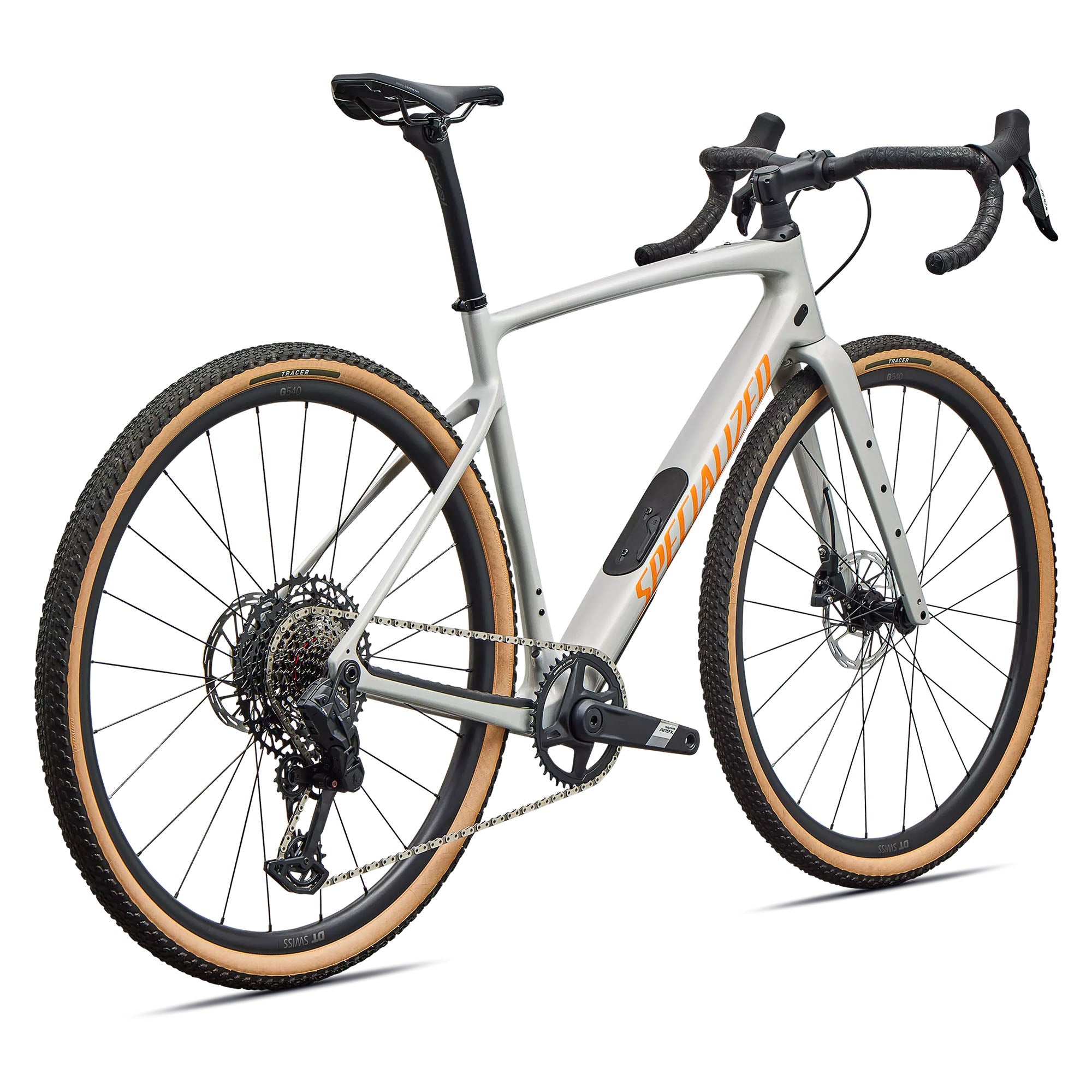

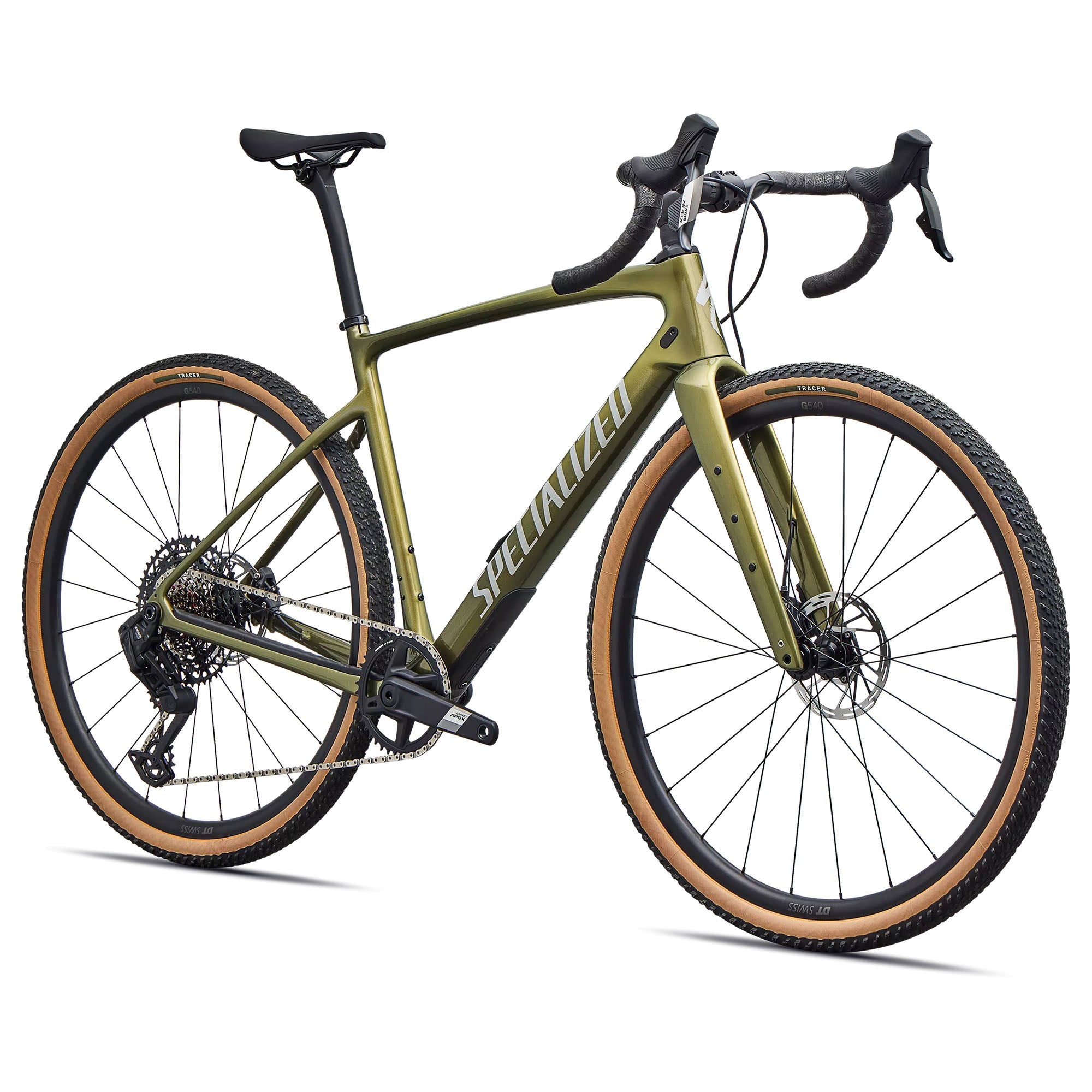

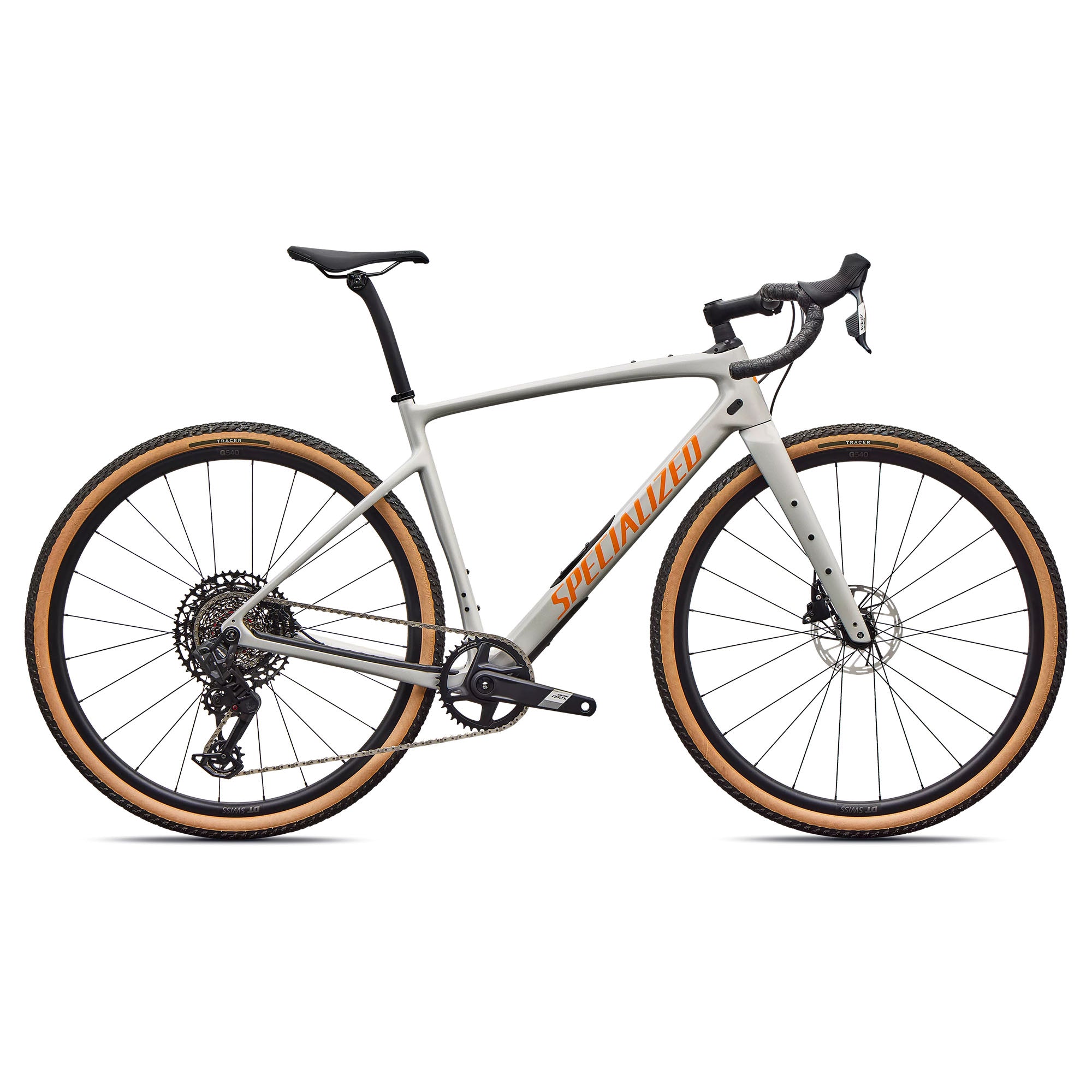

Diverge 4 Comp Carbon - 2026
Choose options
Diverge
Highlights
- Future Shock 3.0 / 3.2 Suspension – 20mm of front suspension travel with hydraulic damping to soak up rough terrain while keeping control and responsiveness.
- FACT 9r Carbon Frame – Lightweight and stiff carbon frame with internal routing, a threaded bottom bracket, 12×142mm thru-axle, flat-mount disc brakes, and UDH dropout.

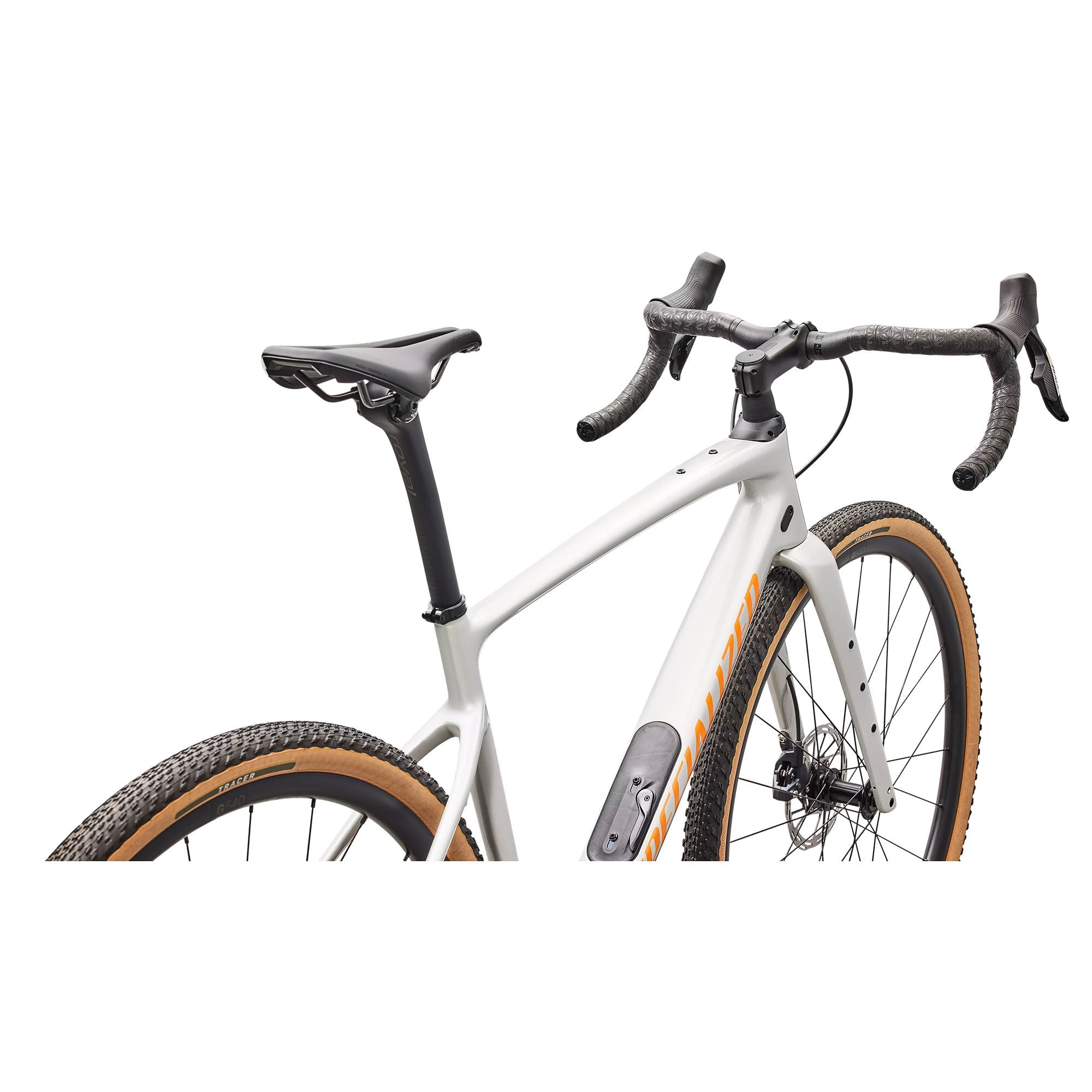

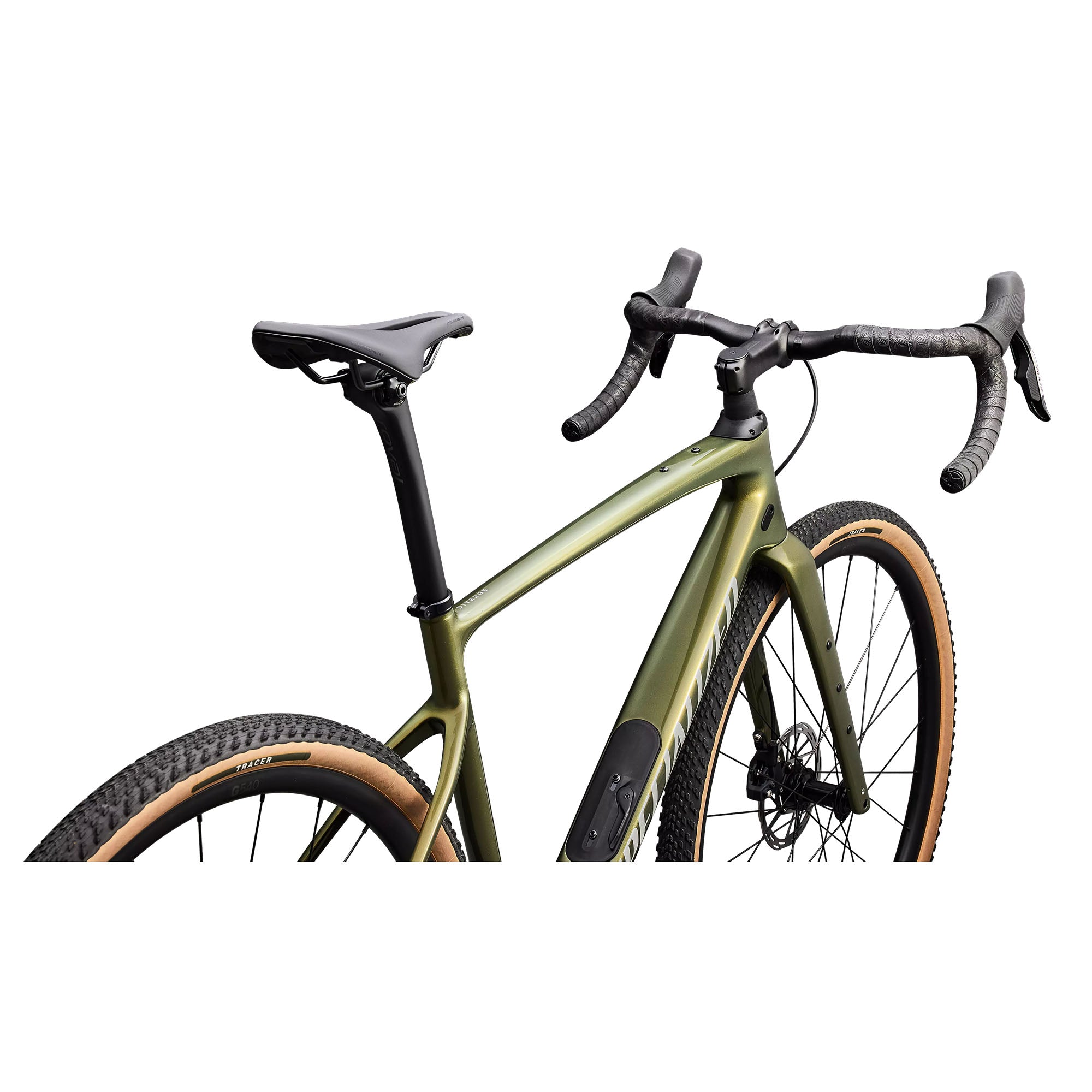

- SWAT 4.0 Internal Storage – Integrated frame storage (downtube door) capable of holding tools, nutrition, or essentials for long gravel rides.
- Massive Tire Clearance – Allows up to 50mm tires, giving traction, comfort, and versatility across gravel, rough roads, or light trail terrain.
Description
The Specialized Diverge Comp Carbon 4 redefines what a gravel bike can be — as fast and efficient as a racer, as confident and capable as an explorer. With a redesigned FACT 9r carbon frame, next-generation Future Shock 3.2 suspension, massive tire clearance, and the largest internal storage in gravel, it’s built to crush race days, big-mile adventures, and everything in between. Whether you’re chasing podiums or disappearing off-grid, the Diverge 4 is the ultimate “do-it-all” gravel weapon.
At just 9.7 kg (21.4 lbs), the Diverge Comp Carbon 4 combines race-bike speed with adventure-ready durability. Its FACT 9r Carbon frame delivers an ultra-responsive, tuned ride feel that maximizes power transfer on the flats while damping vibrations over rough terrain. Future Shock 3.2, our most advanced suspension yet, provides 20mm of adjustable front travel — keeping you stable, comfortable, and in control no matter how rough the ride gets.
From the carbon Future Shock 3.2 fork to the Roval Terra carbon seatpost, every touchpoint is engineered for comfort and control. The SRAM Apex AXS wireless drivetrain delivers crisp, consistent shifting with a huge 10–52t gear range — perfect for climbing out of the saddle or hammering on the flats. The DT Swiss G540 wheels paired with Tracer 700x45c tubeless-ready tires strike the ideal balance between speed and traction.
| Frame Material: | Carbon |
| Wheel Size: | 700c |
| Rear Axle Standard: | 12x142mm |
| Fork: | Future Shock 3.2 w/ Smooth Boot, FACT Carbon 12x100mm, thru-axle, flat-mount disc |
| Wheelset: | DT Swiss G540 rim, 24mm internal width, tubeless ready, 24h, Specialized full sealed bearing thru axle hub, centerlock disc, DT Swiss Champion 14G stainless steel spokes, DT Swiss brass nipples |
| Front Tire: | Tracer 700x45, Tan Sidewall, Tubeless Ready |
| Rear Tire: | Tracer 700x45, Tan Sidewall, Tubeless Ready |
| Crankset: | SRAM Apex DUB Wide, 40t |
| Bottom Bracket: | SRAM DUB BSA 68 Wide |
| BB Standard: | 68mm BSA |
| Chain: | SRAM GX T-Type 12 speed |
| Rear Derailleur: | SRAM S-1000 Eagle AXS Transmission |
| Cassette: | SRAM 1270 Transmission Cassette, 12 Spd,10-52t |
| Seatpost: | Roval Terra Carbon Seat Post, 20mm Offset |
| Seat Post Clamp: | Specialized Alloy, 30.8mm |
| Seat: | Body Geometry Power Sport, steel rails |
| Shifters: | SRAM Apex AXS |

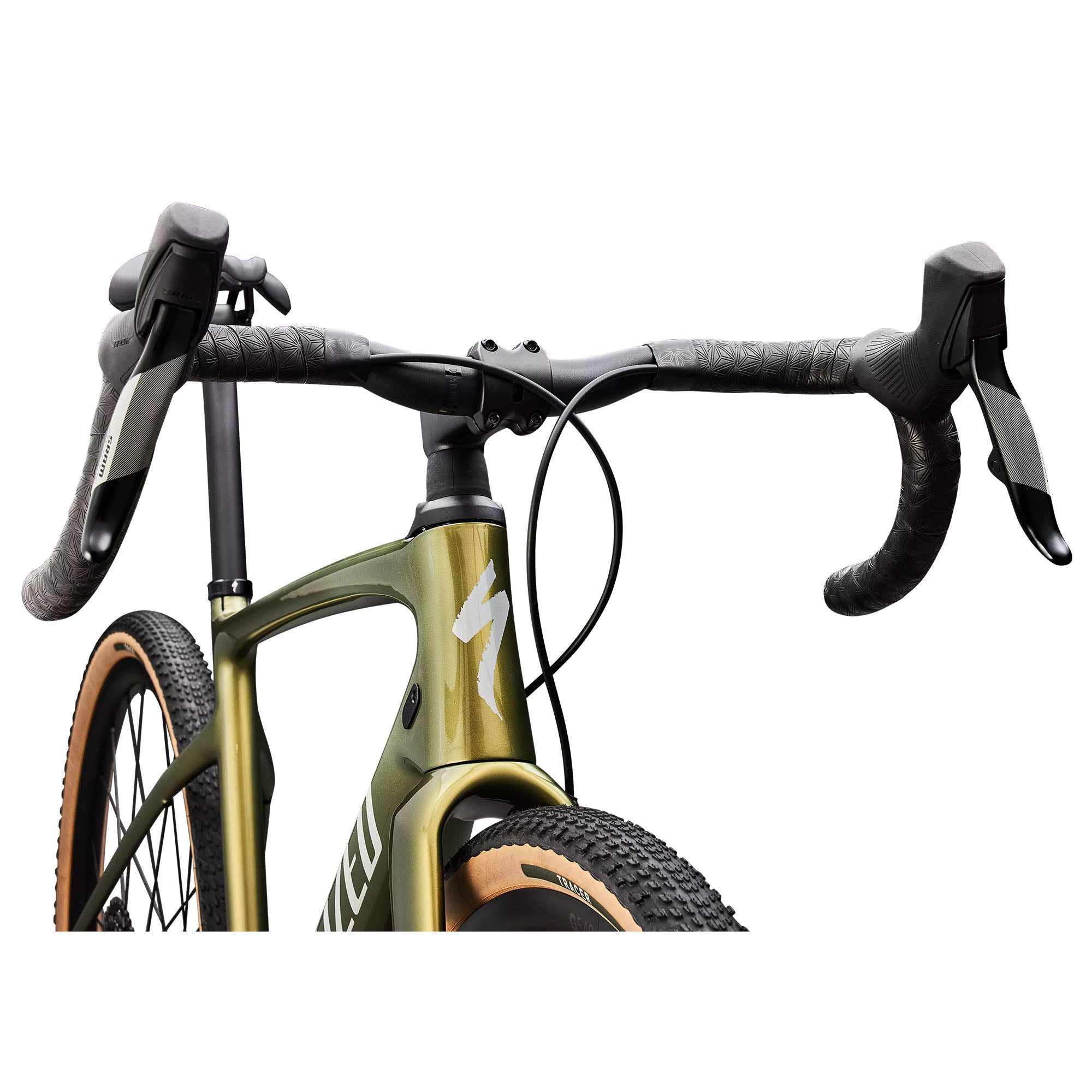

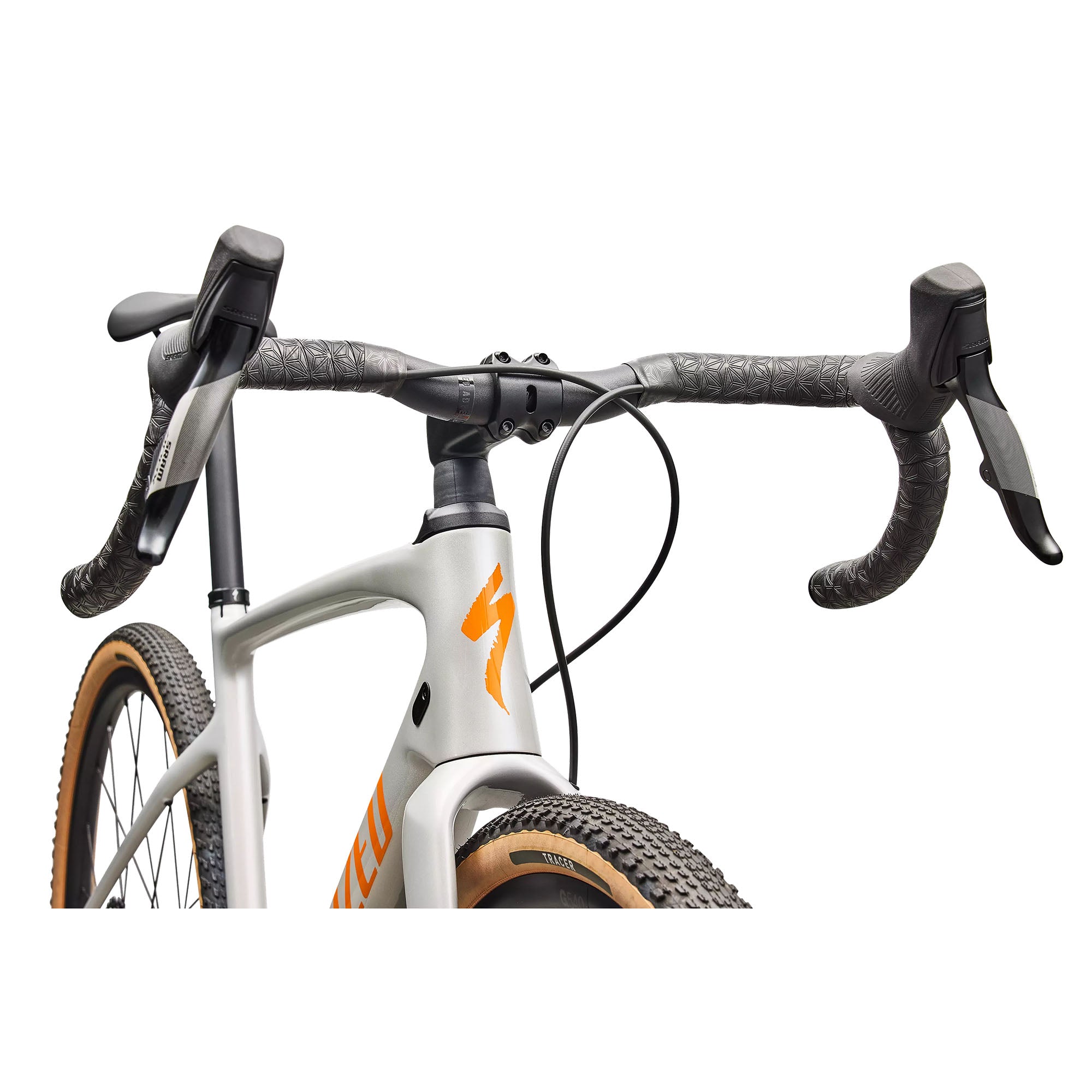

| Handlebar: | Specialized Adventure Gear Hover, 103mm drop x 70mm reach x 12º flare |
| Stem: | Future Stem, Comp |
| Brakes: | SRAM Apex, hydraulic disc |
| Intended Use: | Gravel |
| Warranty: | Lifetime |
| Size | 49 | 52 | 54 | 56 | 58 | 61 |
|---|---|---|---|---|---|---|
| Reach | 365 | 374 | 387 | 400 | 412 | 425 |
| Stack | 563 | 578 | 592 | 610 | 634 | 659 |
| Top Tube | 521 | 537 | 556 | 575 | 593 | 613 |
| Wheelbase | 1019 | 1031 | 1041 | 1060 | 1081 | 1102 |
| Head Tube° | 70° | 70.5° | 71° | 71° | 71° | 71° |
| Head Tube | 90 | 104 | 116 | 135 | 161 | 187 |
| Seat Tube° | 74.5° | 74° | 74° | 74° | 74° | 74° |
| Seat Tube | 400 | 430 | 470 | 500 | 530 | 560 |
| BB Drop | 85 | 85 | 85 | 85 | 85 | 85 |
| Standover | 700 | 725 | 754 | 779 | 805 | 832 |
| Chainstay | 430 | 430 | 430 | 430 | 430 | 430 |
| Trail | 72 | 68 | 65 | 65 | 65 | 65 |
Size Guide
| Size | 49 | 52 | 54 | 56 | 58 | 61 |
|---|---|---|---|---|---|---|
| Height | 152 - 163 | 163 - 170 | 170 - 178 | 175 - 180 | 180 - 188 | 188 - 196 |
