Specialized

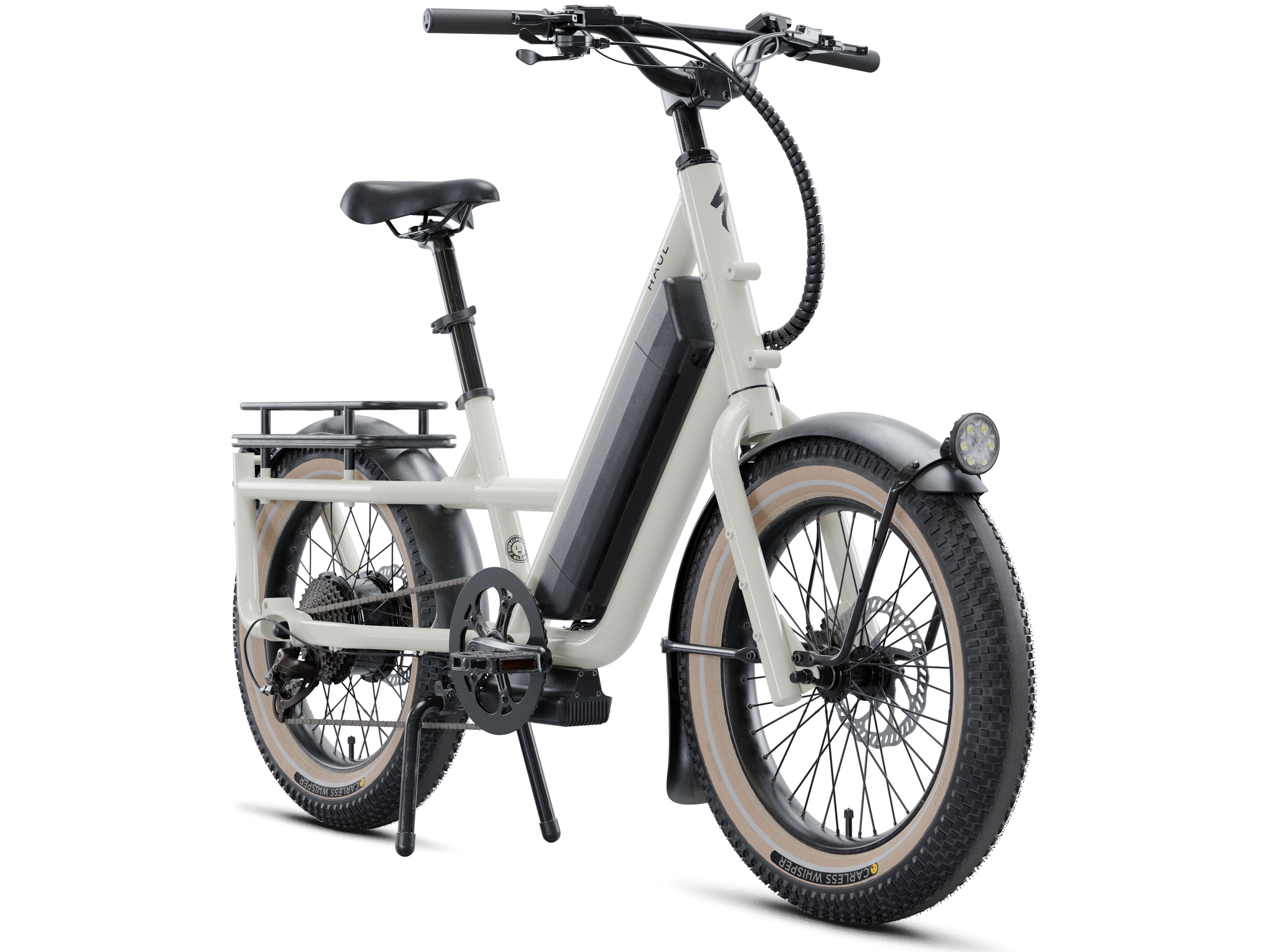

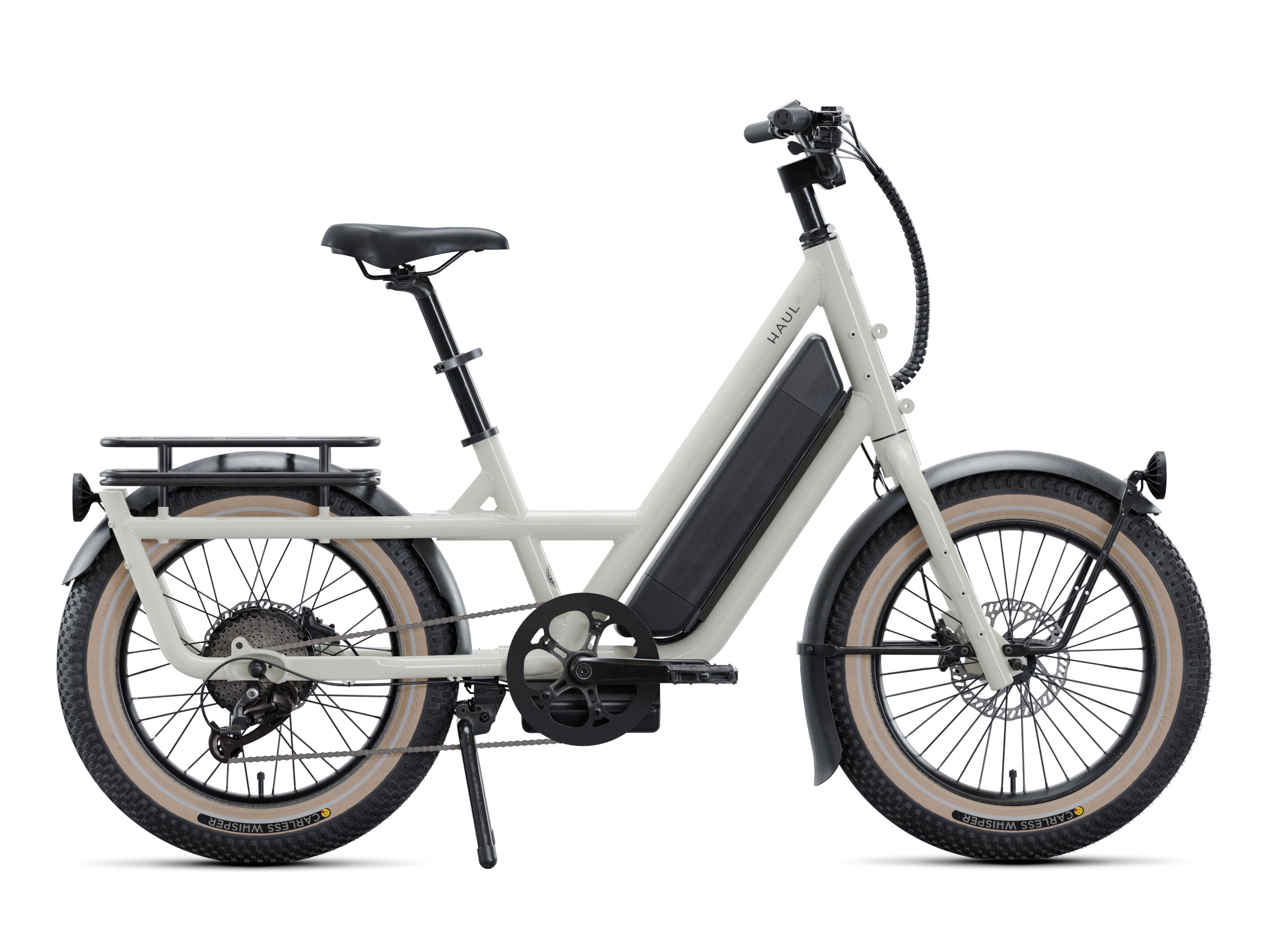

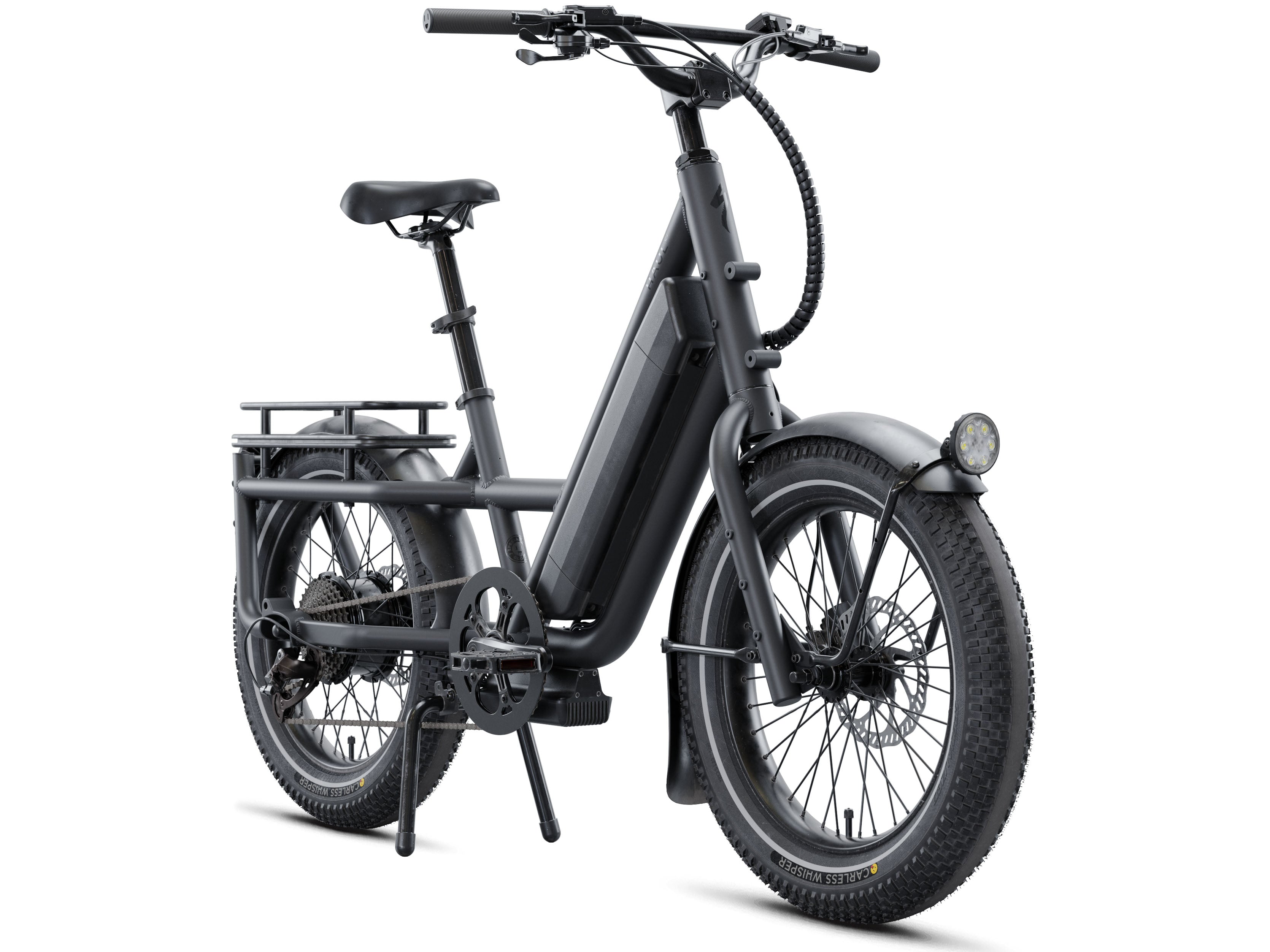

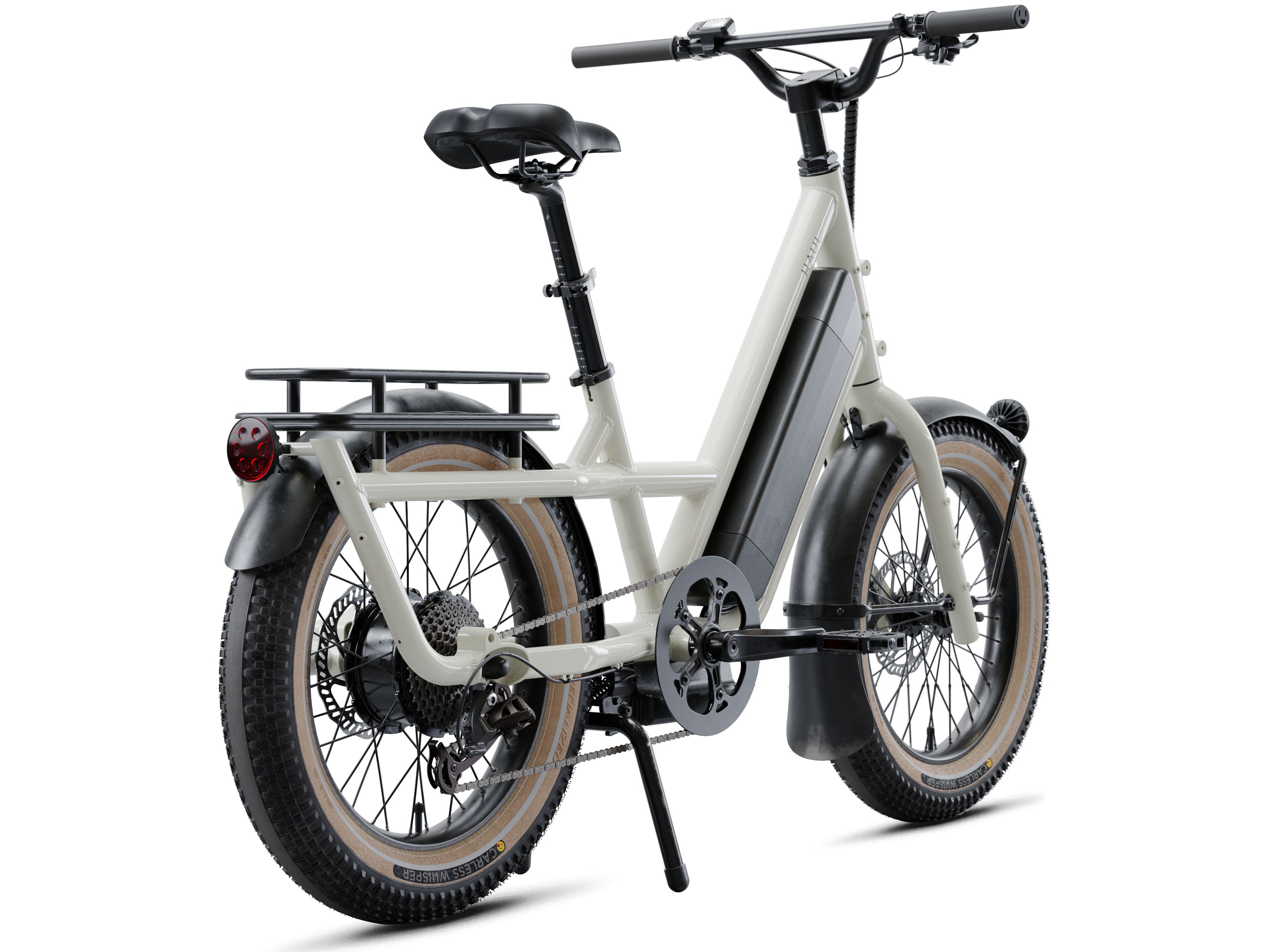

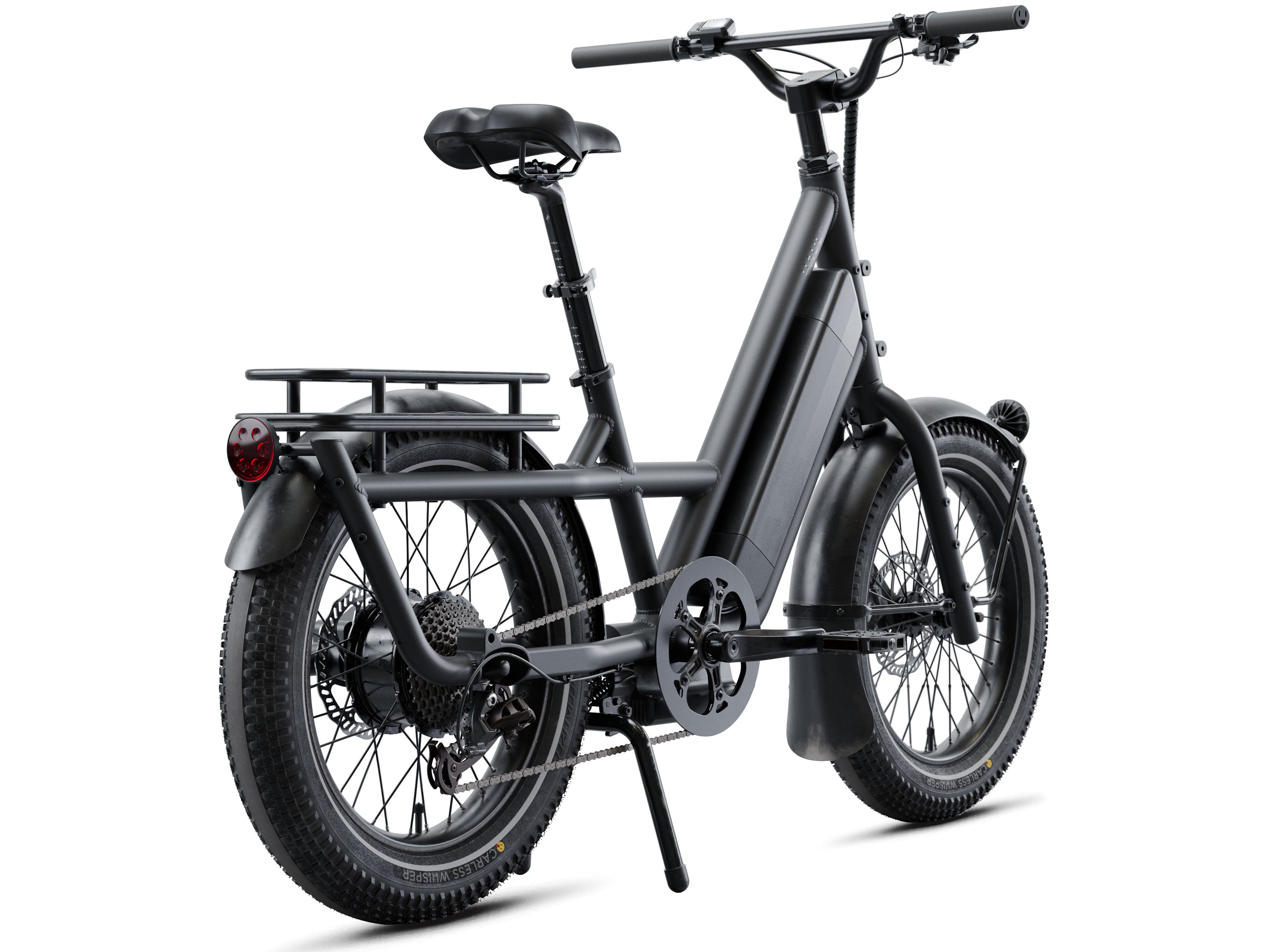

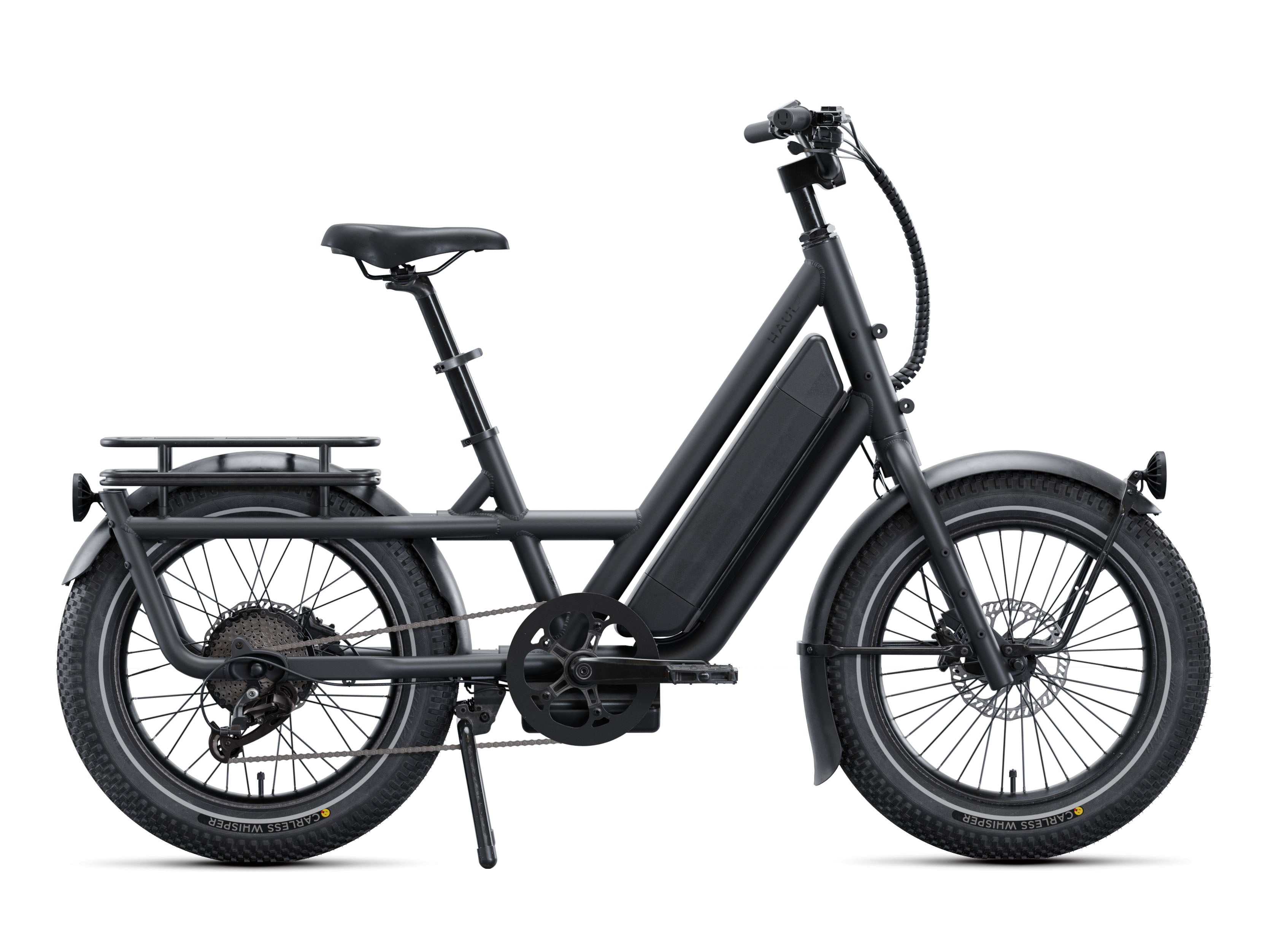

Haul ST
Haul ST
Satin Obsidian
Fanatik Bike
1812 N. State St.
Bellingham WA 98225
United States
Choose options
Highlights
- 700w rear hub motor delivers enough power to get you and all your gear up steep hills and all the way across town at top speed. The 772wh battery provides up to 60 miles of range at the lower levels of pedal assist.
- 419 lbs carrying capacity, rider included.
- Unique, single-size frame fits riders from around 4’5” all the way up to 6'4". The telescoping seatpost has over 13 inches of adjustability, and the quill stem can extend almost six inches. It provides a comfortable ride to almost everyone
- 20” diameter wheels help keep weight low to the ground for improved stability. The extra wide 3.5” Carless Whisper tires provide comfort and traction on any terrain and feature a 3-ply casing for superior flat protection.
Description
Whatever you’re into, get more into it with the Specialized Globe Haul ST. It’s down for the ride. With 419 pounds of cargo capacity (rider included) up to 60 miles at a time, this fully customizable electric bike has the speed, power, range, and stability to get you wherever you need to go with whatever you need. With a grip of mounting opportunities you can bring the kids, a kayak, and stop on the way home for groceries. Don’t sweat it getting dark on you either. Integrated front and rear lights will have you dialed from dawn patrol to golden hour.
POWERED UP. The rear hub motor will have you zooming up hills with all your gear. Need a little extra boost to make it through an intersection safely? Crank up the power to get up to top speed quick, then dial it back and hit the pedals for max range.
INCLUSIVE. All bodies, all fun. The unique single size frame fits riders comfortably all over the size spectrum. Using the Retül database, the adjustable fit was designed to be perfect for you. Make it longer here, shorter there, and you're ready to ride comfortably. The low center of gravity means it’s easy to handle for a newcomer or a pro, loaded up or loaded down.
READY TO ROLL. The Globe Haul ST is ready to rock straight out of the box with an included MIK-compatible rear rack, full coverage fenders, integrated lights and center stand. D.I.Y. yourself into gear-nirvana, with a whole host of Globe accessories compatible with the auxiliary mounting points.
| Frame Material: | Aluminum |
| Wheel Size: | 20" |
| Wheelset: | 20'', double-wall alloy, 50X20mm, 36h |
| Front Tire: | Carless Whisper Reflect, 20X3.5 |
| Rear Tire: | Carless Whisper Reflect, 20X3.5 |
| Crankset: | Forged alloy arm, alloy chainring guard, 160mm |
| Bottom Bracket: | Square-tapered, 100mm BB width, 184mm spindle, w/ torque sensor |
| Chain: | KMC e9S EPT, anti-rust coating, 9-speed w/ reusable Missing Link™ |
| Rear Derailleur: | microSHIFT, short cage, 9-speed |
| Cassette: | SunRace, 9-Speed, 11-36t |
| Seatpost: | Telescoping, alloy, 2-bolt Clamp, 20mm offset, 525mm |
| Seat Post Diameter: | 34.9mm |
| Seat: | Specialized Body Geometry Comfort Gel |
| Shifters: | microSHIFT Advent, 9-speed |
| Handlebar: | Globe, cargo, alloy, 12-degree backsweep, 80mm rise, 31.8mm. 700mm width |
| Stem: | Globe, cargo 1.5X150mm quill stem |
| Grips: | Globe closed end slip on type, 155mm |
| Brakes: | Tektro HD-T535, 4 piston caliper, hydraulic disc, 203mm rotor |
| Motor: | Globe custom tuned motor, alloy, 6-bolt disc, 9 speed freehub, bolt on, 36h |
| Maximum Power Output: | 700 watts |
| Battery: | Globe external battery |
| Battery Wattage: | 772 Wh |
| Intended Use: | Commuter |
| Warranty: | A lifetime warranty on the frame, and two year e-system warranty will keep your bases covered. |
| Size | One Size |
|---|---|
| Reach | 345 |
| Stack | 610 |
| Top Tube | 600 |
| Wheelbase | 1089 |
| Head Tube° | 70° |
| Head Tube | 292 |
| Seat Tube° | 68° |
| Seat Tube | 366 |
| BB Height | 285 |
| BB Drop | 5 |
| Standover | 511 |
| Chainstay | 465 |
| Trail | 47 |
