Status 2 170 DH Complete Bike
Status 2 170 DH Complete Bike Status 2 170 DH Complete Bike Status 2 170 DH Complete Bike Status 2 170 DH Complete Bike Status 2 170 DH Complete Bike Status 2 170 DH Complete Bike Status 2 170 DH Complete Bike

Specialized Status 2 170 DH Complete Bike

$4,499.00

93724-7002

1 in stock

Color
Size

Sizing Chart

Don't see the pedal you want? Check out more here.
-
+

This item may only be shipped within the United States
We are required to follow our brand's policies on shipping and we cannot ship this product outside the United States.
Please allow a minimum of 5 business days before shipping.
This conservative time estimate allows our service department to fully check through the bike and make sure everything is built and adjusted to manufacturer's specifications before shipping.

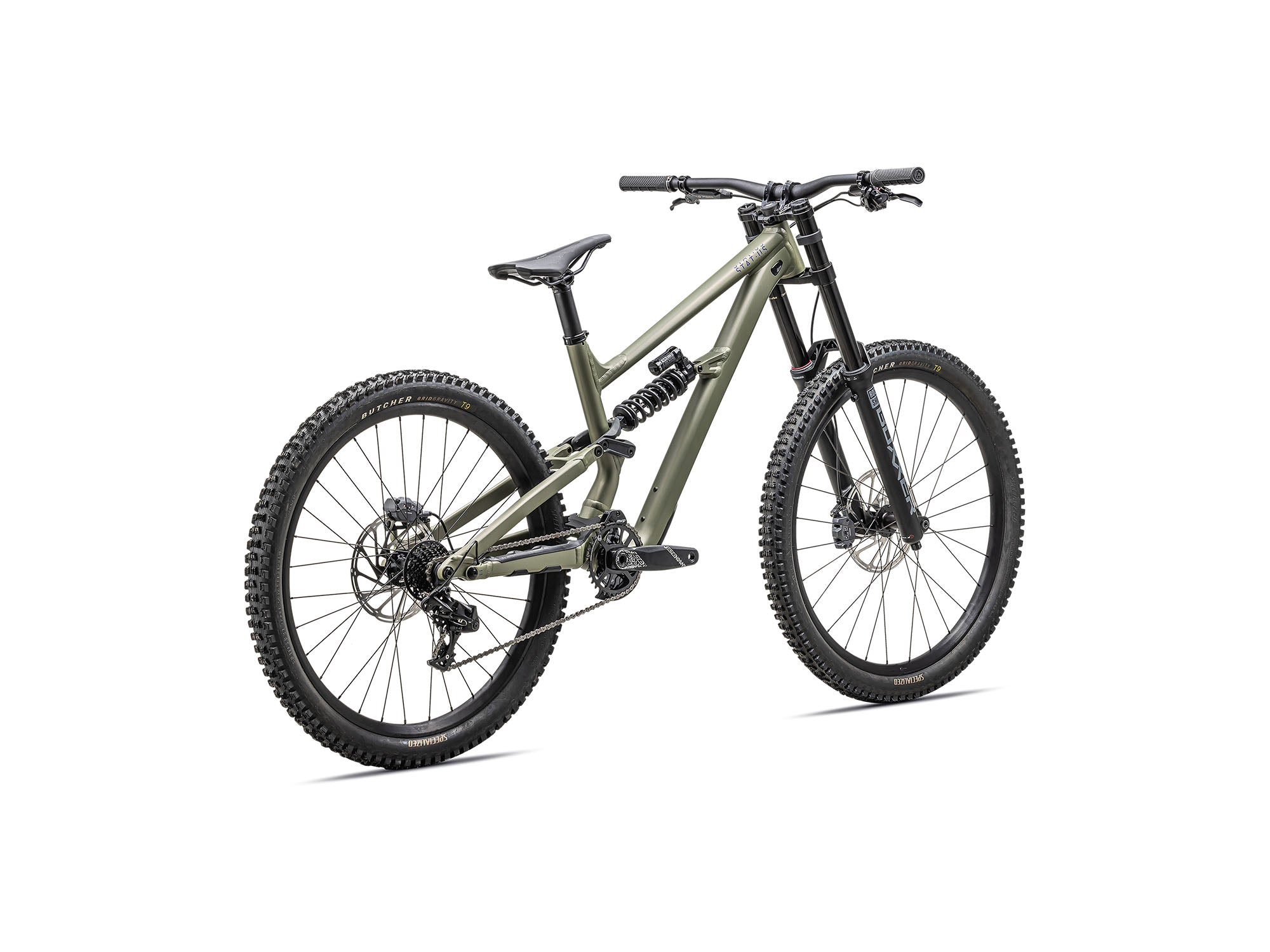

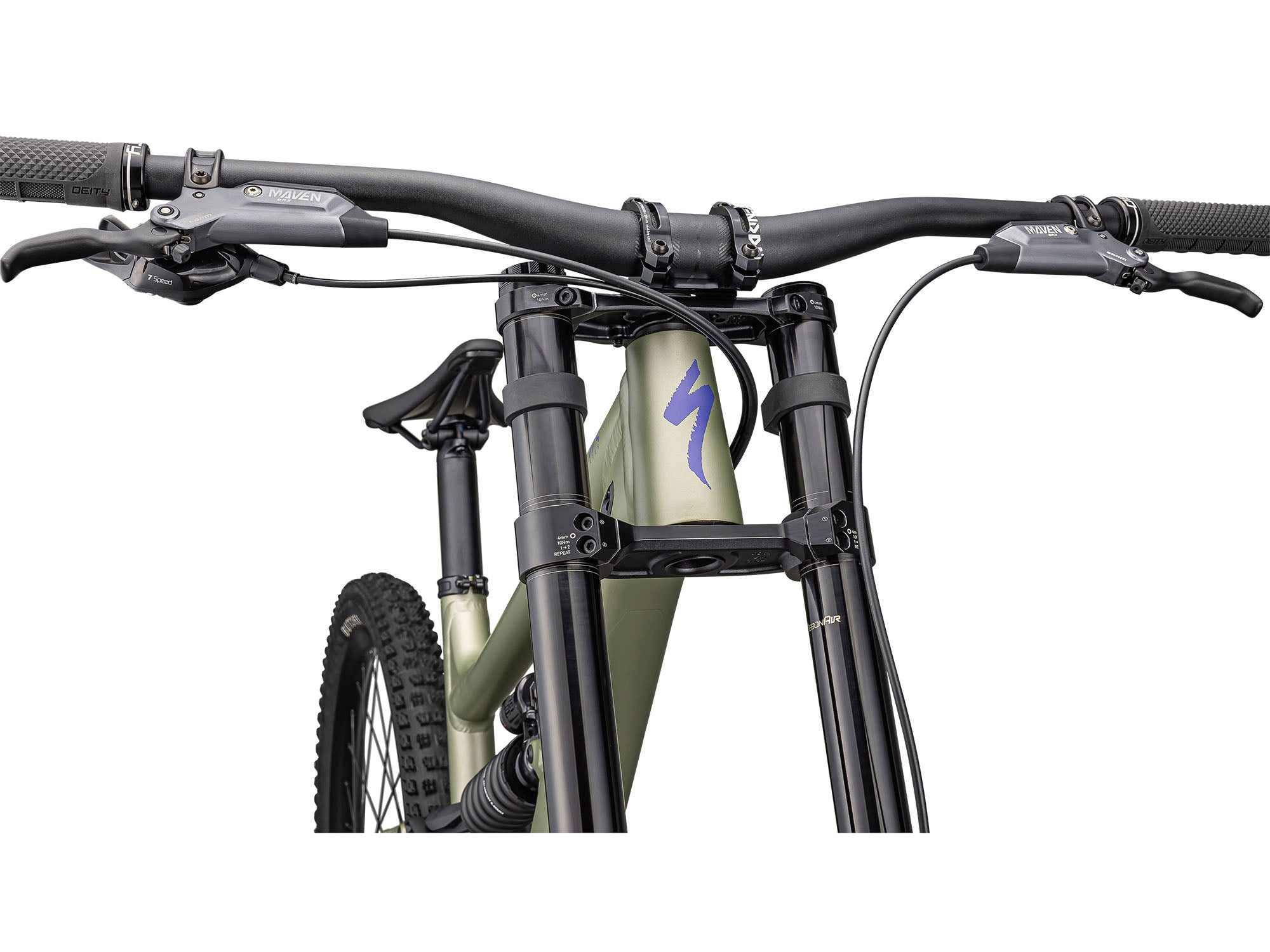

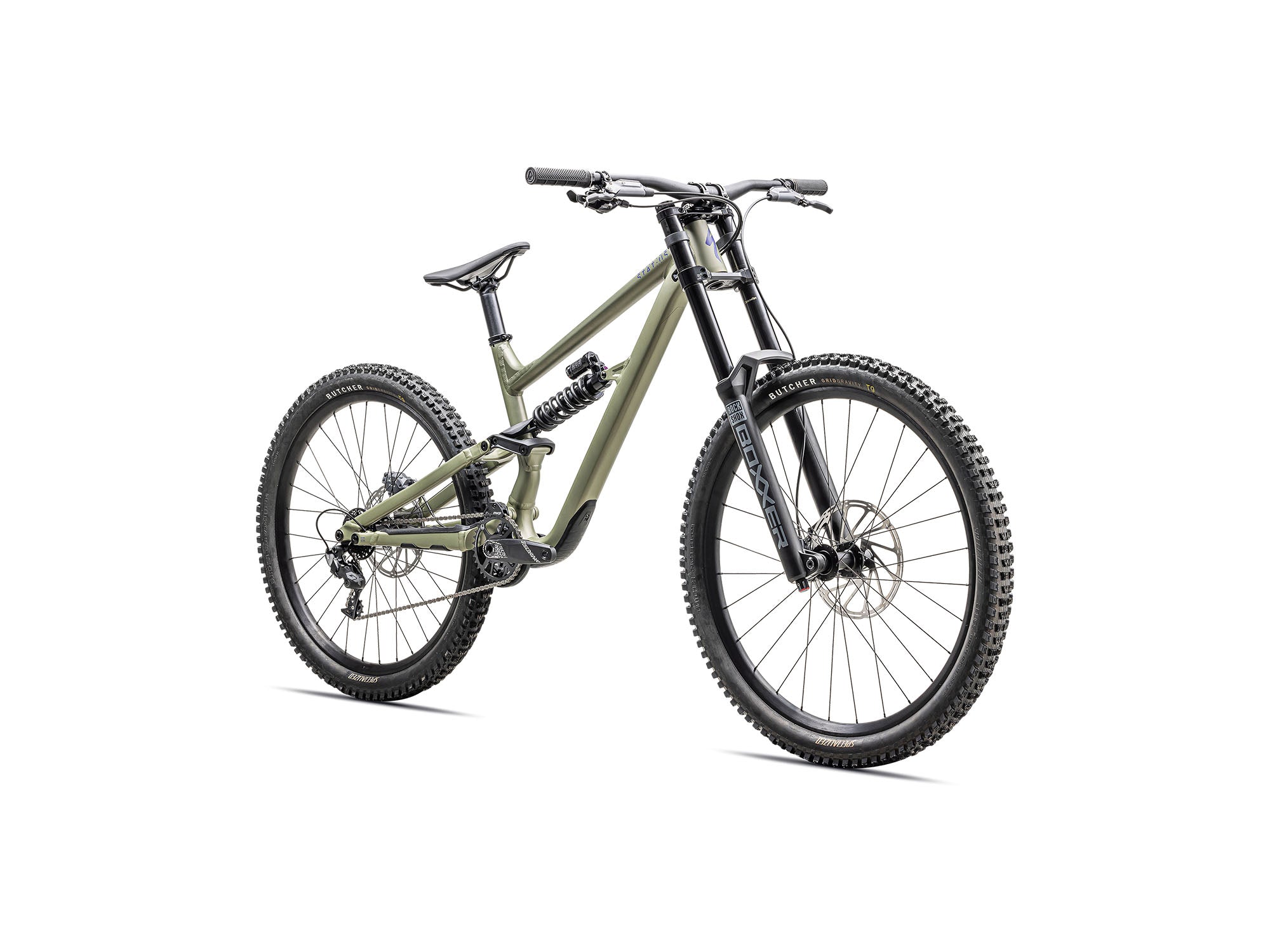

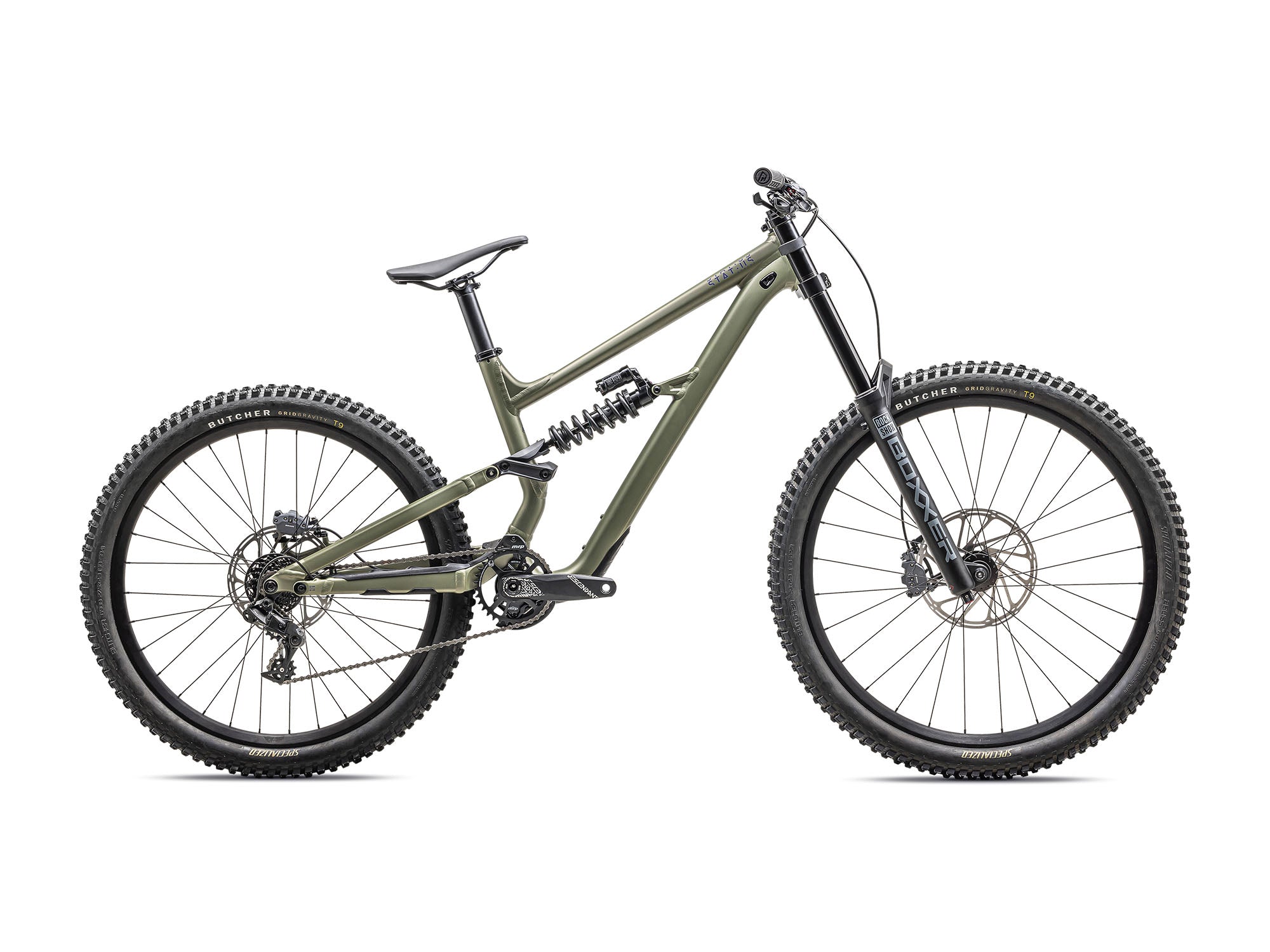

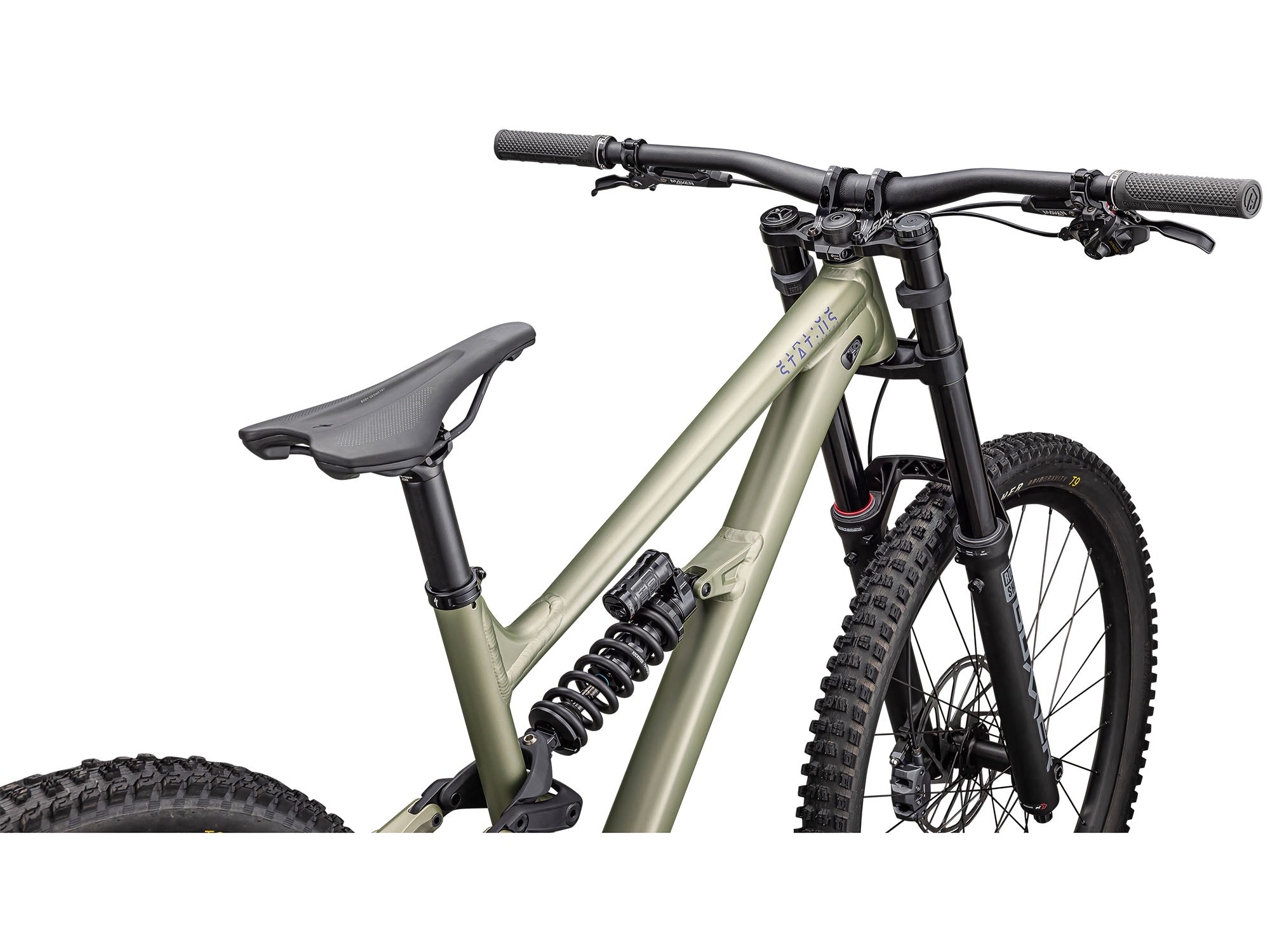

Specialized Status 2 170 DH Complete Bike

STATUS 2 finds the boundaries of mountain bikes and pushes past them. Is it a trail bike? Yes. Park bike? Yep. Cruise to the convenience store and stop for a stealth session on a concrete wall ride? Oh yeah. STATUS 2 is a bike meant to be ridden, however or wherever you ride.

Whether you are on the trails, at the bike park, in the streets, or just cutting turns with your friends on a local hill, the STATUS 2 will allow you to ride your way.

BUILT BY RIDERS: Each build starts with a super strong M5 alloy chassis and tough alloy wheels. Stout suspension, powerful brakes, and popular drivetrain options round out these builds to catch big hits, pedal smooth, and provide a ton of stoppage. It’s not for the gram counter—it’s for those riders who push the boundaries of progression and come back for more.

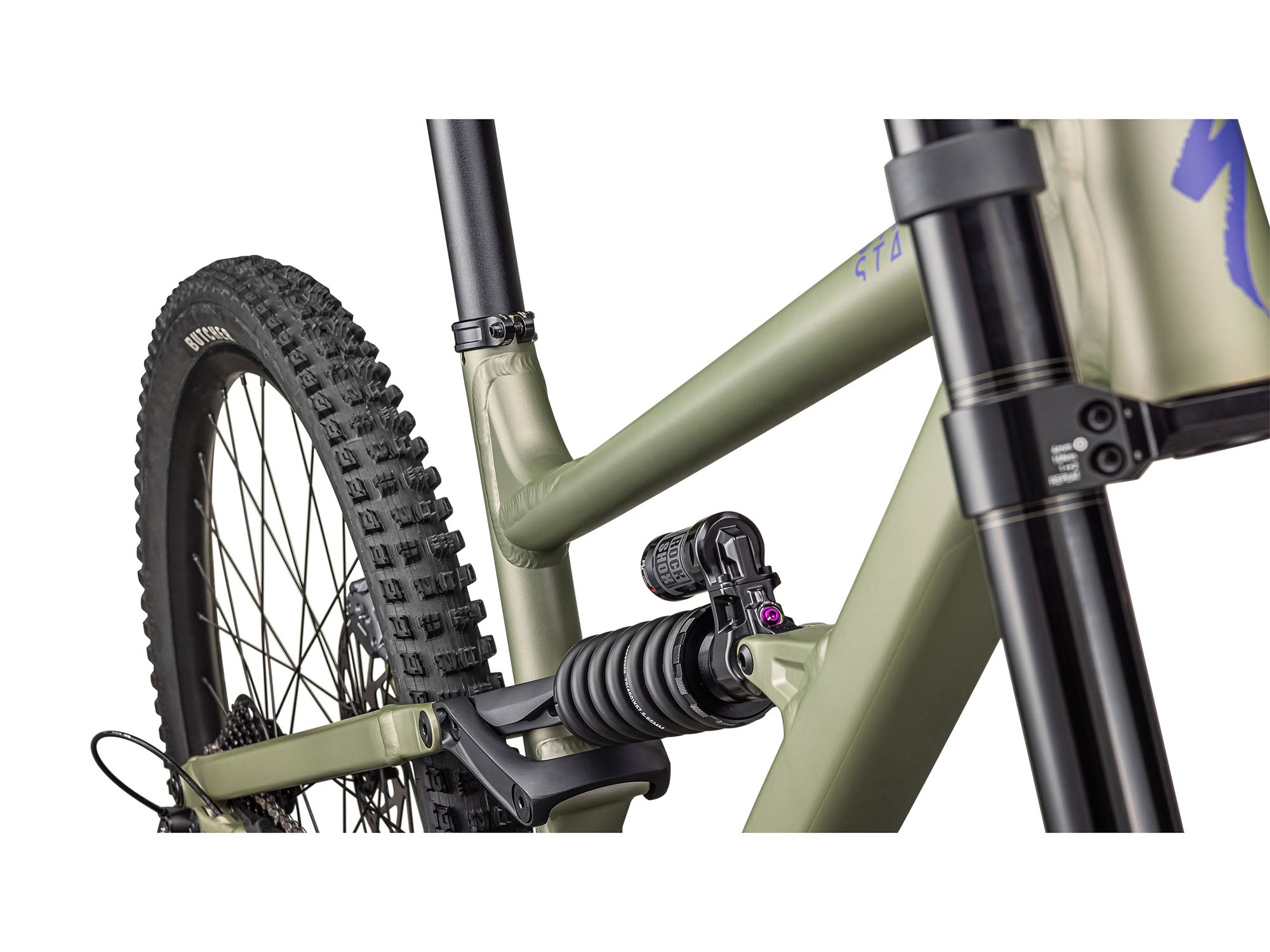

RIDE DYNAMICS TUNED: Before showing up at your doorstep or local bike shop, each STATUS 2 gets a special shock tune from our Specialized Ride Dynamics team—a group that eats, sleeps, and breathes mountain bike suspension. The characteristics of the shock are designed to complement the kinematics of the new STATUS 2 perfectly.

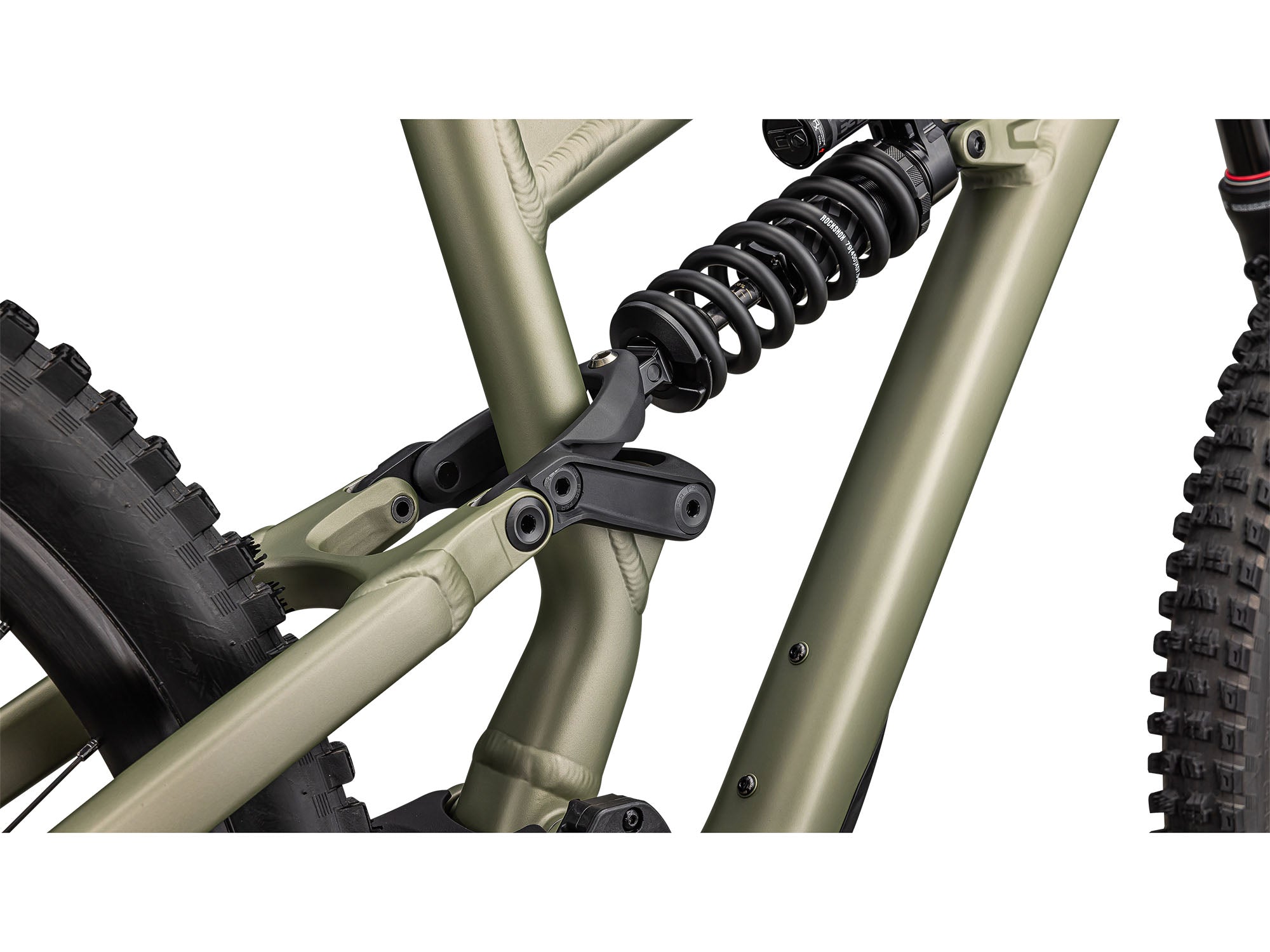

LET’S GET PERSONAL: Each model of STATUS 2 features neatly packaged flip chips (located on the Horst pivot link, close to the rear axle) that allow the rider to finely tune the frame’s geometry to their desired ride or terrain. Bikes ship in the high position but can be ‘flipped’ to lower and slacker—8 mm lower bottom bracket and half a degree slacker head tube angle.

    Features

    • 100% Redesigned durable alloy chassis
    • New more durable alloy rims
    • Horst Link geometry adjust flip chip
    • Updated geometry for more useability
    • Curated parts spec for your desired ride experience

    Tech Specs

    Frame Material: Aluminum
    Wheel Size: Mixed: 29" front/27.5" rear
    Rear Axle Standard: 12x148mm Boost
    Rear Shock: RockShox Super Deluxe Select Coil, external rebound adjust, hydraulic bottom out
    Rear Shock Size: 230mm x 62.5mm
    Rear Suspension Travel: 170mm
    Fork: RockShox BoXXer 29, Charger 3 RC damper, adjustable low-speed compression, adjustable rebound
    Fork Axle: 20x110mm
    Wheelset: Roval Alloy DH, 28mm internal width, tubeless ready.
    Front Tire: Butcher, GRID GRAVITY casing, GRIPTON® T9 compound, 2Bliss Ready, 29x2.3"
    Rear Tire: Butcher, GRID GRAVITY casing, GRIPTON® T9 compound, 2Bliss Ready, 27.5x2.3"
    Crankset: SRAM DESCENDANT DH, DUB, alloy, Direct, 34T ring, 165mm
    Bottom Bracket: SRAM DUB Threaded Wide
    Chain: SRAM PC1110 w/ Powerlink™
    Rear Derailleur: SRAM GX DH, 7-speed, trigger
    Cassette: SRAM GX DH, 7-speed, 11-24t
    Seatpost: Specialized 2-bolt head, forged alloy, 5mm offset, micro-adjust
    Seat Post Diameter: 34.9mm
    Seat: Body Geometry Henge DH, hollow Cro-Mo rails, 130mm
    Shifters: SRAM GX DH, trigger, 7-speed
    Handlebar: Specialized, 6061 alloy, 6-degree upsweep, 8-degree backsweep, 30mm rise, S2: 780mm, S3-S5: 800mm
    Stem: Descendant 35mm Direct Mount Stem, 50mm length
    Grips: Deity Lockjaw
    Brakes: SRAM Maven Bronze, 4-piston caliper, hydraulic disc, 200mm
    Warranty: Lifetime

    Specs subject to change without notice. Please check with manufacturer for the most up-to-date information.

    Geometry

    mm / inches

    Geometry Low BB Setting

    Size
    Seat Tube
    Top Tube
    Reach
    BB Height
    BB Drop
    Head Angle
    Seat Angle
    Standover
    Chainstay
    Head Tube
    Wheelbase
    Stack
    S2
    400
    595
    445
    342
    34
    63.5
    77
    735
    432
    100
    1221
    625
    S3
    420
    635
    470
    342
    34
    63.5
    77
    742
    432
    110
    1250
    634
    S4
    440
    676
    495
    342
    34
    63.5
    77
    748
    437
    120
    1285
    643
    S5
    465
    716
    520
    342
    34
    63.5
    77
    752
    437
    130
    1314
    652

    Geometry High BB Setting

    Size
    Seat Tube
    Top Tube
    Reach
    BB Height
    BB Drop
    Head Angle
    Seat Angle
    Standover
    Chainstay
    Head Tube
    Wheelbase
    Stack
    S2
    400
    595
    451
    350
    26
    64
    77.6
    735
    436
    100
    1221
    620
    S3
    420
    635
    476
    350
    26
    64
    77.6
    742
    436
    110
    1250
    629
    S4
    440
    676
    501
    350
    26
    34
    77.6
    748
    441
    120
    1285
    638
    S5
    465
    716
    526
    350
    26
    64
    77.6
    752
    441
    130
    1314
    647

    Sizing

    cm / ft

    Size S2 S3 S4 S5
    Rider Height (cm) 157 - 173 165 - 180 173 - 188 178 -
    Specialized Status 2 170 DH Complete Bike: Satin Metallic Spruce/Purple Haze / S2: 93724-7002 - Satin Metallic Spruce/Purple Haze / S3: 93724-7003 - Satin Metallic Spruce/Purple Haze / S4: 93724-7004 - Satin Metallic Spruce/Purple Haze / S5: 93724-7005
