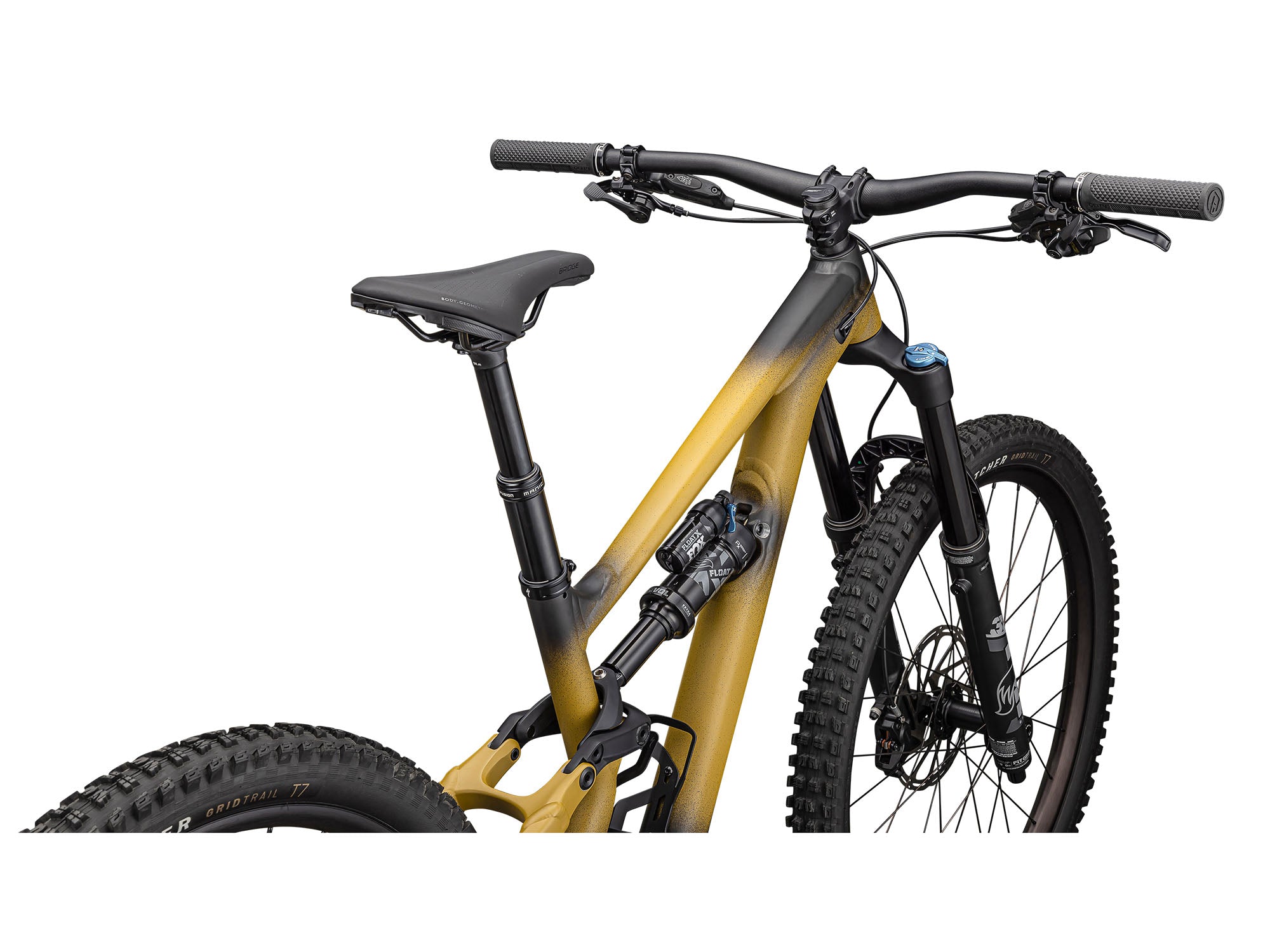

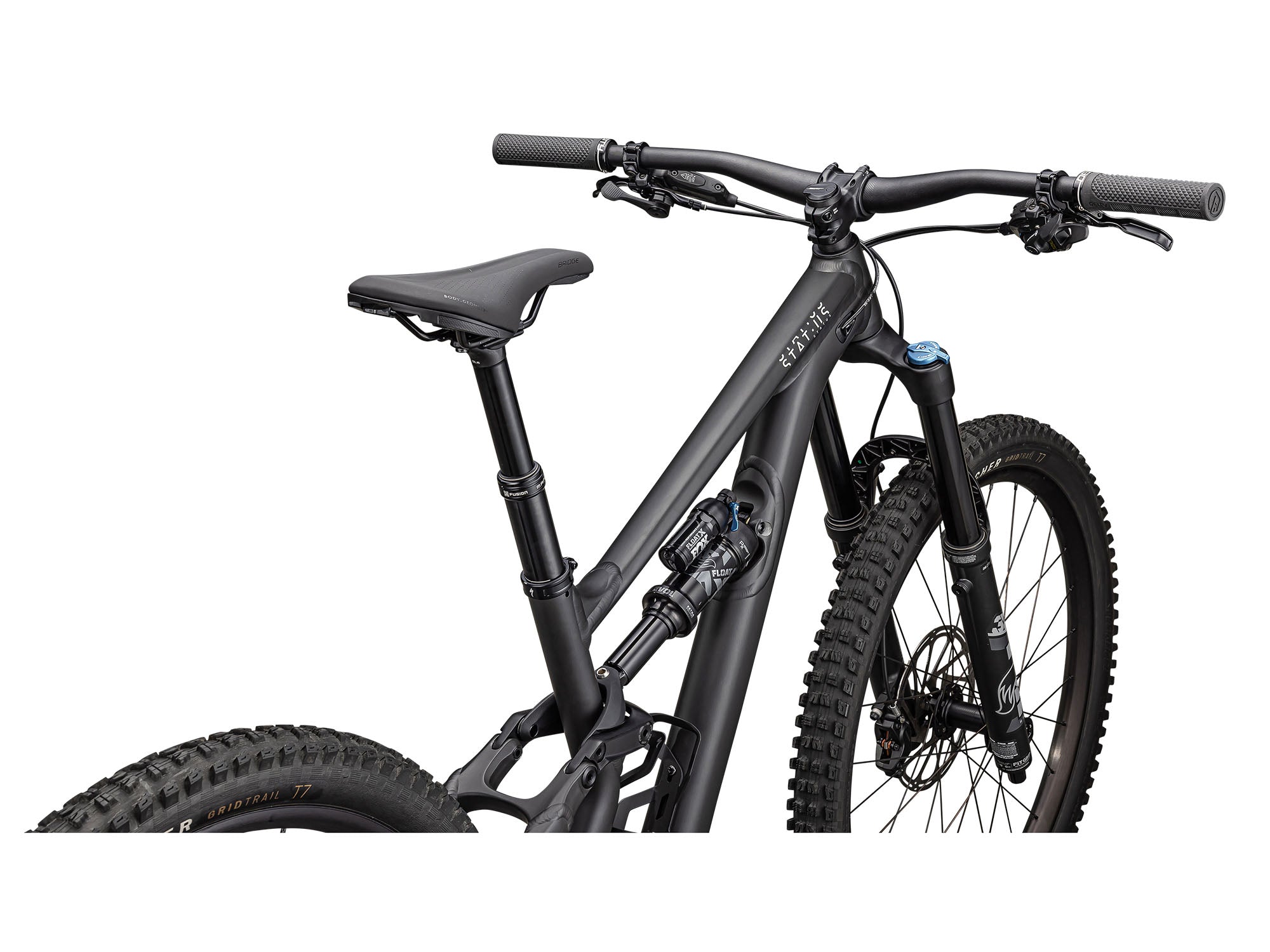

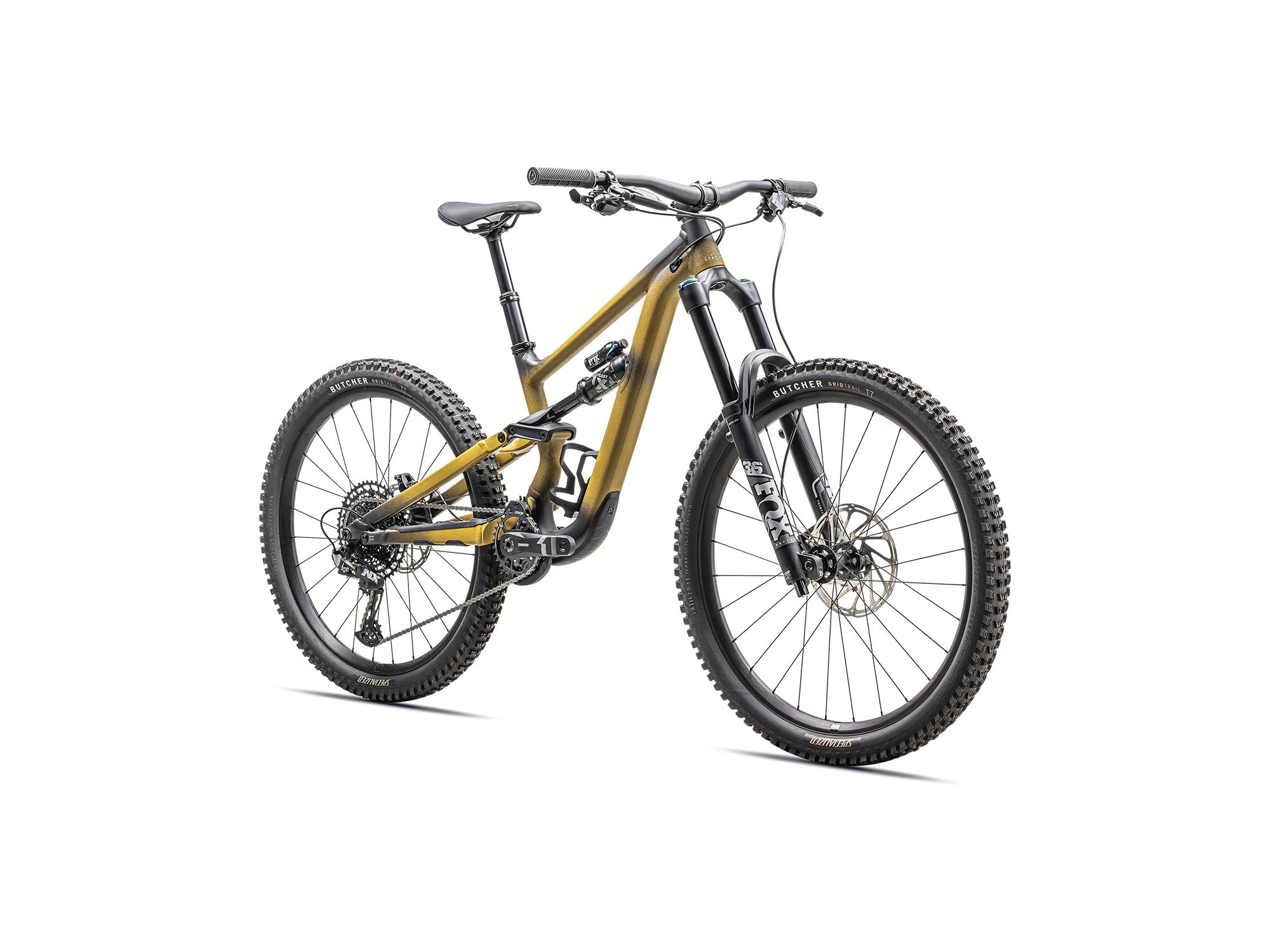

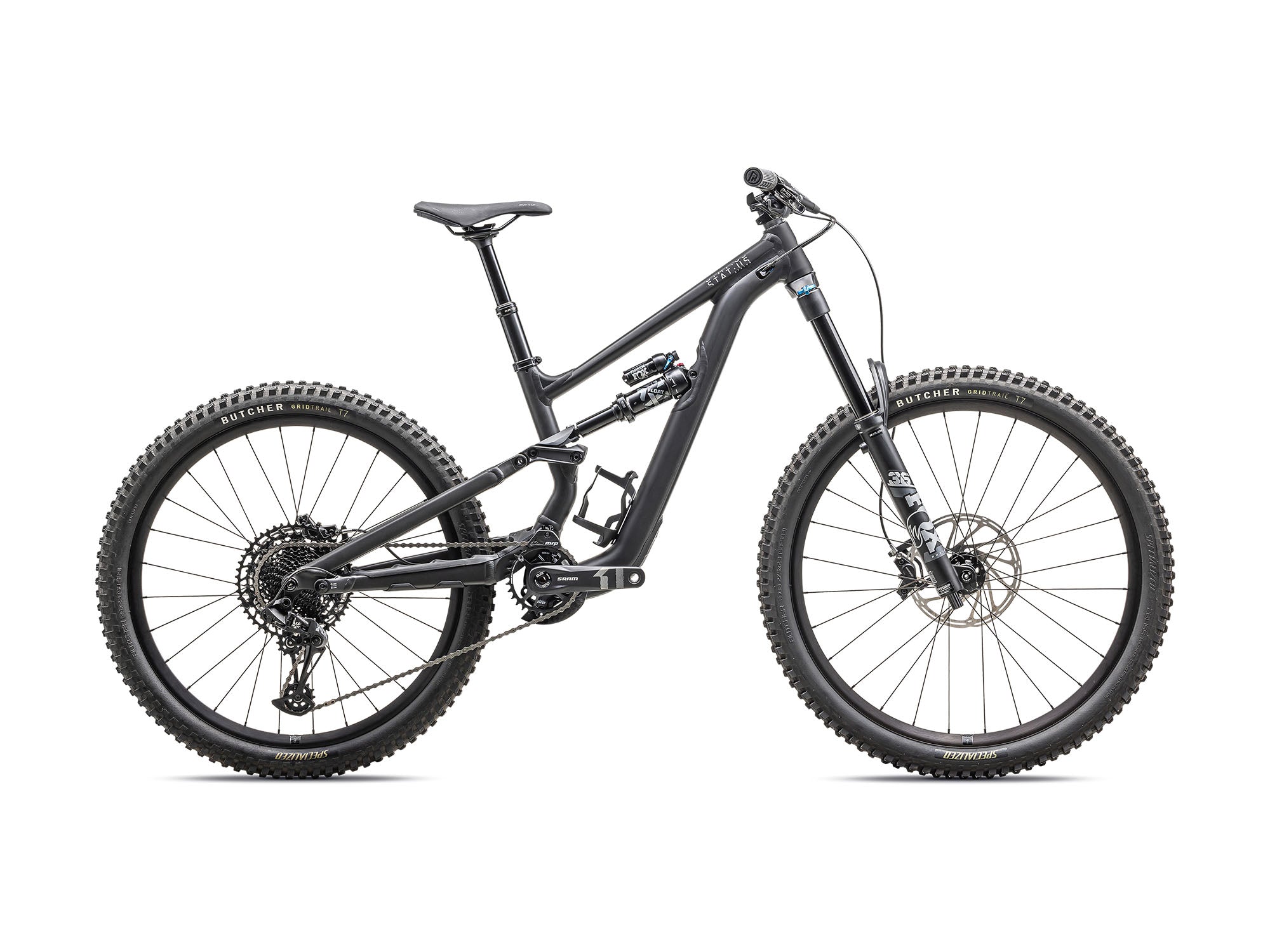

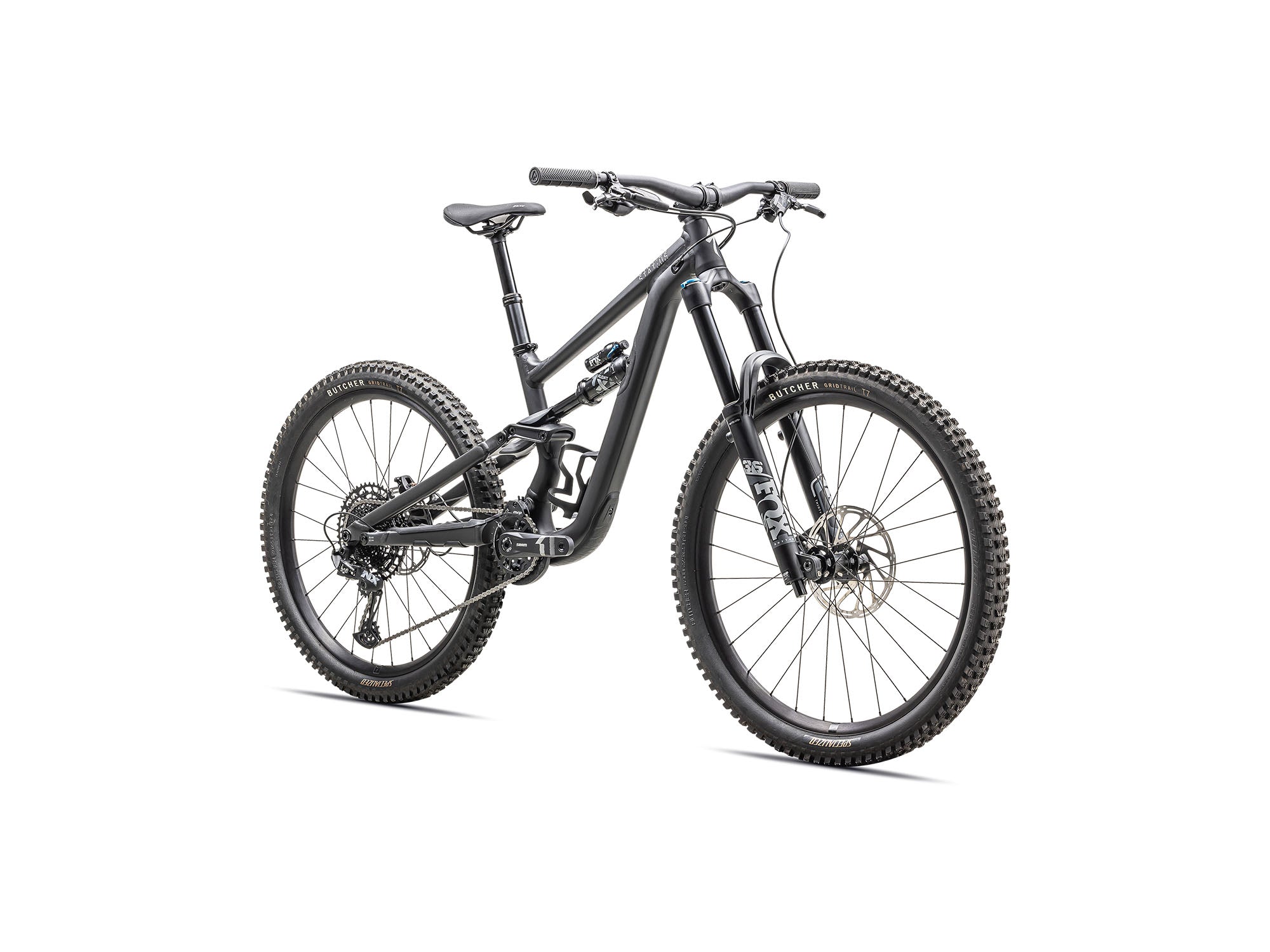

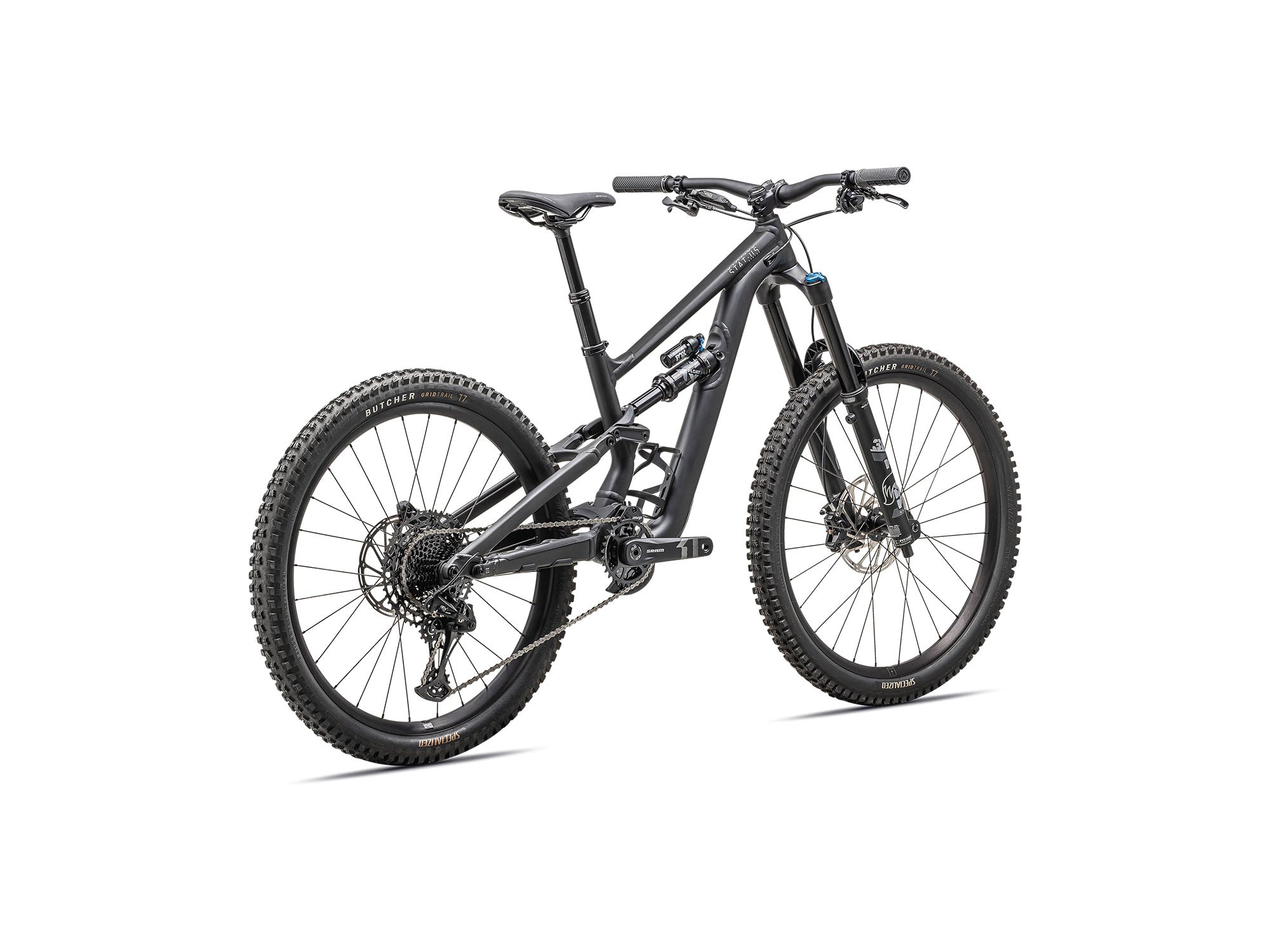

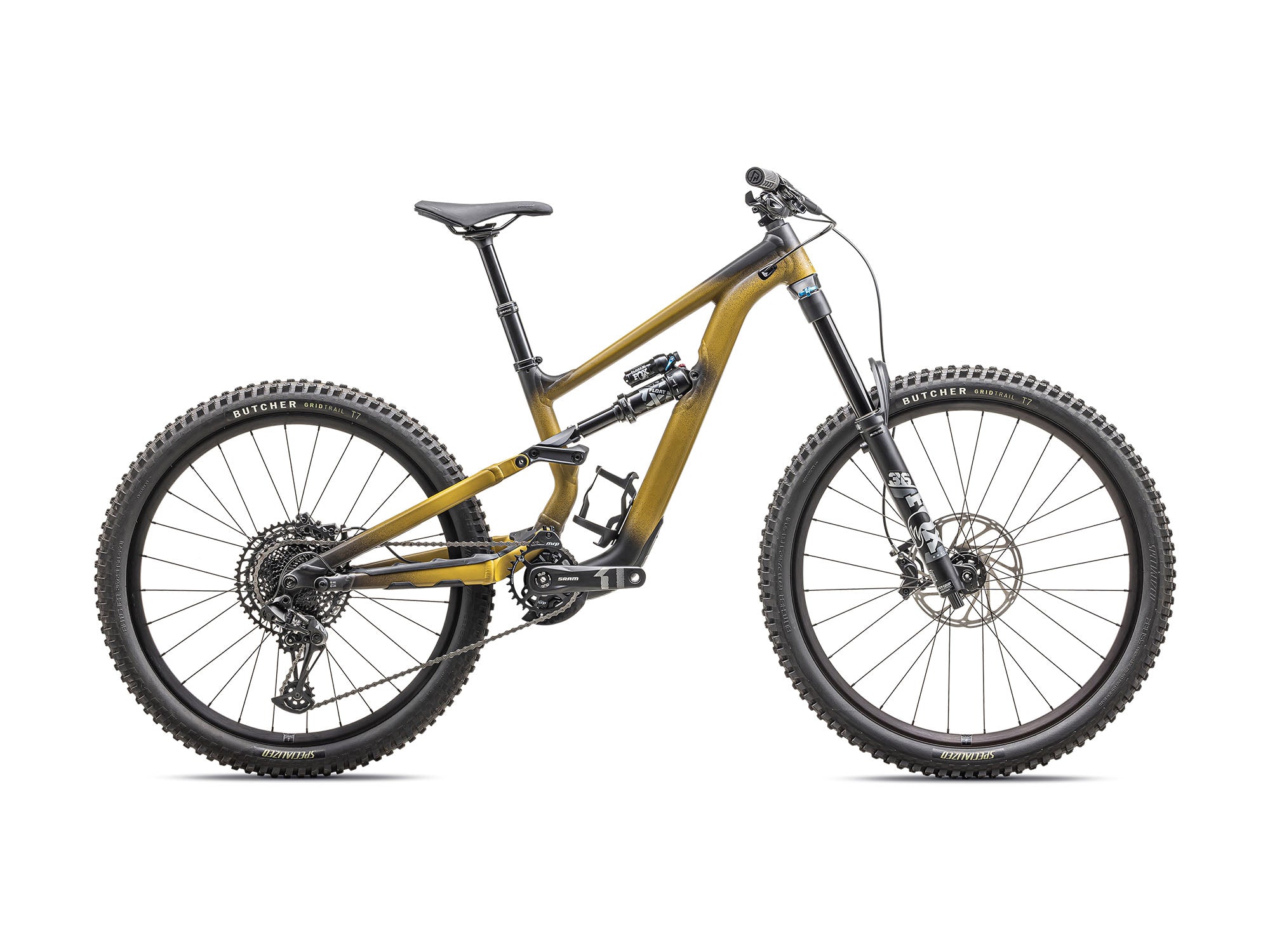

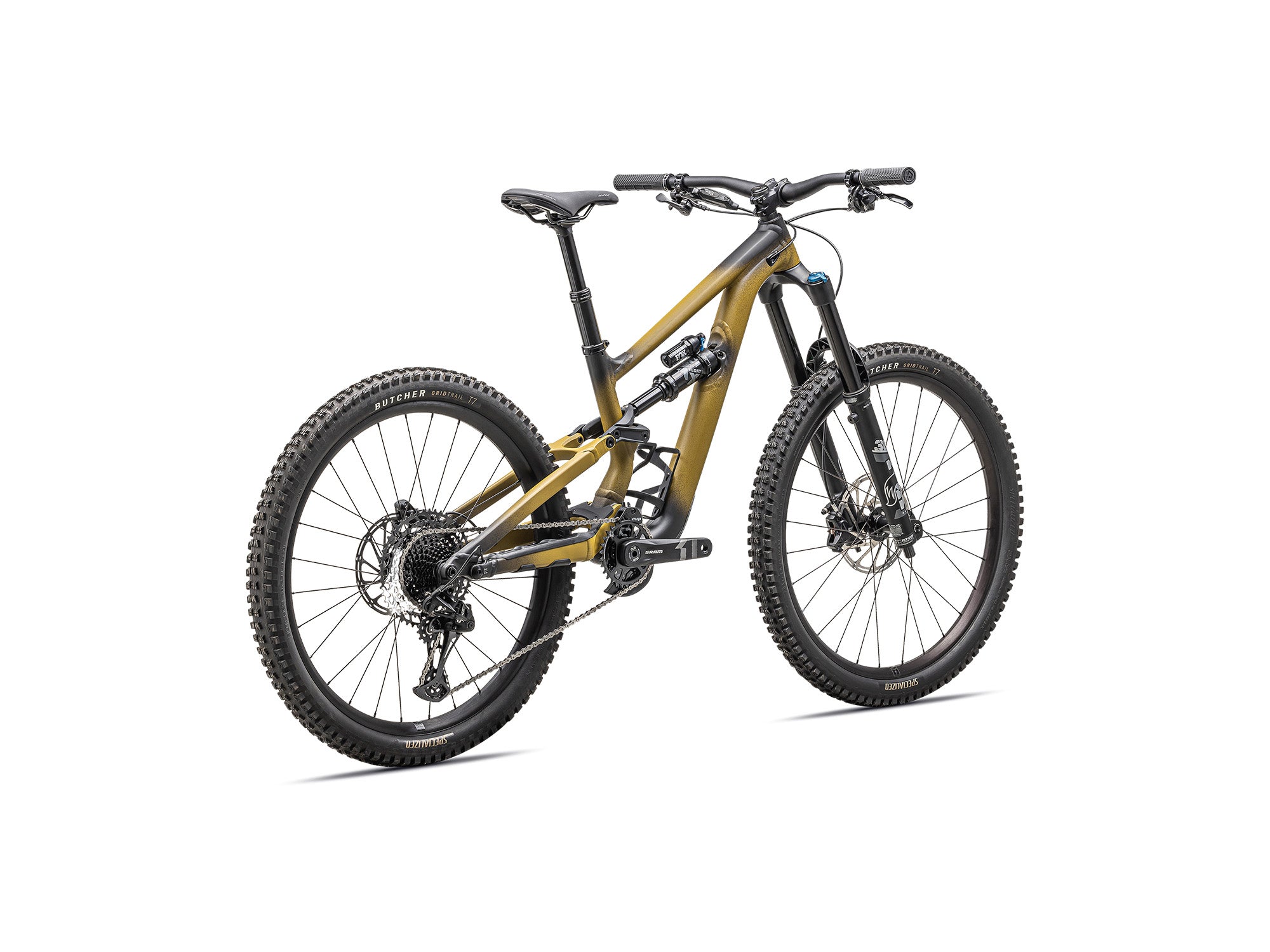

Specialized Status 2 170 Zero Complete Bike
STATUS 2 ZERO finds the boundaries of mountain bikes made for smaller riders and pushes past them. Is it a trail bike? Yes. Park bike? Yep. Cruise to the convenience store and stop for a stealth session on a concrete wall ride? Oh yeah. STATUS 2 ZERO is a bike meant to be ridden, however, or wherever you ride.
Whether you're on the trails, at the bike park, on the streets, or just cutting turns with your friends on a local hill, the STATUS 2 ZERO will allow you to ride your way.
GO BIG, START SMALL: STATUS 2 ZERO is a first for our mountain bikes. It is a ‘core’ and incredibly capable rig built intentionally for small riders who want to really get after it. It has custom-tuned kinematics and suspension from the Specialized Ride Dynamics team—specifically for smaller riders—and appropriately sized components.
BUILT BY RIDERS: STATUS 2 ZERO starts with a super strong M5 alloy chassis and tough alloy wheels. Stout suspension, powerful brakes, and popular drivetrain options round out these builds to catch big hits, pedal smooth, and provide a ton of stoppage. It’s not for the gram counter—it’s for those riders who push the boundaries of progression and come back for more.
RIDE DYNAMICS TUNED: Before arriving at your doorstep or local bike shop, each bike gets a special shock tune from our Specialized Ride Dynamics team—a group that eats, sleeps, and breathes mountain bike suspension. The shock's characteristics are designed to perfectly complement the new bike's kinematics and smaller size.
LET’S GET PERSONAL: Customize even more with neatly packaged flip chips (located on the Horst pivot link, close to the rear axle) that allow you to finely tune the frame’s geometry to your desired ride or terrain. Bikes ship in the high position but can be ‘flipped’ to lower and slacker—8 mm lower bottom bracket and half a degree slacker head tube angle.
Features
- 100% Redesigned durable alloy chassis
- Horst Link geometry adjust flip chip
- Updated geometry for more usability
- Curated parts spec for your desired ride experience
Tech Specs
Frame Material: | Aluminum |
Wheel Size: | Mixed: 27.5" front/26" rear |
Rear Axle Standard: | 12x148mm Boost |

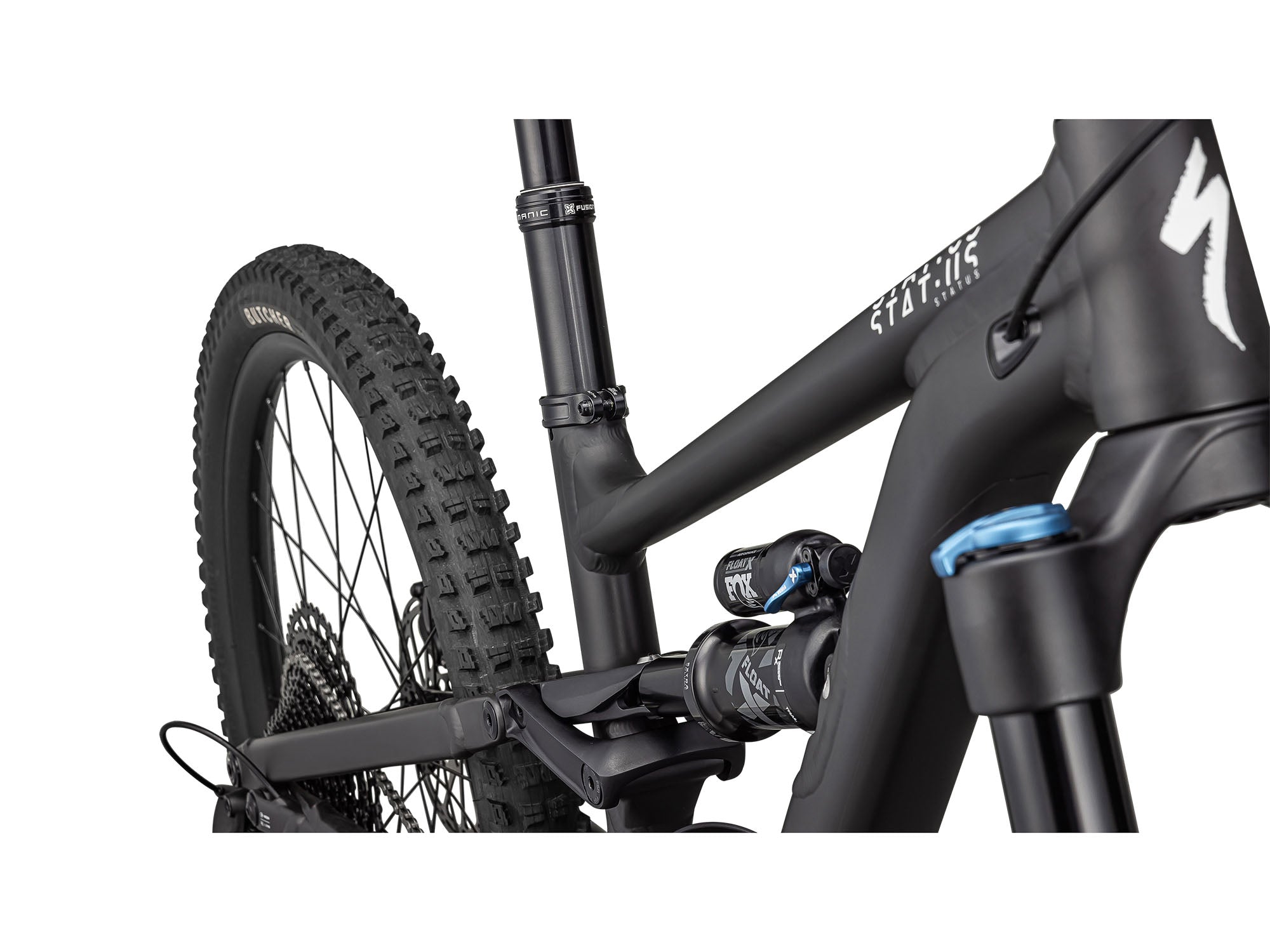

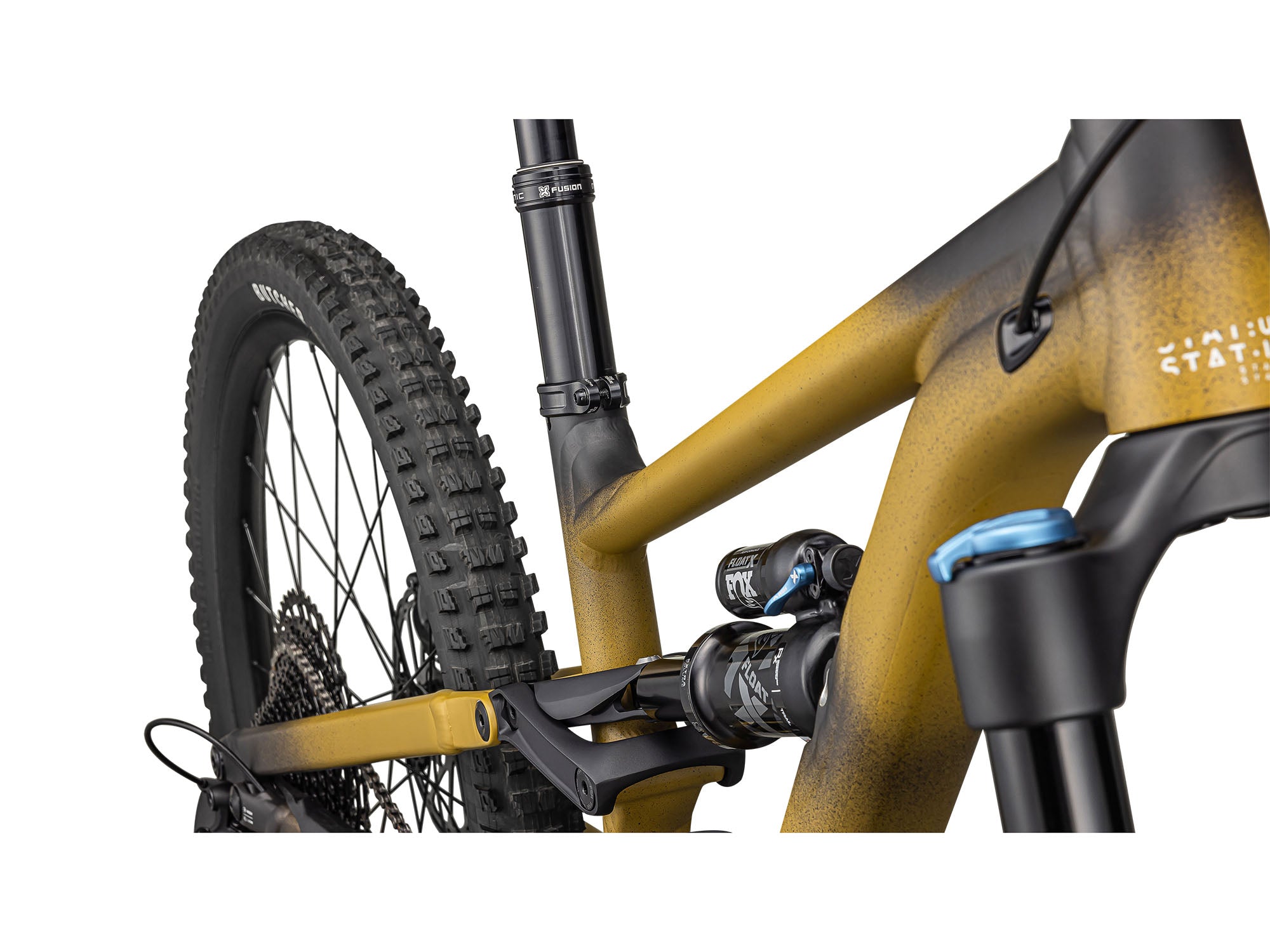

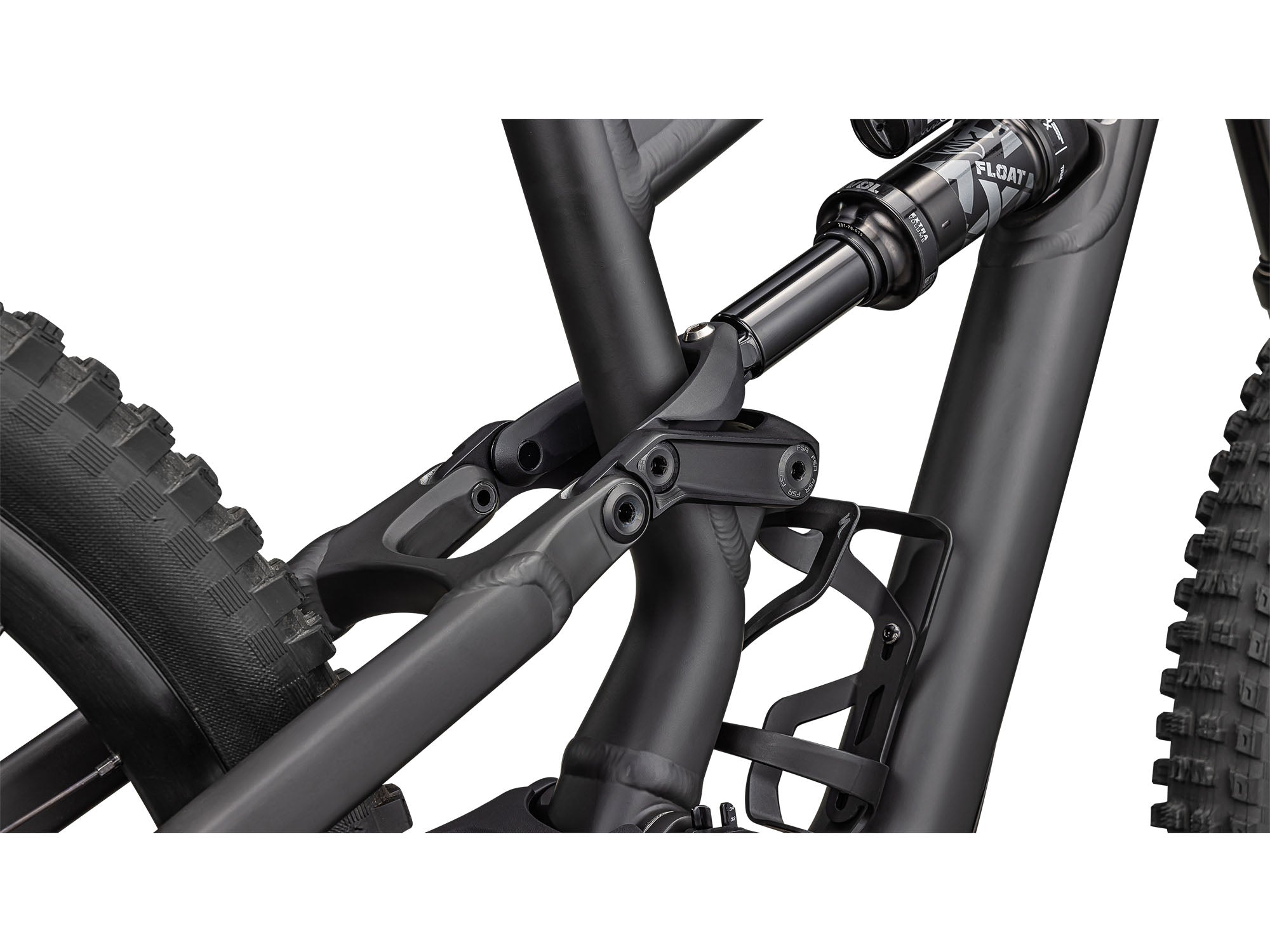

Rear Shock: | FOX FLOAT X Performance, Ride Dynamics Tune, EVOL Air sleeve, 2-position lever w/ LSR adjustment, 230x60mm |
Rear Shock Size: | 230mm x 60mm |
Rear Suspension Travel: | 170mm |
Fork: | FOX FLOAT 36 Rhythm, GRIP damper, two position Sweep adjustment, 15x110mm Kabolt axle, 37mm offset, 170mm of travel |
Fork Axle: | 15x110mm Boost |
Wheelset: | Roval Traverse, hookless alloy, 30mm inner width, tubeless ready. Front: 27.5", Rear: 26" |
Front Tire: | Butcher, GRID TRAIL casing, GRIPTON® T7 compound, 2Bliss Ready, 27.5x2.3" |
Rear Tire: | Butcher, GRID TRAIL casing, GRIPTON® T7 compound, 2Bliss Ready, 26x2.3" |
Crankset: | SRAM X1 Eagle, DUB,155mm, 55mm chainline, 30T |
Chainguide Tabs: | ISCG '05 3-Bolt |
Bottom Bracket: | SRAM DUB Threaded Wide |
BB Standard: | 73mm BSA |
Chain: | SRAM NX Eagle, 12-speed |
Rear Derailleur: | SRAM NX Eagle, 12-speed |
Cassette: | SRAM NX Eagle, 12-speed, 11-50t |
Seatpost: | X-Fusion Manic, infinite adjustable, two-bolt head, bottom mount cable routing, remote SLR LE lever, 34.9mm, 100mm |
Seat Post Diameter: | 34.9mm |
Seat Post Clamp Diameter: | 38.6mm |
Seat: | Bridge Saddle, steel rails, 130mm |
Shifters: | SRAM NX Eagle, trigger, 12-speed |

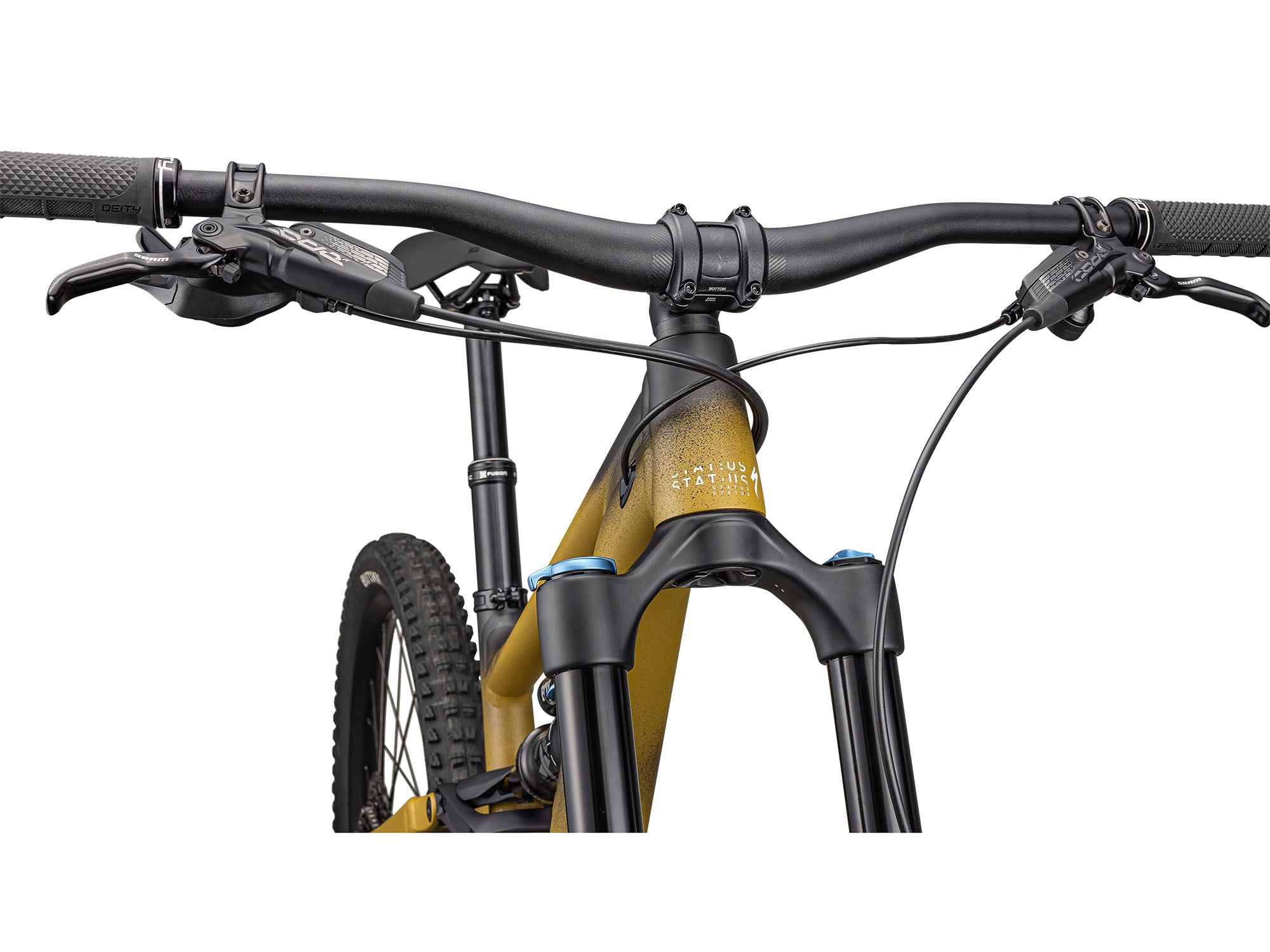

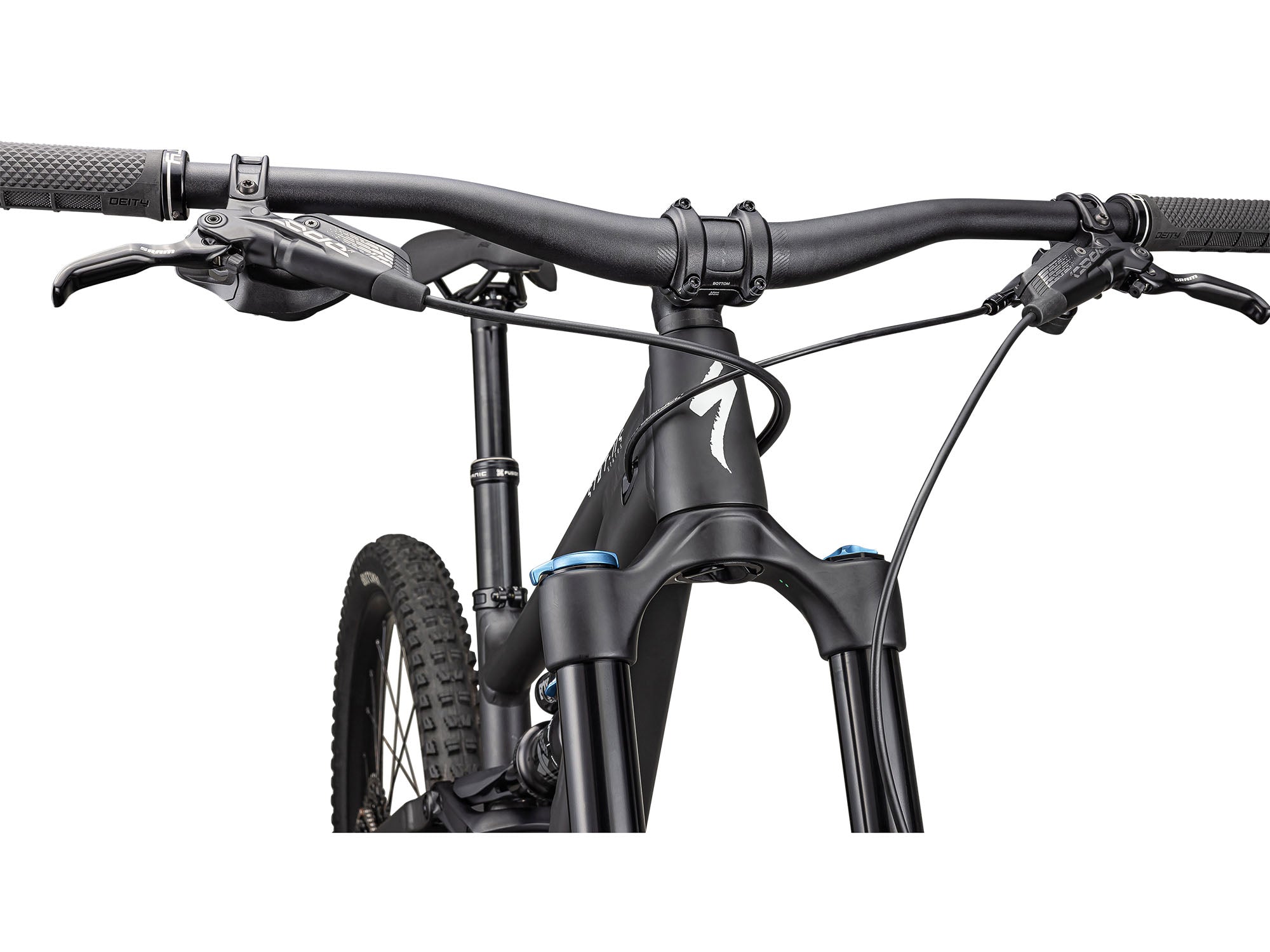

Handlebar: | Specialized, 6061 alloy, 6-degree upsweep, 8-degree backsweep, 30mm rise, 760mm |
Stem: | Alloy Trail Stem, 35mm bar bore |
Grips: | Deity Lockjaw |
Brakes: | SRAM Code R, 4-piston caliper, hydraulic disc, Front: 200mm Rear: 180mm |
Water Bottle Cage Mounts: | Yes, 1 |
Intended Use: | AM/Enduro |
Warranty: | 2 years or Lifetime with registration |
Specs subject to change without notice. Please check with manufacturer for the most up-to-date information.
Geometry
mm / inches
Low BB Setting
High BB Setting
Sizing
cm / ft
Size | S0 |
---|---|
Rider Height (cm) | 144 - 157 |
