Specialized

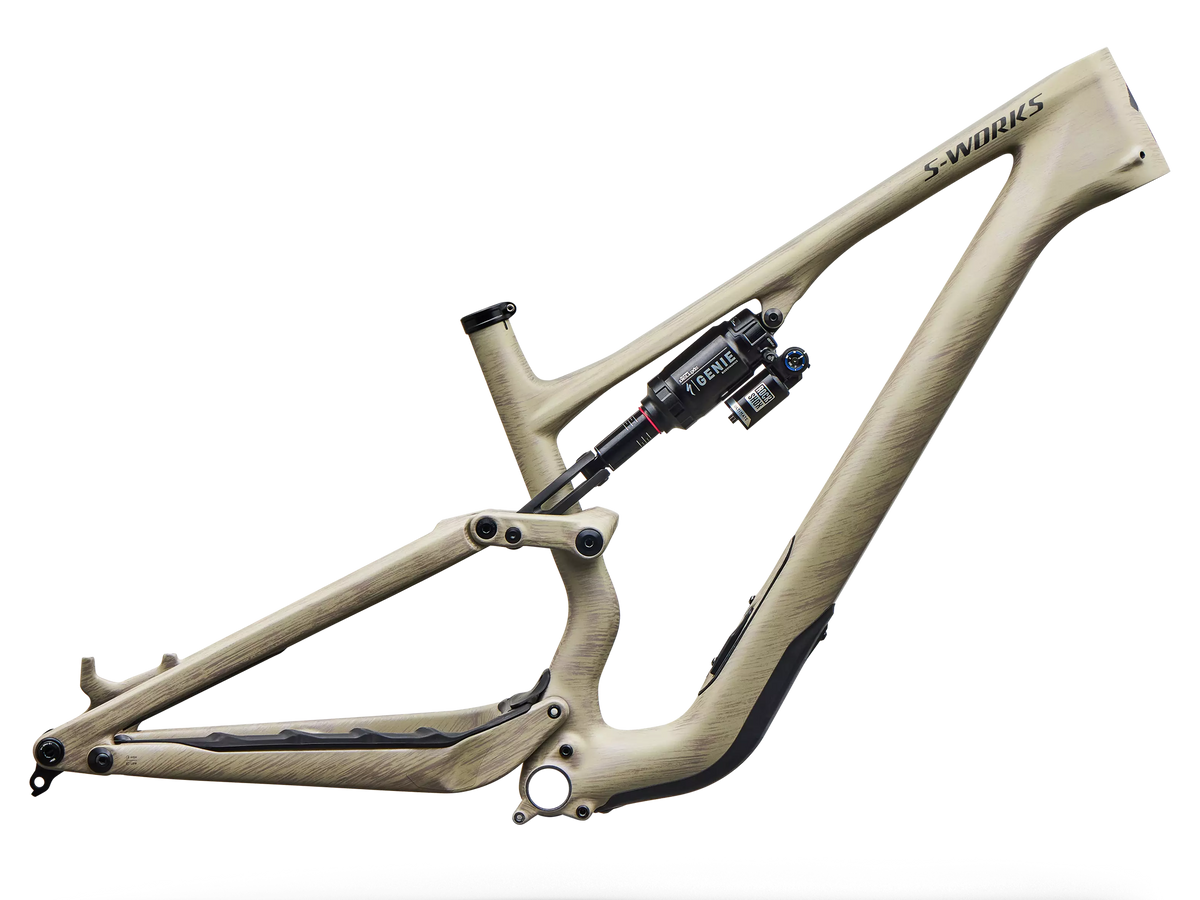

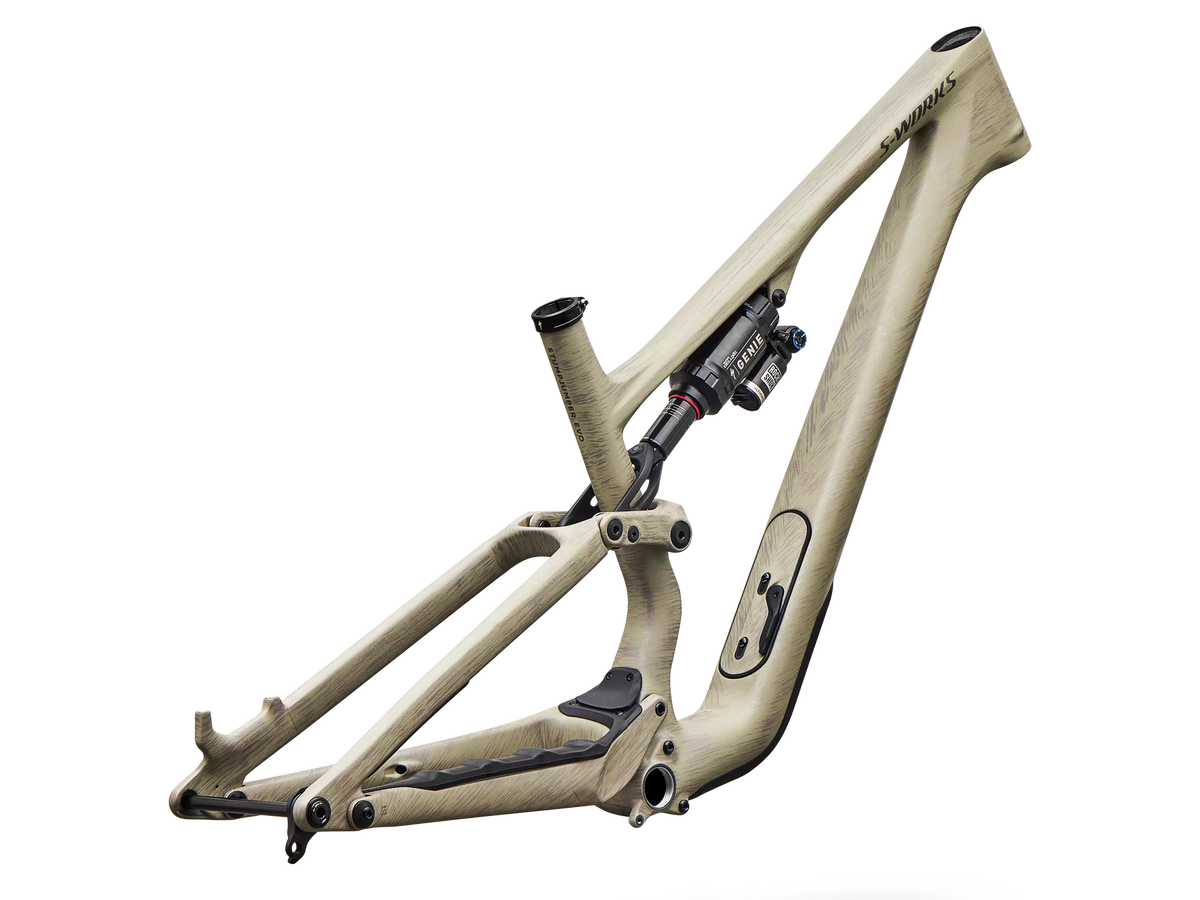

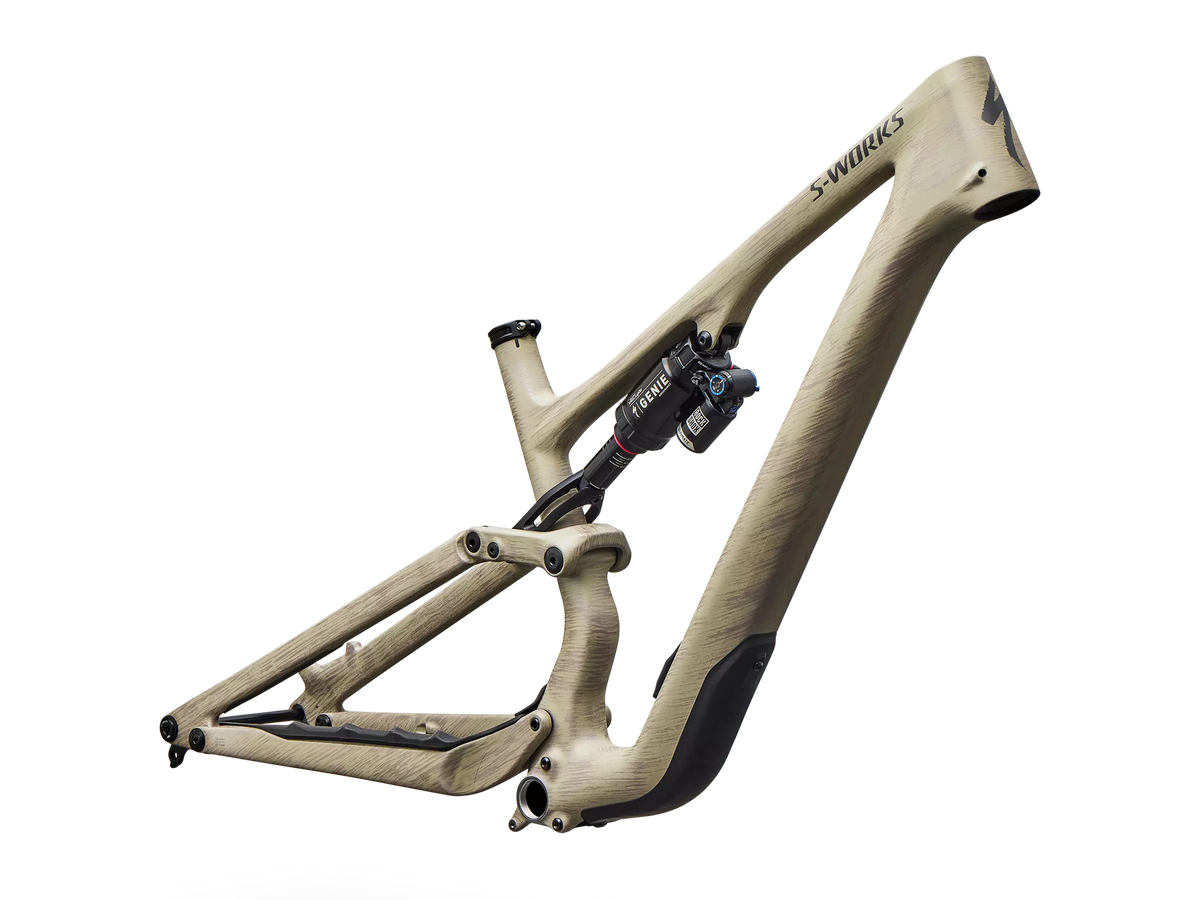

Stumpjumper 15 EVO S-Works Carbon Frameset - 2027
Choose options
Highlights
- Lightweight FACT 11m carbon chassis, rear-end, and link
- Lifetime replacement of suspension pivot bearings to the original owner
- All-new RockShox Super Deluxe Ultimate GENIE shock
Description
Stumpjumper 15 EVO is here to obliterate every trade-off in the trail game. Devour bumps like a big bike? Check. Short-travel control, playfulness, and efficiency? Double check. How about a heaping helping of personalization to make it perfect for the only rider who really matters—you? Check, check, check.
| Frame Material: | Carbon |
| Wheel Size: | 29", MX (29"/27.5") |
| Front Suspension Travel: | 160mm |
| Rear Suspension Travel: | 145mm |
| Rear Shock: | RockShox Super Deluxe GENIE |
| Rear Shock Size: | 210mm x 55mm |
| Rear Axle Width: | 12x148mm Boost |
| Headset Standard: | IS42mm/IS52mm |
| BB Standard: | 73mm BSA |
| ISCG Tabs: | ISCG '05 3-Bolt |
| Brake Mount Type: | Post-Mount 200mm |
| Min Rear Rotor Size: | 200mm |
| Max Rear Rotor Size: | 220mm |
| Chainline: | 55mm |
| Maximum Tire Size: | 2.5" |
| Seat Post Diameter: | 34.9mm |
| Seat Clamp Diameter: | 38.6mm |
| Frame Storage: | SWAT Door 4.0 Integration |
| Water Bottle Cage Mounts: | 1 set on downtube |
| Intended Use: | AM/Enduro, Trail/AM |
| Warranty: | Lifetime |
| Size | S1 | S2 | S3 | S4 | S5 | S6 |
|---|---|---|---|---|---|---|
| Reach | 400 | 420 | 445 | 470 | 495 | 525 |
| Stack | 611 | 621 | 630 | 644 | 658 | 671 |
| Top Tube | 542 | 574 | 596 | 625 | 649 | 678 |
| Wheelbase | 1153 | 1186 | 1217 | 1249 | 1290 | 1327 |
| Head Tube° | 64° | 64° | 64° | 64° | 64° | 64° |
| Head Tube | 95 | 100 | 110 | 125 | 140 | 155 |
| Seat Tube° | 77.7° | 76.5° | 76.5° | 76° | 76° | 76° |
| Seat Tube | 385 | 385 | 405 | 425 | 445 | 465 |
| BB Height | 337 | 340 | 340 | 340 | 340 | 340 |
| BB Drop | 28 | 35 | 35 | 35 | 35 | 35 |
| Standover | 738 | 751 | 745 | 745 | 745 | 751 |
| Chainstay | 430 | 432 | 435 | 435 | 445 | 445 |
| Trail | 134 | 134 | 134 | 134 | 134 | 134 |
| Max Seatpost Insertion | 245 | 245 | 255 | 255 | 285 | 285 |
