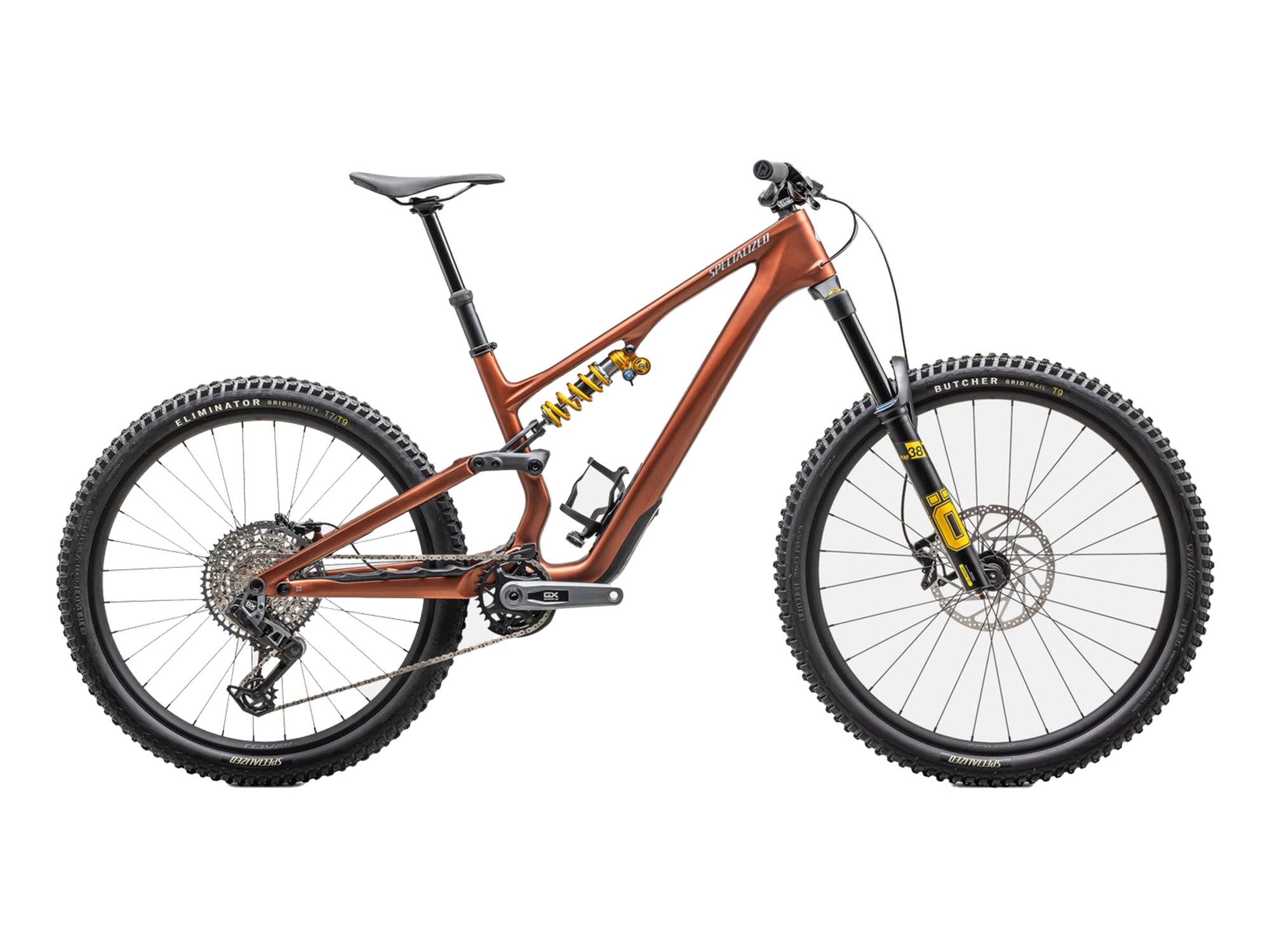

Stumpjumper 15 Ohlins Coil Complete Bike - 2025

Highlights

Description

Stumpjumper 15 is here to obliterate every trade-off in the trail game. Devour bumps like a big bike? Check. Short-travel control, playfulness, and efficiency? Double check. How about a heaping helping of personalization to make it perfect for the only rider who really matters—you? Check, check, check.

KINEMATICS PERFECTED: As the quintessential trail bike, Stumpjumper 15 balances efficiency and optimal bump force management. For the anti-squat on Stumpjumper 15, we struck a balance between the previous Stumpjumper and Stumpjumper EVO, as both had excellent pedaling characteristics.

HONED GEOMETRY: This bike’s geometry delivers big bike capability when you need it, a nimble feel in tight sections, and lively, efficient climbing manners. The generous cockpit centers you on the bike, optimizing traction and corner control. The low bottom bracket, slack head tube angle, and optimized fork offset keep things stable in the rough.

RIDE YOUR WAY: The Stumpjumper 15 seamlessly integrates benchmark geo adjustability, making it the most personalizable trail bike ever. Six distinct geometry settings allow you to hone performance for any style, any terrain. Head angle and bottom bracket can be fine-tuned for stability or clearance.

FORM FOLLOWS FUN: We can make a frame as stiff as we want, but there’s such a thing as too stiff. To be one with the bike requires engineered compliance in the frame. We engineered the FACT 11M carbon—front end, rear end, and the link between them—as a single unit that hits the stiffness target we established for trail riding.

WHEEL SIZE: All coil-sprung models come with mixed wheels.

WHEEL CHOICE: With our aftermarket link shock links, you can choose between big wheels front and rear or mix things up with a 27.5” rear for a more responsive and playful ride. No matter what you choose, geometry is unaffected.

CARRY IT ALL: SWAT 4.0 on Stumpjumper 15 elevates downtube storage, an innovation we pioneered. It’s the smoothest operating, most weather-resistant, flush-mounted system ever.

MORE RELENTLESS THAN YOU: Our full suspension bikes are built to be relentless, designed to endure years of hard riding and backed by the best support and policies to keep you on the trail. Our unbeatable lifetime, no-questions-asked replacement of suspension pivot bearings to the original owner is just one way we've got you covered.

Frame Material:	Carbon
Wheel Size:	Mixed: 29" front/27.5" rear
Rear Axle Standard:	12x148mm Boost

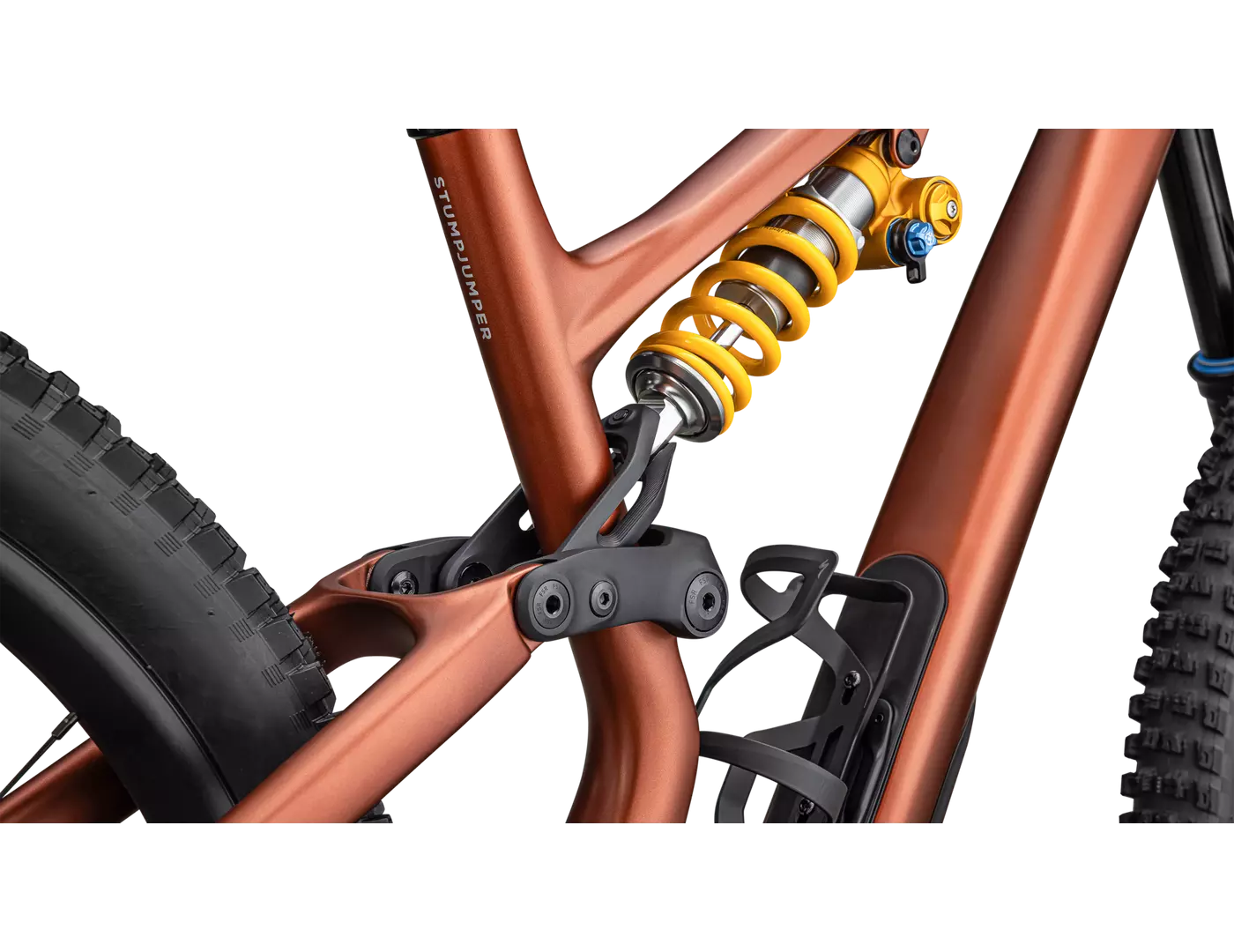

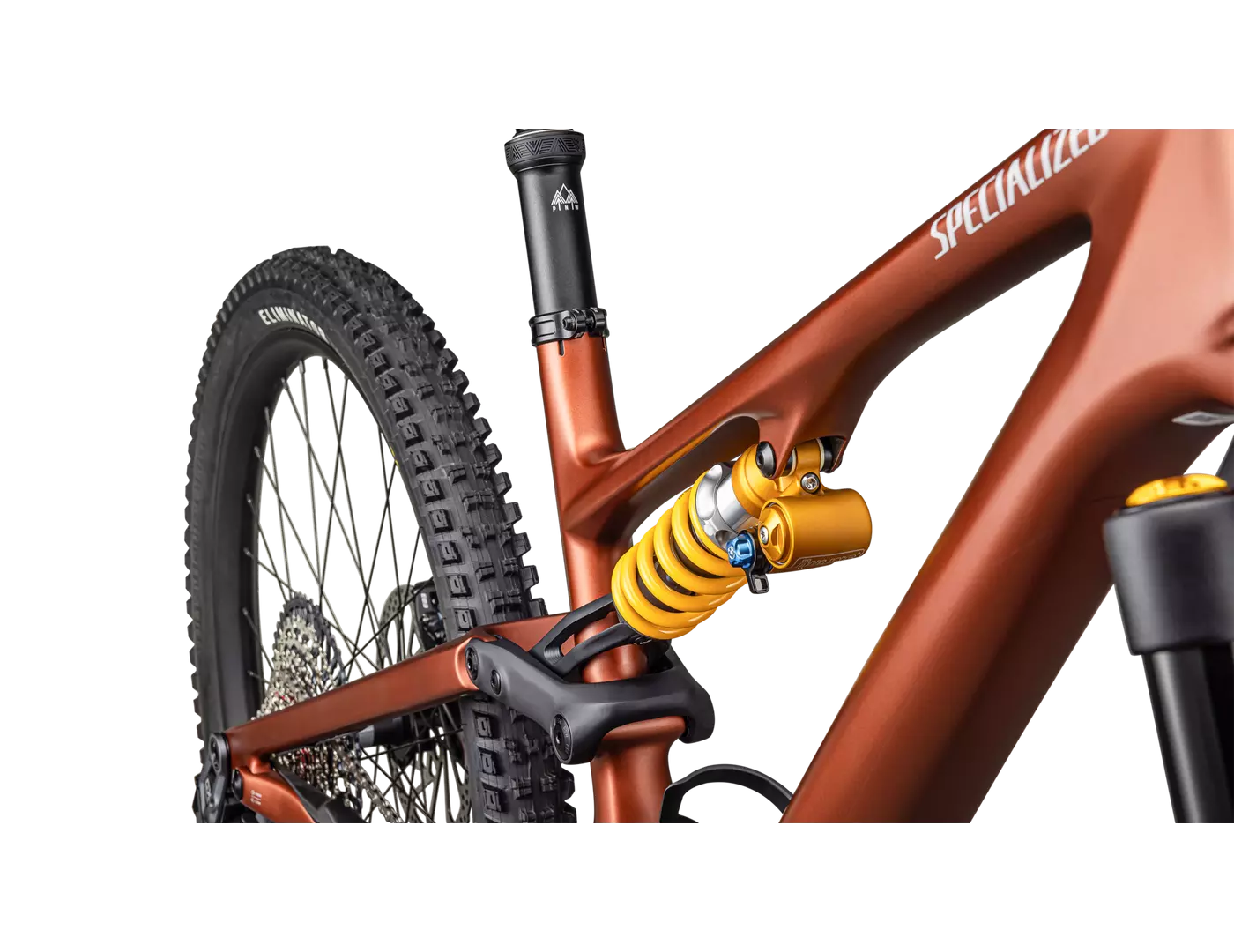

Rear Shock:	Öhlins TTX 22 M Coil, Ride Dynamics trail tune, external rebound adjust, external high and low speed compression adjustment, 210x55
Rear Shock Size:	210mm x 55mm
Rear Suspension Travel:	145mm
Headset:	Specialized Angle Adjust
Fork:	Öhlins RXF38 M.2 29, TTX Twin Tube Damping, external low speed rebound adjust, external high and low speed compression adjustment, 15x110mm, 44mm offset, 160mm of travel
Fork Axle:	15x110mm Boost
Wheelset:	Specialized Roval Traverse hookless alloy on DT Swiss 370 28h | Front: 29" | Rear: 27.5"
Front Tire:	Specialized Butcher, GRID TRAIL casing, GRIPTON® T9 compound, 2Bliss Ready, 29x2.3"
Rear Tire:	Specialized Eliminator, GRID TRAIL casing, GRIPTON® T7 compound, 2Bliss Ready, 27.5"x2.3"
Crankset:	SRAM GX Eagle Transmission Crankset, 32T ring, Integrated Guard, 55mm Chainline, S2-S3:165mm, S4-S6: 170mm
Chainguide Tabs:	ISCG '05 3-Bolt
Bottom Bracket:	SRAM DUB, BSA 73mm Wide, Threaded
BB Standard:	73mm BSA
Chain:	SRAM GX Eagle Transmission Flattop Chain
Rear Derailleur:	SRAM GX Eagle Transmission Derailleur
Cassette:	SRAM GX Eagle Transmission Cassette, 12spd, 10-52t
Seatpost:	PNW Loam Dropper, tool-less travel adjust, Range lever, 34.9, S2: 150mm, S3: 170mm, S4-S6: 200mm
Seat Post Diameter:	34.9mm
Seat Post Clamp Diameter:	38.6mm
Seat:	Specialized Bridge Comp, Hollow Cr-mo rails, S2: 155mm, S3-S6: 143mm
Shifters:	SRAM AXS POD Controller

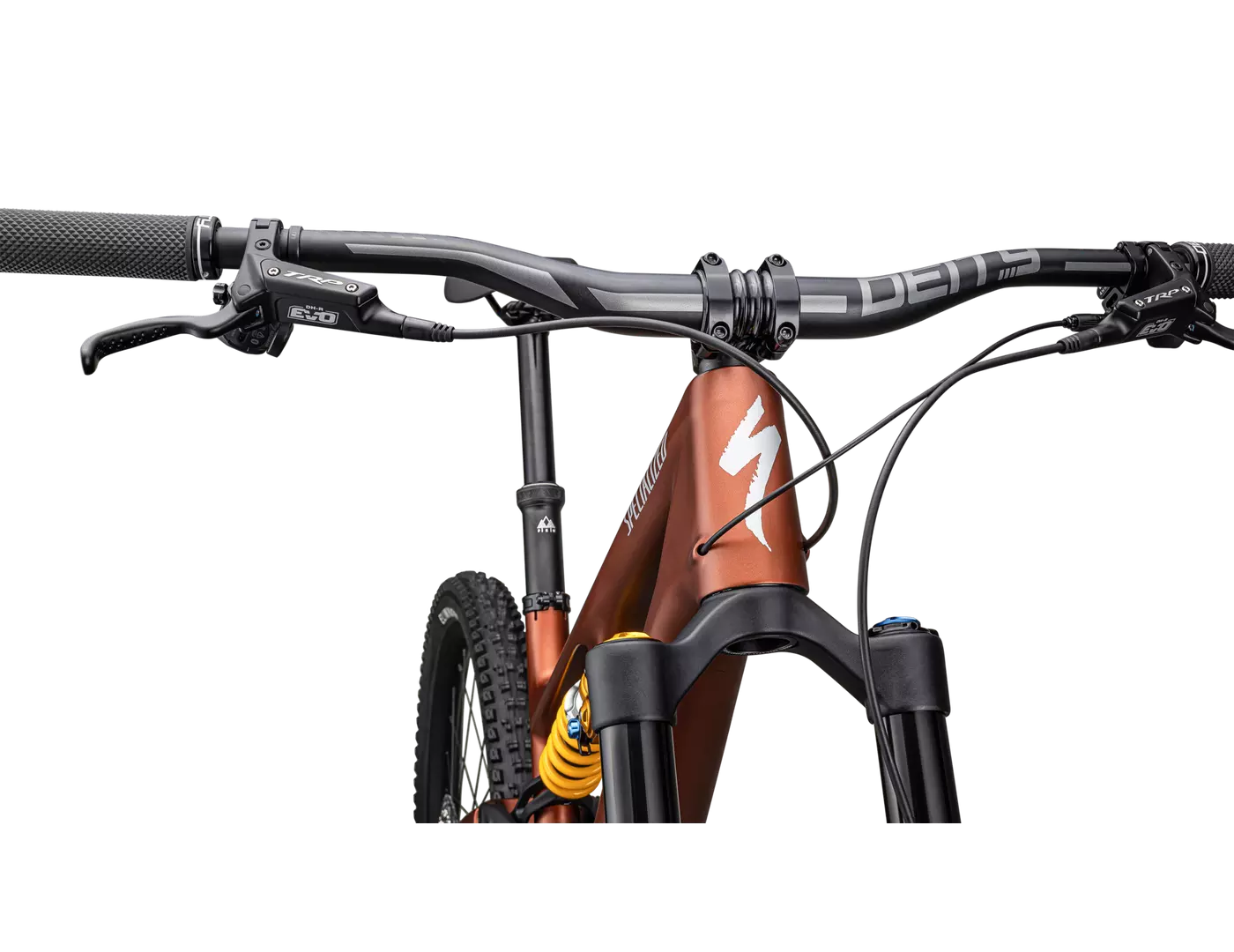

Handlebar:	Deity, Racepoint, 5-degree upsweep, 9-degree backsweep, 810mm width, S2: 25mm rise; S3-S6: 38mm rise
Stem:	Deity, 35mm clamp, 35mm length
Grips:	Diety, Supracush, Black
Brakes:	TRP DH-R EVO, 4-piston caliper, hydraulic disc, Front: 220mm | Rear: 203mm
Water Bottle Cage Mounts:	SWAT Bottle Storage
Intended Use:	Trail/AM
Warranty:	2 years or Lifetime with registration

Size	S2	S3	S4	S5	S6
Reach	420	445	470	495	525
Stack	621	630	644	657	671
Top Tube	574	596	625	649	678
Wheelbase	1186	1216	1247	1288	1325
Head Tube°	64°	64°	64°	64°	64°
Head Tube	100	110	125	140	155
Seat Tube°	76.5°	76.5°	76°	76°	76°
Seat Tube	385	405	425	445	465
BB Height	340	340	340	340	340
BB Drop	35	35	35	35	35
Standover	751	745	745	745	751
Chainstay	432	432	432	442	442
Trail	134	134	134	134	134
Max Seatpost Insertion	245	255	255	285	285
