SRAM

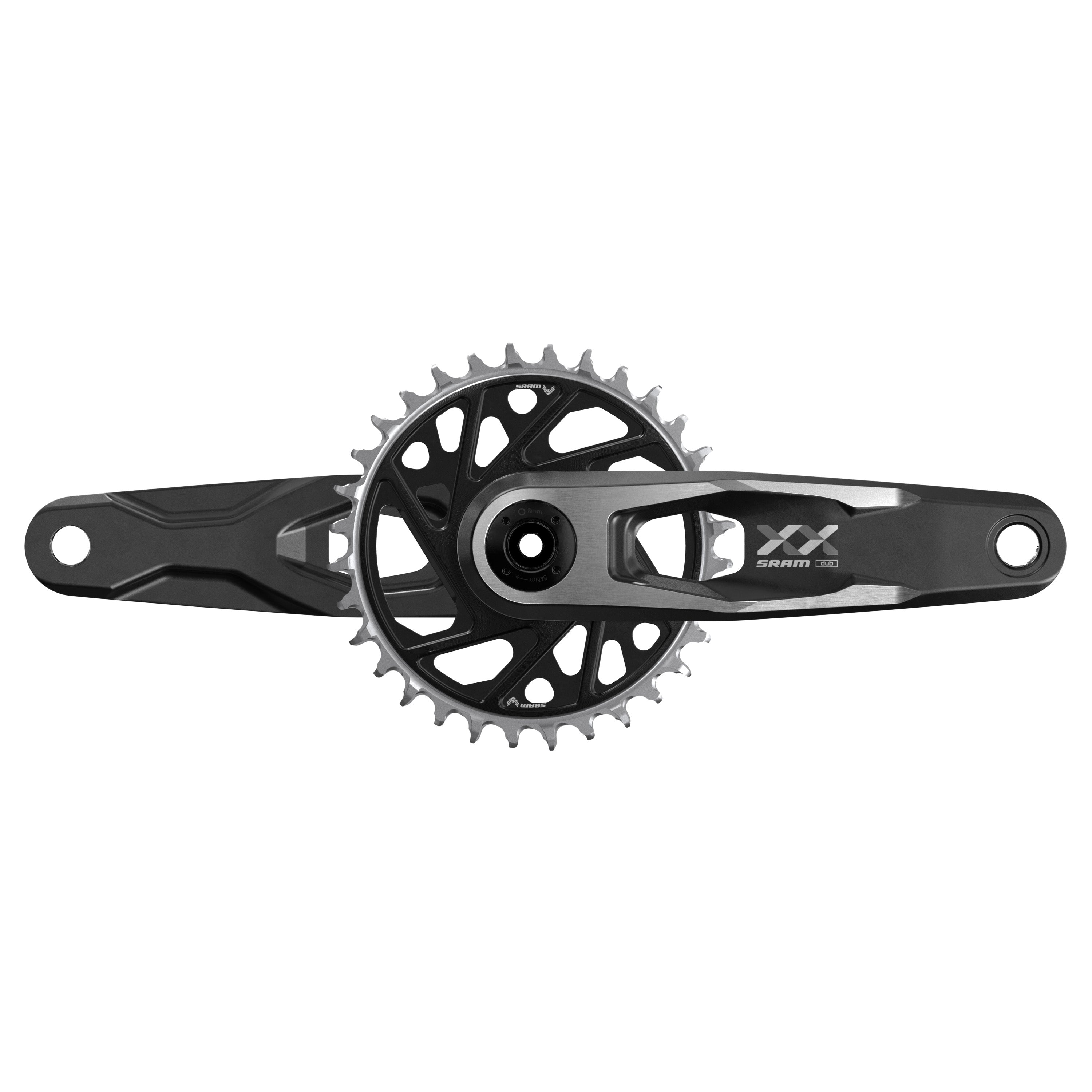

XX DH Transmission T-Type Crankset - 55mm CL - 34T
XX DH Transmission T-Type Crankset - 55mm CL - 34T
150mm
Fanatik Bike
1812 N. State St.
Bellingham WA 98225
United States
Every ride deserves a little extra. With our Fanatik Rewards program, you'll earn points on every purchase that can be redeemed for discounts on future orders. It's our way of saying thanks for choosing Fanatik and keeping you stoked for the next adventure. Learn more.
Choose options
Every ride deserves a little extra. With our Fanatik Rewards program, you'll earn points on every purchase that can be redeemed for discounts on future orders. It's our way of saying thanks for choosing Fanatik and keeping you stoked for the next adventure. Learn more.
Every ride deserves a little extra. With our Fanatik Rewards program, you'll earn points on every purchase that can be redeemed for discounts on future orders. It's our way of saying thanks for choosing Fanatik and keeping you stoked for the next adventure. Learn more.
Highlights
- Purpose-built DH crankset with best-in-class strength-to-weight ratio
- Machined high-wear and rock-strike zones for added resilience
- Progressive crank lengths down to 150mm for improved clearance and control
- DUB Wide spindle
- 55mm chainline optimized for 148mm rear hub spacing
- Compatible with Transmission chainring-mounted bash guards
Description
Uncompromising durability meets World Cup–level performance with the XX DH Transmission Crankset. Designed from the ground up for downhill racing, this purpose-built aluminum crank delivers best-in-class strength-to-weight performance for riders who demand total confidence when charging through rock gardens and high-speed compressions.
Inspired by SRAM’s most proven alloy crank designs, the XX DH crankset features robust arms with strategically machined surfaces in high-wear and rock-strike zones to improve impact resistance and keep your cranks looking fresh for longer. Progressive crank lengths down to 150mm give gravity riders more clearance, improved bike handling, and optimized fit for aggressive terrain.
Built around a DUB Wide spindle with a 55mm chainline, the XX DH Transmission crankset is optimized for modern 148mm rear hub spacing, delivering ideal drivetrain alignment and maximum durability for today’s downhill race bikes.
If you need the XX DH Transmission Crankset for an 83mm bottom bracket, you can find it here.
| Crankarm Material: | Aluminum |
| Spindle Material: | Aluminum |
| Spindle Diameter: | 28.99mm - DUB |
| Chainring Mount: | SRAM 8-bolt Direct Mount |
| Chainline: | 55mm |
| Chainring Included: | Yes |
| Chainring Size: | 34T |
| Intended Use: | DH/Freeride/Enduro |
| Warranty: | 5 year |
