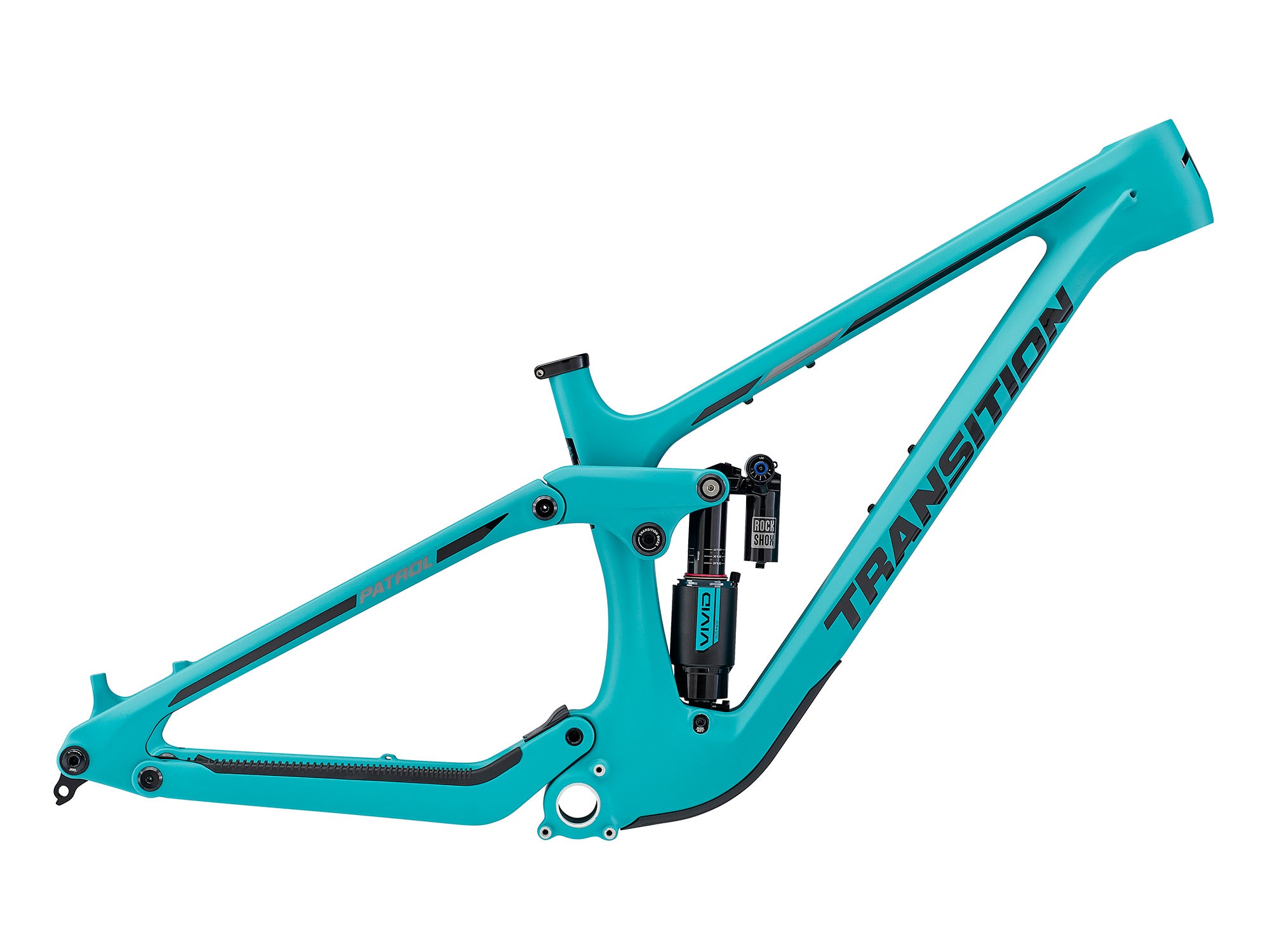

Transition Patrol Carbon Frame - 2025
The mixed wheel Patrol has a new haircut but is still down for anything and truly unapologetic when it comes to shredding trail. Being one of the longest standing bikes in Transition's lineup, it was the obvious choice to mix it up. Updated geometry to accommodate the 29" front / 27.5" rear wheels and revised suspension tune might just make you ride all day, and then all night. Jibbing, jumping, pumping and hooting your way down the trail, the updated Patrol loves to party. From bike parks to your local trails, the Patrol isn't concerned with where you ride but rather how much fun you are having.
Tech Specs
| Frame Material: | Carbon |
| Wheel Size: | MX (29"/27.5") |
| Front Suspension Travel: | 160-170mm |
| Rear Suspension Travel: | 160mm |
| Rear Shock: | Fox Float X2 Factory 2-Pos |
| Rear Shock Size: | 205mm x 60mm |
| Rear Shock Hardware: | Trunnion Mount Top / 30mm x 8mm Bottom |
| Rear Axle Width: | 12x148mm Boost |
| Included Headset: | FSA NO.55R/57 |
| Headset Standard: | ZS56mm/ZS56mm |
| BB Standard: | 73mm BSA |
| ISCG Tabs: | ISCG '05 3-Bolt |
| Brake Mount Type: | Post-Mount 180mm |
| Max Rear Rotor Size: | 223mm |
| Maximum Chainring Size: | 34T |
| Chainline: | 52mm |
| Seat Post Diameter: | 31.6mm |
| Seat Clamp Diameter: | 37mm |
| Water Bottle Cage Mounts: | One |
| Intended Use: | AM/Enduro |
| Warranty: | Lifetime for original owner |
Specs subject to change without notice. Please check with manufacturer for the most up-to-date information.
Geometry
mm / inches
High Geo with 160mm fork
Low Geo with 160mm fork
Sizing
cm / ft
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Rider Height (cm) | 155 - 169 | 165 - 180 | 177 - 190 | 185 - 200 |
