Smuggler Carbon Frame - 2025
Smuggler Carbon Frame - 2025 Smuggler Carbon Frame - 2025

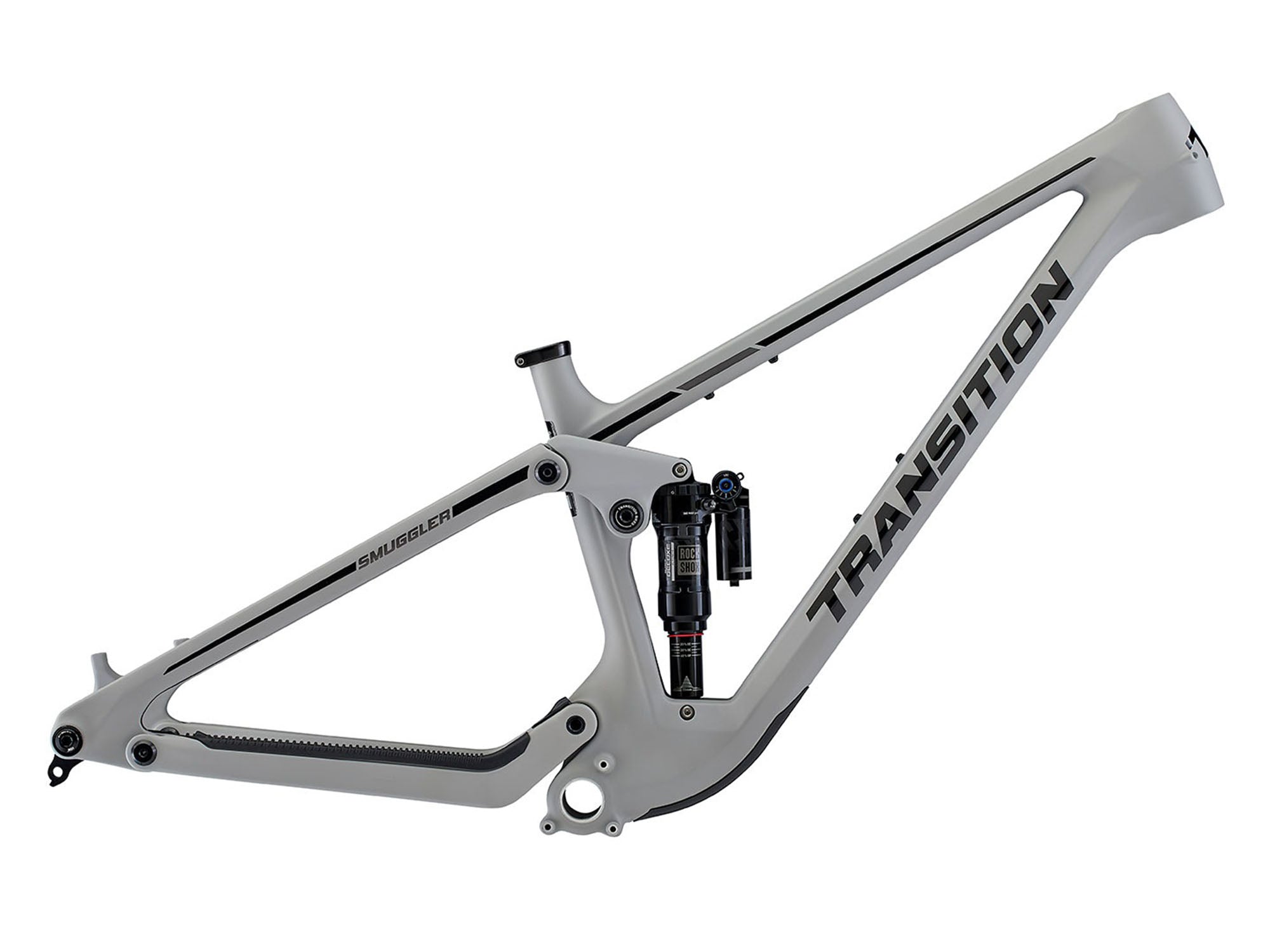

Transition Smuggler Carbon Frame - 2025

$3,299.00

01.25.10.3910

2458 grams
2568 grams
2678 grams
2788 grams
2898 grams
2458 grams
2568 grams
2678 grams
2788 grams
2898 grams
weight without shock

Out of Stock

Color
Size

Sizing Chart

-
+
This frame may only be sold as a complete custom bike
Transition complete custom bikes may only be shipped within the USA

Transition Smuggler Carbon Frame - 2025

Like the reliable tool you grab for every job, the Transition Smuggler is the go-to bike for any trail pointed up, down, and all around. With dual 29 inch wheels, 130mm rear and 140mm front travel, the Smuggler may just be the most versatile bike in Transition's lineup. A highly progressive leverage curve and comfortable, confidence-inspiring geo make it eager to keep going mile after mile while remaining surefooted in even the most technical terrain. Sitting squarely between the Spur and Sentinel in travel, geometry, and capability, it shares qualities of both. Inspiring and rewarding to hammer on your favorite singletrack, while never holding you back when the trail gets steep, the Smuggler will make sure you enjoy it all.

The Smuggler has been one of the most anticipated reincarnations of a previous model within the walls of Transition. There's plenty of aggressive terrain around Transition's headquarters that is more suited to the Spire, Patrol, or Sentinel, yet there’s been a lot of internal buzz about this generation Smuggler. It’s not all downhill in the PNW; there’s plenty of singletrack, technical trail, and meandering connective routes. The Smuggler is perfect for a day when your path comes across all of the above.

Transition went into the Smuggler project with the intention of creating a bike that had the quick and high-energy feel of the Spur, but with a bit more travel front and rear. What they ended up with was a perfect blend of the Spur and Sentinel in geometry, travel, capability, and weight.

The kinematics are similar to the Spur with a little over 27% progression. This provides a bottomless feel in a mid-travel package. Paired with the Fox Float X shock, the Smuggler can be set up to suit any rider's preference. Looking for a bit more progression? Just add a larger volume spacer. All of this equates to a super lively, active, and forgiving rear suspension feel in any terrain.

    Features

    • The new headtube has integrated bearing cups and no longer needs headset cups pressed into the frame. This allows the frame to have super clean cable ports at the front of the headtube with fully guided internal cable routing from the headtube to the port above the bottom bracket shell. From there, cables cleanly enter the rear triangle hidden from view.
    • Size specific chainstays. As the frame sizes grow, so do the chainstays to keep rider weight balanced on the bike.
    • 27% progression
    • Gear/Accessory mount beneath top tube
    • SRAM universal derailleur hanger
    • Included FSA integrated headset

    Tech Specs

    Frame Material: Carbon
    Wheel Size: 29"
    Front Suspension Travel: 140mm
    Rear Suspension Travel: 130mm
    Rear Shock: RockShox Super Deluxe Ultimate
    Rear Shock Size: 210mm x 50mm
    Rear Shock Hardware: 25mm x 8mm Bottom, 30mm x 8mm Top
    Rear Axle Width: 12x148mm Boost
    Included Headset: FSA No.42/48/ACB
    Headset Standard: IS42mm/IS52mm
    BB Standard: 73mm BSA
    ISCG Tabs: ISCG '05 3-Bolt
    Brake Mount Type: Post-Mount 180mm
    Max Rear Rotor Size: 203mm
    Maximum Chainring Size: 34T (based on 52mm Boost chainline)
    Chainline: 52-55mm
    Maximum Tire Size: 29 x 2.6
    Seat Post Diameter: 31.6mm
    Seat Clamp Diameter: 37mm
    Water Bottle Cage Mounts: One full size bottle and one accessory mount
    Intended Use: Trail/AM
    Warranty: Lifetime

    Specs subject to change without notice. Please check with manufacturer for the most up-to-date information.

    Geometry

    mm / inches

    with 140mm fork

    Size
    Seat Tube
    Top Tube
    Reach
    BB Height
    BB Drop
    Head Angle
    Seat Angle
    Chainstay
    Head Tube
    Wheelbase
    Stack
    SM
    360
    555
    430
    340
    35
    65
    79.3
    435
    100
    1179
    607
    MD
    390
    588
    460
    340
    35
    65
    78.6
    435
    110
    1213
    616
    LG
    430
    617
    485
    340
    35
    65
    78.1
    440
    120
    1247
    625
    XL
    460
    645
    510
    340
    35
    65
    77.6
    440
    130
    1277
    635
    XXL
    490
    670
    535
    340
    35
    65
    77.3
    440
    140
    1306
    644

    Sizing

    cm / ft

    Size SM MD LG XL XXL
    Rider Height (cm) 155 - 168 168 - 179 178 - 188 187 - 198 192 - 204
    Transition Smuggler Carbon Frame - 2025: Slab Grey / SM: 01.25.10.3910 - Slab Grey / MD: 01.25.10.3912 - Slab Grey / LG: 01.25.10.3914 - Slab Grey / XL: 01.25.10.3916 - Slab Grey / XXL: 01.25.10.3918 - Juniper / SM: 01.25.10.3911 - Juniper / MD: 01.25.10.3913 - Juniper / LG: 01.25.10.3915 - Juniper / XL: 01.25.10.3917 - Juniper / XXL: 01.25.10.3919
