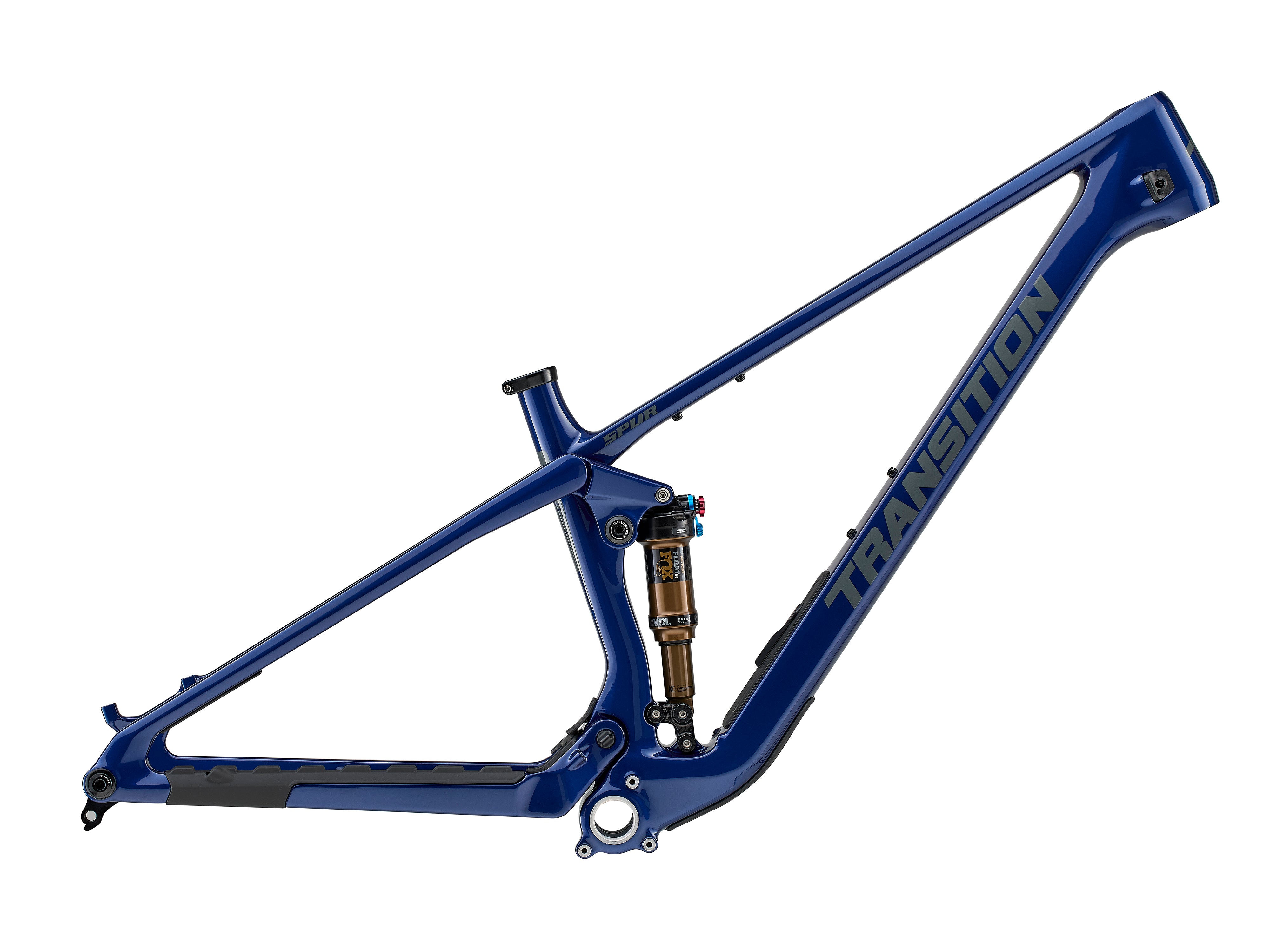

Spur V2 Carbon Frame
Spur V2 Carbon Frame
Nightshade / SM
Fanatik Bike
1812 N. State St.
Bellingham WA 98225
United States
Choose options
Spur
Highlights
- Now designed around 130mm fork

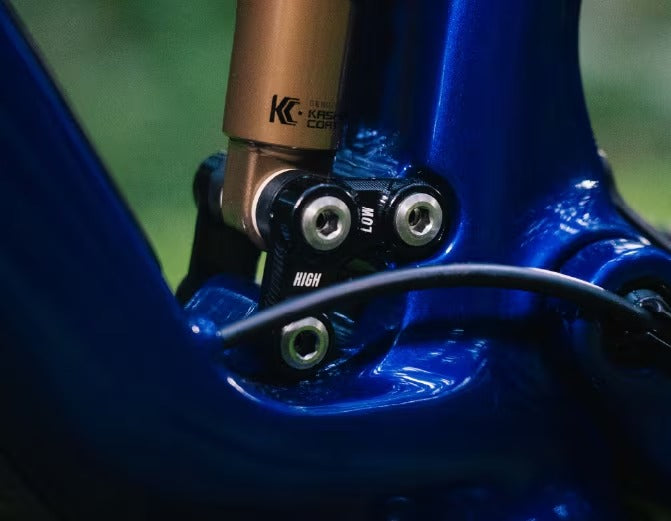

- Same 120mm out back, but now with geometry adjustment to adjust HTA by .5* and BB by 7mm

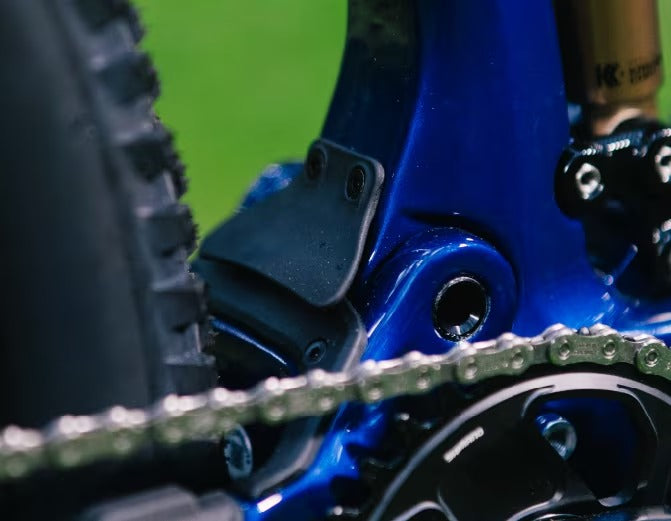

- Loam Hat is for keeping that pesky dirt out of hard to reach places and increasing bearing life of main pivot.

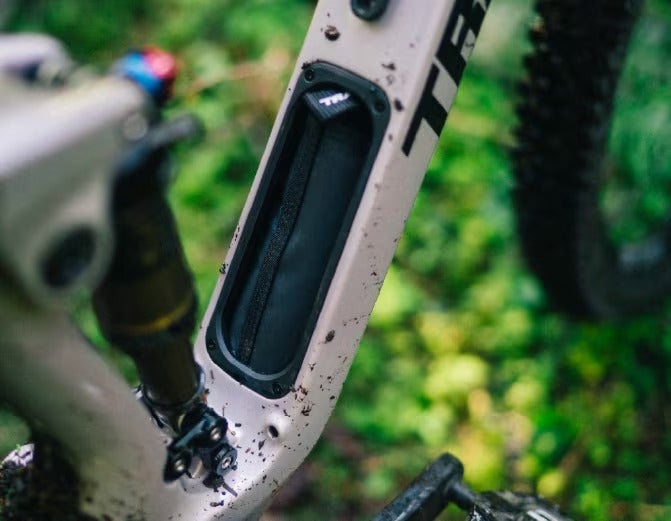

- B.O.O.M Box internal frame storage to hold your burrito or other munchies.

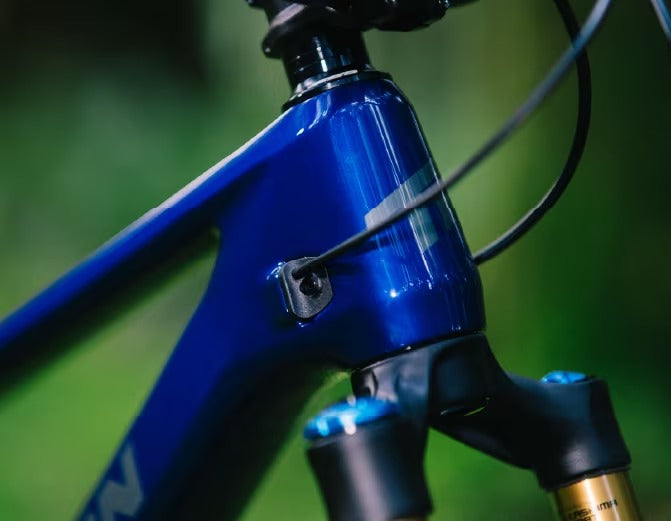

- Fully guided internal cable routing and new headtube cable ports keep things quiet
Description
The Transition Spur V2 is the cross-country bike that refuses to be boxed in. Now featuring 120mm of progressive rear travel paired with 130mm up front, the updated Spur blurs the line between XC race machine and aggressive downcountry trail bike. It’s lightweight and razor-sharp on climbs, yet confident and composed when the trail points down. Fast enough for race day and versatile enough for everyday trail duty, the Spur delivers pure singletrack performance without compromise.
For V2, Transition refined everything that made the original special while adding meaningful upgrades. A longer 130mm front end built around the latest Fox 34 Float SL increases confidence on modern, technical courses without adding unnecessary weight. The proven flex-stay suspension design remains, offering a highly progressive leverage curve that feels supple off the top and bottomless when pushing hard. A new geo-adjust at the lower shock mount allows riders to fine-tune head angle by 0.5° and bottom bracket height by 7mm, maintaining that perfect balance of enduro-inspired speed and XC pedaling efficiency.

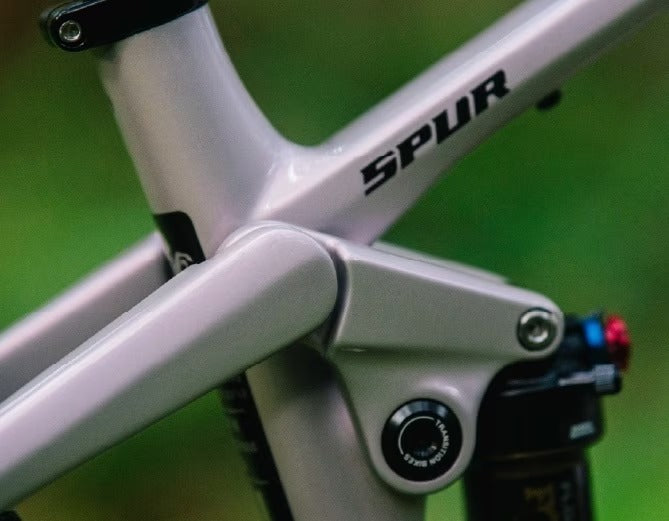

Beyond suspension, the Spur V2 gains smart rider-focused details like the B.O.O.M. Box internal frame storage, fully guided internal cable routing with updated head tube ports, and hidden linkage hardware for a cleaner aesthetic and improved durability. Size-specific geometry ensures a dialed ride feel across the range, while the evolved industrial design keeps the Spur looking as fast as it rides. Playful, lively, and unapologetically quick, the Spur V2 is built for riders who want to charge climbs, rail corners, and turn every trail feature into an opportunity for speed and fun.
| Frame Material: | Carbon |
| Wheel Size: | 29" |
| Front Suspension Travel: | 130mm |
| Rear Suspension Travel: | 120mm |
| Rear Shock: | Fox Float SL Factory |
| Rear Shock Size: | 190mm x 45mm |
| Rear Shock Hardware: | 30mm x 8mm Top and Bottom |
| Rear Axle Width: | 12x148mm Boost |
| Included Headset: | FSA No.42/48/ACB |
| Headset Standard: | IS42mm/IS52mm |
| BB Standard: | 73mm BSA |
| ISCG Tabs: | ISCG '05 3-Bolt |
| Brake Mount Type: | Post-Mount 160mm |
| Min Rear Rotor Size: | 160mm |
| Max Rear Rotor Size: | 200mm |
| Maximum Chainring Size: | 36t |
| Maximum Tire Size: | 29" x 2.4" |
| Seat Post Diameter: | 31.6mm |
| Seat Clamp Diameter: | 37mm |
| Frame Storage: | Large Internal frame storage with easy access door |
| Frame Storage Bag: | Two supplied gear bags with organization pockets |
| Water Bottle Cage Mounts: | 1 on downtube |
| Intended Use: | XC |
| Warranty: | Lifetime for original owner |
High setting
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Reach | 430 | 460 | 485 | 510 |
| Stack | 607 | 616 | 626 | 640 |
| Top Tube | 570 | 603 | 631 | 660 |
| Wheelbase | 1163 | 1197 | 1231 | 1262 |
| Head Tube° | 66° | 66° | 66° | 66° |
| Head Tube | 100 | 110 | 120 | 135 |
| Seat Tube° | 77.3° | 76.8° | 76.4° | 76° |
| Seat Tube | 360 | 390 | 430 | 460 |
| BB Height | 335 | 335 | 335 | 335 |
| BB Drop | 40 | 40 | 40 | 40 |
| Chainstay | 434 | 434 | 439 | 439 |
