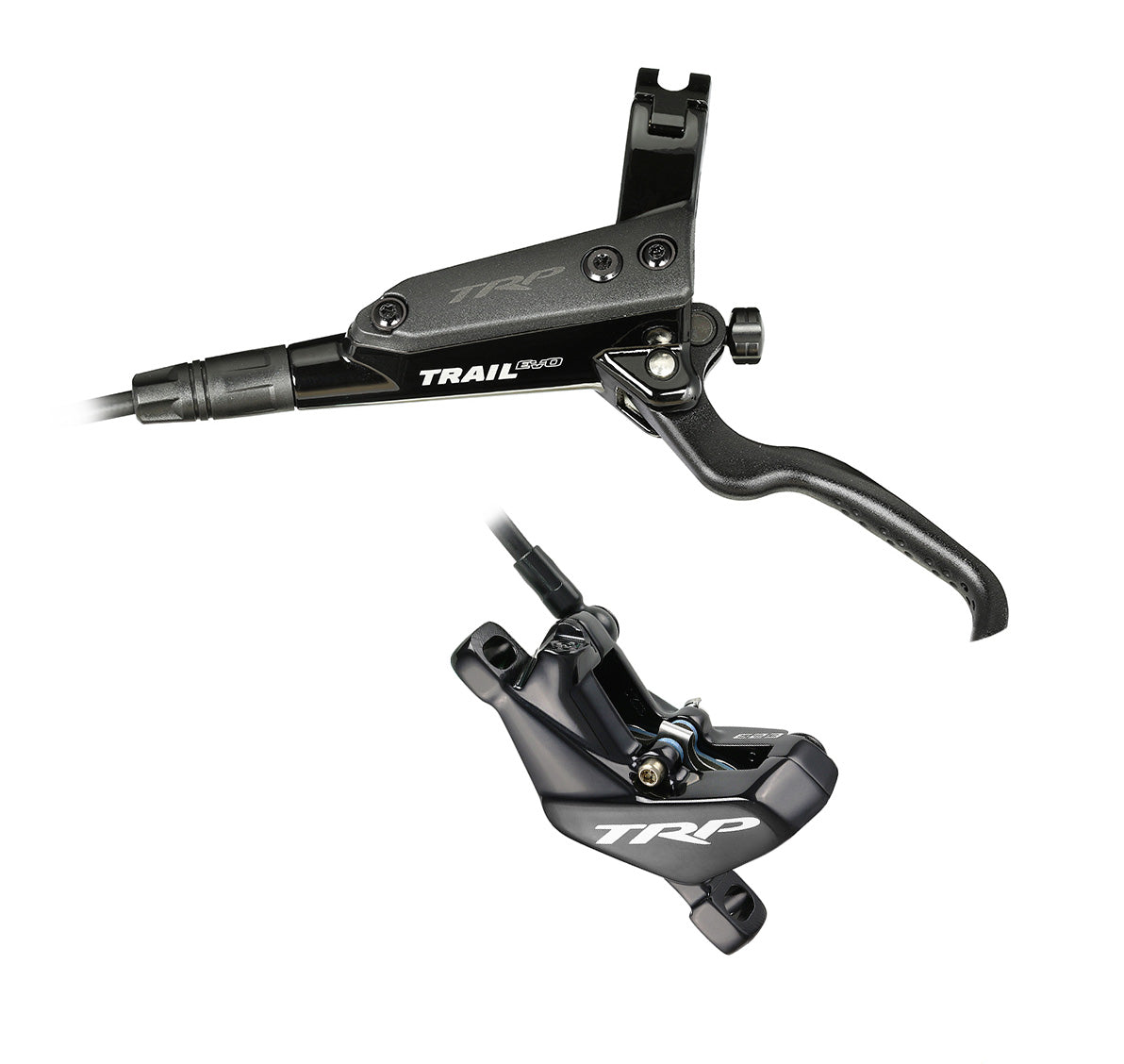

TRP Trail EVO Disc Brake

Born from technology proven in World Cup DH and tuned for the demands of Trail bikes and E-MTB’s, the Trail EVO takes modulation and braking power to an entirely new level of control.

New ergonomic lever-blade, newly formulated brake pad compounds, new high-performance hydraulic oil, new 5 mm brake hose-system, newly designed and CNC-machined adapters, new selection of 2.3 rotors, newly designed oil flow inside the calipers, and a 10mm master cylinder piston lift the overall performance of the Trail EVO to this new standard of performance.


    • Ergonomic lever blade
    • 10mm internal brake lever piston
    • Hinged lever clamp
    • 5mm brake hose
    • Top loading pad design
    • Made for 2.3mm thick rotors
    • New resin brake pads

    Tech Specs

    Fluid: Mineral Oil
    Pistons: Four
    Lever Reach Adjust: Yes
    Pad Contact Adjust: No
    Shifter Compatibility: SRAM Matchmaker X (requires extra parts)
    Reversible Lever Body: No
    Lever Material: Aluminum
    Hose Length: 800mm
    Intended Use: AM/Trail
    Warranty: 2 years

    Specs subject to change without notice. Please check with manufacturer for the most up-to-date information.

    TRP Trail EVO Disc Brake: Left / Front: 4717592034646 - Right / Rear: 4717592034653
